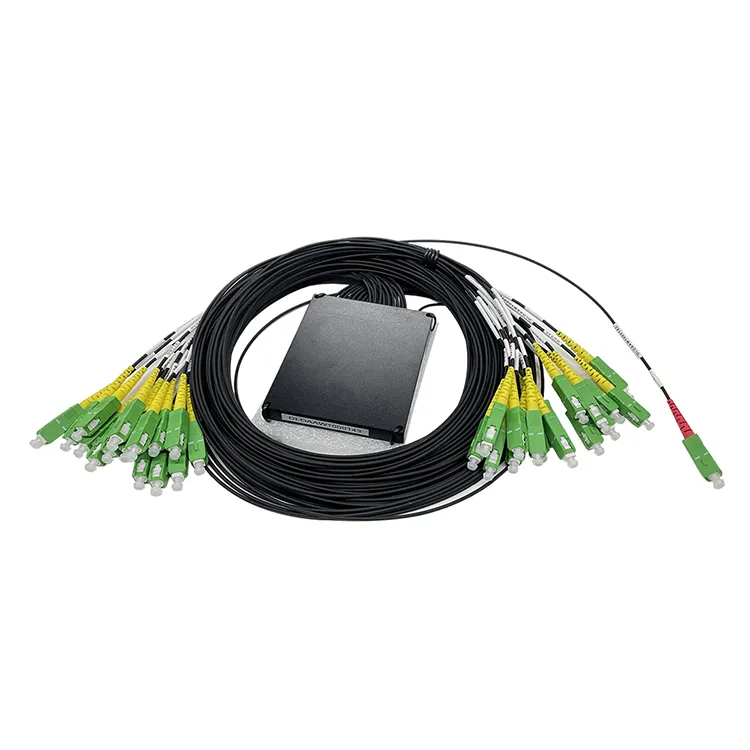

Industrial-Grade 1X32 Splitter Module G657A1 2mm CFSC SCAPC Rugged PLC Splitter

Model Number: 1x32 Industrial-Grade PLC Splitter

Jackets: 2mm outside diameter

Cable type: Fiber Ruggedized 2.0mm

Fiber Type: BIF- Bend Insensitive Fiber (High Bend Radius) > G.657.A1

This 1x32 PLC Splitter is a versatile optical component manufactured in strict accordance with established industry standards, designed to uniformly distribute a single input optical signal into thirty-two output channels. Its key advantage lies in the combination of a reinforced 2.0mm pigtail and an SC/APC connector, which ensures highly reliable and low-loss signal distribution for Passive Optical Network (PON) applications, even within complex field environments.

Highlights at a glance

* Ultra-Low Insertion Loss: Optimized planar lightwave circuit technology ensures minimal signal attenuation across all 32 ports.

* Industrial-Grade Reliability: Wide operating temperature range (-40°C to +85°C) for stable deployment in any environment.

* Passive Network Solution: Cost-effective signal distribution without power requirements, perfect for large-scale FTTH expansion.

Industrial-Grade 1X32 Splitter Module G657A1 2mm CFSC SCAPC Rugged PLC Splitter

Industry Standard
*  Telcordia GR-326-CORE, GR-1209-CORE & GR-1221-CORE
*  ITU-T G.671/2012, IEC 61753/ ITU-T G.671
*  TIA/EIA-568-C.3
*  IEEE 802.3z
*  RoHs Compliant

Jackets
 *  2mm outside diameter
 *  Black
 *  Extended temperature

Features

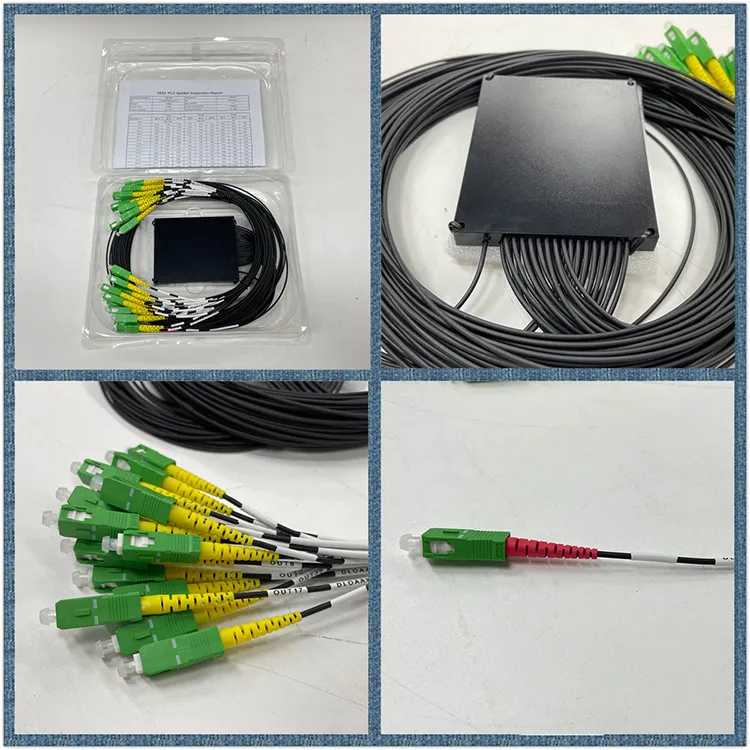

 *  Input easily visible by red boot
 *  Each split/output has the serial number of the splitter
 *  Customer - defined specifications
 *  Low insertion loss
 *  High uniformity
 *  High reliability
 *  Fiber Type: BIF- Bend Insensitive Fiber (High Bend Radius) > G.657.A1
 *  Batch testing by Dorc Machine
 *  Customization: Length, packaging, bar coding, labeling, stocking programs, color and style of cable

Specification

1xN and 2xN Splitters
Operating Wavelength, nm	1260 ~ 1650
Directivity, dB	≥ 55
Optical Input Return Loss, dB	≥ 55
Polarization Dependent Loss, dB	≤ 0.3
Storage Temperature,˚C	.40 ~ 85 *
Operating Temperature,˚C	.40 ~ 85 *
Connectors	SC, SC/APC, LC, LC/APC

1xN Splitters
Type	1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss, dB	≤ 4.2	≤ 7.4	≤ 10.7	≤ 13.7	≤ 16.9	≤ 21.5
Uniformity, dB	≤ 0.6	≤ 0.8	≤ 1.0	≤ 1.2	≤ 1.5	≤ 2.0

2xN Splitters
Type	2x2	2x4	2x8	2x16	2x32	2x64
Insertion Loss, dB	≤ 4.2	≤ 7.6	≤ 10.9	≤ 14.2	≤ 17.5	≤ 21.5
Uniformity, dB	≤ 0.8	≤ 1.0	≤ 1.2	≤ 1.50	≤ 1.80	≤ 2.0

Application:

* FTTx (Fiber to the x): Distributes signals to subscribers' homes within Passive Optical Networks (PONs), such as EPON, GPON, and XGS-PON.

* CATV (Cable TV) Networks: Features high-quality signal transmission and low return loss characteristics, making it suitable for the distribution of broadcast signals.

* LAN/WAN/Data Centers: Serves as a critical component for fiber distribution, utilized in constructing fiber optic links for Local Area Networks (LANs), Wide Area Networks (WANs), and data centers.

* Fiber Optic Test Equipment: Used to measure and test optical power distribution within a system.

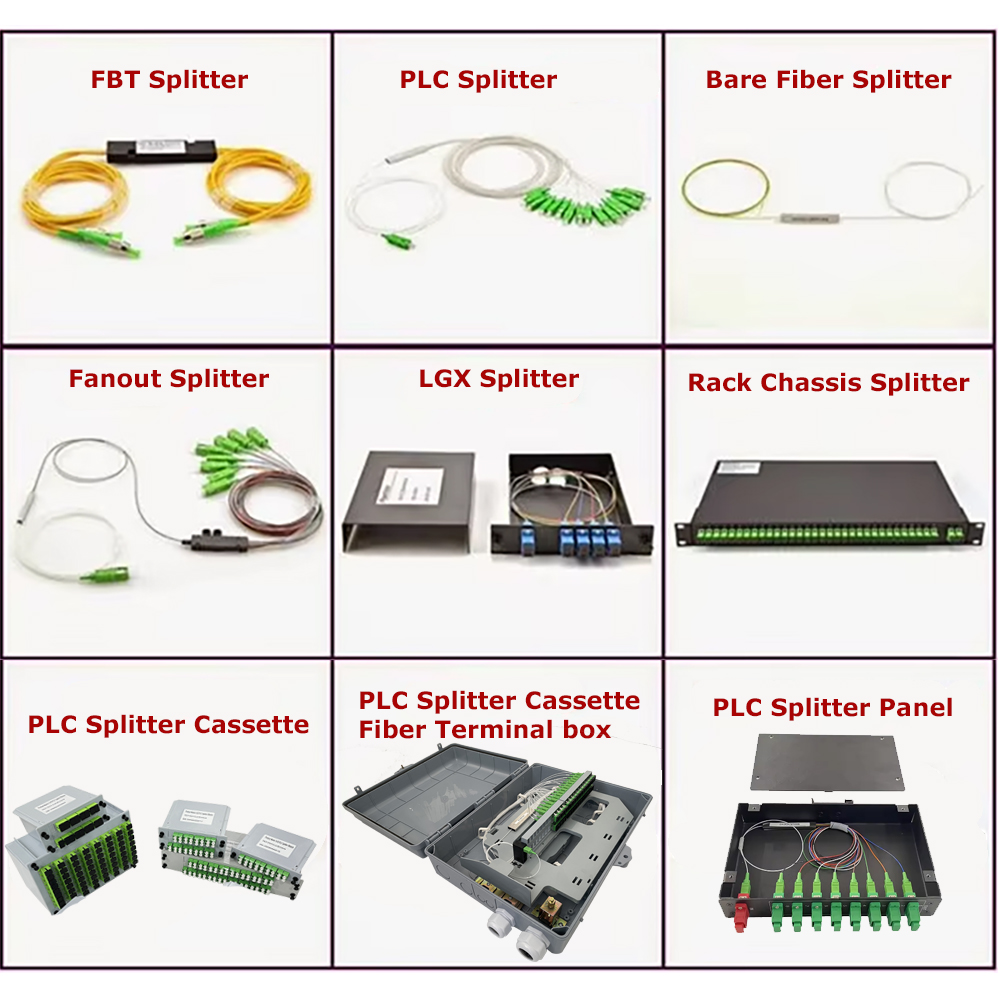

Other Fiber Optic Splitter
