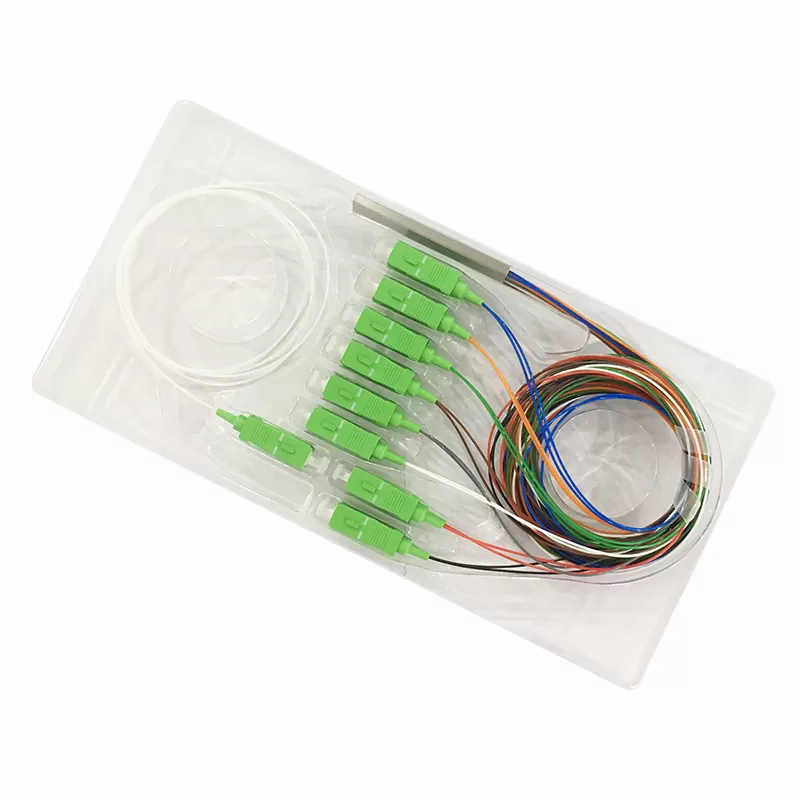

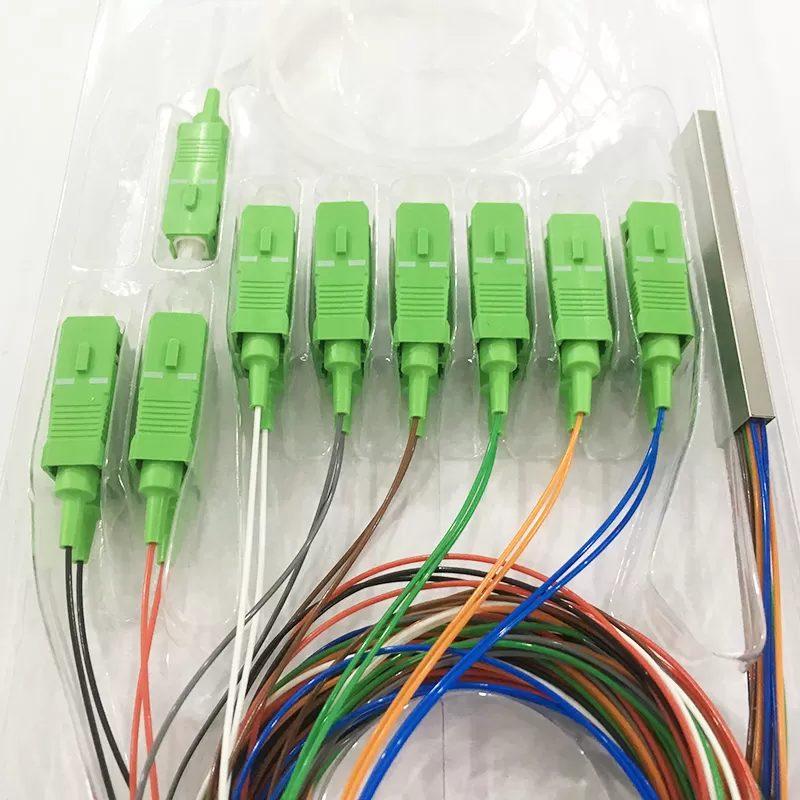

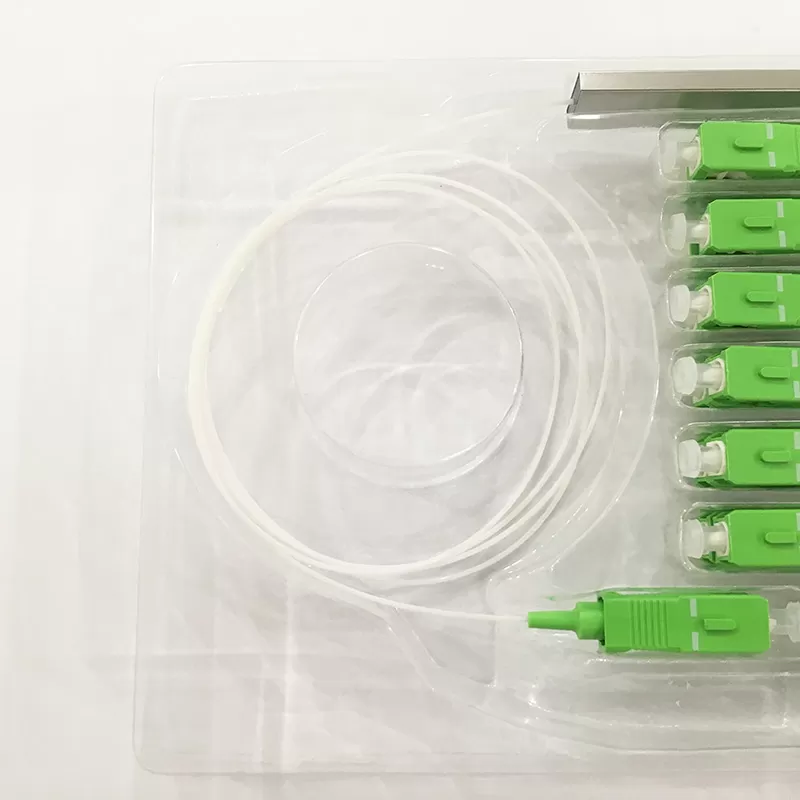

Model Number: Mini type 1x16 PLC Splitter
Insertion Loss: 7.5dB
Return Loss: ≥50dB
Working Temperature: -40~85℃
Storage Temperature: -40~85℃
Operating Wavelength: 1260-1650mm
Price range: USD 9.5~10.5
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Parameter | Specification | ||||
Operating Wavelength (nm) | 1260--1650 | ||||
Test Wavelength (nm) | 1310/1550 | ||||
Type | 1 X 2 | 1 X4 | 1X8 | 1X16 | 1X32 |
Insertion Loss (dB) Max. | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 |
Loss Uniformit(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 |
PDL (dB) Max | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
Dimensions (H*W*L)(nm) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 |
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 |
Return Loss (dB) Min | 55 | 55 | 55 | 55 | 55 |
Operating Temperature (℃) | -40~+85 | ||||
Storage Temperature (℃) | -40~+85 | ||||
Fiber Length | >1M | ||||
Tube color | Input: white 0.9mm PVC tube 1M / Output:white 0.9mm PVC tube 1M | ||||
Fiber Type | G657A1 fiber | ||||
Connector Type | None | ||||
Features
1. Low Insertion Loss/Low PDL/High Return Loss
2. Excellent Uniformity
3. Wide range of operating temperature
4. Telcordia GR-1209-CORE and GR-1221-CORE
reliability

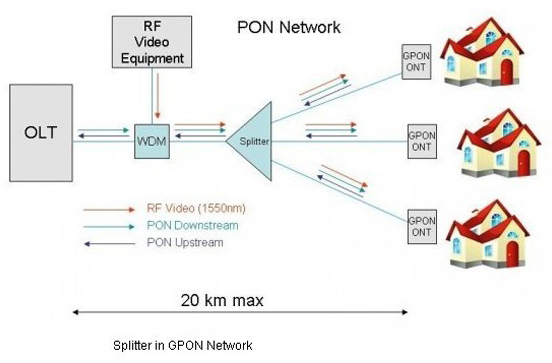

Application
1. Fiber to The Home(FTTH)
2. Passive optical networks(PON)
3. Local Area Networks(LAN)
4. Cable Television ( CATV)

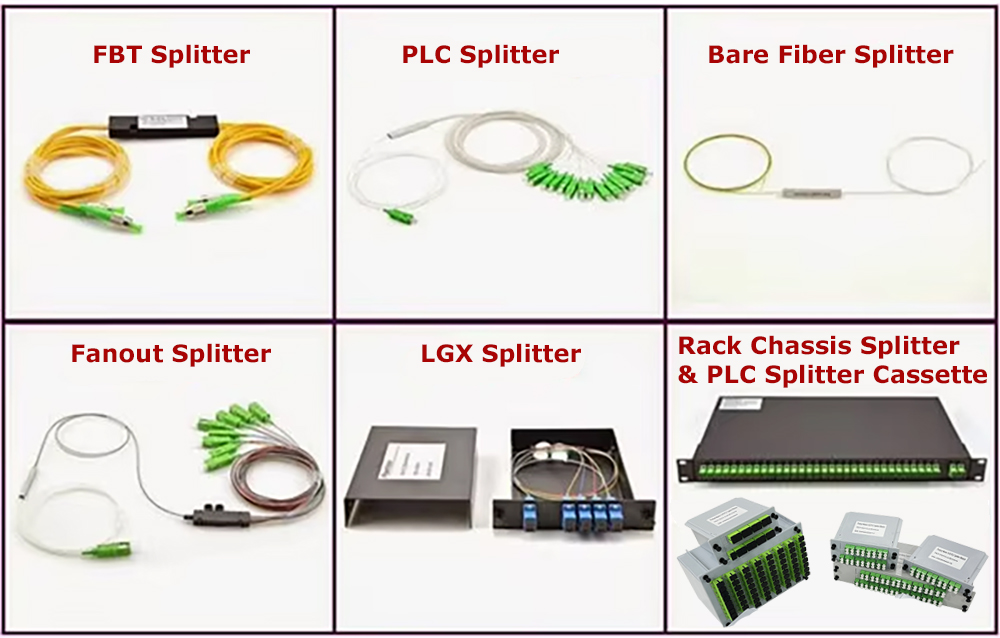

Other Fiber Optic Splitter
