Drop Cable Selection Guide - Choose the Right Cable for Your Application

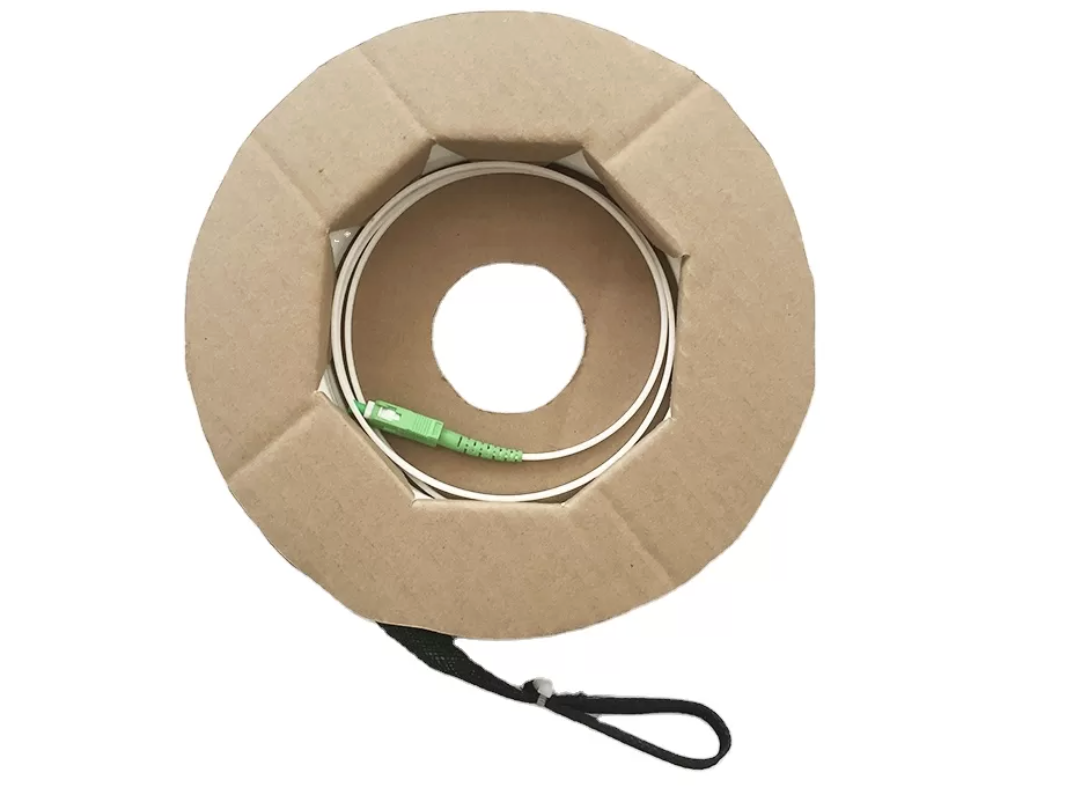

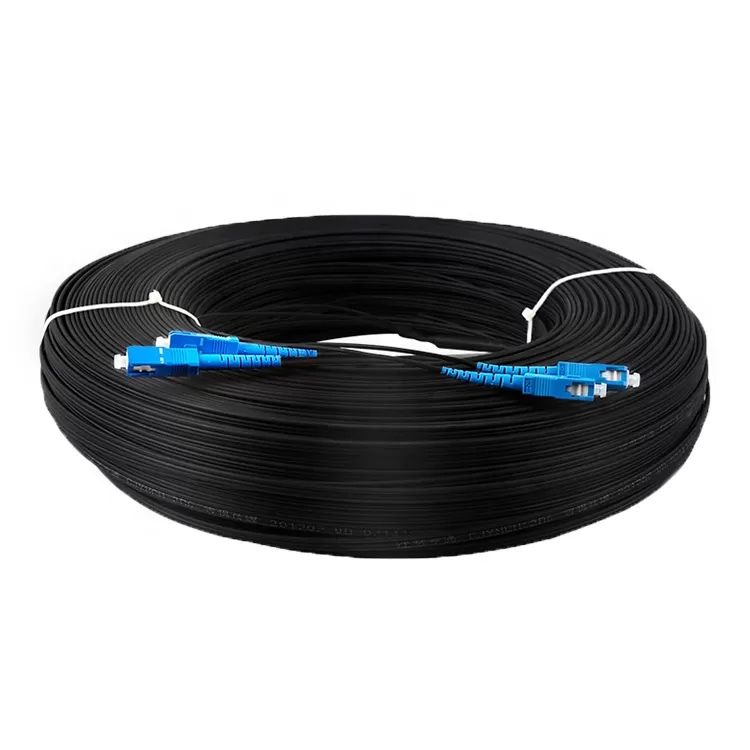

Round Drop Cable with Reel Patch Cord
Key Features:
Cardboard Reel Packing
Round Structure
Applications:
Indoor quick wiring
Temporary installation
Product Comparison Table
| Product Type | Structure Features | Installation Environment | Main Applications | |
|---|---|---|---|---|

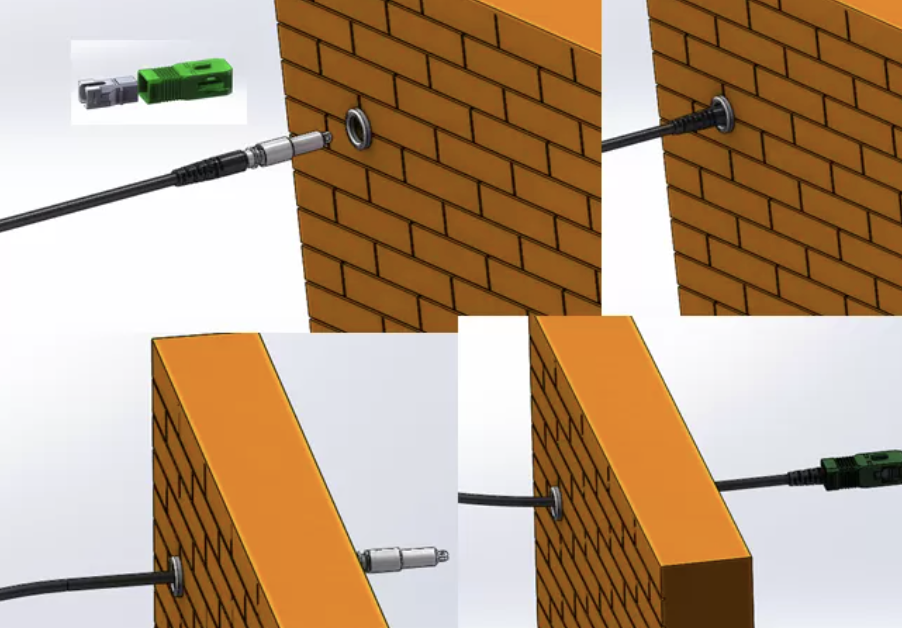

| Round Through-Wall | Round, Bullet connector | Conduit/Wall | Building entry penetration | |

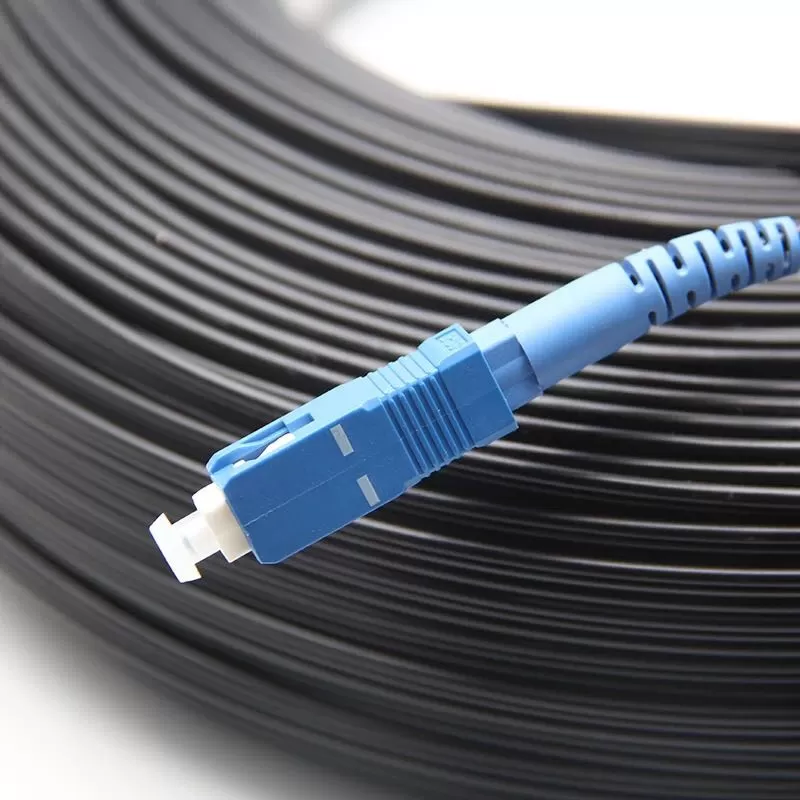

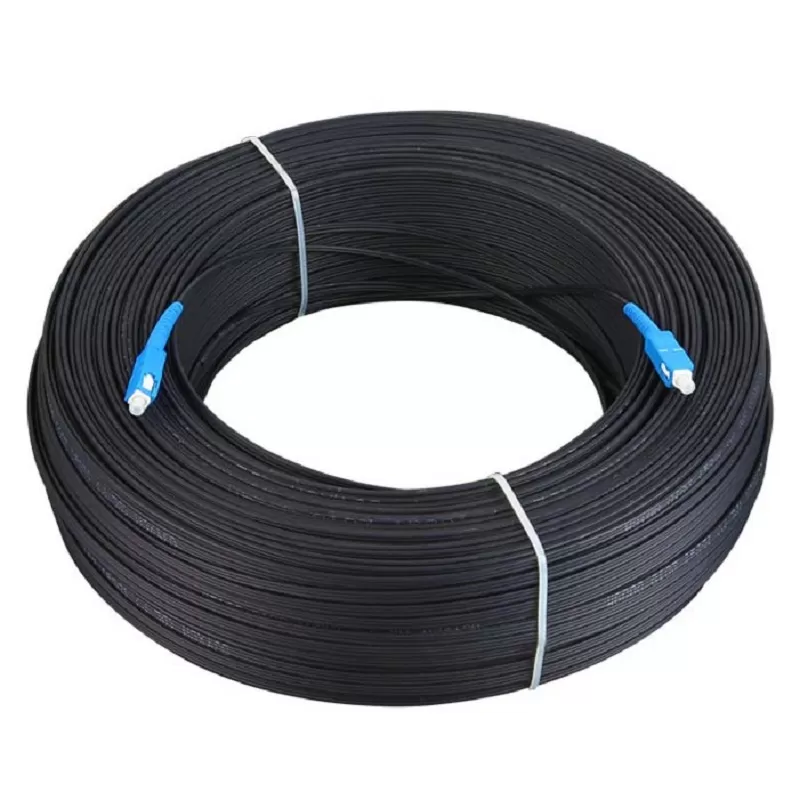

| Indoor Butterfly (Current) | Flat butterfly, No self-supporting | Indoor | Home/Office wiring | |

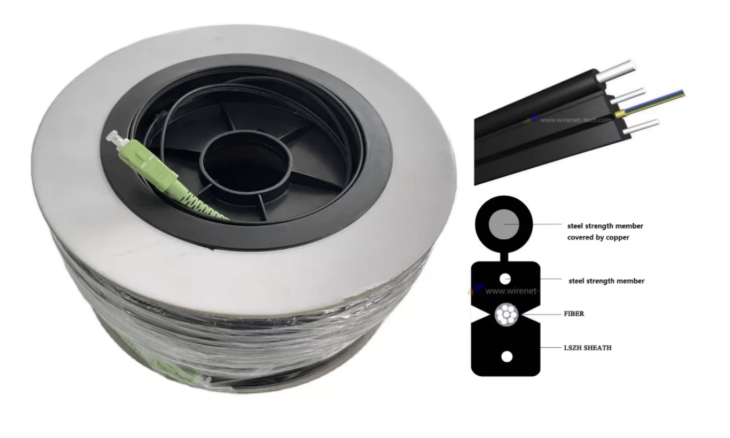

| Outdoor Self-Supporting | With steel wire, Weather resistant | Outdoor Aerial | Pole-to-pole aerial connection | |
| Round with Reel | Round, Cardboard reel packing | Indoor | Quick deployment/Bulk installation | |

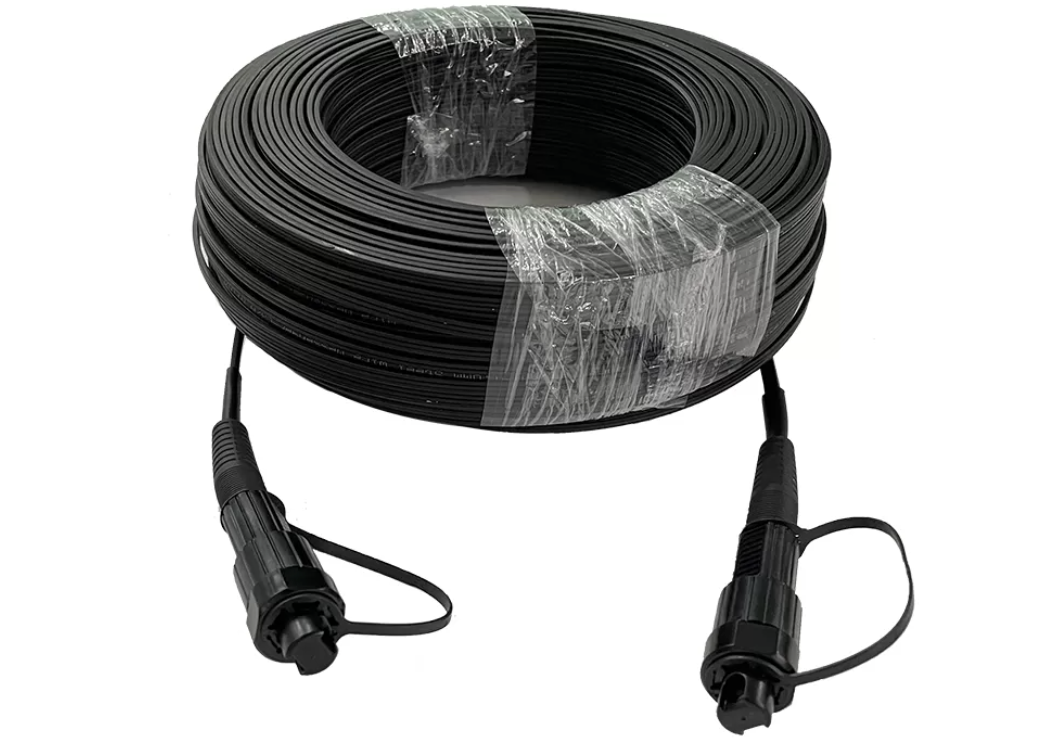

| Waterproof Type | IP68 waterproof, Duplex | Outdoor Waterproof | Hub to Sub connection | |

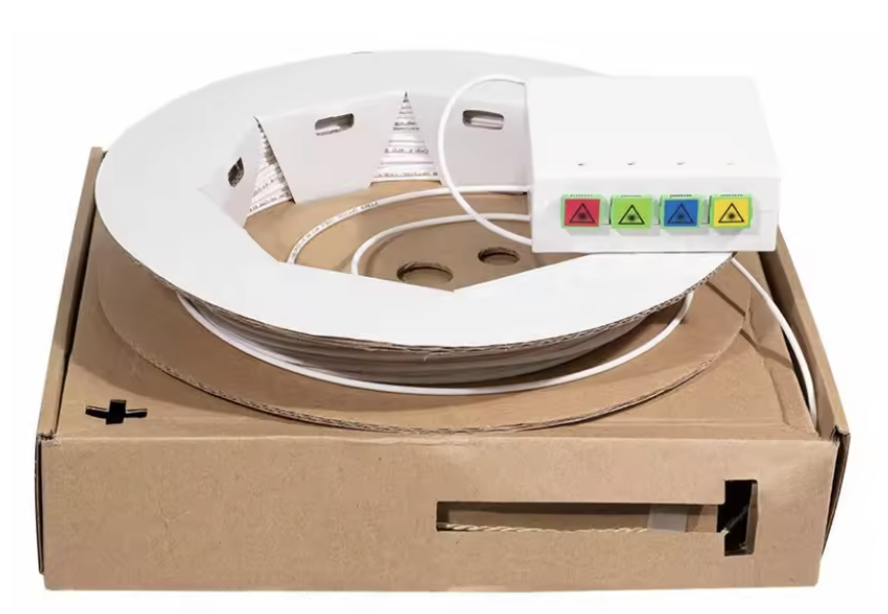

| Wall Box with Reel | Wall box, Reel design | Indoor Entry | Home installation convenience |
Product Data sheet
| 1.Connection data | |||||
| Test Item | Specification | Test Item | Specification | Test Item | Specification |
| Fiber Type | SM 9/125 G652A | Test Wavelength | 1310/1550nm | Insertion Loss | ≤0.3dB |
| Return Loss | UPC>50dB, APC>60dB | Durability | <0.1dB typical change, 1000 repeatability | ||

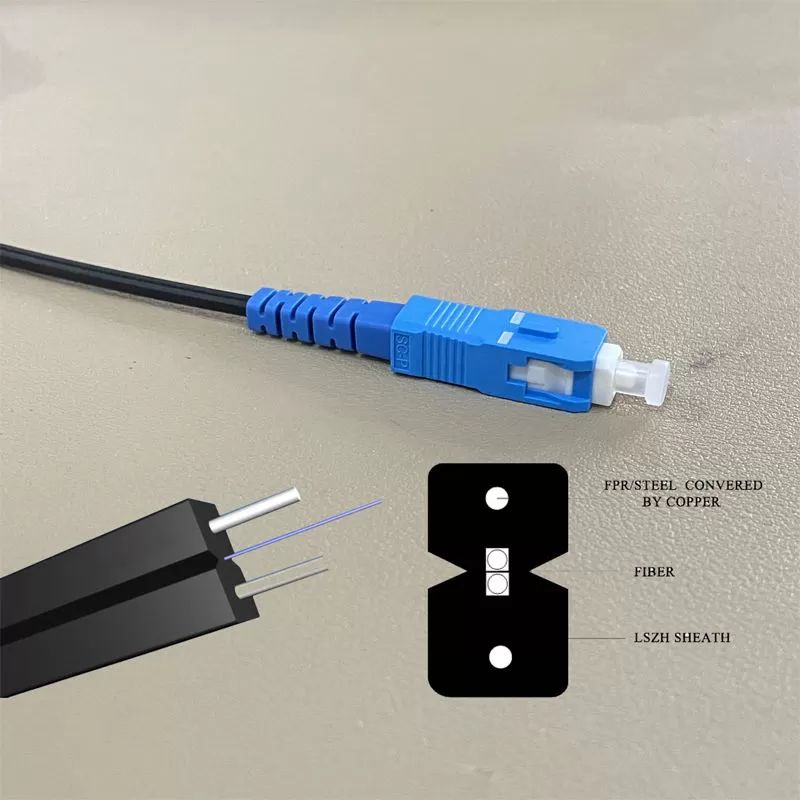

| 2 .Cable Construction Details | |||||
| Basic Cable Information | |||||
| No. of Fiber | 1F | Gross Weight | 8.5kg/km | Cable Diameter | 2.5(±0.1)×3.0mm(±0.1) |
| Single Mode Fiber Specifications | |||||
| Fiber Type | G657A1/A2 / G657B3 | MFD | 8.6～9.8μm | Fiber Color | Standard Spectrum |
| Cladding Diameter | 125±0.7μm | Cladding Non-circularity | ≤0.7% | Coating Diameter | 245±5μm |
Strength Member | |||||
| Material | FRP/Steel wire | Color | White/Silver | Diameter / Qty | 0.5mm / 2 pcs |
| Tight Buffer Layer | |||||
| Material | Nylon | Color | White/Customized | Diameter | 0.9mm |
| Outer Sheath | |||||
| Material | LSZH | Color | Black | Thickness | ≥0.5mm |
| 3 Cable Mechanical & Environment CharacteristicsCable Mechanical & Environment Characteristics | |||||
| Test Item | Condition | Specification | Test Item | Condition | Specification |
| Tensile Strength | Long Term | FRP40N/steel wire 60N | Crush Load | Long Term | 500N/100mm |
| Short Term | FRP80N/steel wire 100N | Short Term | 1000N/100mm | ||
| Bending Radius | Dynamic | 20D | Operating Temp. | -20℃～+70℃ | |
| Static | 10D | minimal fiber strain (<5%) | |||

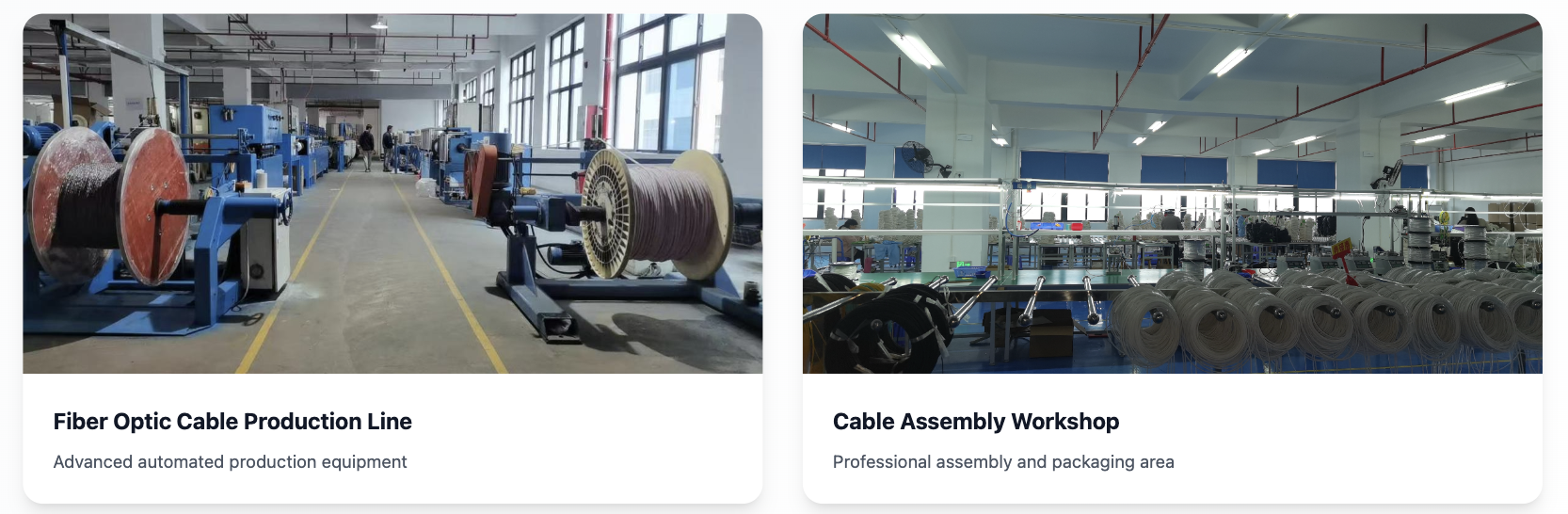

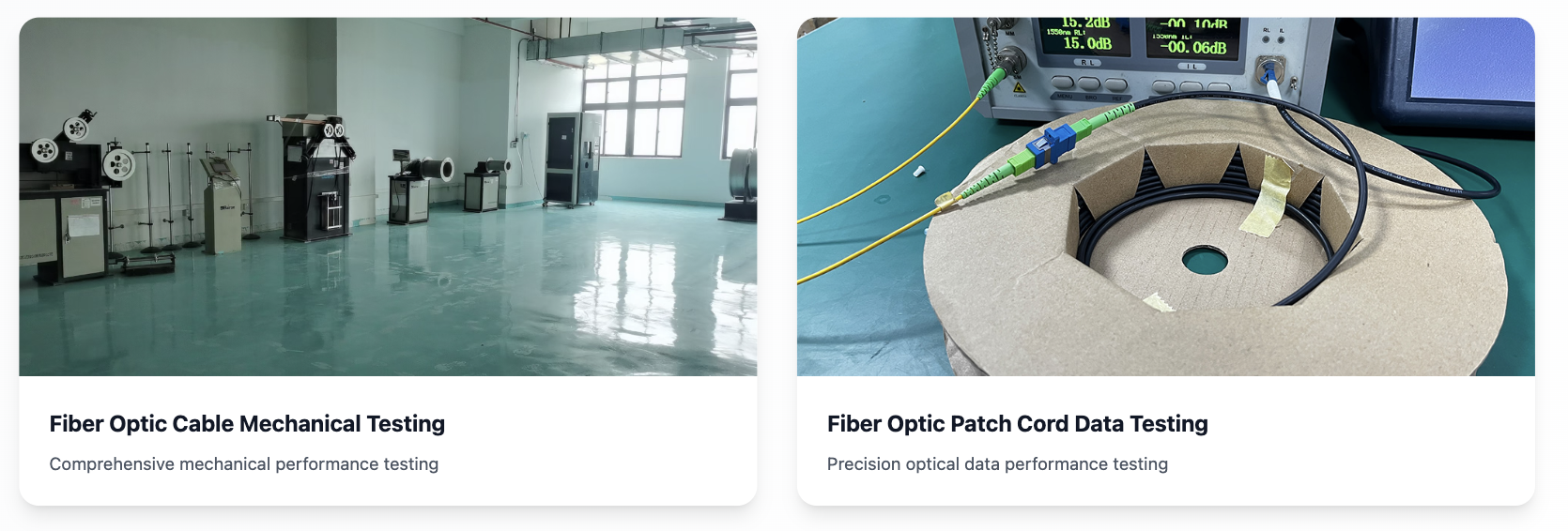

Production Excellence
