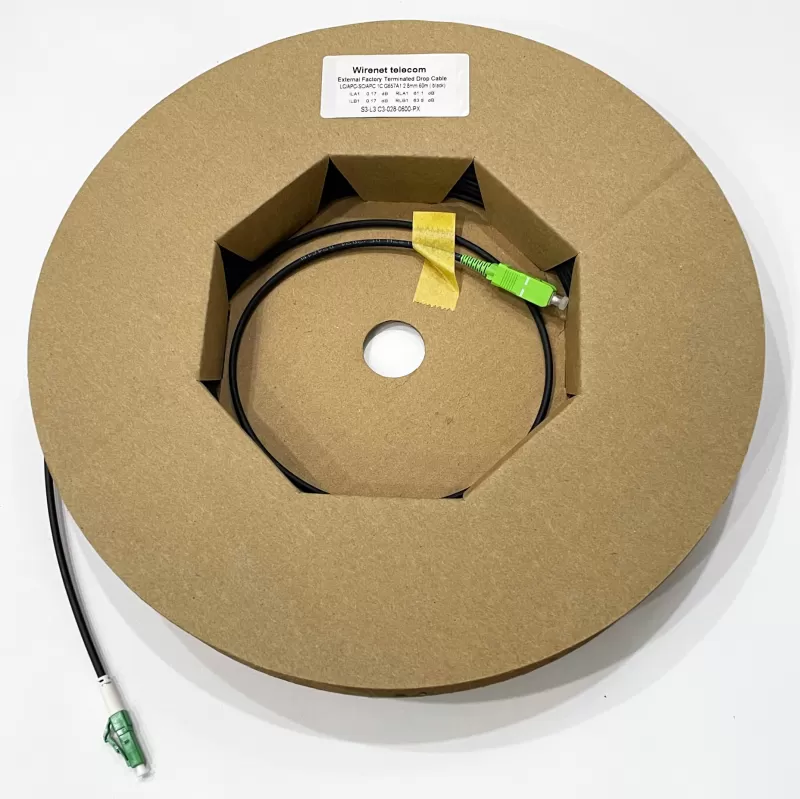

Model Number: SC/APC Fiber Drop Patch cord
Size: 28x28x4.5 cm
Insertion loss: <0.3dB
Return loss: APC>55dB, PC>50dB
Ferrule size: 2.5mm
Concentricity: 0.5um and 1.0um
Fiber Drop patch cord is used for fast connection of optical fiber signals between devices or between fiber optic patch panels, optical fiber terminal box, Fiber Distribution Box. Its outer sheath is usually made of LSZH (low smoke zero halogen) material, which is flexible, lightweight and resistant to bending.
Technical parameters
1, Single mode fibers (9/125 SM G652A)
2, Test wavelength: 1310/1550nm
3, Insertion Loss (Max): -0.3dB
4, Return Loss (RL): UPC>50
5, Durability: <0.1dB typical change,1000 repeatability
| NO | Item | Specifications | |||||
| G.657A1 | |||||||
| 1 | Cladding Diameter (μm) | 125±0.7 | |||||
| 2 | Cladding non-circularity (%) | ≤0.7 | |||||
| 3 | Core-cladding concentricity error (μm) | ≤0.5 | |||||
| 4 | Mode field Diameter @1310 (μm) | (8.6~9.5)±0.4 | |||||
| 5 | Cladding -coating concentricity error (μm) | ≤12.0 | |||||
| 6 | Coating Diameter(μm) | 245±0.5 | |||||
| 7 | Fiber Cutoff Wavelength (nm) | λccf ≤1260 | |||||
| 8 | Attenuation(max.) (dB/km) | 1310nm | ≤0.4 | ||||
| 1550nm | ≤0.3 | ||||||
| 9 | Bend Loss (dB) | Bend Radius | 10 | 15 | |||
| Bend Turns | 1 | 10 | |||||
| 1550nm | ≤0.75 | ≤0.25 | |||||
| 1625nm | ≤1.5 | ≤1.0 | |||||
| Items | Unite | Specifications |
| Minimum allowable tensilestrength(N)short term | N | 600 |
| Minimum allowable tensilestrength(N)long term | N | 200 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 5D |
| Operating Temperature | ℃ | -20~+60 |
| Storage Temperature | ℃ | -20~+60 |

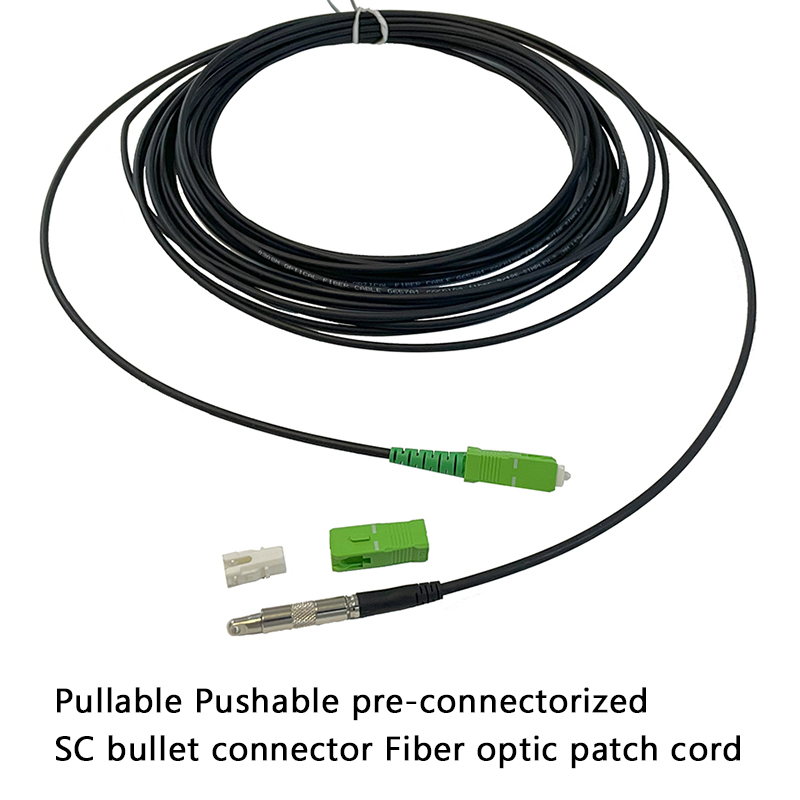

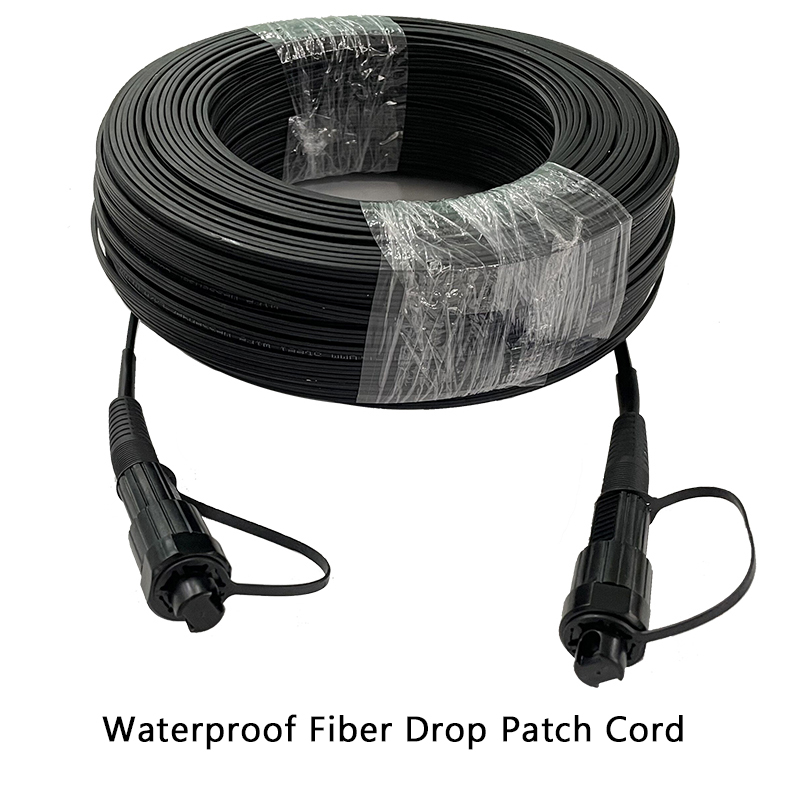

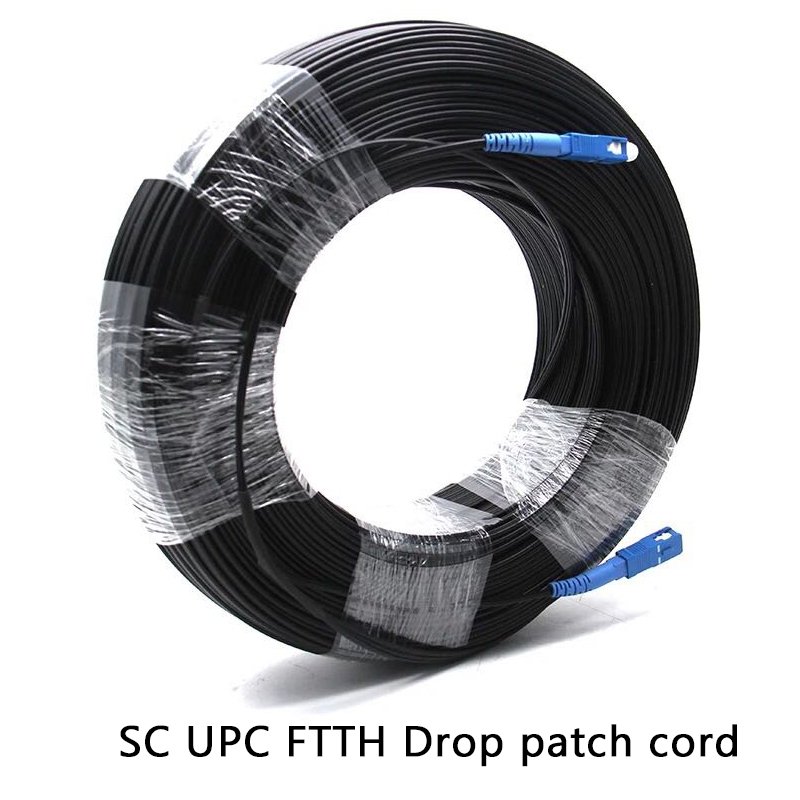

Other Fiber Drop Patch Cord
Application
* FTTH (Fiber to the Home): Connects fiber optic terminals in the wall to optical modems (ONTs).
* Data Center: Connects servers, switches, and storage devices, forming the backbone of high-speed data networks.
* LAN (Local Area Network): Connects network devices between different floors or buildings.
* Telecommunications Room: Provides cross-connections between distribution frames and equipment.
* CATV (Cable Television) and Video Transmission: Transmits high-definition video signals.
* Test and Measurement: Connects the device under test to test instruments (such as optical power meters and OTDRs).

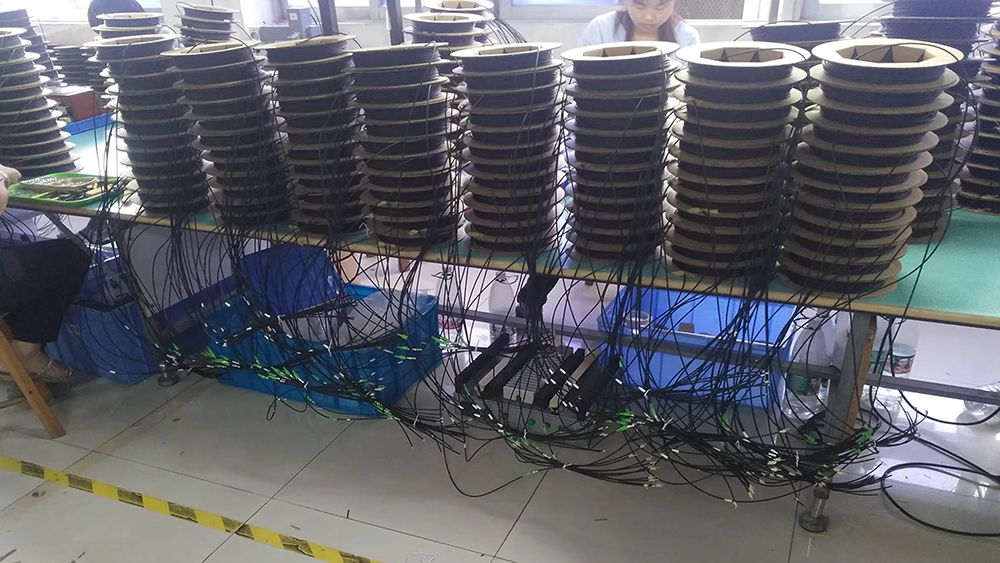

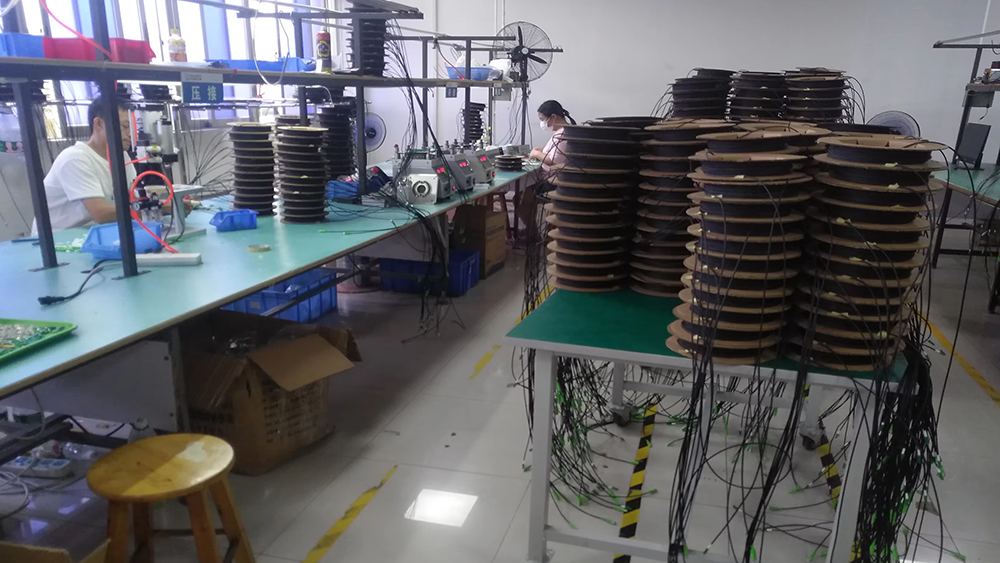

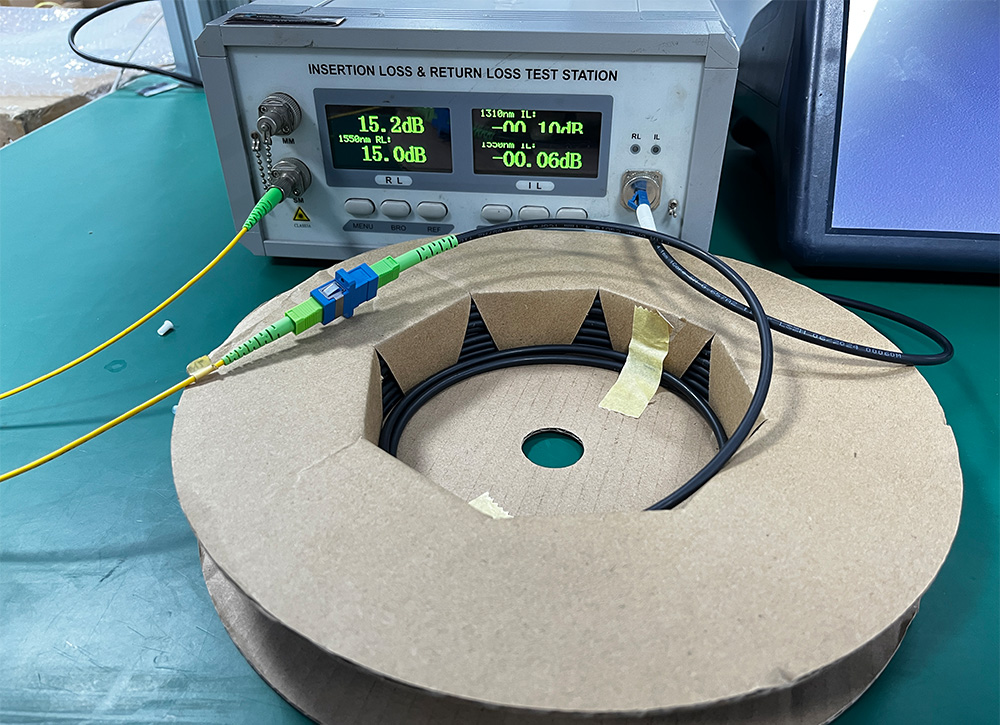

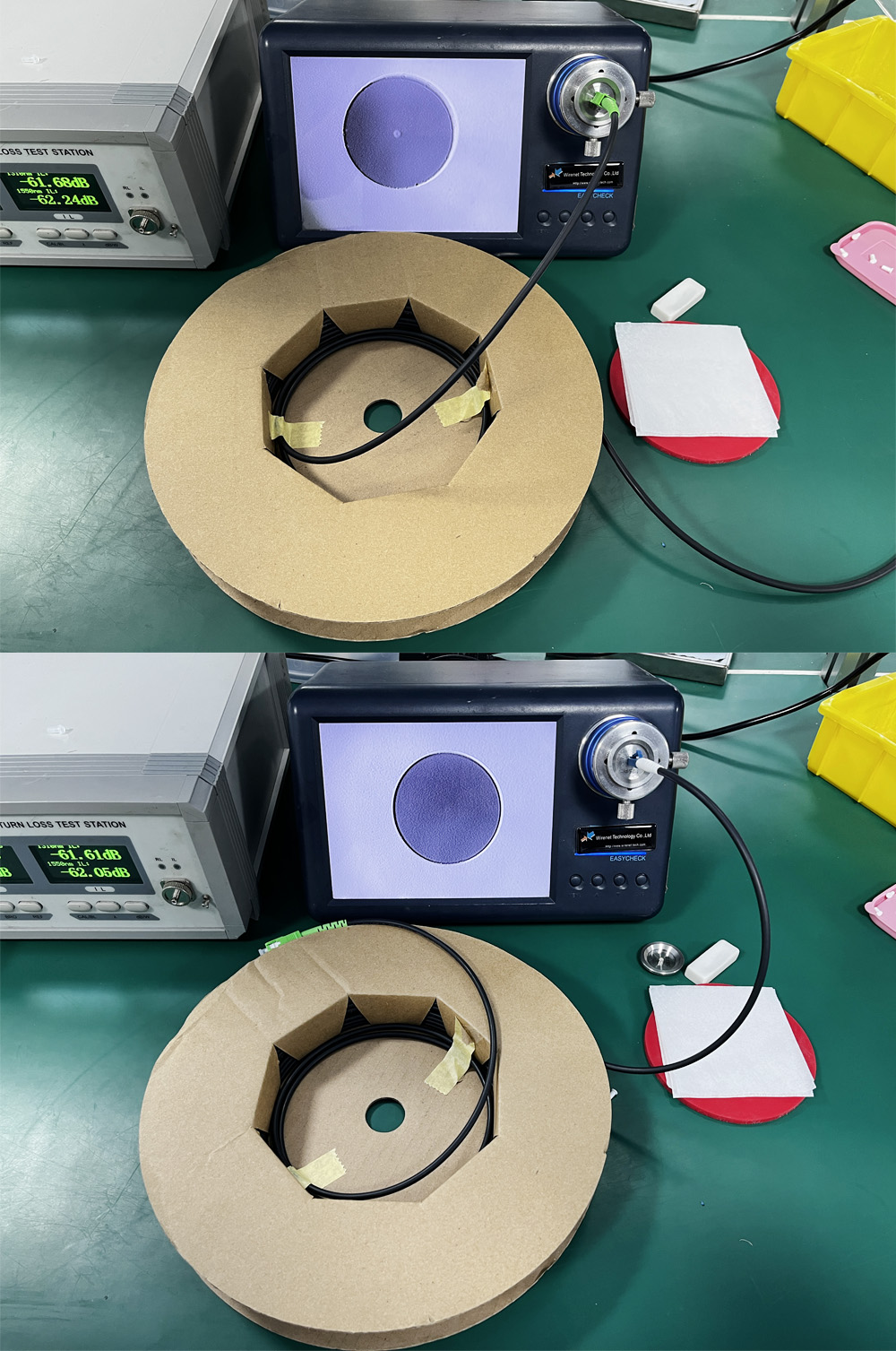

Production workshop
