FTTH Through wall conduit Pullable Pushable pre-connectorized SC bullet Fiber optic patch cord Supplier

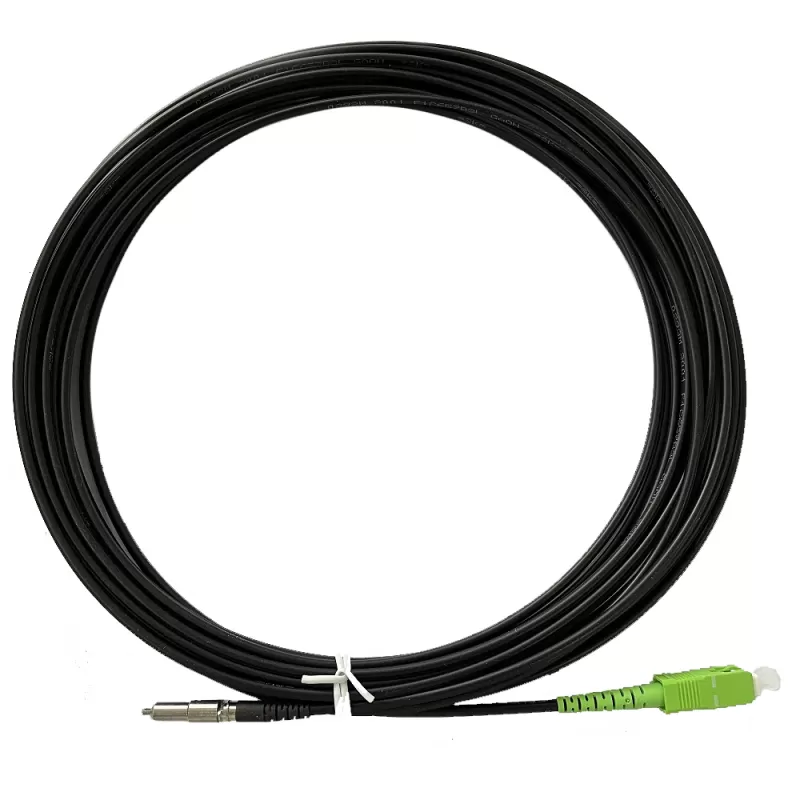

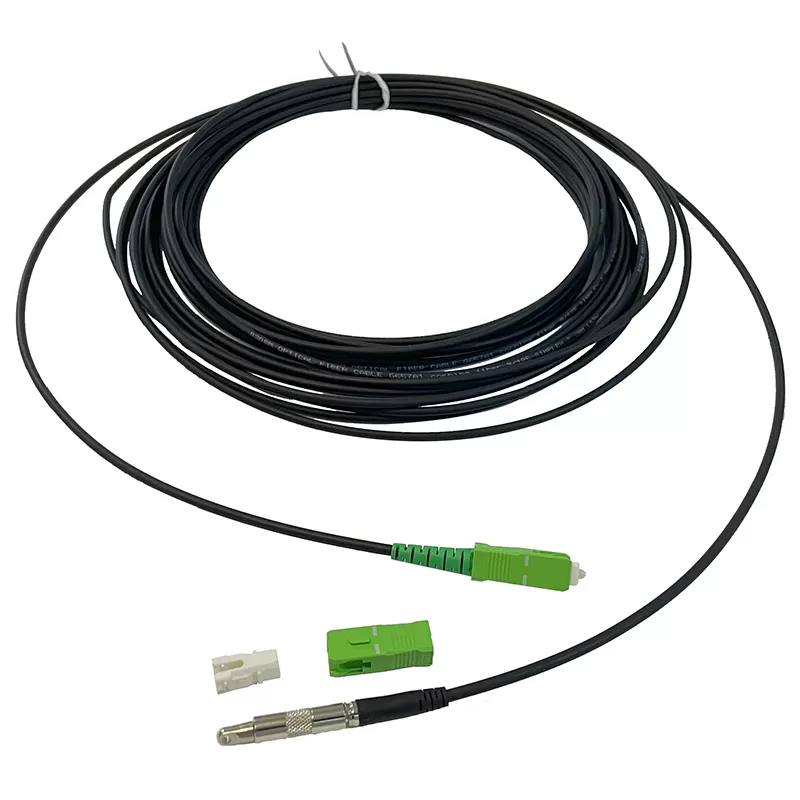

FTTH Through wall/conduit Pullable Pushable pre-connectorized SC bullet connector Fiber optic patch cord

Through wall/conduit Pushable pullable fiber optic connector patch cable offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments.

The pullable pushable connector enables the pre-connectorized cable to be installed through microducts and small holes common in most FTTX scenarios. This cable can be installed without using large conduits or drilling large holes in customer walls. This pushable assembly can successfully pass through small holes and microducts. The hand push distance varies depending on the frequency of bends and the quality of the conduit; the rugged round drop cable is equipped with a pushable pre-terminated connector, which can reduce the cost of fiber deployment and the inherent skills and difficulty of handling and connecting customer drop cables.

FTTH Drop cable Connector（Pushable & Pullable）

SC/APC & SC/UPC - SCII type 6mm

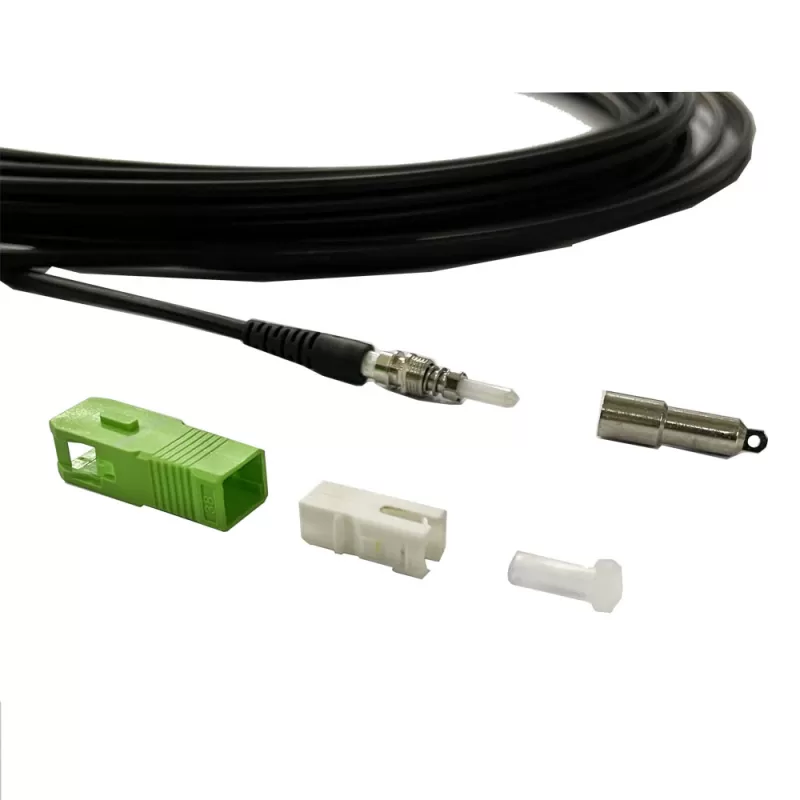

Through wall/conduit SCII type connector is a new type of connector developed . Use Easy FTTH/conduit installation. The end face of the pin mostly adopts PC or APC type grinding method, and the fastening method adopts the plug-in latch type and rotates. This type of connector is made of alloy material, which is easy to plug and unplug, with small fluctuation in insertion loss, high compressive strength, high installation density, high temperature resistance, and not easy to oxidize.

Flexible MTC/SC Fiber Pullable Pushable Fiber optic connector Patch Cable

Related matching tools

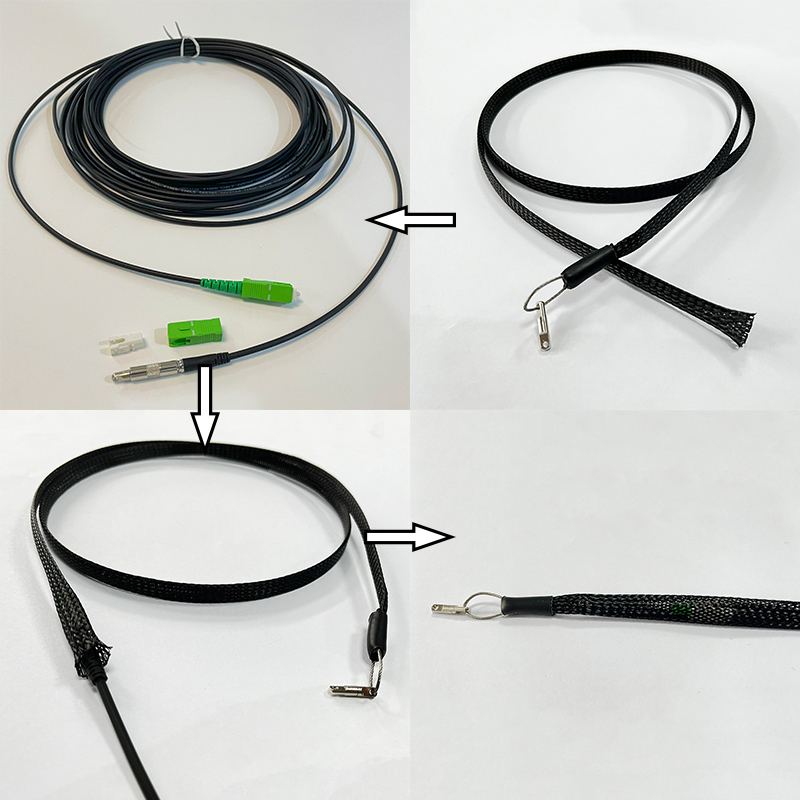

Pulling mesh

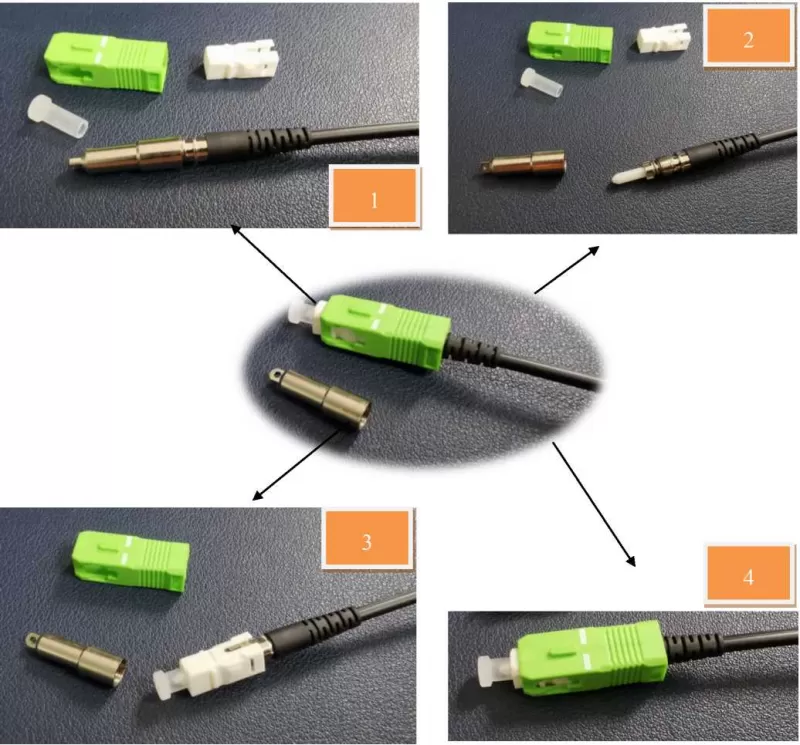

How to Assembly Pushable/Pullable SC Bullet Fiber Patch Cords

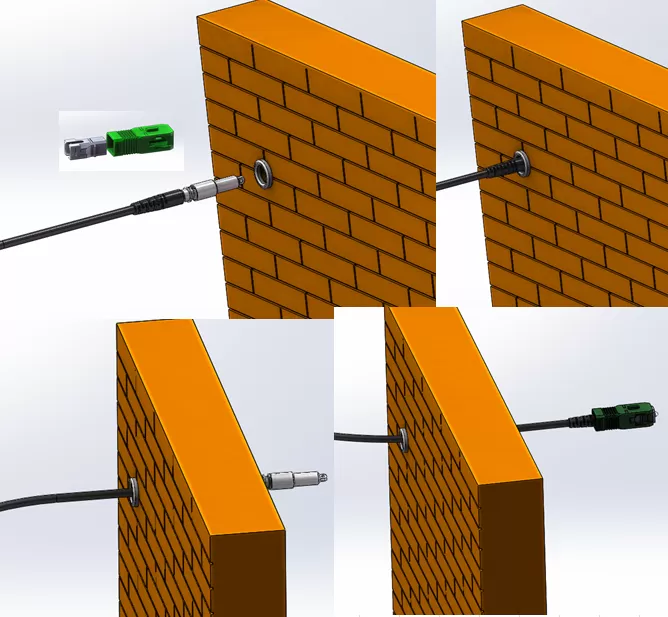

How to Use Pushable/Pullable SC Bullet Fiber Patch Cords

Features:

     * Metal protected mounting head, can use 2.8mm round cable
     * Can used for small pipelines or small wall holes
     * Both singlemode and multimode fiber , UPC and APC polishing
     * Fast installation without special tool
     * Multiple insttaltion methods

Application

* Telecommunication

* FTTR

* CATV

* LAN & WAN

* Network Broadband

* Building and home cable installation

Items	Single mode			Multimode
	PC	UPC	APC	62.5/125 50/125 50/125 10G
Insertion Loss	<0.2dB			<0.3dB
Return Loss	>45dB	>50dB	>60dB	>35dB
Durability	<0.1dB typical change, 500 matings
Ferrule Concentricity	<1um &<0.5 um			<4um
Ferrule inner diameter tolerance	125.0+1/-0um & 125.5+l/-0um			126+3/-0um& 127+3/-0um
Operating Temperature	-40 to +75°C
Housing Color	Blue/Green/Beige/Aqua/Pink
Boot clolor	Black,white,Red, Green
cable	2*3mm FTTH drop cable, 3.0mm Round cable

Pushable/Pullable SC Bullet Fiber Patch Cord Twist Test
