China Fullaxs Waterproof FTTA Optical Fiber Optic Patch Cord for duplex LC to RRU RR 5G compatible

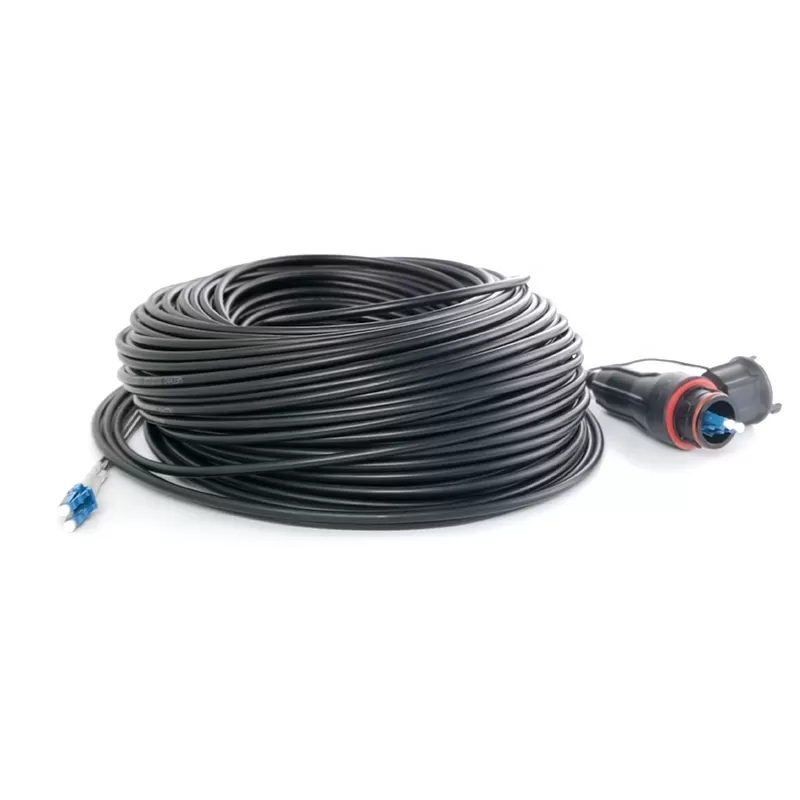

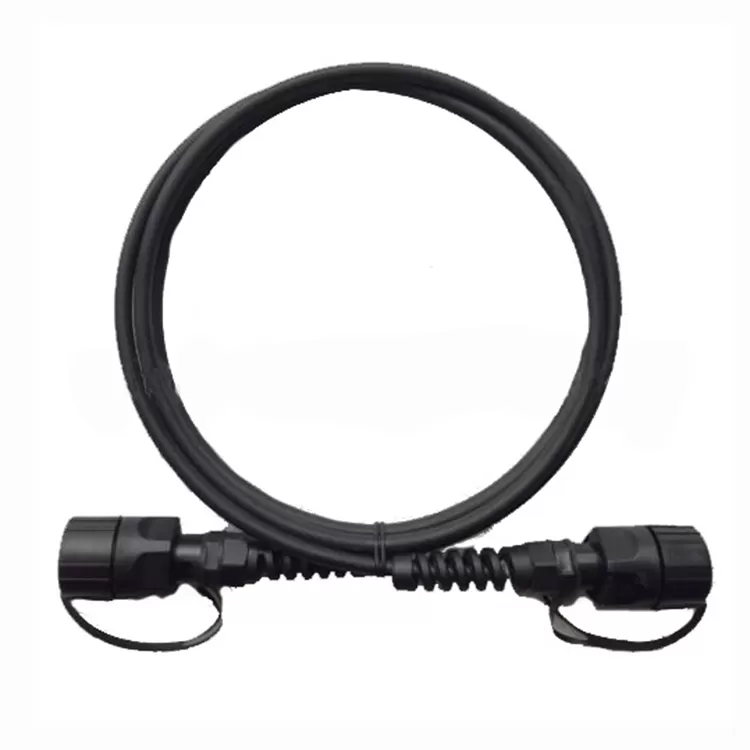

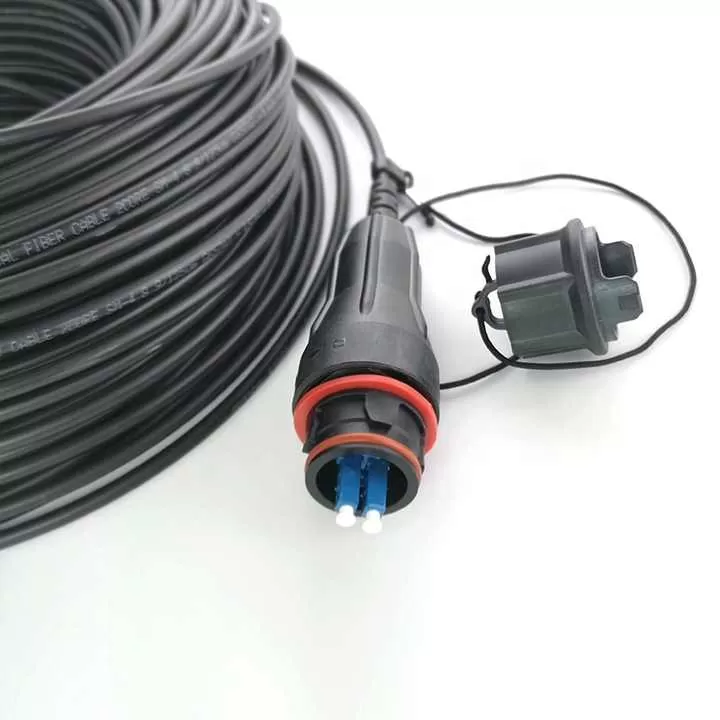

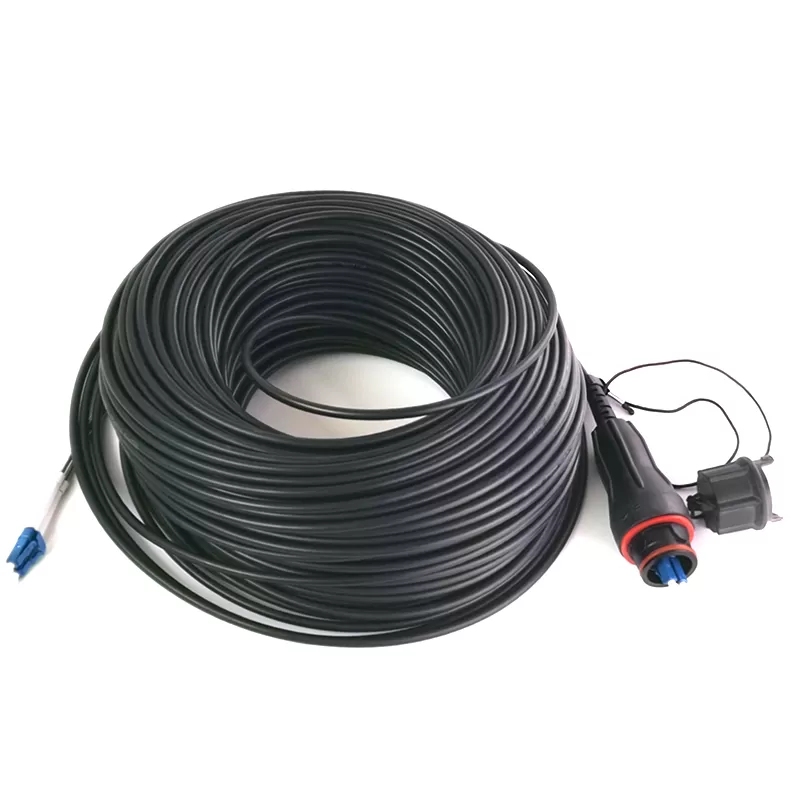

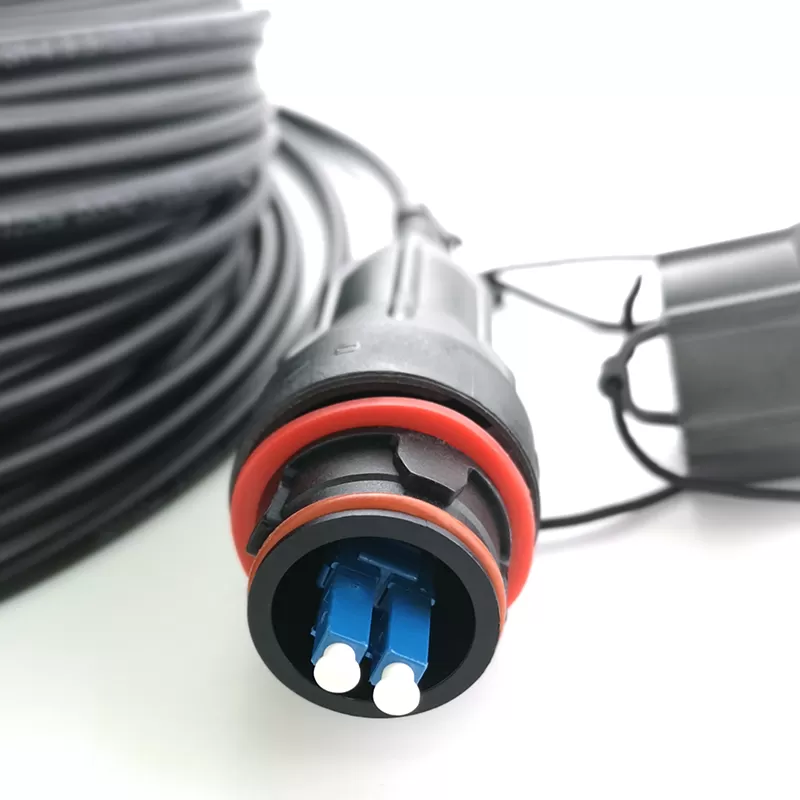

Fullaxs Waterproof FTTA Optical Fiber Optic Patch Cord for duplex LC to RRU RR 5G compatible

Model Number: FULLAXS-LC patch cord

Cable Structure: Tight buffer 0.9mm& G657A1 fiber

Fiber Count: 2

Cladding Diameter (μm): 125±0.7

Cladding Non-Circularity (%): ≤0.7

Core-Cladding Concentricity Error(μm): ≤0.5

Coating Diameter (μm): 245±5

FULLX(LC) Outdoor Cable Assemblies

Fullaxs Waterproof FTTA Optical Fiber Optic Patch Cord for duplex LC to RRU RR 5G compatible

Features：
1. Cost effective solution for in house termination
2. IP67 Water immersion and Dust protection for hash environment ·
3. Chemical Resistance ·
4. Simple assembly requiring no special tools ·
5. Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
6. Durable mechanical mating, minimum of 500 matings
7. Wide range of operational temperature for outside plant -40 to+85°C
8. SC/APC IL<0.3 typically.
9.100% optically tested to ensure quality performance assemblies.

Application

1; Telecom networks tower;
2; CATV, LAN&WAN.
3; WIMAX and LTE base station, outdoor
4; CPRI, FTTP, FTTA

Product Structure :

Item	Description	Qty
1	LC dust cover whitr	2pcs
2	Lc/upc sm duplex connector Blue	1pc
3	LC clip blue	1pc
4	LC boot white	2pcs
5	LC heat shrink tubing yellow	1pc
6	Lc heat shrink tubing white	1pc
7	OD 2.0mm optical cable tube Black	2pcs
8	Breakout kit +heat shrink tube black	1pc
9	OD 5mm SM 2F G657A1 optical fiber cable LSZH Black	1pc
10	Fullaxs Boot black	1pc
11	Fullaxs outer housing LC/UPC SM duplex connecotr blue	1set
12	Fullaxs dust cover black	1pc

Cable Parameters

Cable Structure	Tight buffer 0.9mm& G657A1 fiber
	Aramid Yarn
	5mm Outer jacket lszh black
Items		Specifications
Fiber Count		2
Tight buffered fiber	Dimension	850±50μm
	Material	PVC
	Color	Blue Orange
Jacket	Dimension	5.0±0.1mm
	Material	LSZH
	Color	Black

Fiber Parameters

Items			Unit	Specification
				G.657A1
Mode Field Diameter		1310nm	μm	8.8±0.4
		1550nm	μm	9.8±0.5
Cladding Diameter			μm	125±0.7
Cladding Non-Circularity			%	≤0.7
Core-Cladding Concentricity Error			μm	≤0.5
Coating Diameter			μm	245±5
Coating Non-Circularity			%	≤6.0
Cladding-Coating Concentricity Error			μm	≤12.0
Cable Cutoff Wavelength			nm	λcc≤1260
Attenuation(max.)	1310nm		dB/km	≤0.35
	1550nm		dB/km	≤0.21
Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
	1turn×10mm radius @1625nm		dB	≤1.5
