Descrition :

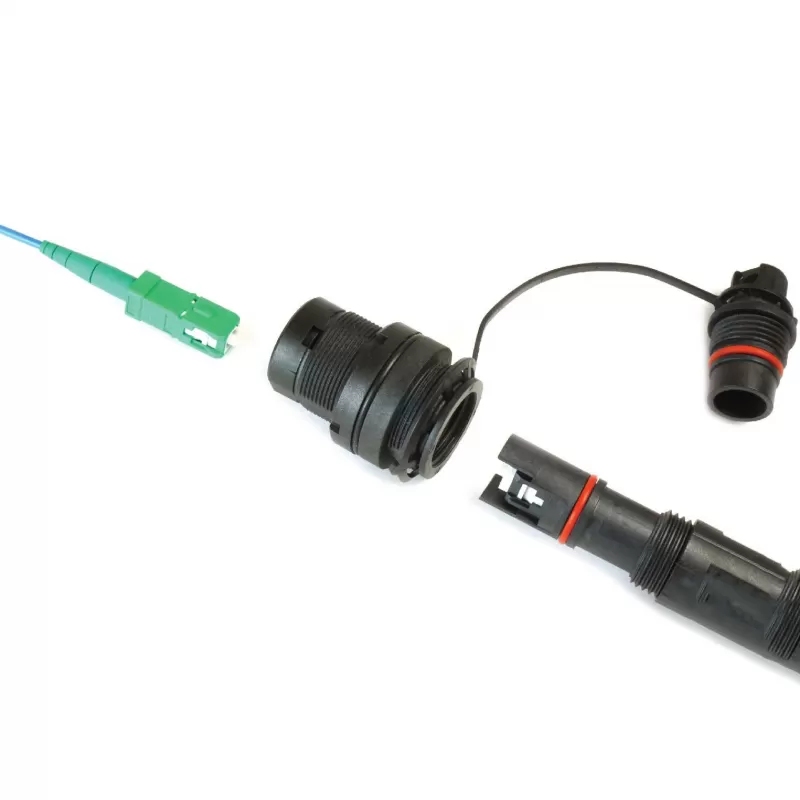

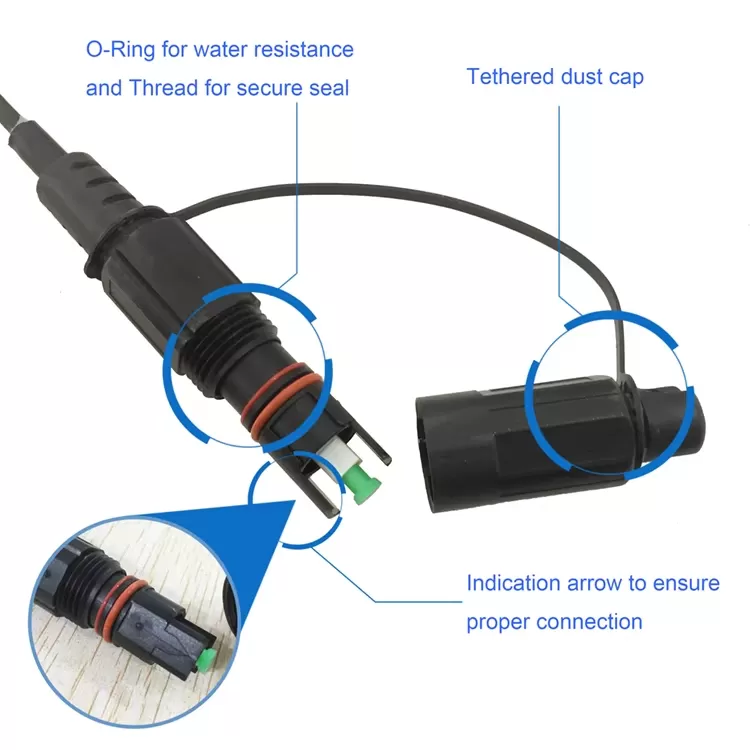

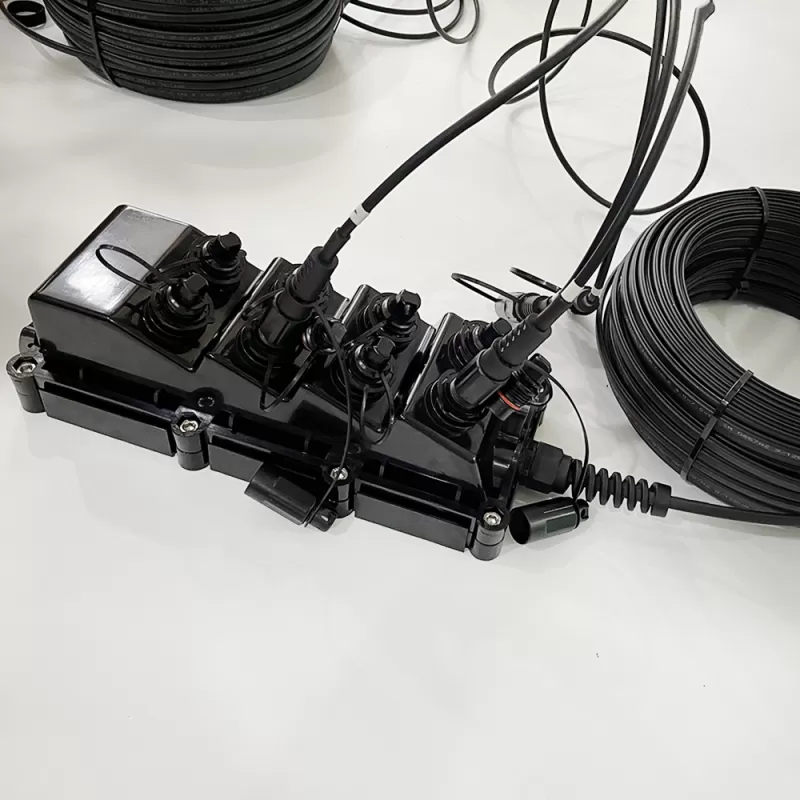

OptiTap connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Features:
* Compatible with Corning-OptiTap
* Factory terminated for high performance;
* Available with one or both ends connectorized;
* Hybrid (one end with an OptiTap Connector, one end No connector) available with or without pulling grip;
* Available in dielectric or toneable;
* Designed for aerial, direct-buried or duct installation;
* IP-68 water and dust protection ;
* -40℃~85℃ operating temperature;
Product Specifications
No. | Items | unit | Performance Specification | |
| 1 | Fiber Type | G.657A1 | ||
| 2 | Length | Meter | 20/50/100/150m(Customizable) | |
| 3 | Outer Sheath | Material | LSZH / TPU / PE | |

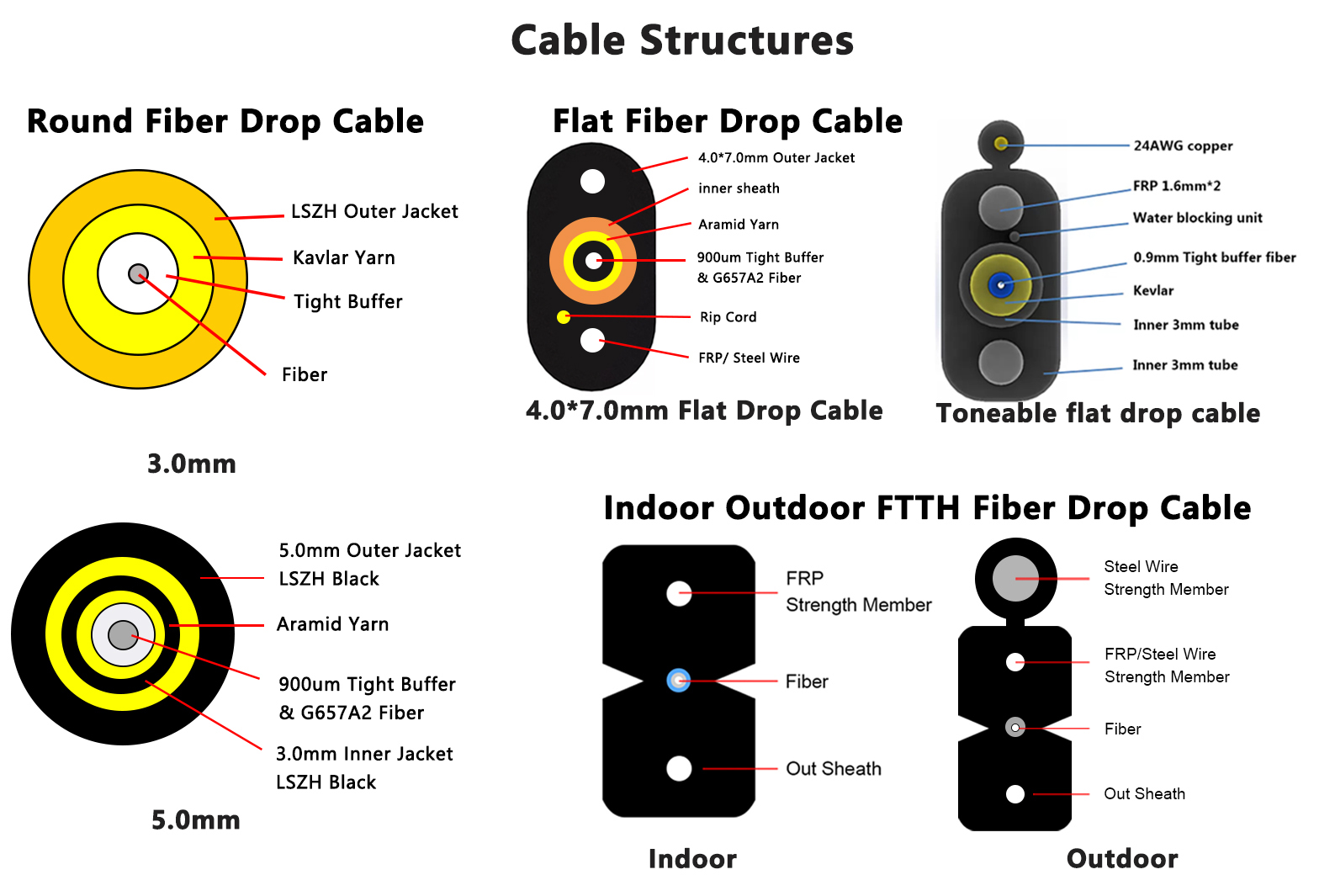

| 4 | Cable Type | Round Fiber Drop Cable / Flat Fiber Drop Cable / Indoor Outdoor FTTH Fiber Drop Cable | ||
| 5 | Cable Diameter | Round Fiber Drop Cable : φ3.0mm/φ4.8mm/φ5.0mm Flat Fiber Drop Cable : 4.0*7.0mm Indoor Outdoor FTTH Fiber Drop cable: 2.0*3.0mm/2.0*5.0mm | ||
| 6 | Storage Temperature | -20ºC to +60ºC | ||

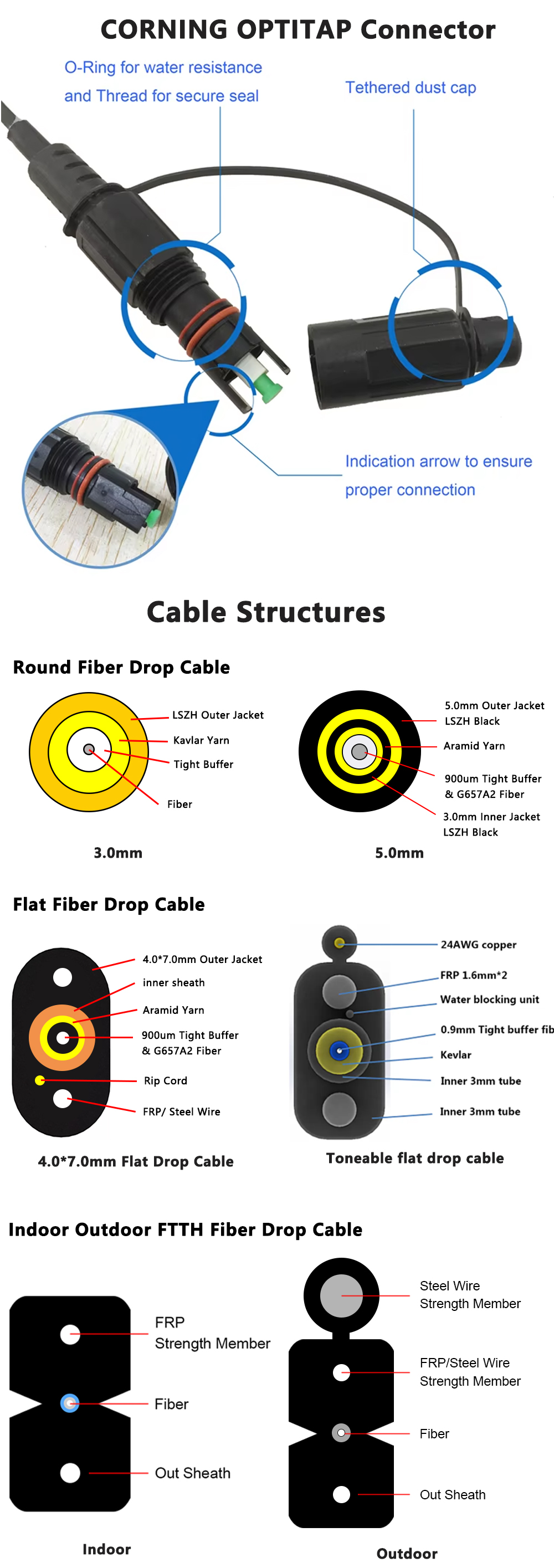

Dimensional Diagrams
Application:
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communication equipment connection.
3. Waterproof Fiber Equipment.

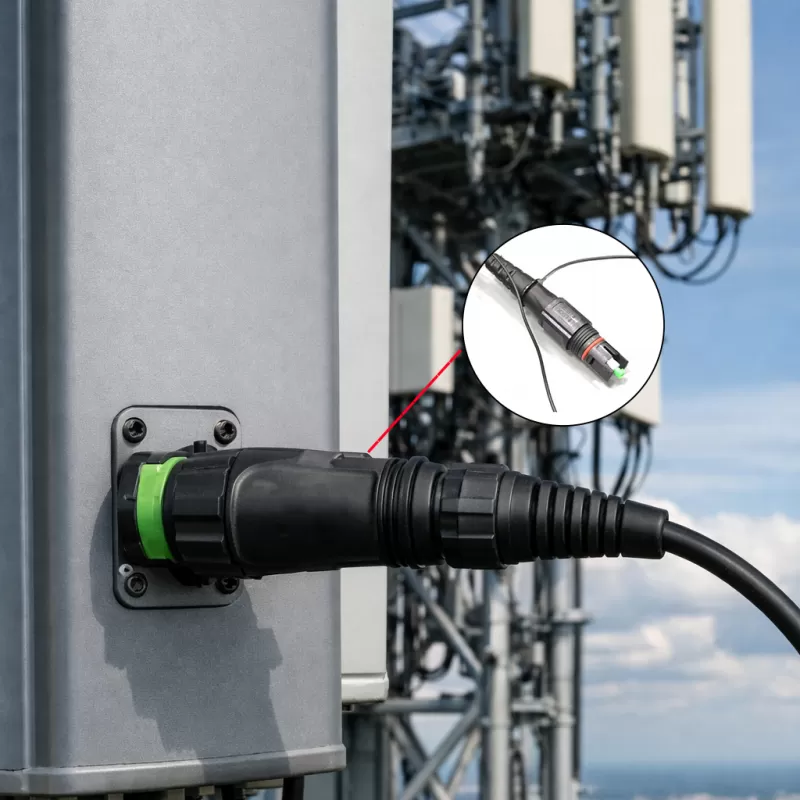

4. Remote wireless Base Station.
5. FTTx ISP Project.

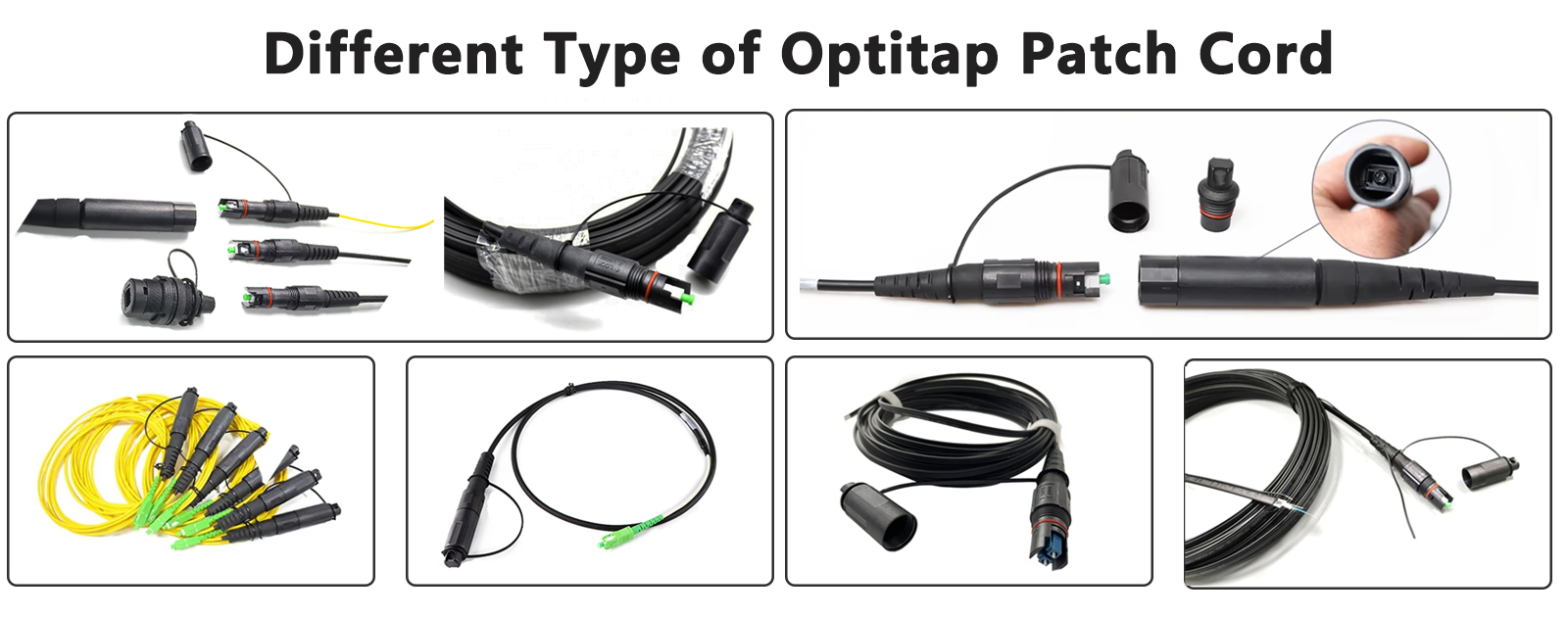

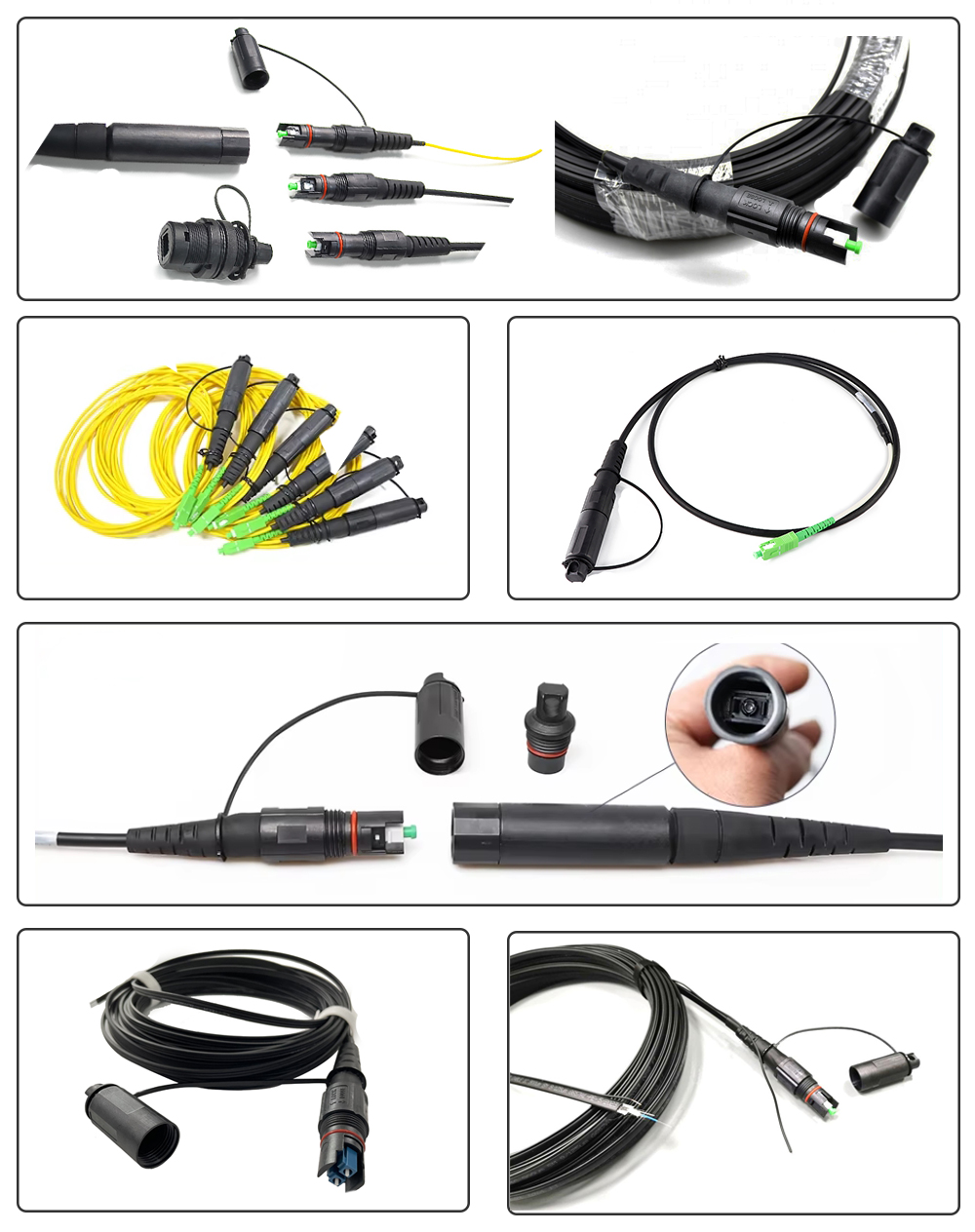

Corning Optitap Waterproof fiber optic drop patch cable View：
Optitap Patch Cord Insertion Loss and Return Loss Test
