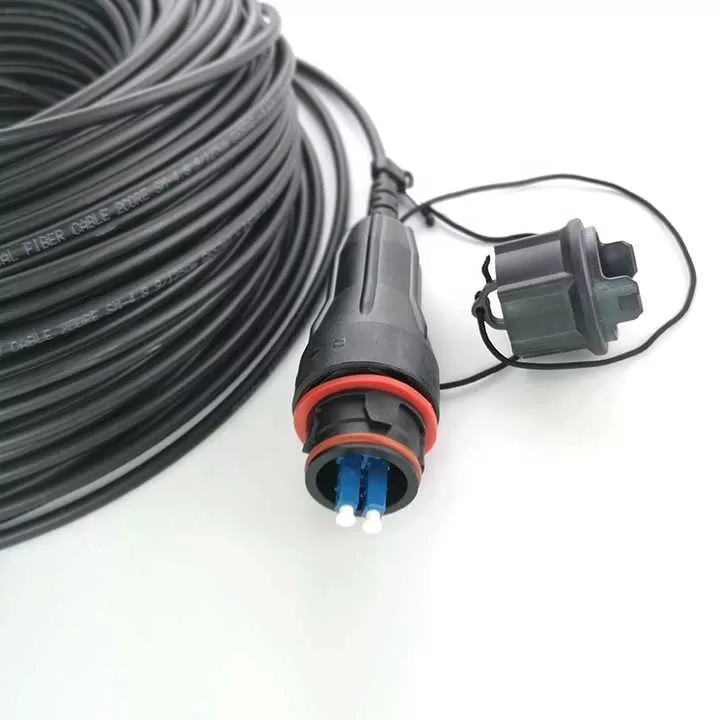

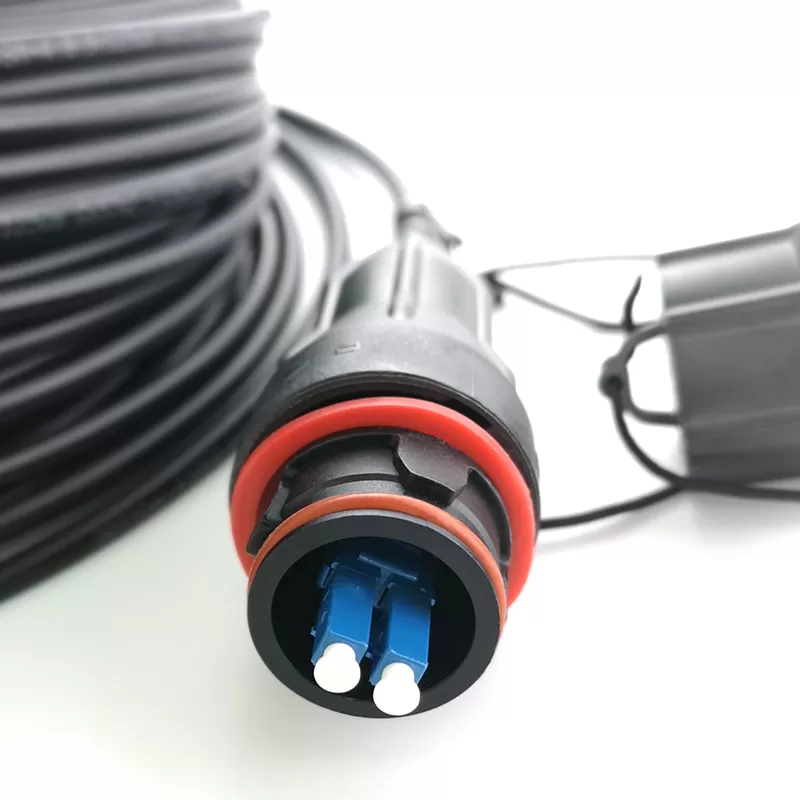

Fullaxs IP68 Waterproof Fiber Optic Connector for duplex LC to RRU RR 5G compatible

Model Number: FULLAXS-LC Connector

Cable Structure: 2

Cladding Diameter (μm): 125±0.7

Cladding Non-Circularity (%): ≤0.7

Core-Cladding Concentricity Error(μm): ≤0.5

Coating Diameter (μm): 245±5

FULLX(LC) Outdoor Cable Assemblies

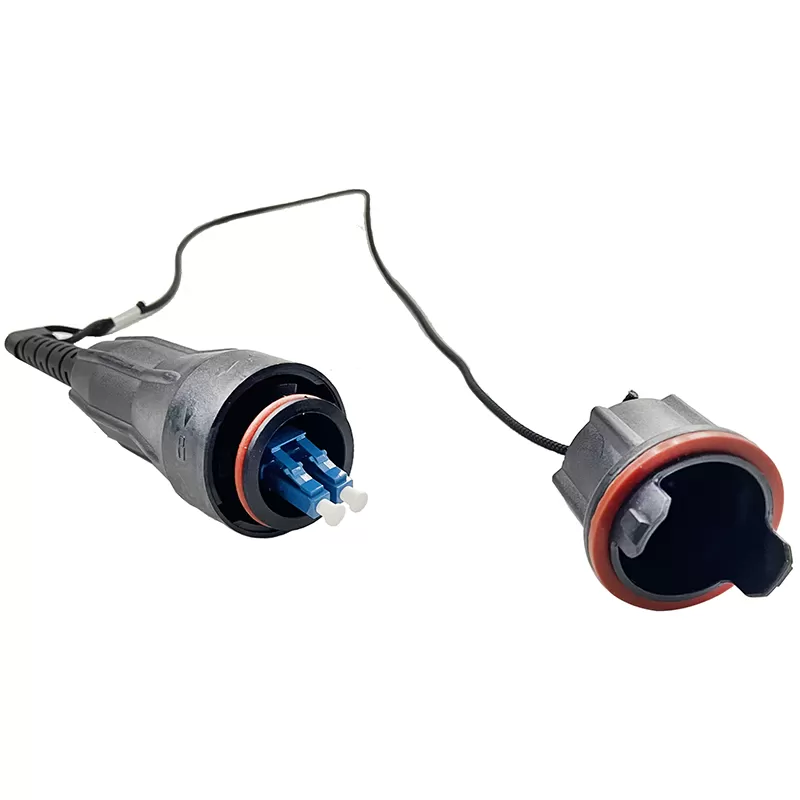

IP68 Waterproof Fullaxs Fiber Optic Connector for duplex LC to RRU RR 5G compatible

Features:
1. Cost effective solution for in house termination
2. IP67 Water immersion and Dust protection for hash environment ·
3. Chemical Resistance ·
4. Simple assembly requiring no special tools ·
5. Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
6. Durable mechanical mating, minimum of 500 matings
7. Wide range of operational temperature for outside plant -40 to+85°C
8. SC/APC IL<0.3 typically.
9.100% optically tested to ensure quality performance assemblies.

Application:

1; Telecom networks tower;
2; CATV, LAN&WAN.
3; WIMAX and LTE base station, outdoor
4; CPRI, FTTP, FTTA

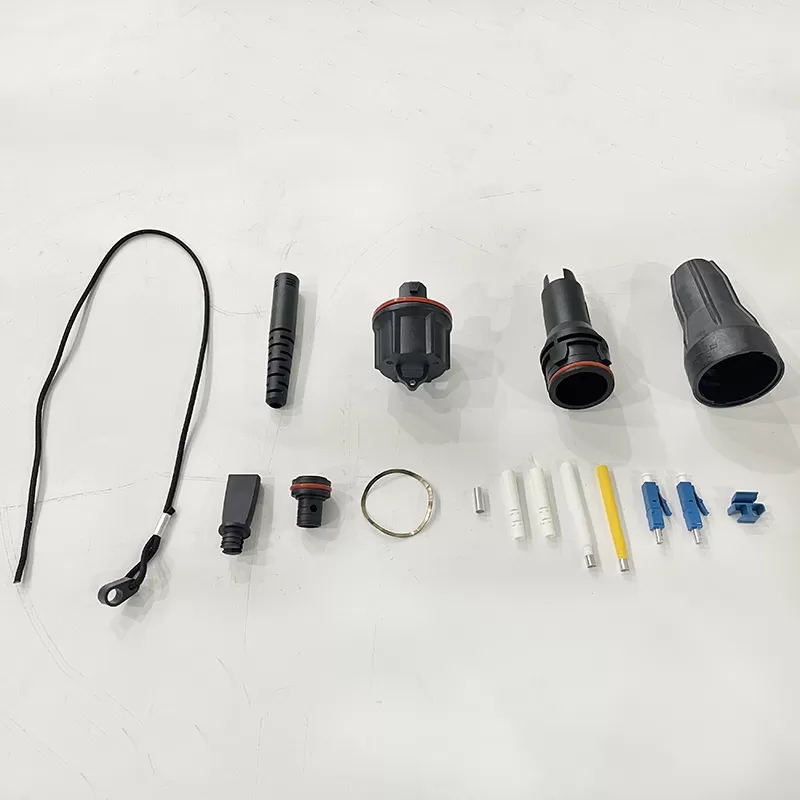

Product Structure :

Item	Description	Qty
1	LC dust cover whitr	2pcs
2	Lc/upc sm duplex connector Blue	1pc
3	LC clip blue	1pc
4	LC boot white	2pcs
5	LC heat shrink tubing yellow	1pc
6	Lc heat shrink tubing white	1pc
7	OD 2.0mm optical cable tube Black	2pcs
8	Breakout kit +heat shrink tube black	1pc
9	OD 5mm SM 2F G657A1 optical fiber cable LSZH Black	1pc
10	Fullaxs Boot black	1pc
11	Fullaxs outer housing LC/UPC SM duplex connecotr blue	1set
12	Fullaxs dust cover black	1pc

Cable Parameters

Cable Structure	Tight buffer 0.9mm& G657A1 fiber
	Aramid Yarn
	5mm Outer jacket lszh black
Items		Specifications
Fiber Count		2
Tight buffered fiber	Dimension	850±50μm
	Material	PVC
	Color	Blue Orange
Jacket	Dimension	5.0±0.1mm
	Material	LSZH
	Color	Black

Fiber Parameters

Items			Unit	Specification
				G.657A1
Mode Field Diameter		1310nm	μm	8.8±0.4
		1550nm	μm	9.8±0.5
Cladding Diameter			μm	125±0.7
Cladding Non-Circularity			%	≤0.7
Core-Cladding Concentricity Error			μm	≤0.5
Coating Diameter			μm	245±5
Coating Non-Circularity			%	≤6.0
Cladding-Coating Concentricity Error			μm	≤12.0
Cable Cutoff Wavelength			nm	λcc≤1260
Attenuation(max.)	1310nm		dB/km	≤0.35
	1550nm		dB/km	≤0.21
Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
	1turn×10mm radius @1625nm		dB	≤1.5
