Model Number: GYTA33
Type: submarine Fiber optic cable
Number of Conductors: ≥ 6
Fiber count: 6-24 Cores
Fiber type: G652D
Material: MDPE,Plastic coated aluminum strip,Phosphating steel wire
Armored: Plastic coated aluminum strip
Strength number: Phosphating steel wire
Cladding diameter: 125.0 ± 1
Temperature range: -20°~60°C
Standard: IEC 60794-1-2 F1
A submarine communications cable is a cable laid on the sea bed between land-based stations to carry telecommunication signals across stretches of ocean and sea.
Application:
* Submarine Composite Power Cables - land, offshore wind farms, offshore oil and gas installations
* Umbilicals - interconnecting / connecting subsea installations to fixed, floating platforms, FPSOs
* Fibre Optic Cables - power and signal feeding subsea installations, scientific sensors, seismic arrays, etc
* ROV Control Cables - ROVs and trenchers, dynamic applications down to 7,000 meters
Optical fiber type and properties
| (Item) | Unit | Specification | |
| G.652D | |||
| Mode field diameter | 1310nm | ^m | 9.2 ± 0.4 |
| 1550nm | ^m | 10.4 ± 0.8 | |
| Cladding diameter | ^m | 125.0 ± 1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | ^m | ≤0.5 | |
| Coating diameter | ^m | 242 ± 7 | |
| Coating/cladding concentricity error | ^m | ≤12 | |
| Cable cut-off wavelength | nm | ≤ 1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |

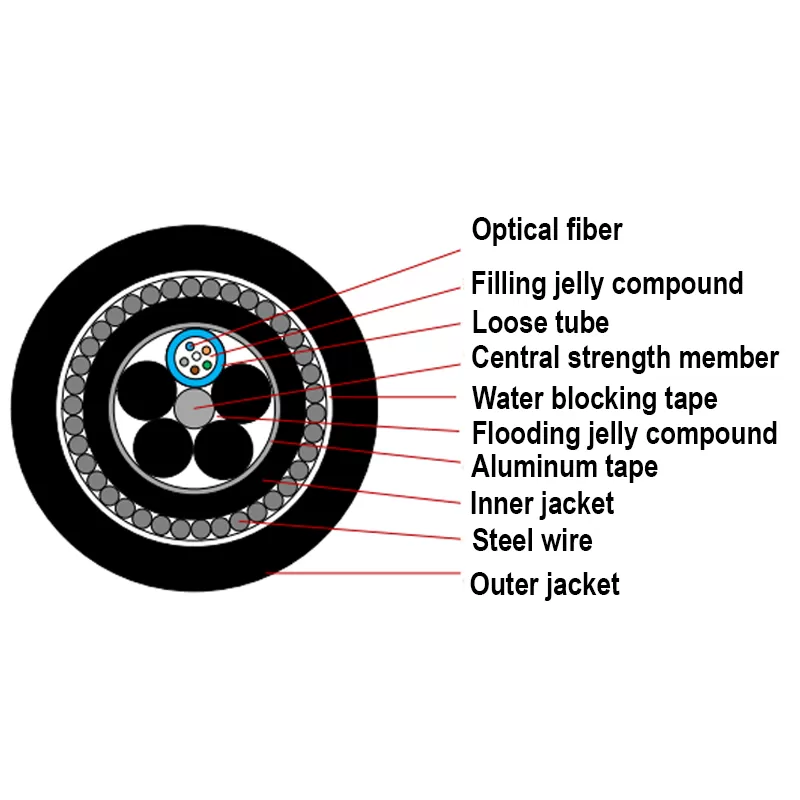

Dimensions of cable constructions
| Fiber count | 6~24 |
| Struct ure | 1+5 |
| Fibers pertube | 6 |
| Loosetobe diameter (mm) | 1.7±0.1 |
| CSMdiameter /pad diameter (mm) | 1.4/1.4 |
| NominalThickne ss of Inner jacket (mm) | 0.9 |
| NominaThickne ss of outer jacket (mm) | 1.8 |
| Cable diameter(mm) | 14.0 ± 0.5 |
| Cable weigh(kg/k m) | 278 |
Cable performance
| (Item) | (Parameters) | |
| Loose tube | Material | PBT |
| Color | Full color spectrum | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Phosphating steel wire |
| Armoured | Material | Plastic coated aluminum strip |
| Inner jacket | Material | MDPE |
| Color | Black | |
| Steel wirearmoured | Material | Galvanized steel wire |
| Outer jacket | Material | HDPE |
| Color | Black | |
| Min. bendingradius | Static | 12.5times cable diameter |
| Dynamic | 25times cable diameter | |
| Tensileperformance | Short term | 10000N |
| Crush | Short term | 5000N/100mm |
Environmental performance
| (Item) | (Standard) | (Parameters) |
| Operation temperature | IEC 60794-1-2 F1 | -20℃~+60℃ |
