This OM1 fiber patch cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.Fiber optic patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
| Specifications | |||

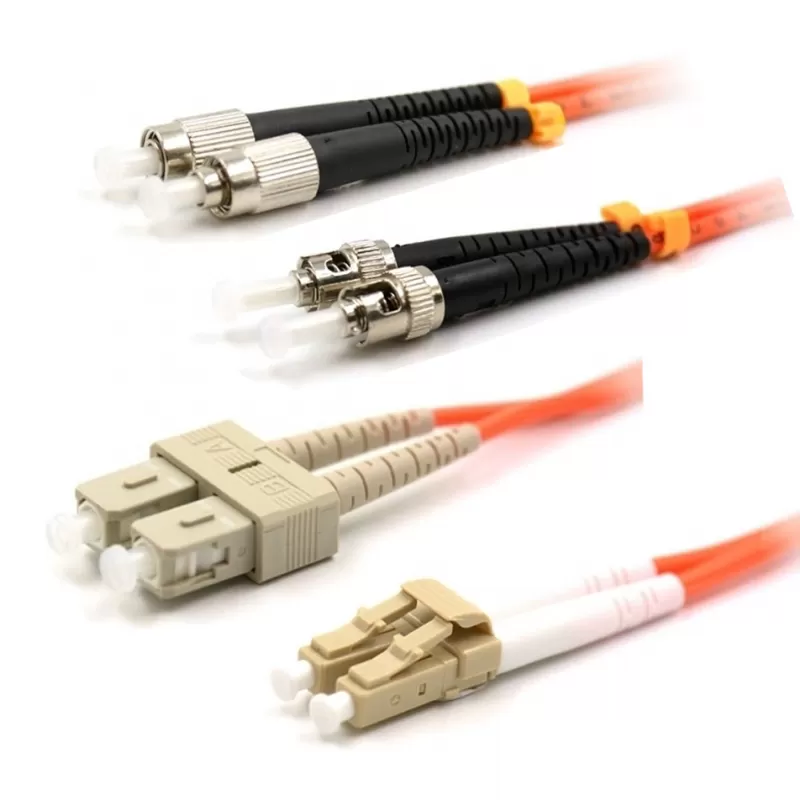

| Connector Type | LC/SC/ST/FC | Polish Type | UPC |
| Fiber Mode | OM1 9/125μm | Wavelength | 850/1300nm |

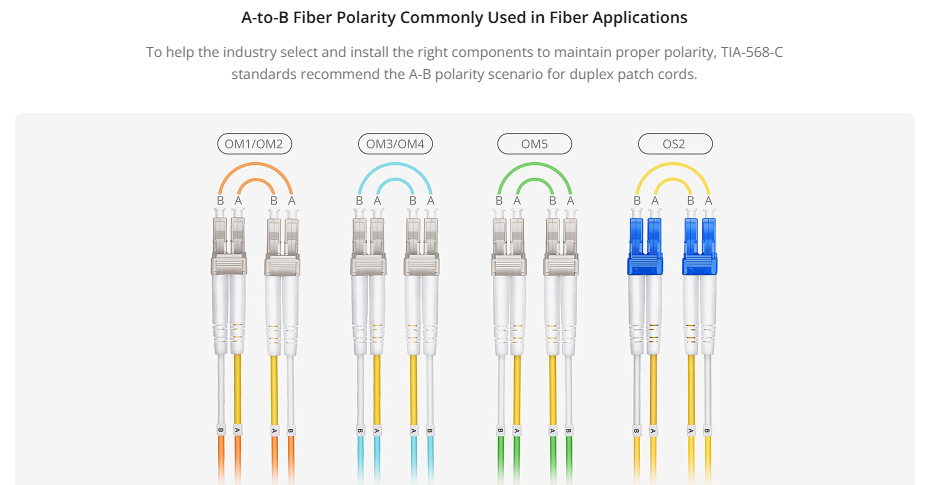

| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |

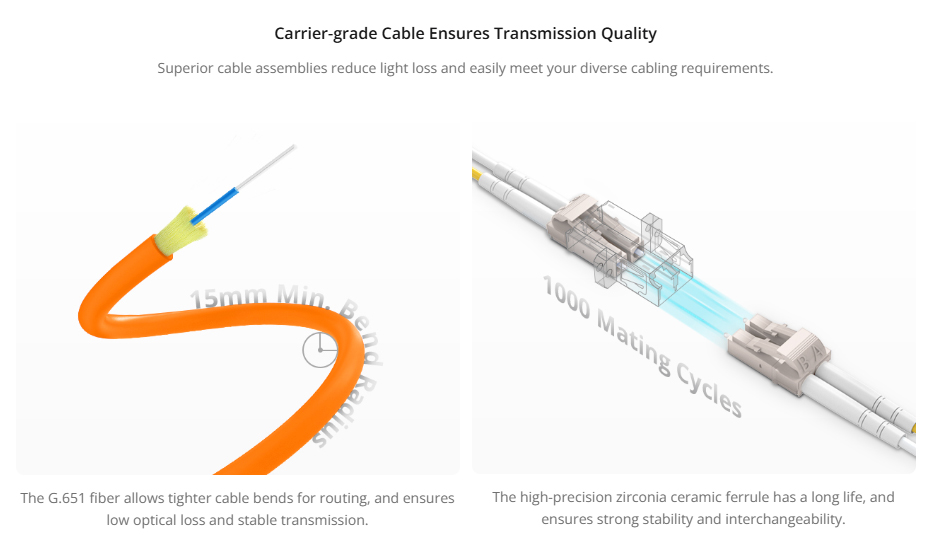

| Fiber Grade | G.651 | Minimum Bend Radius(Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Cable Jacket | PVC/LSZH | Cable Outside Diameter (OD) | 2.0mm |
| Insertion Loss (dB) | ≤0.3dB | Return Loss (dB) | ≥30dB |
| Attenuation at 850nm | 3.5dB/km | Attenuation at 1300nm | 1.5dB/km |
Feature:
Product Classification

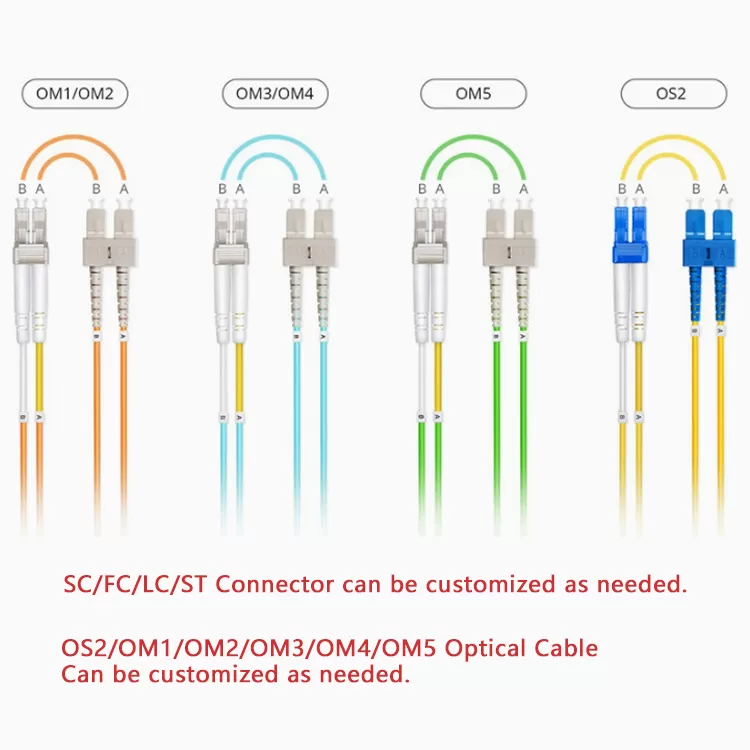

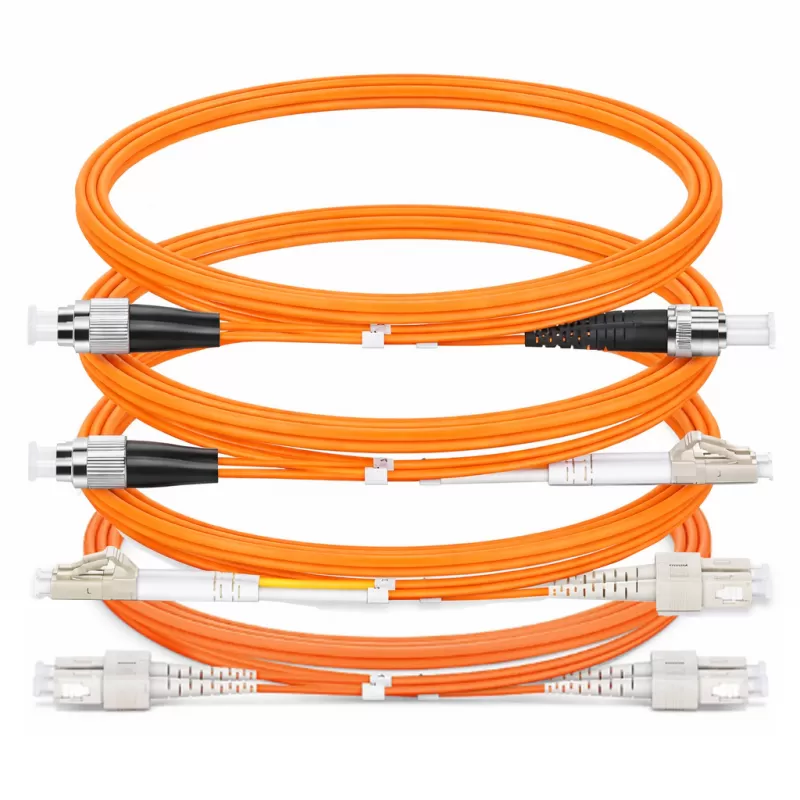

Patchcord Are classified connectors at both ends,there are SC,FC,LC,ST,and SC-FC.etchybrid patch cords.
