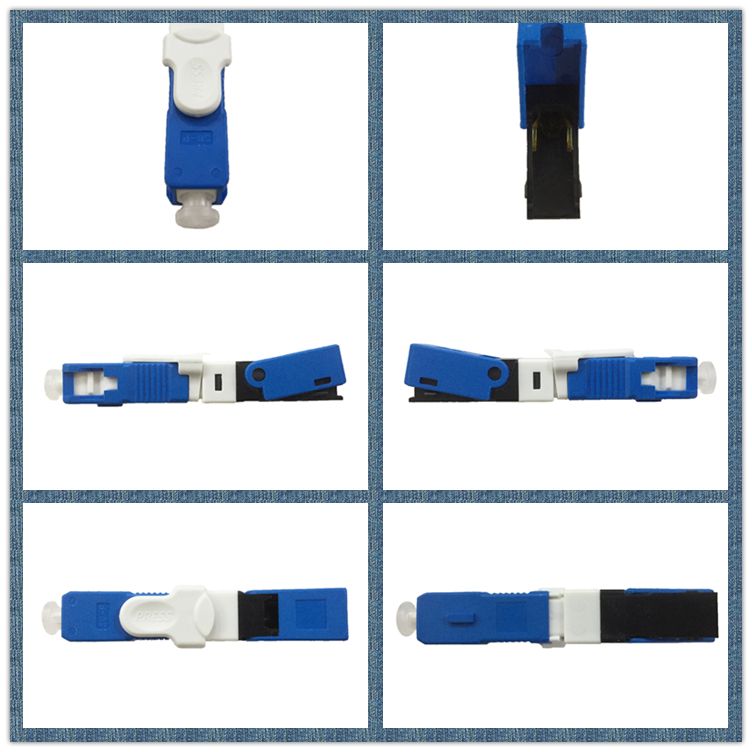

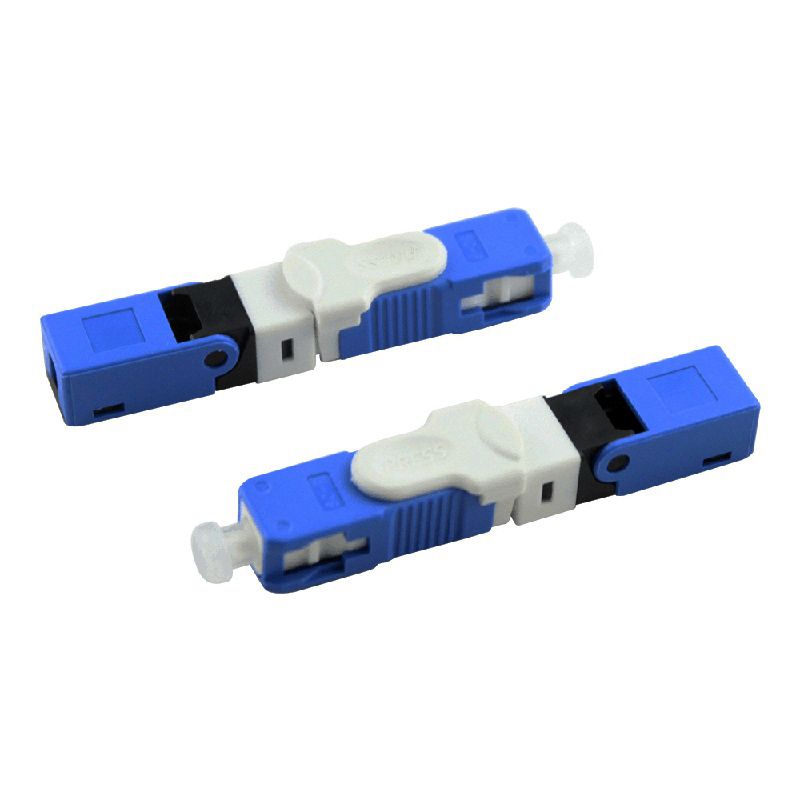

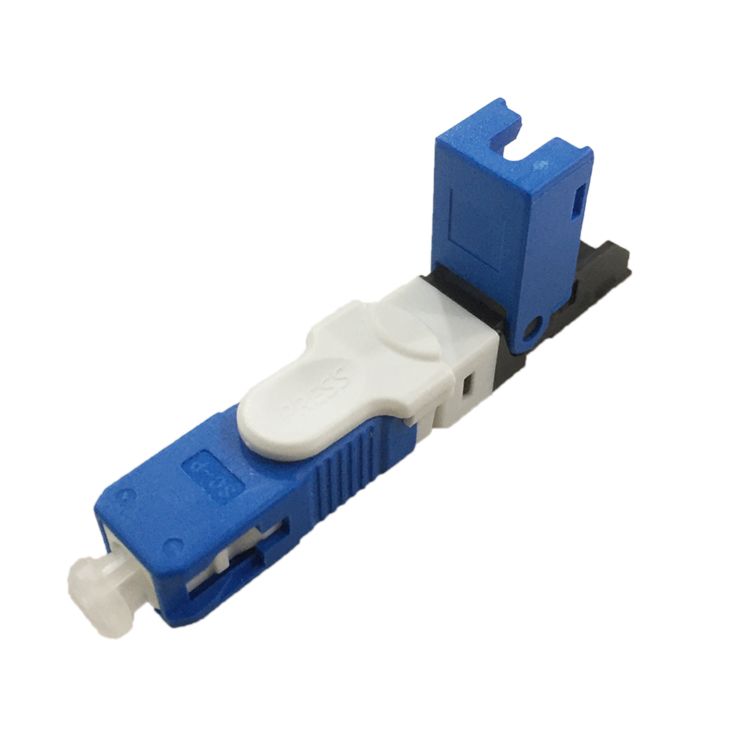

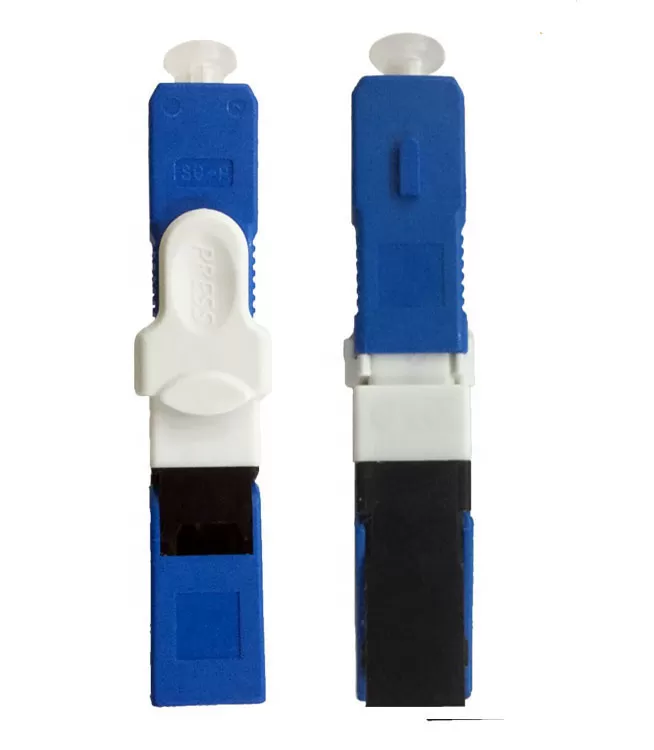

SC UPC FTTH Fiber Optic Fast Mechanical Connector

Model Number: fast connector sc upc

Scope of application: 2.0mm/3.0mm/3.1x2.0mm fiber

Fiber diameter: 125mm

Compact cladding diameter: 250mm

Insertion loss: ≤0.25db

Return loss: ≤40db

  The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is arevolutionary field installable optical fiber connector that requires no epoxy and no polishing.
  The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.
  The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Features

 * Improves and simplifies fiber routing
 * Rapidconfiguration andnetworking,reduceinstallationtime.
 * Decreases fiber management space
 * Supports40Gand100Gnetworkapplications
 * CableJacketmaterial:LSZH,OFNR,OFNPavailable.
 * Supportsupto12F,24F,48F,72F,96F,144F,customizedproductsareavailable.
 * Low insertion loss and reflectance
 * High Density

Item		Parameter
Cable Scope		3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Size		5197.55mm
Fiber Diameter		125μm ( 652 & 657 )
Coating Diameter		250μm
Mode		SM
Operation Time		about 15s(exclude fiber presetting)
Insertion Loss		≤ 0.3dB(1310nm & 1550nm)
Return Loss		≤ -50dB for UPC, ≤ 55dB for APC
Success Rate		>98%
Reusable Times		>10 times
Tighten Strength of Naked Fiber		>5 N
Tensile Strength		>50 N
Temperature		-40 ~ +85 C
On-line Tensile Strength Test (20 N)		IL ≤ 0.3dB
Mechanical Durability(500 times)		IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)		IL ≤ 0.3dB

Application

* FTTx,Data Room Transformation
