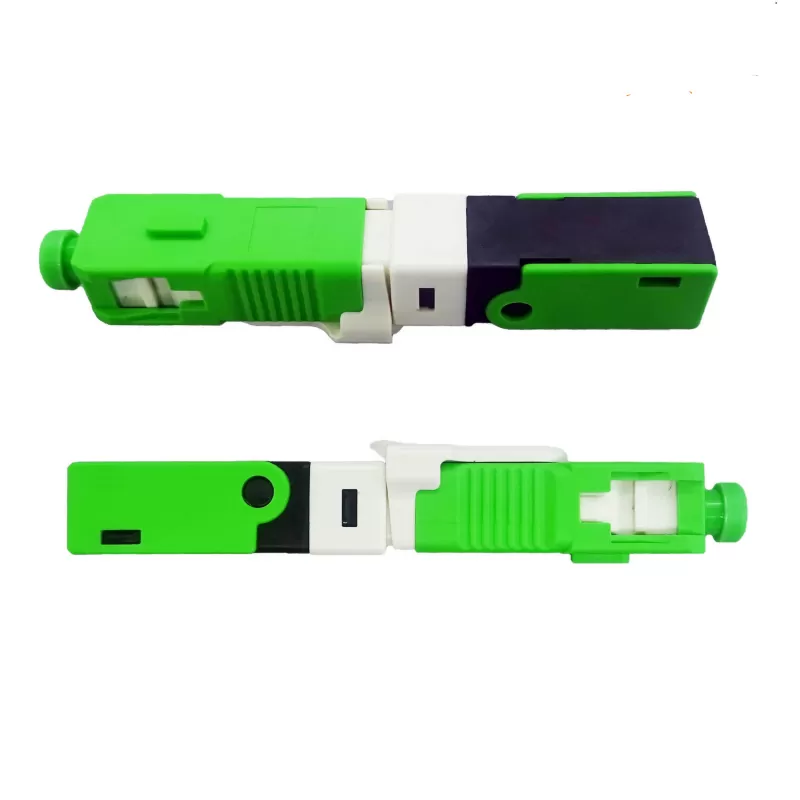

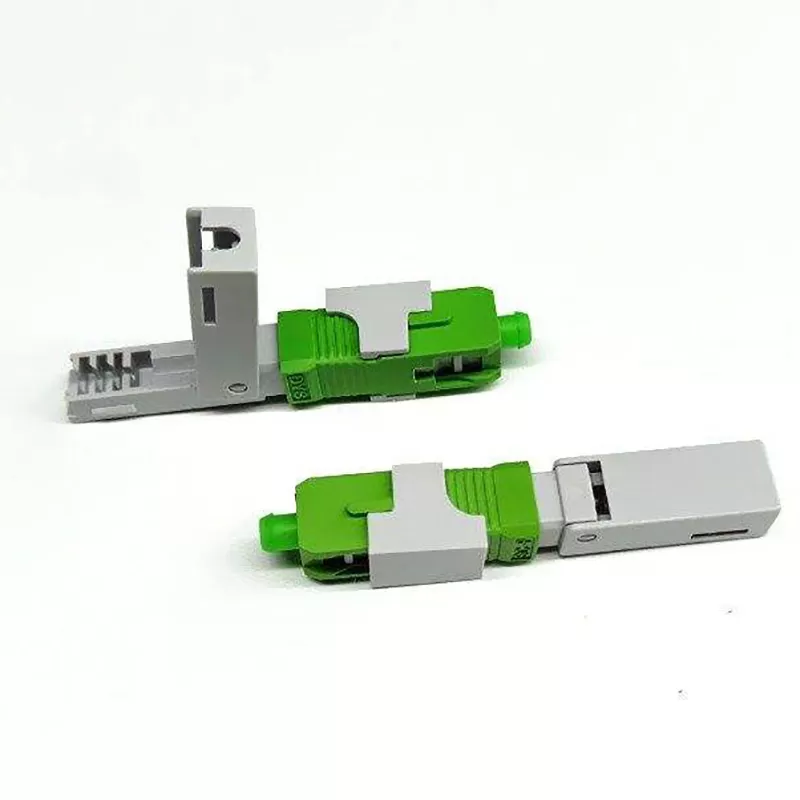

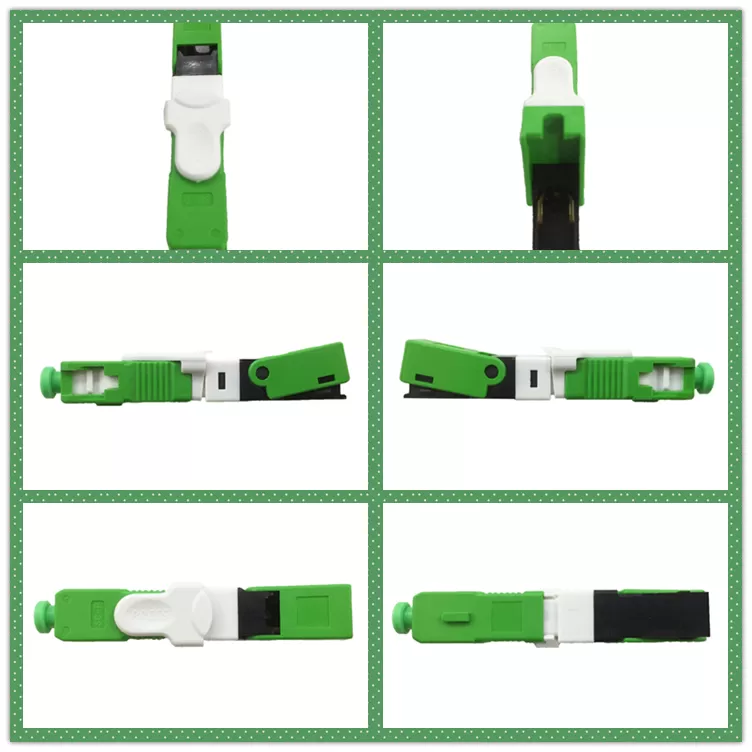

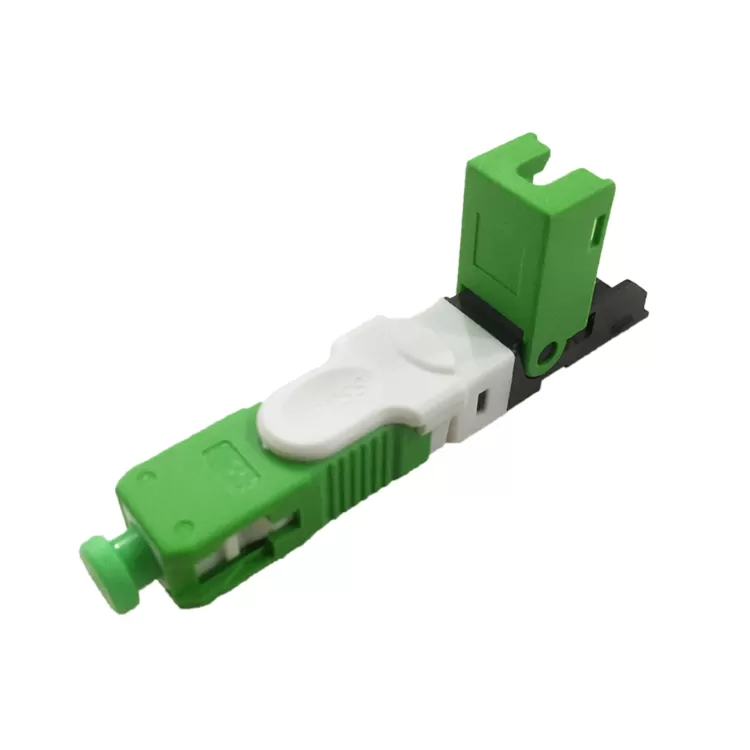

SC APC FTTH Fiber Optic Fast Mechanical Connector

Model Number: fast connector sc apc

Scope of application: 2.0mm/3.0mm/3.1x2.0mm fiber

Fiber diameter: 125mm

Compact cladding diameter: 250mm

Insertion loss: ≤0.25db

Return loss: ≤40db

Inquire Now Next Product

Description Contact Us

Application

CATV
Telecom Network
Metro
Multimedia
Data processing
Premiseinstallation
GigabitEthernet

Features

Low insertion loss
Ease of installation
Low cost & Reliability
Ease of use
Low environmental sensitivity
High return loss (low amounts of reflection at the interface)

	Singemode(UPC)	Singemode(APC)	Multimode
Insertion loss	≤ 0.2db	≤ 0.2db	≤ 0.25db
Return loss	≤ 0.2db	≤ 0.2db	≤ 0.25db
Durability	≤ 0.2db typical change, 1000 times mating
Operating Temperature	-45 to +85 degree
Ferrule Hole Sizes	125.0+1/-0um, Concertricity:≤1.0um	125.0+1/-0um, Concertricity:≤0.5um	127.0um, Concertricity: ≤3.0um
	125.5+1/-0um, Concertricity:≤1.0um	125.5+1/-0um, Concertricity:≤0.5um
	126.0+1/-0um, Concertricity:≤1.0um	126.0+1/-0um, Concertricity:≤0.5um
