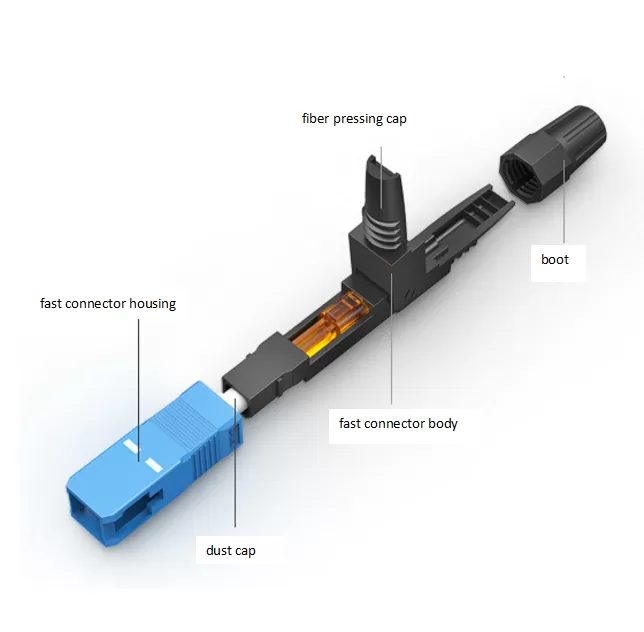

The fast connector is designed for high quality and high efficiency for installation. The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.Adopted fiber pre-installed structure.could be reused, and convenient for field installation.
Feature
precise mechanical dimensions
low insertion loss, high return loss
comply standard of IEC61754-4
ROHS compliant
Application
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
Technical Parameter
cable applicable :3.1 x 2.0 mm drop cable
cable diameter: 125μm ( 657A & 657B )
clad diameter :250μm
fiber type application: single mode
operation time: about 100s(not including fiber management )
insertion loss:≤ 0.3dB(1310nm & 1550nm)
return loss:≤ -40dB
bare fiber strength: >5 N
clad strength :>10 N
of tension:>50 N
operation temperature: -40~+75°C
tensile strength (20 N): IL ≤ 0.2dB & RL ≤ 5dB
mechanical durability:(500times) IL ≤ 0.2dB & RL ≤ 5dB

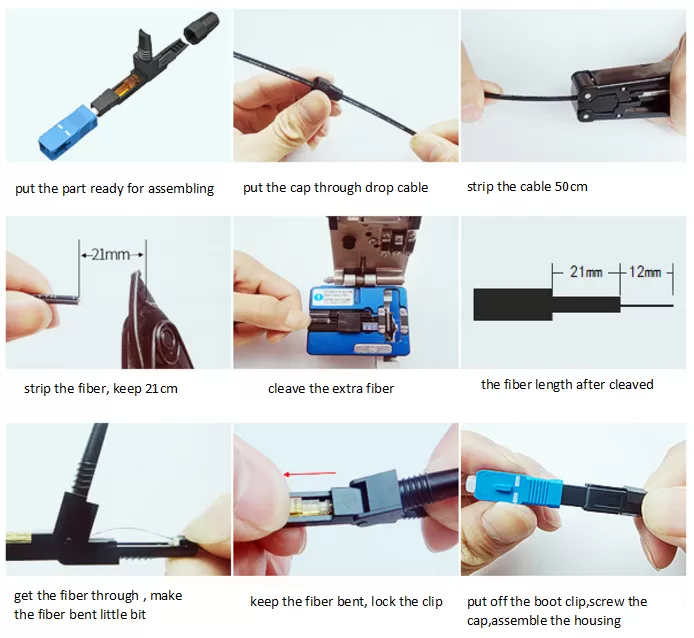

Operation guide
