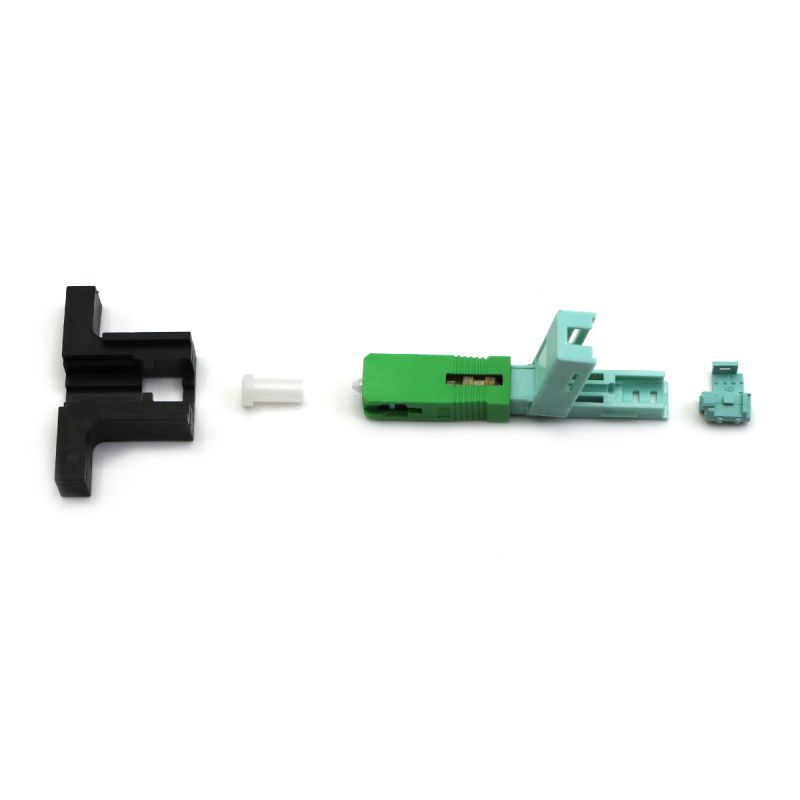

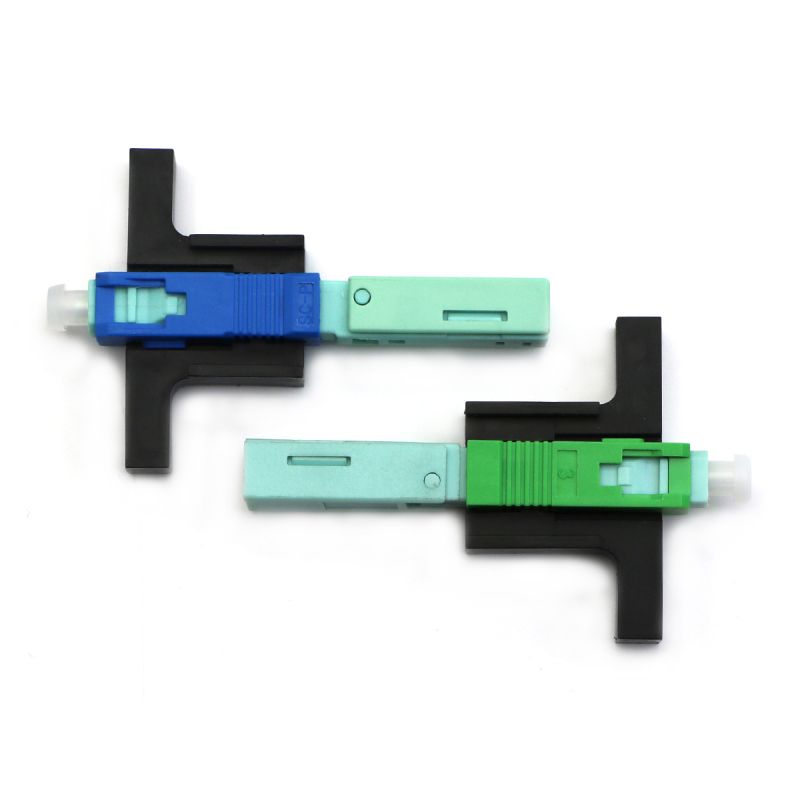

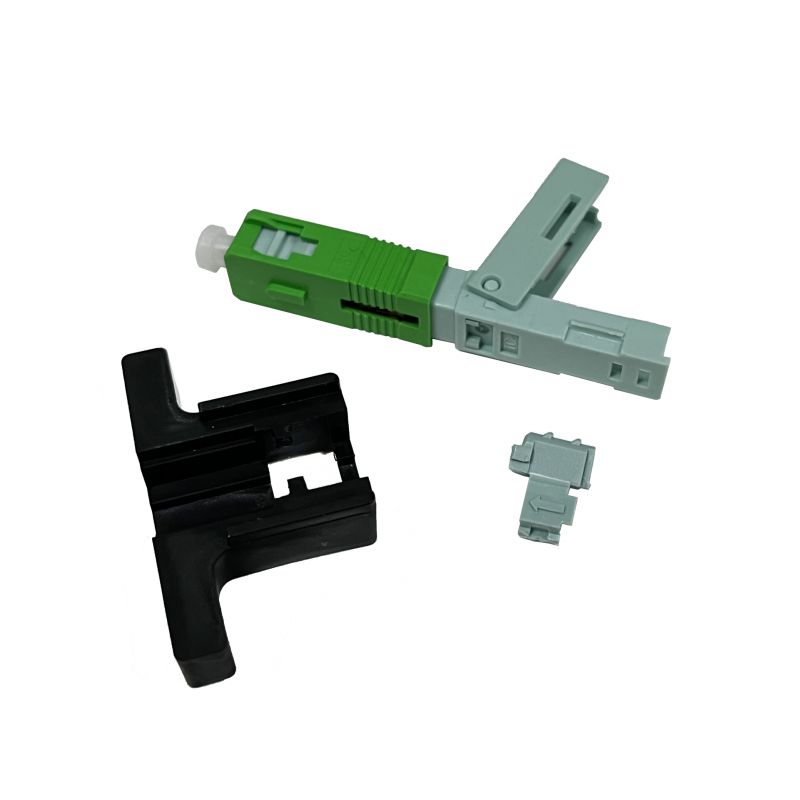

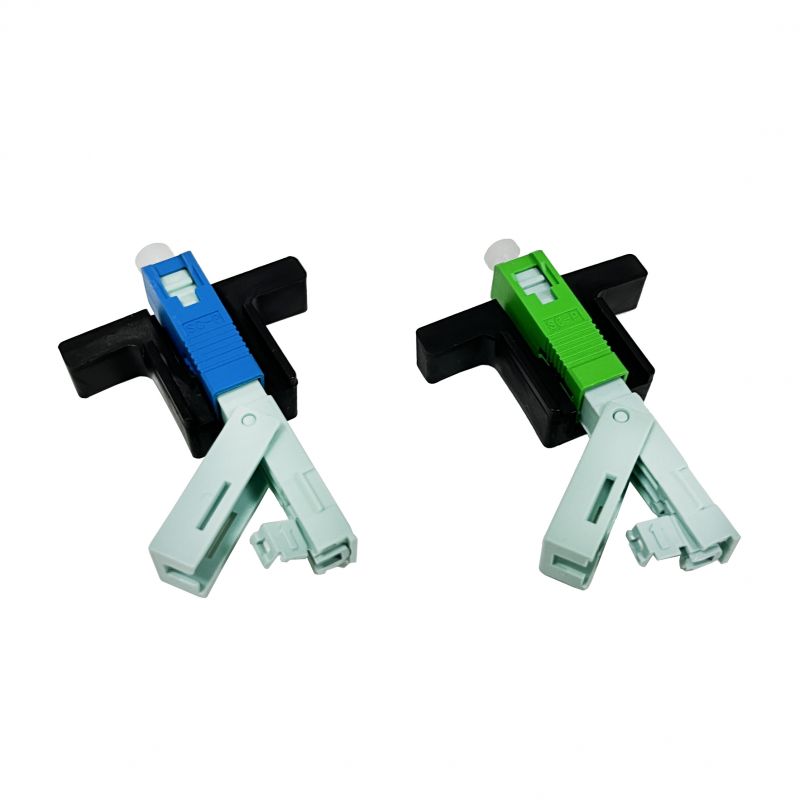

Model Number: SC Mechanical Fast Connector
Connector Type: SC
Operating temperature: -40-+85℃
Fiber mode: SM
Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.
This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.
Feature:
1. Metal-ion doped fiber (continuous)
2. Durability (well over 1 W) (EDFA)
3. Wavelength Independent (DWDM)
4. Low PDL (<0.1dB)
5. Low Polarization dependence
6. Bellcore Compliant (GR-910-CORE)
Technical Parameter
<table magic-15">
Fast Connector Specification | |||
Mode | SM | MM | |
Polish | UPC | APC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
Return Loss | ≥50dB | ≥65dB | ≥35dB |
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (1000 times mating) | ||
Tensile Strengh | > 10kg | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
