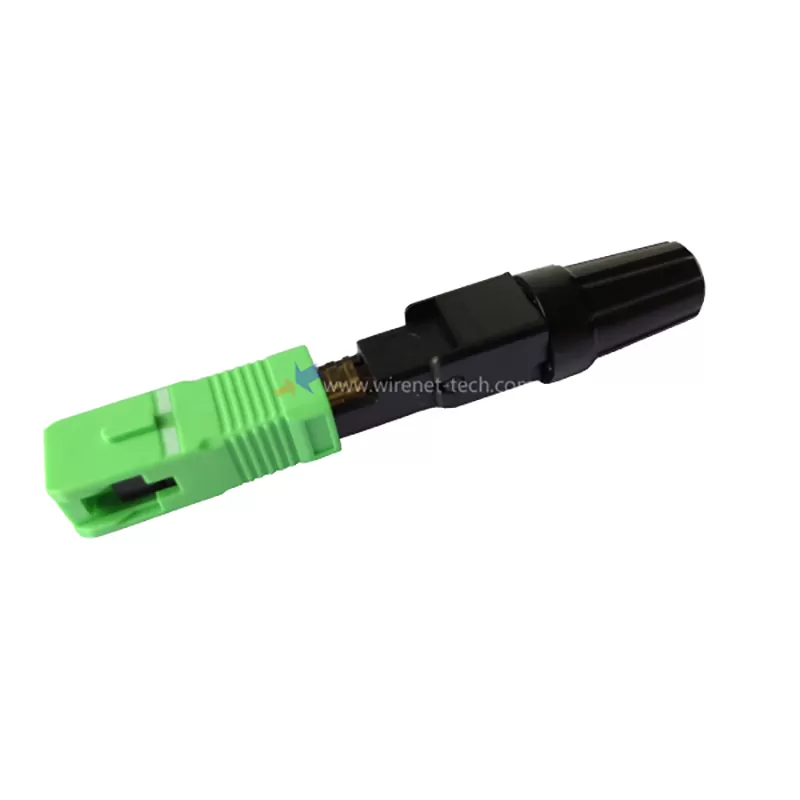

FTTH SC APC Fiber Optic Fast Connector

The fast connector is designed for high quality and high efficiency for installation. The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.Adopted fiber pre-installed structure.could be reused, and convenient for field installation.

Feature

• precise mechanical dimensions

• low insertion loss, high return loss

• comply standard of IEC61754-4

• ROHS compliant

Application

• Connections at the desk for LAN environments

• Patch panels

• Direct equipment termination

• Fiber to the Subscriber (FTTx) applications

• Repair/replacement requirements

• Equipment test leads

•


•


•


•


Technical Parameter

• cable applicable :3.1 x 2.0 mm drop cable

• cable diameter: 125μm ( 657A & 657B )

• clad diameter :250μm

• fiber type application: single mode

• operation time: about 100s(not including fiber management )

• insertion loss:≤ 0.3dB(1310nm & 1550nm)

• return loss:≤ -40dB

• bare fiber strength: >5 N

• clad strength :>10 N

• of tension:>50 N

• operation temperature: -40~+75°C

• tensile strength (20 N): IL ≤ 0.2dB & RL ≤ 5dB

• mechanical ‎durability:(500times) IL ≤ 0.2dB & RL ≤ 5dB
