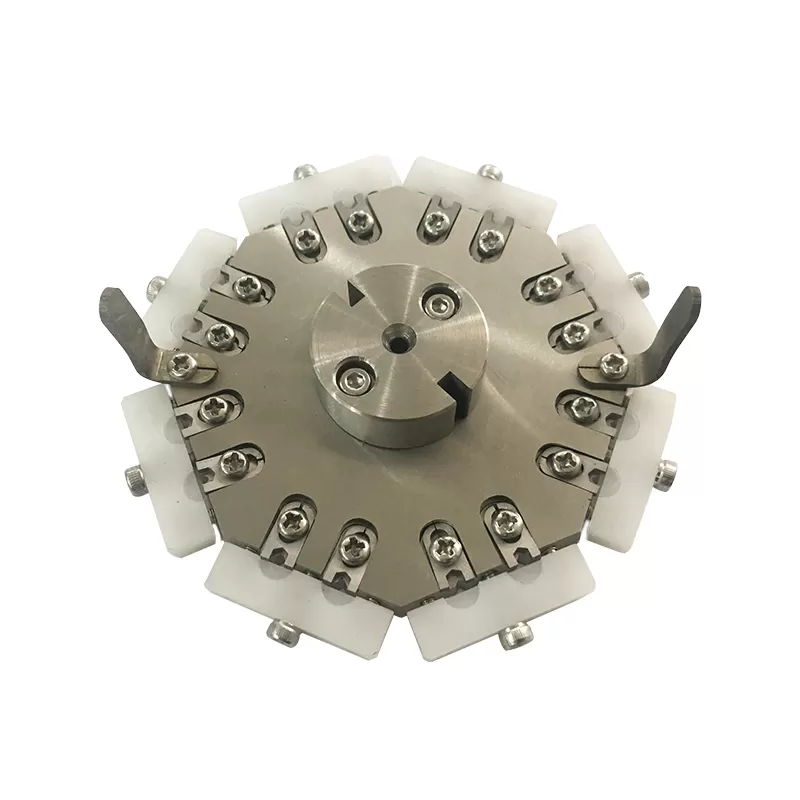

E2K APC fiber optic polishing Jig for Central Pressure Polishing Machine

E2K APC fiber optic polishing Jig for Central Pressure Polishing Machine

Model Number: E2K APC Polishing Jig

Connector type: E2K APC

Connector positions: 16/12

Polishing: APC

Material: Stainless Steel

Application: central pressure fiber polishing machine


share:

Description Contact Us

Description

1. Designed for high volume applications

2. Good quality and high production efficiency

3. Can be customized according by customer requirement

4. Quick change tooling, Super centering accuracy

5. Excellent endface geometry, Utilizes I.P.C. holder technology

6. Eliminate ferrules show the different length effects on polishing

7. Plugs of polishing jig can be interchanged to extend polishing fixture’s life


Application:

1. Used for center pressure polishing machine;

2. Suitable for E2K connector polishing style;


Characteristics:

1. Special designed for E2K connector polishing.

2. Parts may be replaced on the jig, it is effective for polishing cost saving.

3. Both left-handles and right-handles are provided to suit operation need.

4. Water inlet design of the jig comply with the outlet of polishing machine of SG550

5. Easy to expel the dust out during polishing operation



Type
Connector number
E2000/APC Ferrule

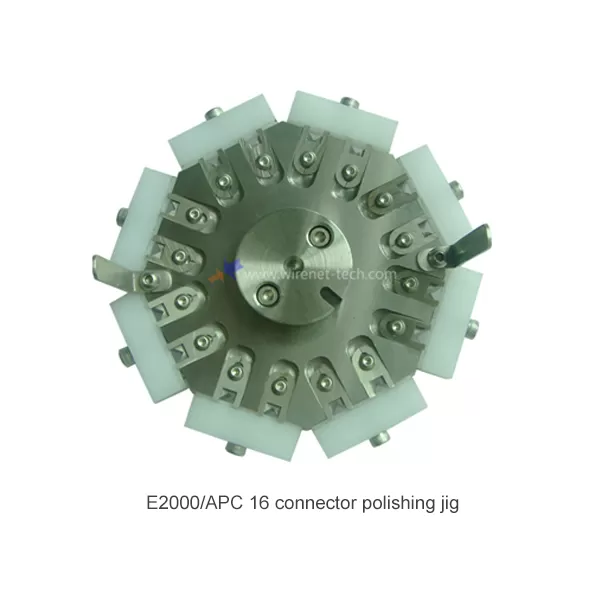

Center pressure polishing jig 16 connector
E2000/APC Connector

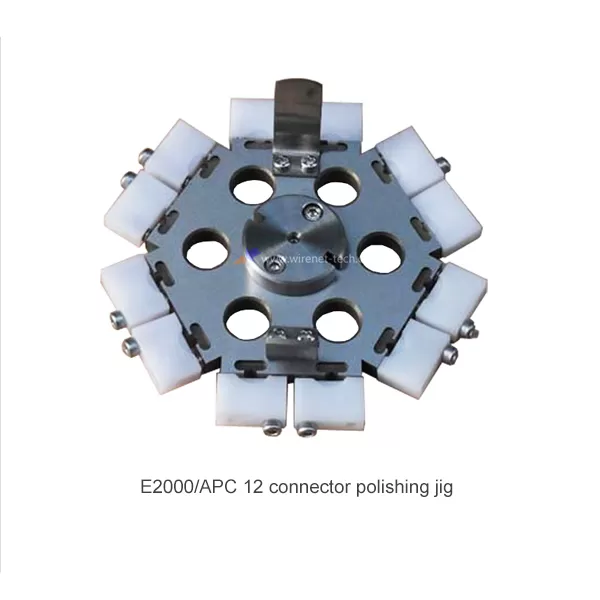

Center pressure polishing jig 12 connector
