Comparative Analysis of CWDM and CCWDM Technologies

CWDM (Coarse Wavelength Division Multiplexing) and CCWDM (Compact Coarse Wavelength Division Multiplexing) are two wavelength division multiplexing (WDM)-based technologies primarily used to increase transmission capacity in optical fiber communications. Their key differences lie in their design structure, channel spacing, cost, and application scenarios.

The following is a detailed comparison:

1. Channel Spacing and Wavelength Range

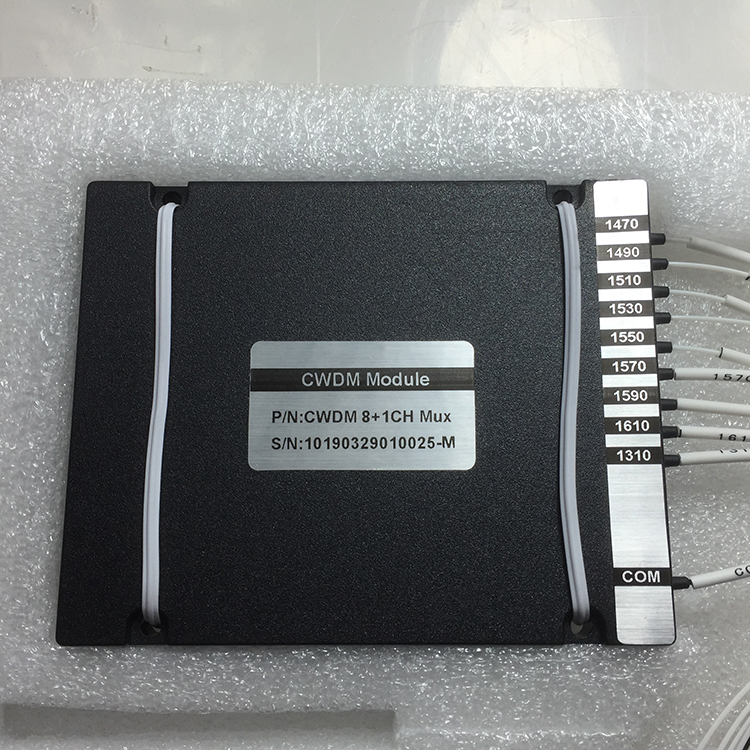

CWDM:

* Channel Spacing: 20 nm (standard ITU-T definition).

* Wavelength Range: 1270–1610 nm (O/E/S/C/L bands), typically supporting 18 channels.

* Features: Wide spacing allows the use of uncooled lasers, reducing costs but limiting the number of channels.

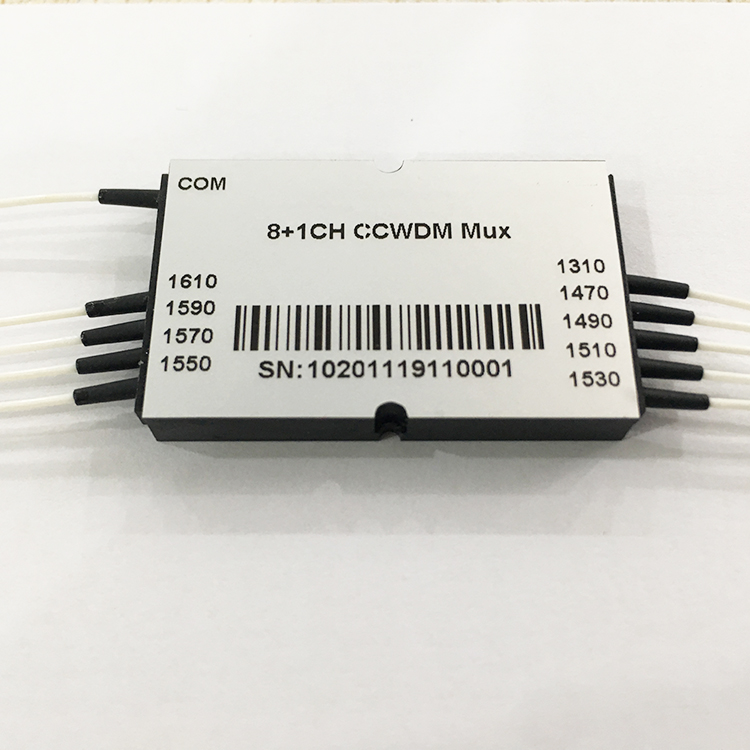

CCWDM:

* Channel Spacing: 20 nm (same as CWDM), but with a compact design and optimized optical structure.

* Wavelength Range: Same as CWDM, but some wavelength bands may be supported less frequently due to component design.

* Features: Integrated design reduces size, making it suitable for space-constrained applications.

2. Cost and Performance

CWDM:

* Low Cost: Due to its use of widely spaced and uncooled lasers, it is suitable for budget-constrained scenarios.

* Performance: Minimally affected by temperature (wavelength drift is approximately 0.1 nm/°C), but transmission distances are typically ≤80 km (limited by dispersion).

CCWDM:

* Slightly Higher Cost: Due to its integrated design, it still offers a cost advantage over DWDM.

* Performance: Similar to CWDM, but its compact design may require higher heat dissipation requirements.

3. Application Scenarios

CWDM:

* Metropolitan area network access layer, enterprise networks, and 5G fronthaul (e.g., 12-wavelength solutions).

* Medium- and short-distance transmission (typically ≤40 km).

CCWDM:

* Space-constrained scenarios (e.g., data center interconnects, small base stations).

* Equipment requiring high port density (e.g., OTN switches, CPRI interfaces).

How to Choose?

Choose CWDM: When low cost, medium capacity, and space are not limited (e.g., traditional telecom access networks).

Choose CCWDM: Requires compact, high-density deployments (such as in data centers or mobile edge networks).

Essentially, CCWDM and CWDM are different implementations of the same technology (20 nm spacing). CCWDM can be considered a "space-optimized" version of CWDM.
