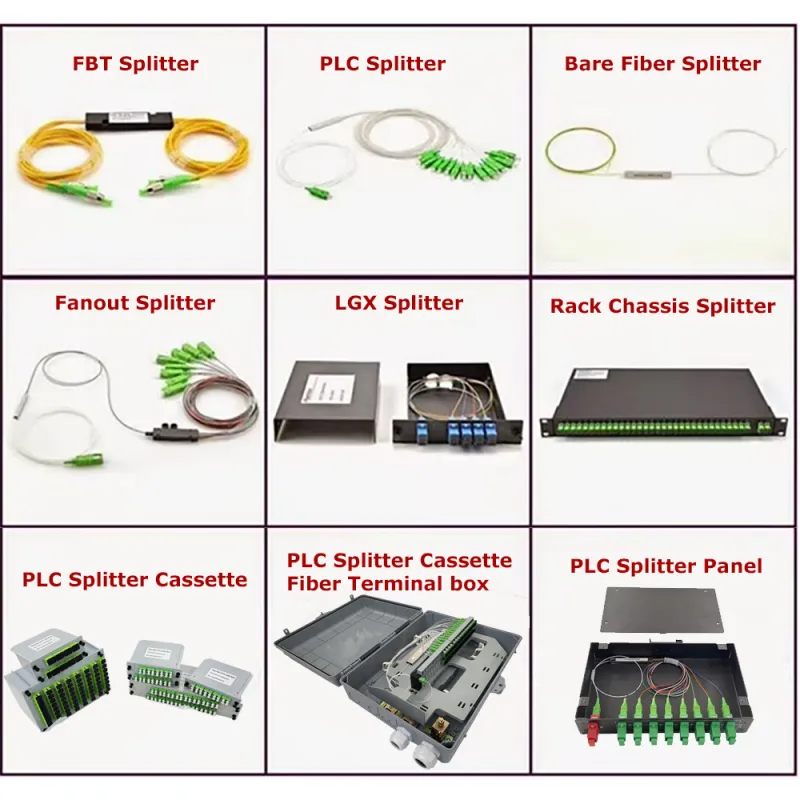

This Mini Type PLC Splitter features G.657.B3 bend-insensitive single-mode fiber with SC/APC connectors. Available in 1×4, 1×8, and 1×16 configurations, it delivers low insertion loss, high uniformity, and reliable optical signal distribution for FTTH, PON, CATV, and ODF installations. Compact design ideal for space-constrained fiber distribution frames and data centers.

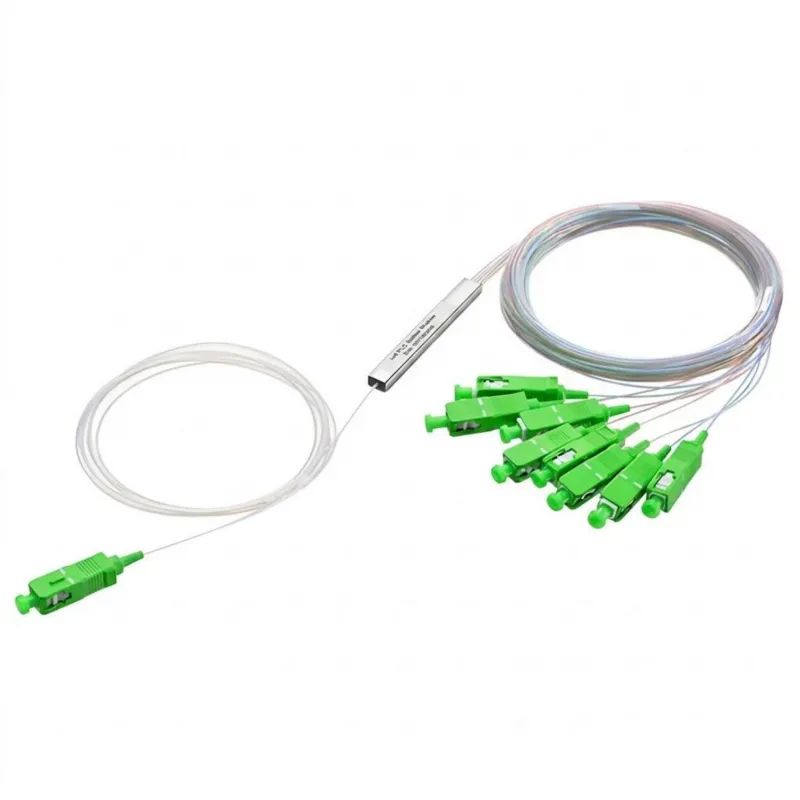

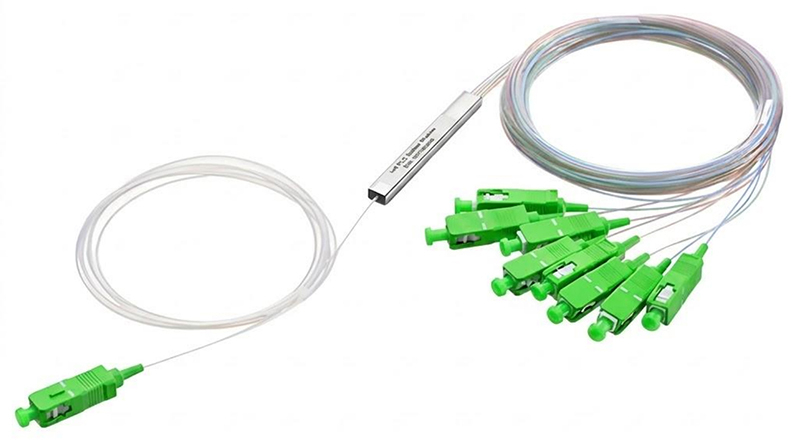

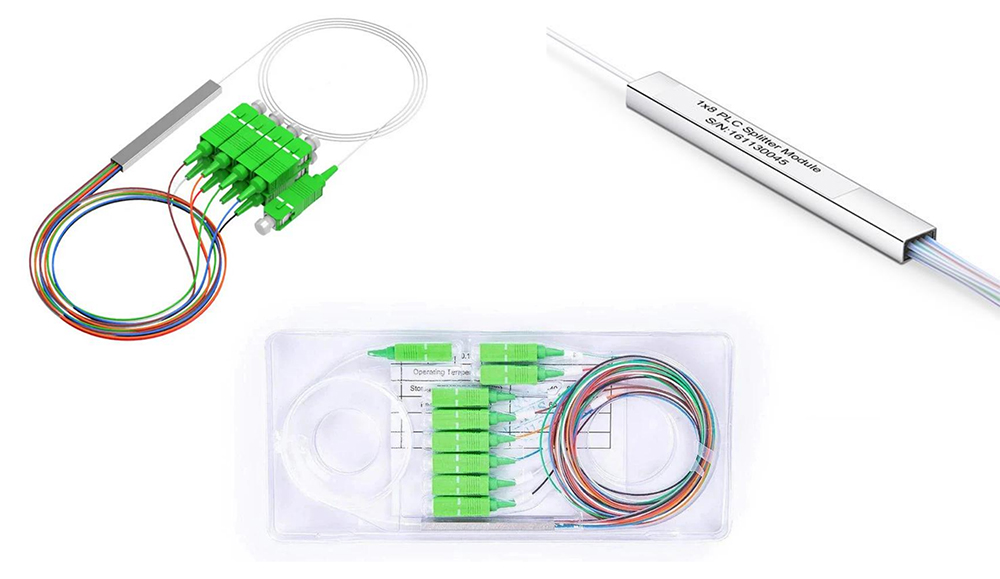

1×4 / 1×8 / 1× 16 single-mode optical splitter, factory-terminated with SC/APC connectors for optical distribution frame installation.

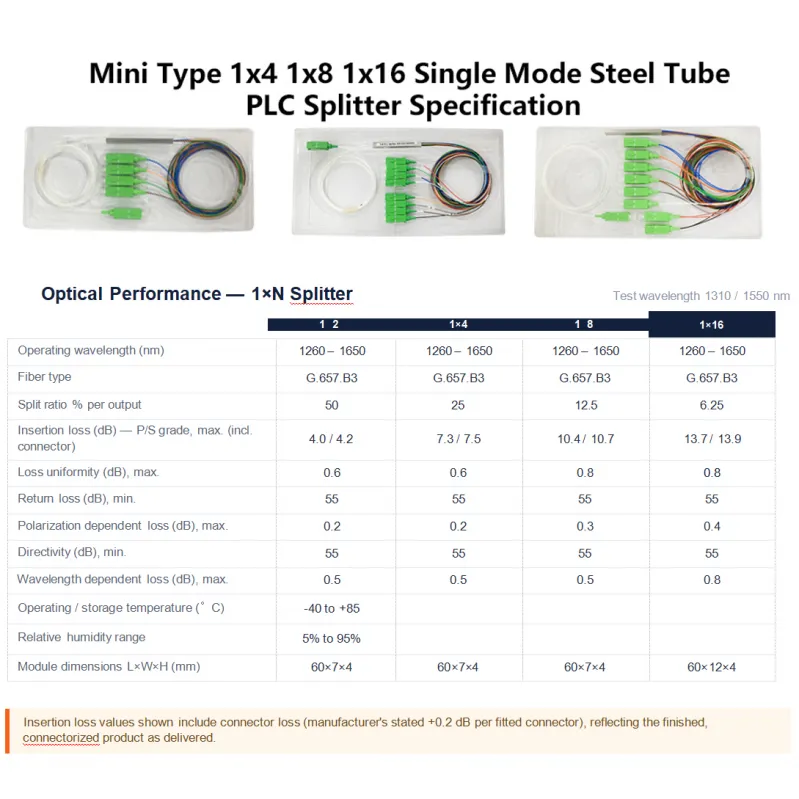

1.Optical Performance — 1×N Splitter
| Specification | 1x2 | 1x4 | 1x8 | 1x16 |
| Operating wavelength (nm) | 1260 – 1650 | 1260 – 1650 | 1260 – 1650 | 1260 – 1650 |
| Fiber type | G.657.B3 | G.657.B3 | G.657.B3 | G.657.B3 |
| Split ratio % per output | 50 | 25 | 12.5 | 6.25 |
| Insertion loss (dB) — P/S grade, max. (incl. connector) | 4.0 / 4.2 | 7.3 / 7.5 | 10.4 / 10.7 | 13.7 / 13.9 |
| Loss uniformity (dB), max. | 0.6 | 0.6 | 0.8 | 0.8 |
| Return loss (dB), min. | 55 | 55 | 55 | 55 |
| Polarization dependent loss (dB), max. | 0.2 | 0.2 | 0.3 | 0.4 |
| Directivity (dB), min. | 55 | 55 | 55 | 55 |
| Wavelength dependent loss (dB), max. | 0.5 | 0.5 | 0.5 | 0.8 |
| Operating / storage temperature (°C) | -40 to +85 | |||
| Relative humidity range | 5% to 95% | |||
| Module dimensions L×W×H (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60× 12×4 |
Note：
Insertion loss values shown include connector loss (manufacturer's stated +0.2 dB per fitted connector), reflecting the finished, connectorized product as delivered.
2.Fanout & Connector — SC/APC, 0.9 mm, 1 m
| CONNECTORPERFORMANCE | IEC 61753GRADEB/1 |
| Insertion loss | ≤ 0.12dB average |
| Return loss | ≥ 60 dB(matedpair) |
| Durability | >1,000 matingcycles |
| Polish angle | 8°, angled physical contact |
| Ferrule material | Zirconia ceramic |
| SST TUBECHARACTERISTICS | |
| Operating altitude | Up to 3,820m |
| Ingress protection | IP65 — solid /liquid / dust |
| Corrosion resistance | Tropicalized anti-corrosiontreatment |
| Pigtail fire behavior | Non-flame-propagating, non- smoke-emitting |
| Factory certification | Issued with every shipment |

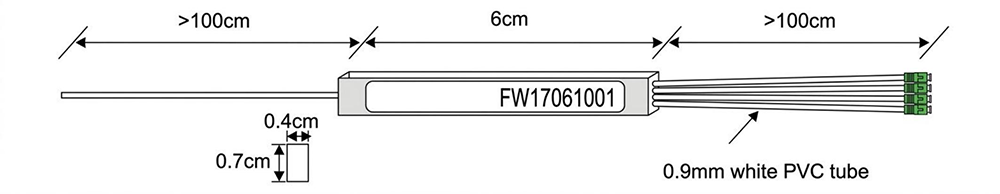

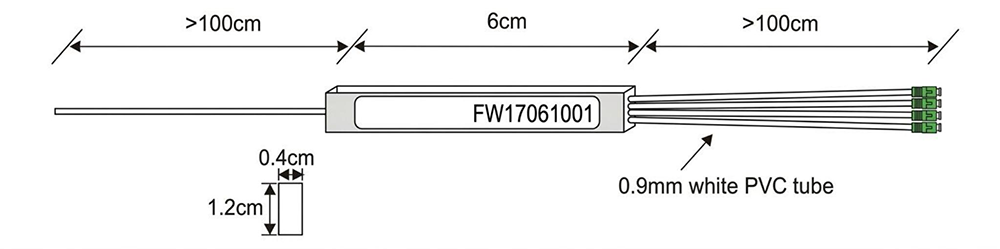

3.Mechanical Dimensions
| 1x4 1x8 PLC Splitter | |
| Input leg length | > 100 cm |
| Module body | 6 cm |
| Output leg length | > 100 cm |
| Fiber jacket | 0.9 mm white PVC loose tube |
| 1x16 PLC Splitter | |
| Input leg length | > 100 cm |
| Module body | 6 cm |
| Output leg length | > 100 cm |
| Fiber jacket | 0.9 mm white PVC loose tube |

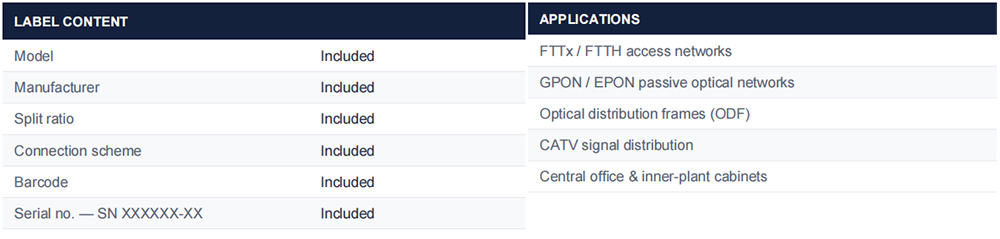

4. Labeling & Packing
5. Ordering Notes
Connector type, pigtail length, and housing finish can be customized on request. Contact your Wirenet representative to confirm configuration before placing an order.
