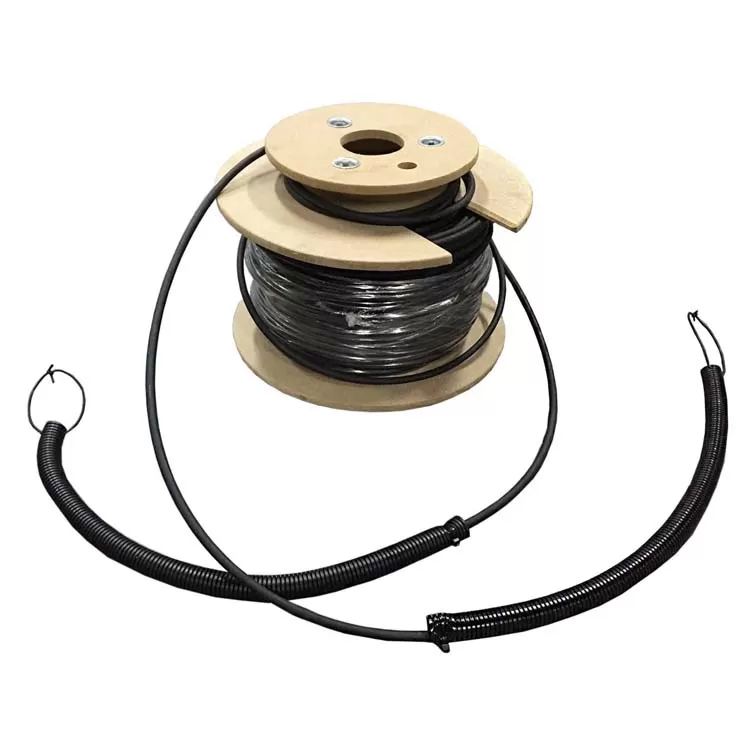

OS2 LC to LC UPC Duplex FTTA LSZH Fiber Patch Cable

Application:

1. Outdoor usage
2. FTTA
3. BBU to RRU

Characteristics:

1. Low insertion Loss
2. Customized

Specification

Outdoor FTTA patchcord, LC/UPC to LC/UPC, 2fiber, LSZH, Black jacket, water proof, UV resistant

* Fan out diameter:3.0mm with armor

* Fan out length: 10cm

* With water proof connetor.

Outdoor FTTA patchcord drawing

① Connector A: LC/UPC MM 3.0mm connnecor  short Boot color: Red&Black

② Connector B: LC/UPC MM 3.0mm connnecor  short Boot color: Red&Black

③ FTTA fiber optic cable (OD:7.0mm LSZH ,Black jacket,OM2 50/125 fiber)

④ Fanout kit:OD8.0*L20mm

⑤ water proof connector Black color

⑥ label:L=25mm

Cable Structure

Connector insertion loss and return loss

*Measurement

Wavelength(MM=850/1300nm)

Optical specil          multimode

Insertion Loose       <0.3dB

Return loose           >35dB

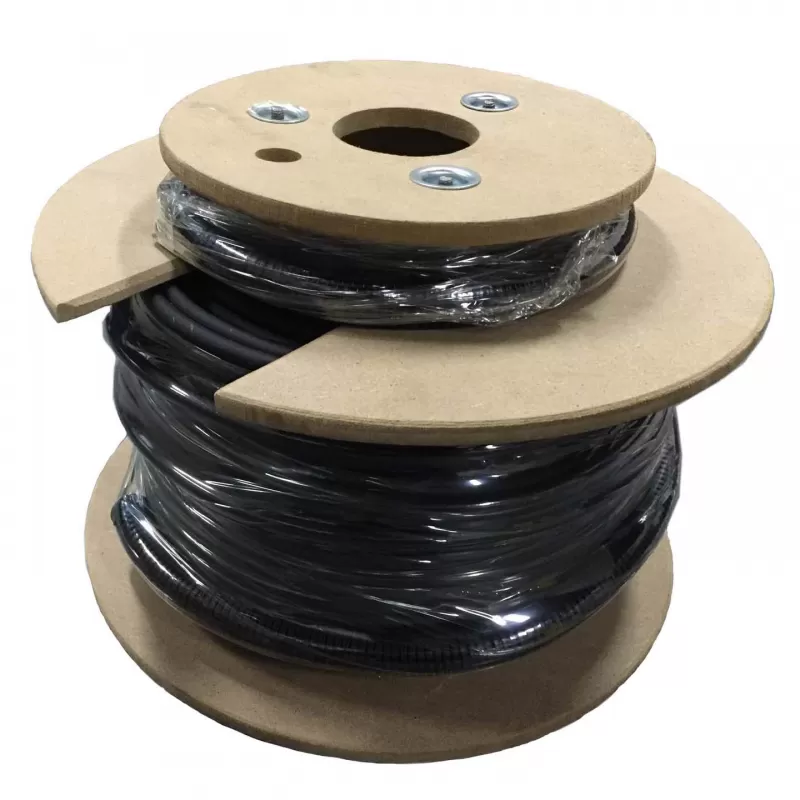

Package

Ordering Information
