customized 24 fiber OS2 singlemode assembly LC SC FC ST terminated outdoor loose tube 2.0MM breakout patch cord

Specification

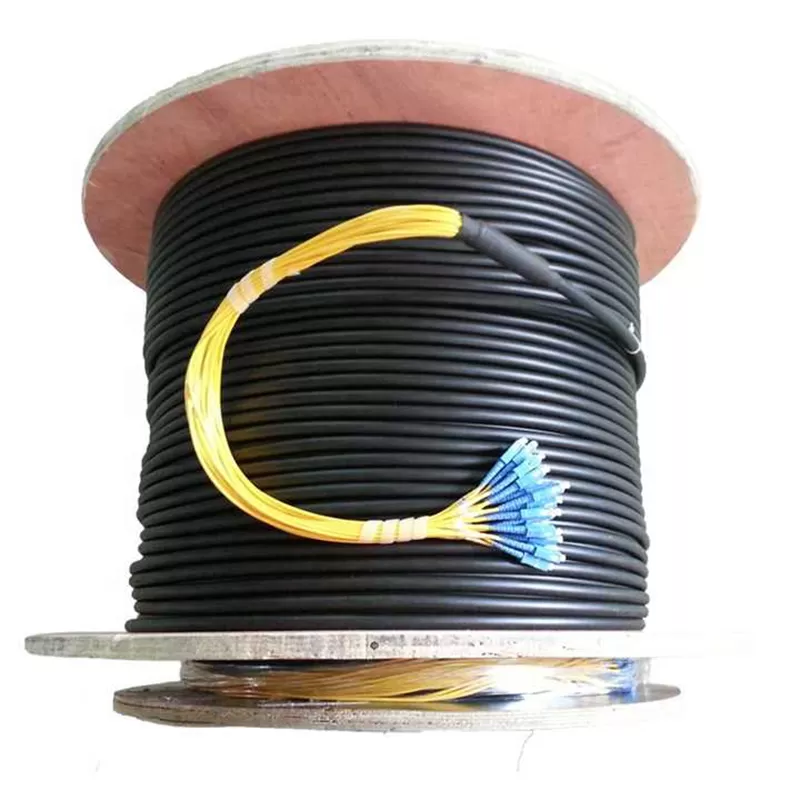

Outdoor Breakout patchcord ,SC/UPC to SC/UPC ,24fiber,PE jacket,Fan out in both side,

* Fan out diameter:3.0mm PVC yellow

* Fan out length: 24 "（in step length）

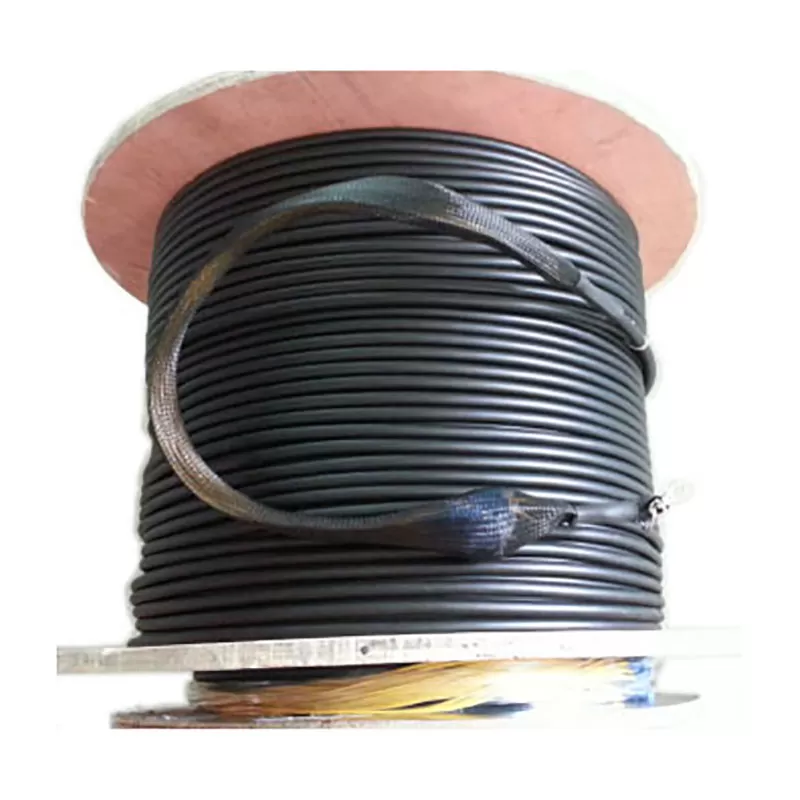

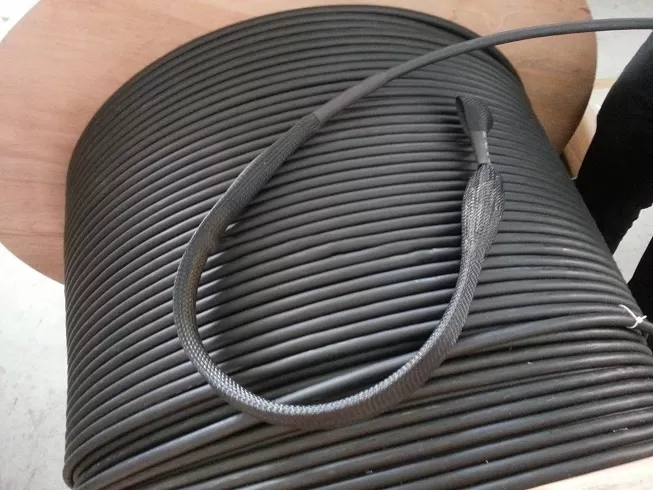

* Fan out with Pulling Eye in both side.

Application:

1. Outdoor usage

2. Aerial

Characteristics:

1. Low insertion Loss

2. Customized

Multi fiber patch cord drawing

① Connector A: SC/UPC SM 3.0mm connnecor  with Pulling eye

② Connector B: SC/UPC SM 3.0mm connnecor  with Pulling eye

③ ADSS 24C SMF28 e+ fiber optic cable (span 800 ft)

Cable Structure

Connector insertion loss and return loss

*Measurement

Wavelength(MM=850/1300nm)

Optical specil          multimode

Insertion Loose       <0.3dB

Return loose           >35dB

Package

80*80*60cm/reel  about 100kg/pc

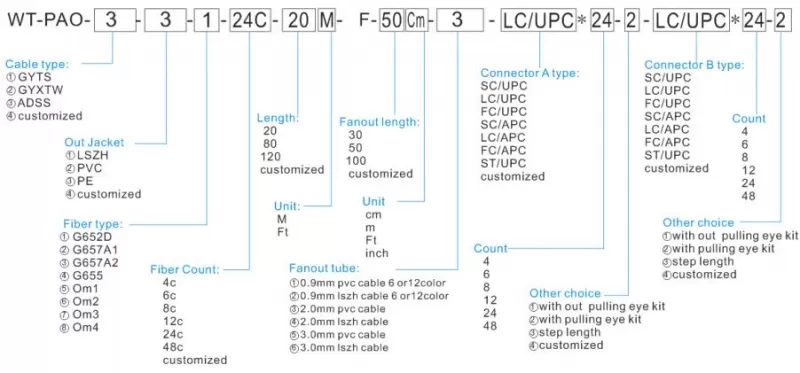

Ordering Information
