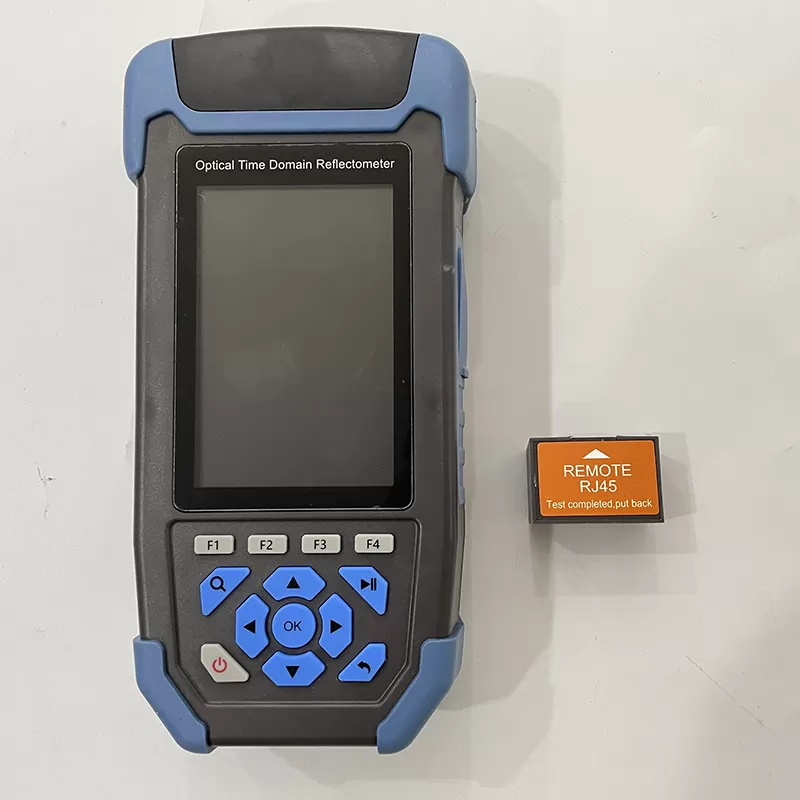

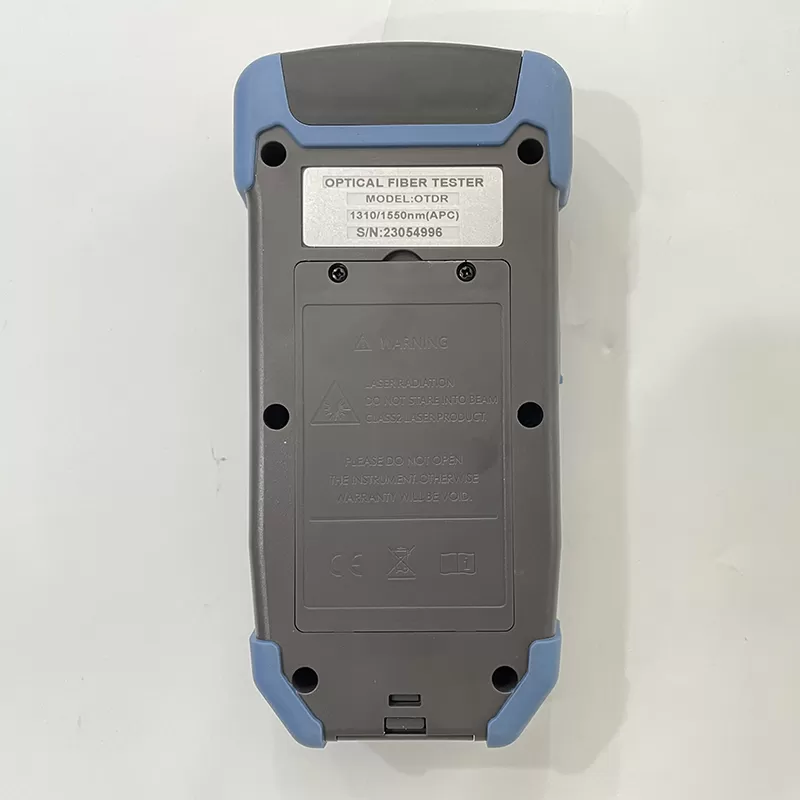

Mini OTDR is appliedto FTTx and access network construction and maintenance, to test fiber break-point , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, newplastic shell design,shock-proof and drop proof.

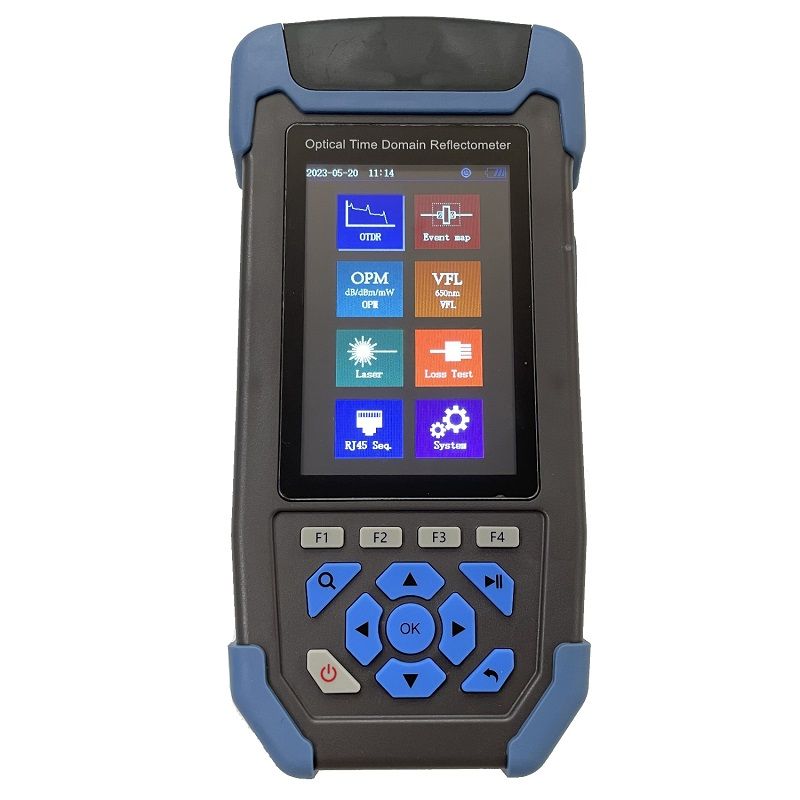

The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, IL and lighting functions. It could quick detection of breakpoint, universal connector, 600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging . It is a good choice for long term field work .
Features
* (8 functions in 1 device)
* OTDR: 1610nm, 24dB, 5m~60KM
* Event Map (similar to EXFO iOLM)
* Optical Power Meter: -50~+26dBm
* Visual Fault Locator: >=10mW
* Optical Light Source: 1610nm, >-5dBm
* Optical Insertion Loss Tester
* RJ45 Ethernet Cable Sequence
* LED Light
Specification
Model | 1610nm 24dB 60KM 8 in 1 type Online Mini-Pro OTDR |
Functions | OTDR/Event Map/OPM/VFL/OLS/IL/RJ45 Sequence/Flashlight |
OTDR |
Wavelength | 1610nm±20nm online |
Fiber Type | G.652 SM Fiber |
Dynamic Range | 24dB |
Event Blind Zone | 3m |
ATT Blind Zone | 8m |
Test Range | 500m~60km |
Pulse Width | 5ns~10us |
Ranging Accuracy | ± (1m+Sampling Interval +0.005%*Test Distance) |
Loss Accuracy | ±0.2dB/dB |
Sampling Points | 16k~128k |
Sampling Resolution | 0.05m~8m |
Reflection Accuracy | ±3dB |
Data Storage | Internal: ≥600, External: TF Card |
Laser Safety Level | Class Ⅱ level |
File Format | SOR Standard File Format |

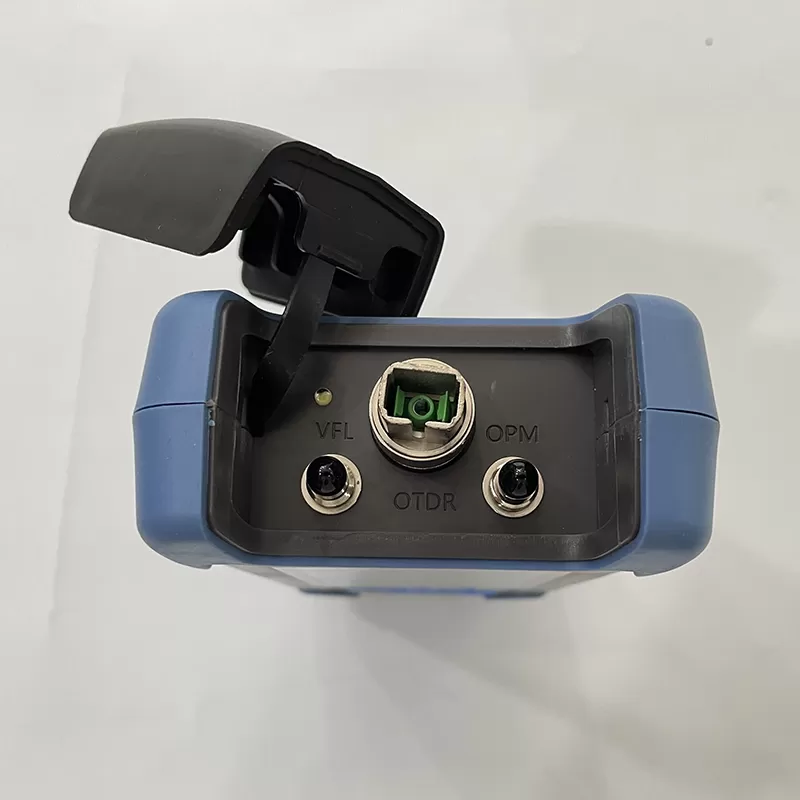

Connector | FC/APC (Interchangeable SC, ST) |
OPM |
Wave Range | 800nm~1700nm |
Interface Type | Universal Joint FC/SC/ST |
Test Range | -50dBm~+26dBm |
Uncertainty | ±5% |
Frequency Identification | CW/270/330/1k/2kHz |
Calibration Wavelength | 850/1300/1310/1490/1550/1577/1625nm |
OLS |
LD Type | FP-LD |
Output Wavelength |
| 1610nm±20nm |
Output Power | ≥-5dBm |
Modulation Frequency | 270/330/1k/2kHz |
Stability | CW, ±0.5dB/15min (Test after15mins of preheating) |
Connector | FC/APC (Interchangeable SC, ST) |
VFL |
Work Wavelength | 650nm±20nm |
Output Power | ≥10mW |
Mode | CW/1Hz/2Hz |
Connector | FC/SC/ST |
RJ45 Cable Length Measurement |
Test Range | 300m |
Other Parameters |
Display | 3.5 inch Color LCD |
Data Interface | Micro USB |
External Storage | TF Card |
Power Supply | Polymer Li-battery: 3.7V, 4000mAh, Power Adapter: 5VDC, 2A |
Battery Life | Standby>20h, Measuring Time>12h |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -40℃~+70℃ |
Relative Humidity | 0~95%Non Condensing |
Weight | ≤350g |
Dimension | 173mm*82mm*37mm |
