Model Number: ODF-R48
Design: modulized and drawable trays
Item: rack-mount
Fiber quanity: 12 core
Installation: pre-installed
share:

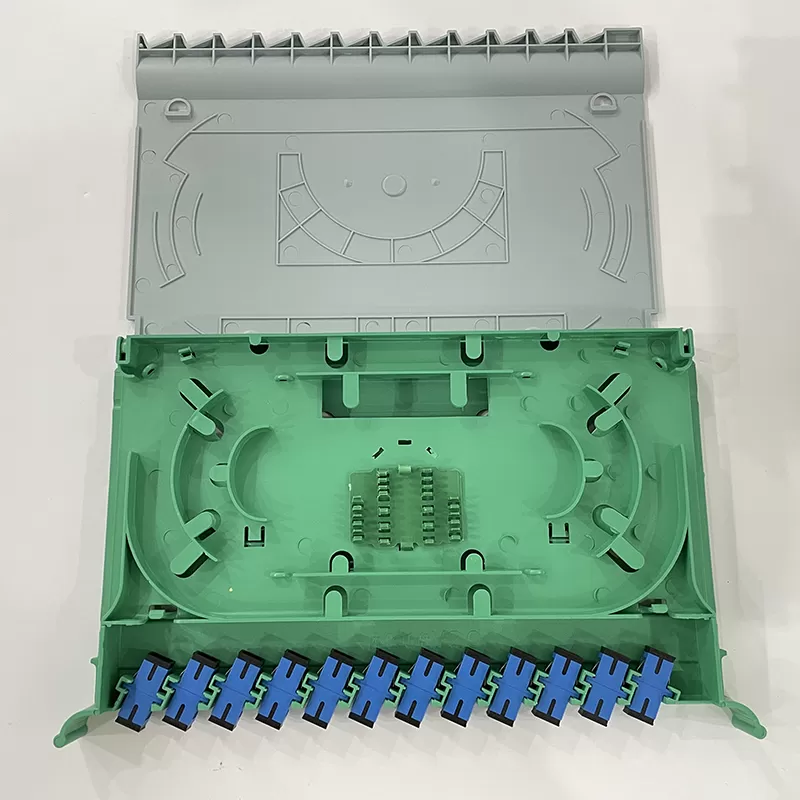

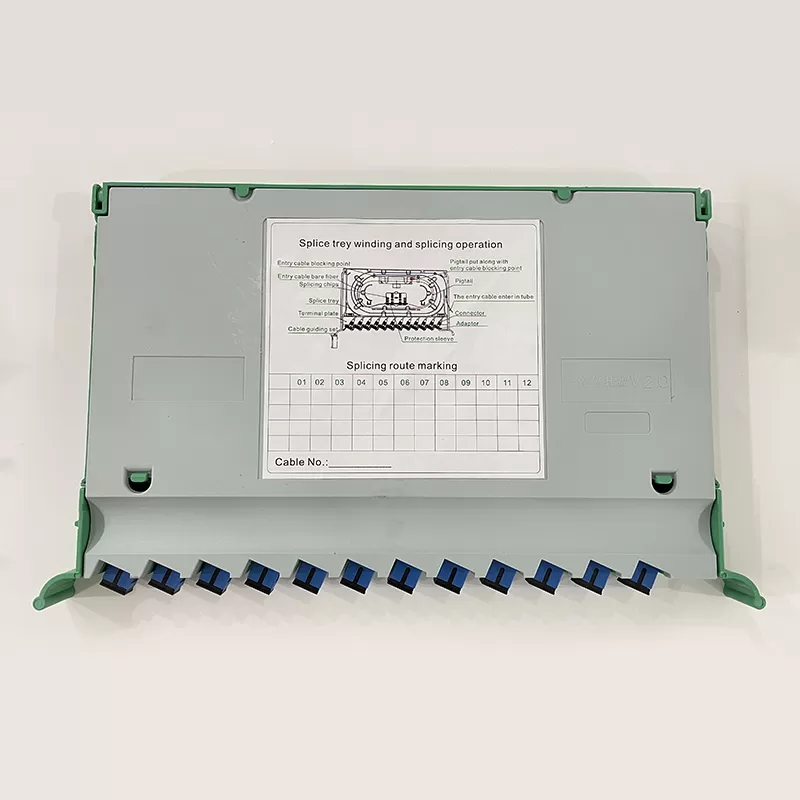

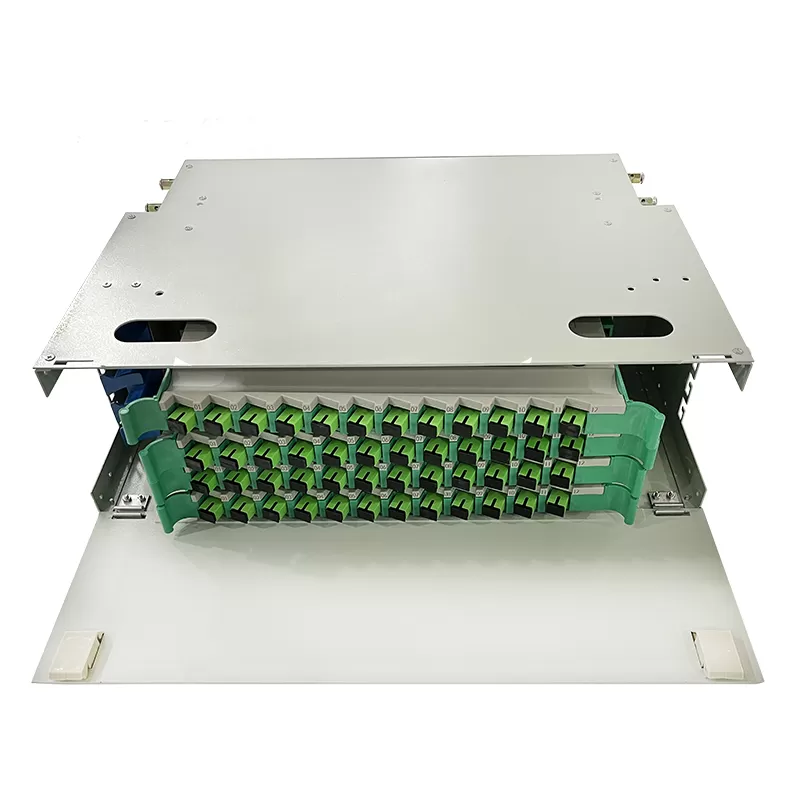

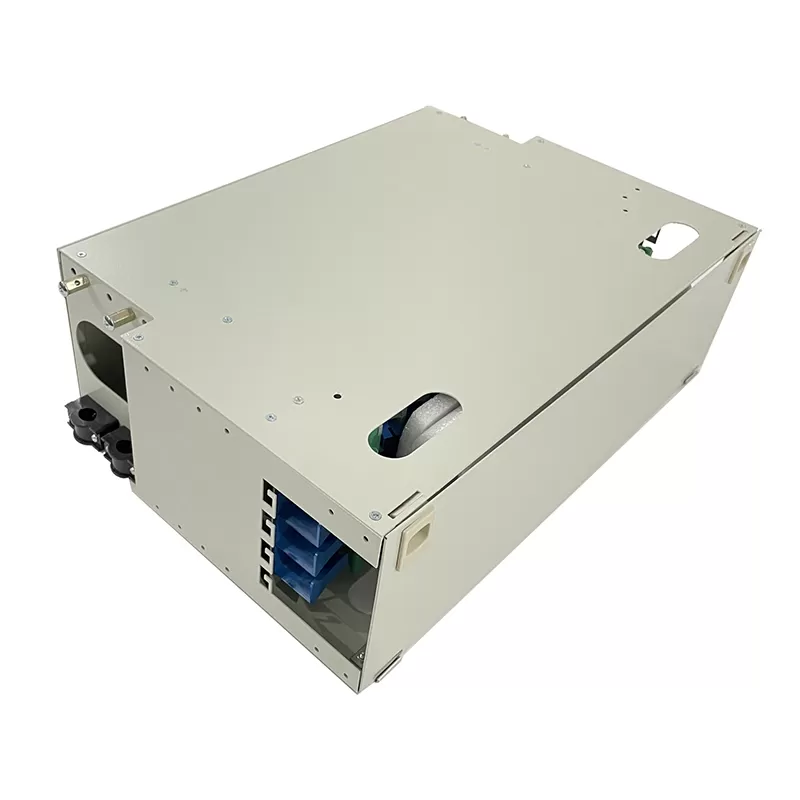

Rack-mount Fiber Optic Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Model | Core Count | Height | Dimension(cm) | Weight(kg) |
ODF-R144 | 144 | 7U | 49x30.5x31.15 | 17.1 |
ODF-R96 | 96 | 5U | 49x30.5x22.25 | 11 |
ODF-R72 | 72 | 4U | 49x30.5x17.8 | 9 |
ODF-R48 | 48 | 3U | 49x30.5x13.35 | 7 |
ODF-R36 | 36 | 2U | 49x30.5x8.9 | 5.7 |
ODF-R24 | 24 | 2U | 49x30.5x8.9 | 4.6 |
