Sliding Type 19 inch 4U ODF Optical Distribution Box is suitable for the protection connection of loose tube optical cable or bundled pigtail and jumper, branch optical cable and jumper, steel tube PLC splitter and jumper, jumper and jumper. Its design height is 2U, 3U and 4U, which are suitable for 48-core, 72-core and 96-core wiring respectively. The box is equipped with 19 inch or 21 inch mounting ears and can be installed in a cabinet or rack.
Specifications:
(1) It is made of high-quality cold roll steel&the surface is sprayed with electrostatic powder.
(2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.

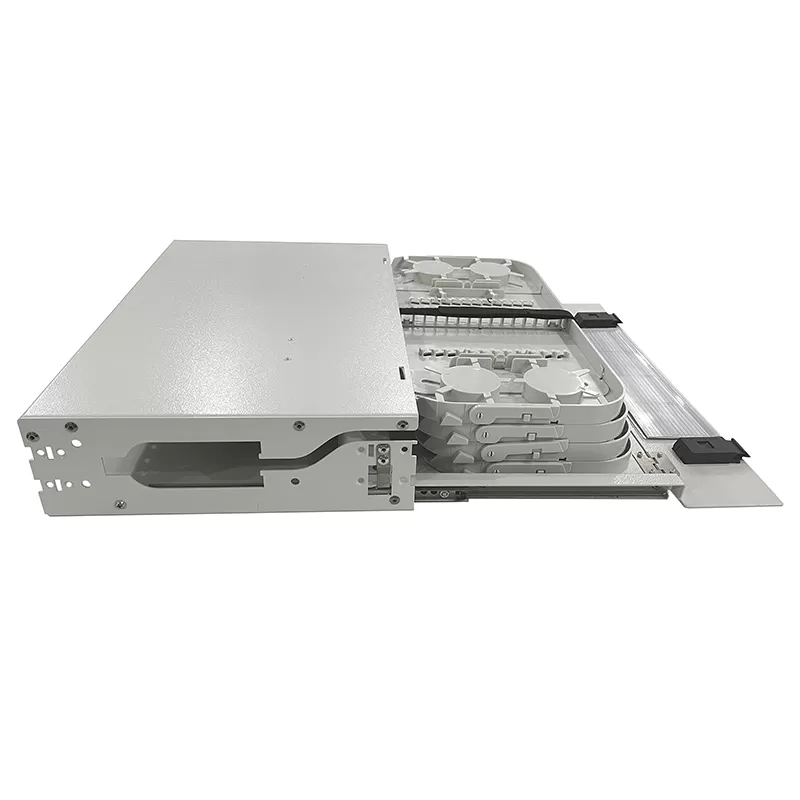

(3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high reliability.

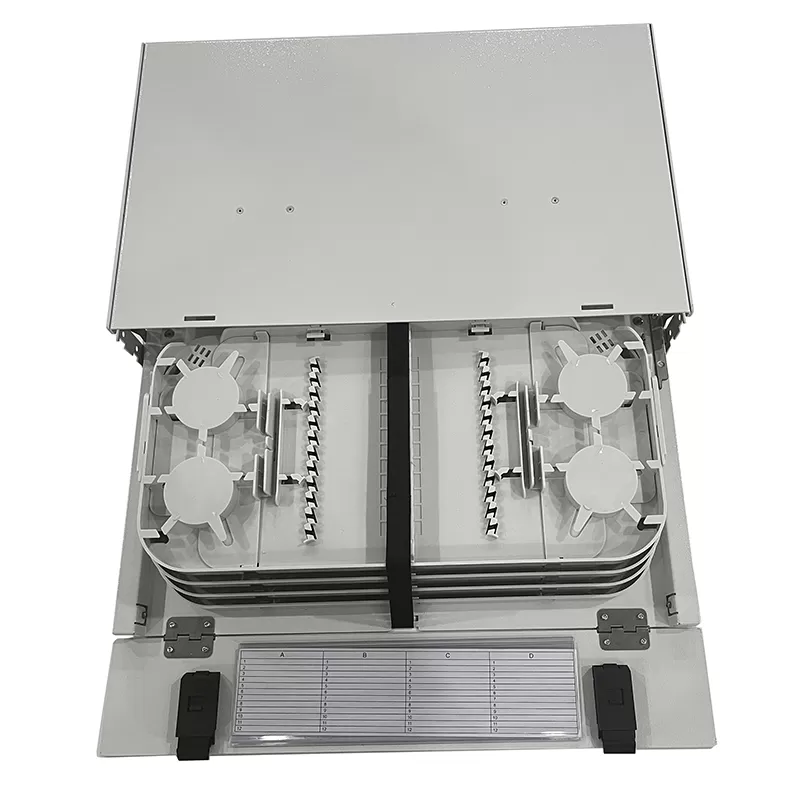

(4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and adapter panel, which can be disassembled and interchanged.

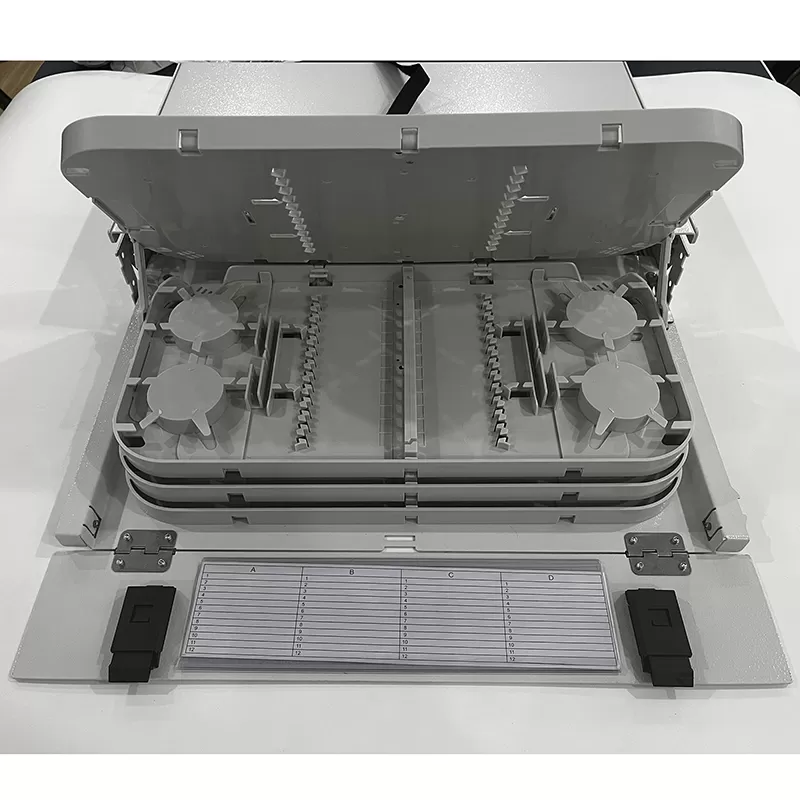

(5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There are supporting members on the side of the tray, which can be flipped, and the splice is convenient.

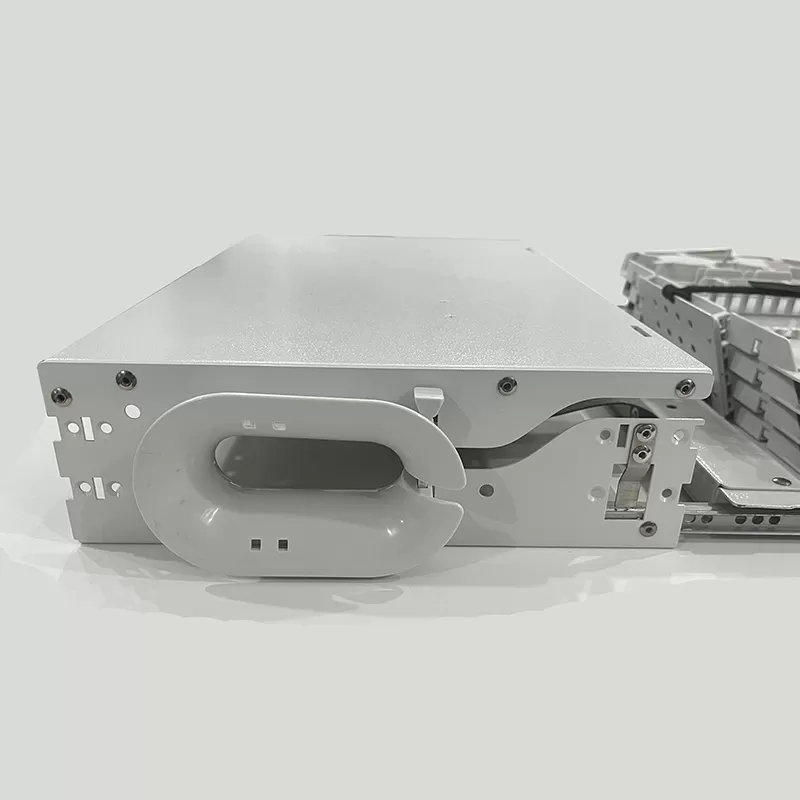

(6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.
(7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation.
