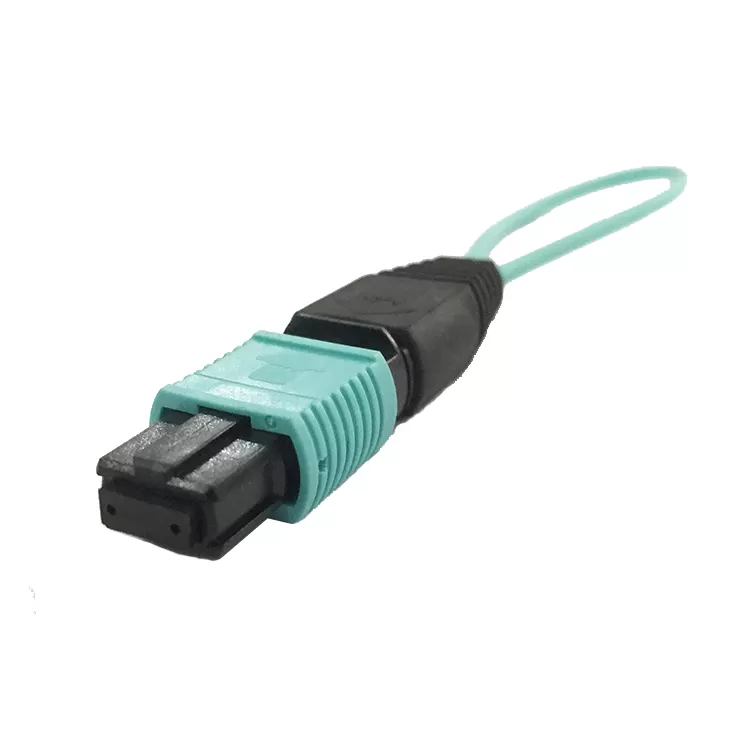

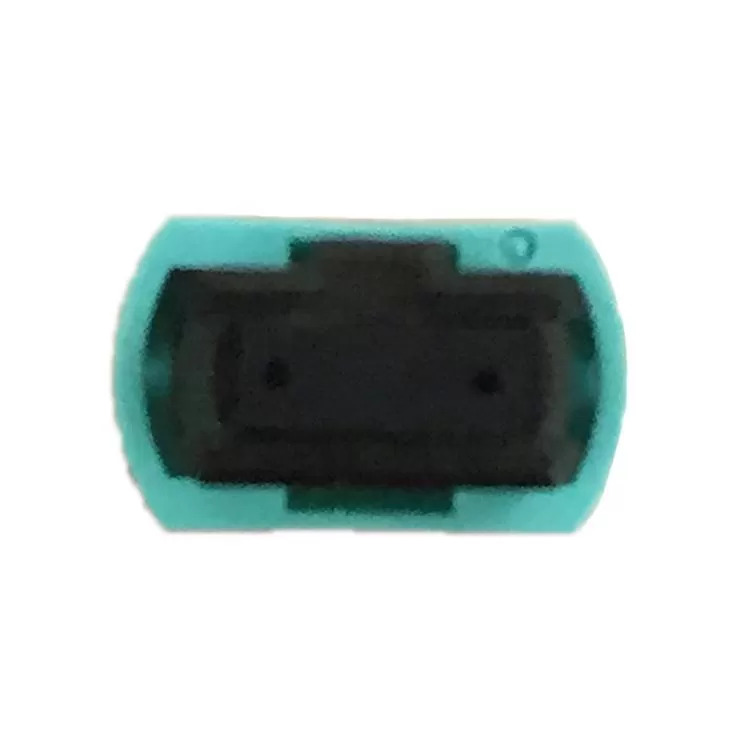

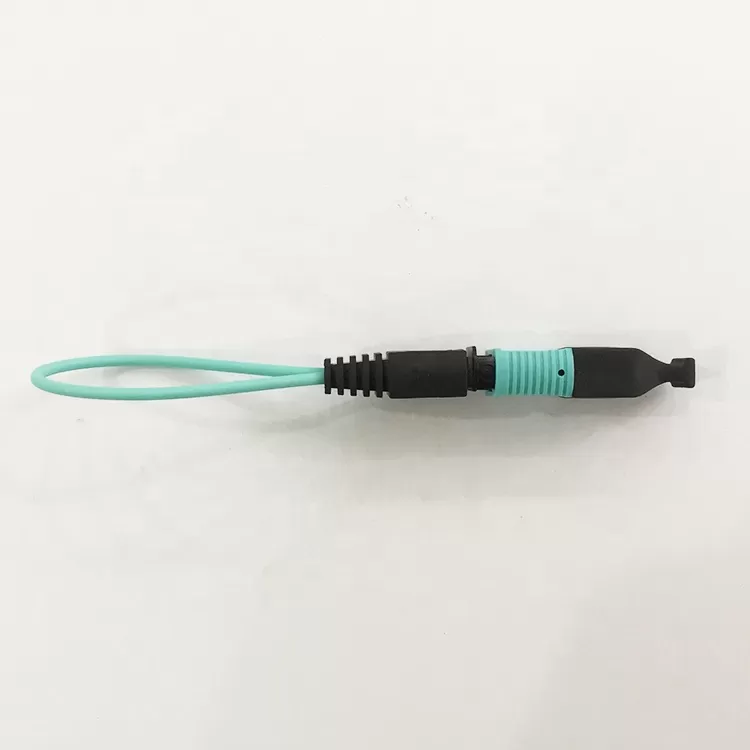

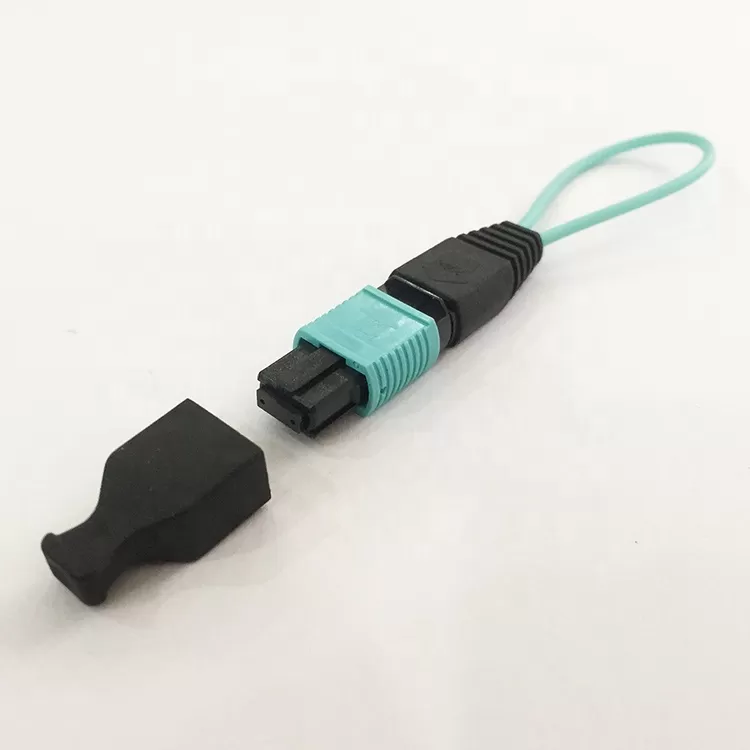

12 core OM3 50/125um Multimode fiber opitc MPO Loopback

       MPO Loopback is used to test the signal return in the system or the network system. Through the return signal, various potential abnormalities in the network link can be detected. This detection is widely used to provide an effective detection method to ensure the normal of the network link.Wirenet can provide various forms of loop device, MPO has 0.9mm, 2.0mm fiber optic cable, shell type, and so on, but also according to customer requirements customized production.

Features:

* Single multimode optional

* Plug PC/APC (8 ° Angle) optional

* The performance stability index is suitable for PIN PIN connection

* Standard fiber alignment and customization

* Plug connector lock structure type

* High density wiring convenient and management system

* Strict compliance with Telcordia core and RoHS standards

Application:

* Telecommunications network

* Optical fiber precision communication system

* Cable loop check

Pin Assignmen:

Pin	to	Pin
1	to	12
2	to	11
3	to	10
4	to	9
5	to	8
6	to	7

Fiber diameter	OM3 50/125
Insertion loss	≤0.35dB
Return loss	≥20dB
Operation temperature	-20℃~ +60℃
