IP68 Outdoor Waterproof 9 Core FTTH Pre-Connectorized NAP CTO Fiber Optic Distribution Box

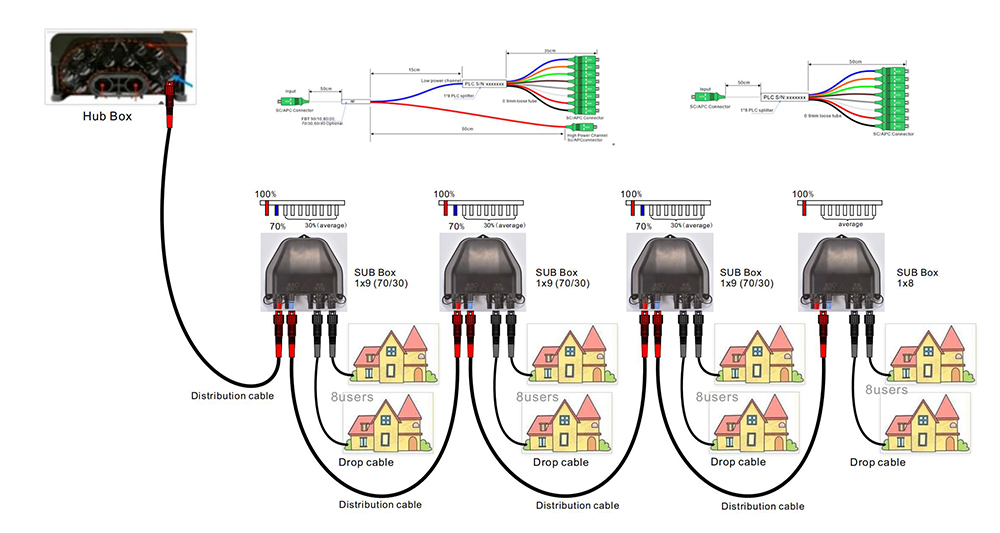

Optical fiber distribution box Is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It is easy to install on the wall or pole .The rear tray is for splicing a fiber of feeder cable with splitter tray and the front tray is for connecting subscriber’s drop cable through adaptor plate or splitter plate on the tray

Feature

    *  High mechanical strength and sealing  performance

    *  Workable under harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.

    *  Anti-corrosion

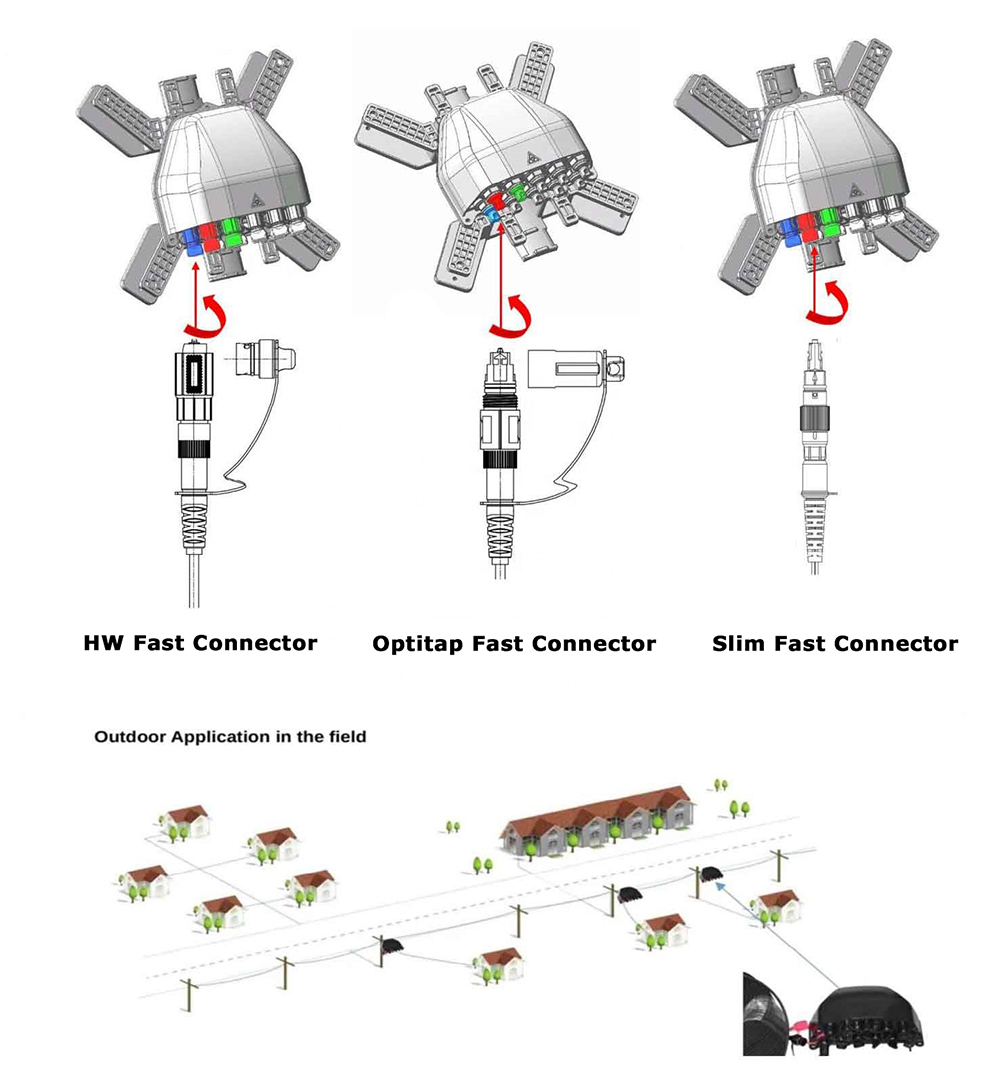

    *  Applied Adapter  includes Mini SC Connector, Optitap Fast Connector, Slim Fast  Connector

    *  Special Clamp equipped for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

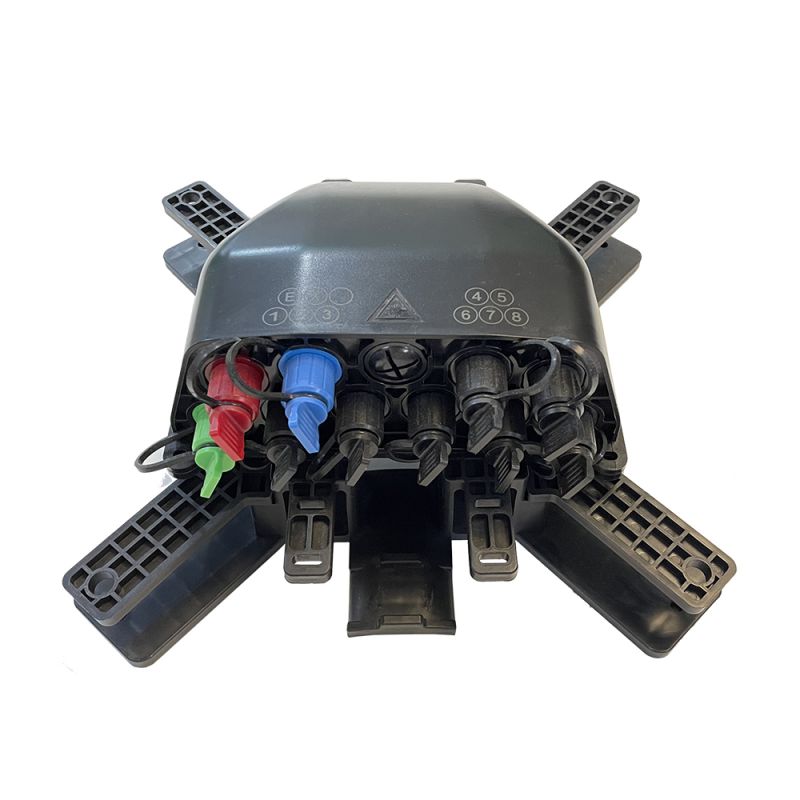

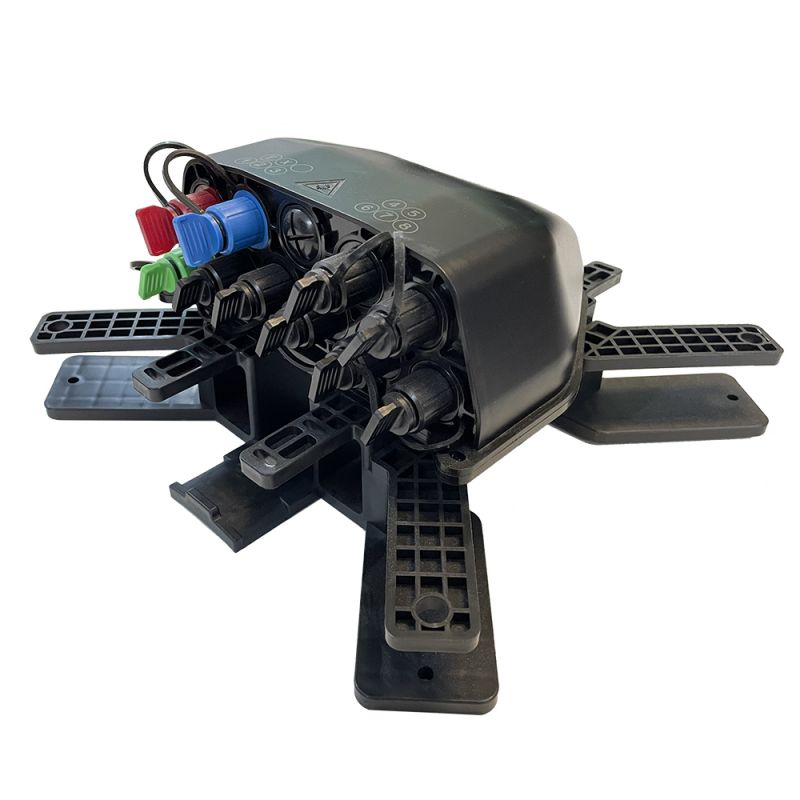

    * IP68 rated Well water and dust proof Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter

    * Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation

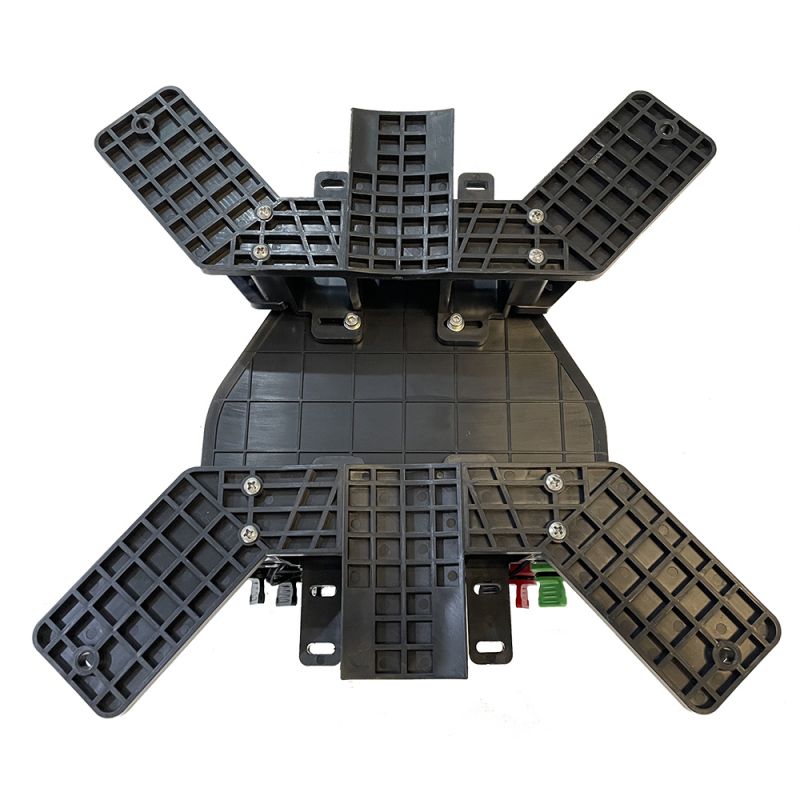

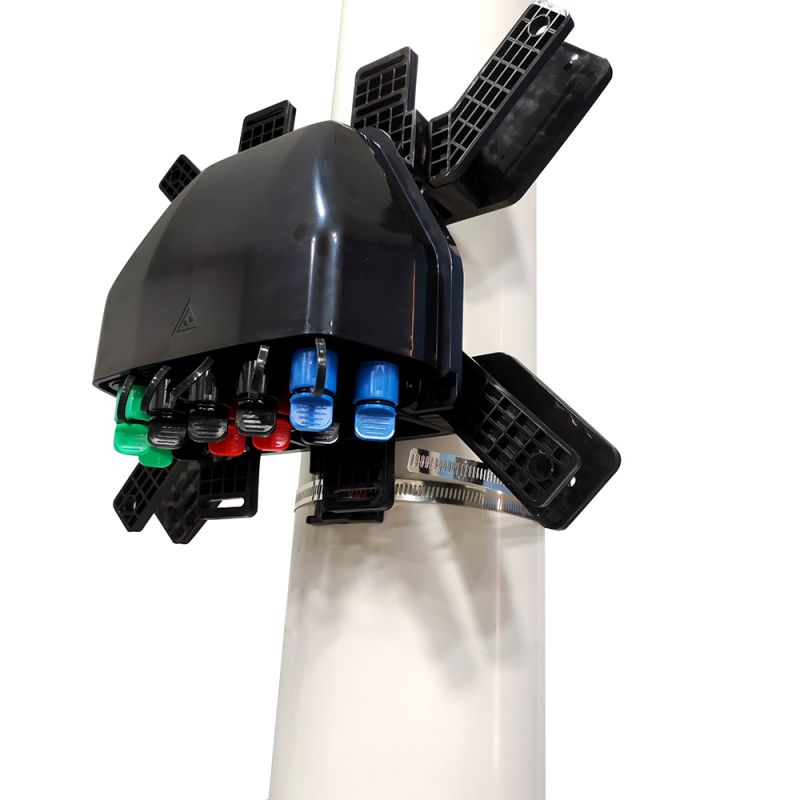

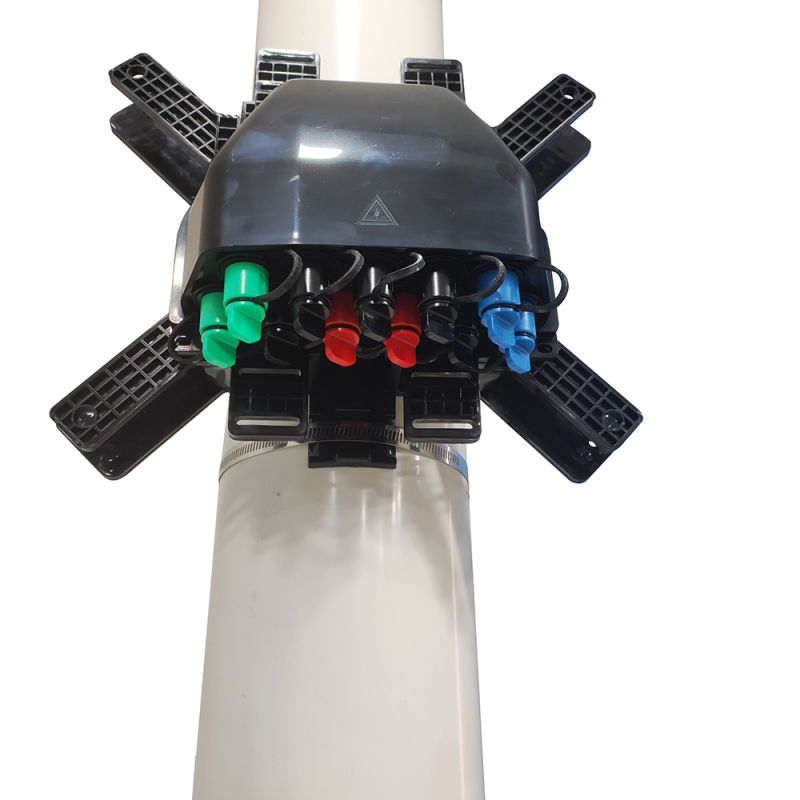

    * The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use installation

    * High aging resist engineering plastic PPR body

    * Wide scope of application ( up to Max 10 cores)

    * Wide cable OD appication ( 1 cable inlet ports for OD 7mm~15mm, 9 drop cable mechanical outlet ports for OD 3mm~5mm)

Application

    * FastConnect GPON Solution

    * ODN Solution

    * OSP Networks

    * FTTx Networks Local area networks

   * Widely used in FTTH access network
   * Telecommunication Networks

   * CATV Networks

   * Data communicaitions Networks

   * Local Area Networks
