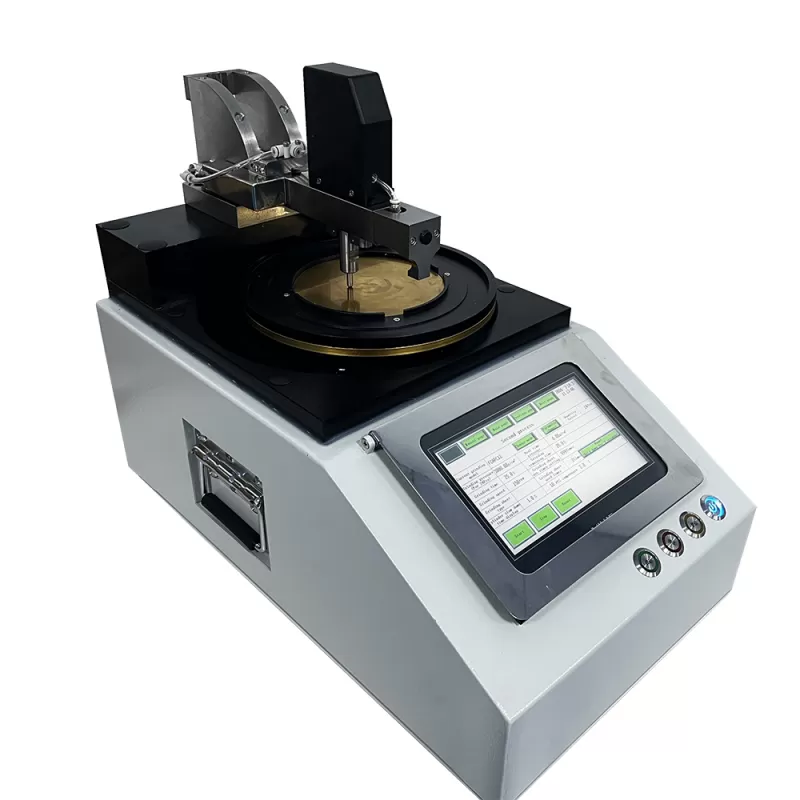

MPO/MTP fiber polishing machine is a high-precision device specifically designed for polishing the end faces of multi-core fiber optic connectors (such as MPO/MTP). It is crucial in high-density fiber optic cabling scenarios such as high-speed data centers and 5G networks, as the quality of the connector end faces directly determines the transmission performance of the entire network.

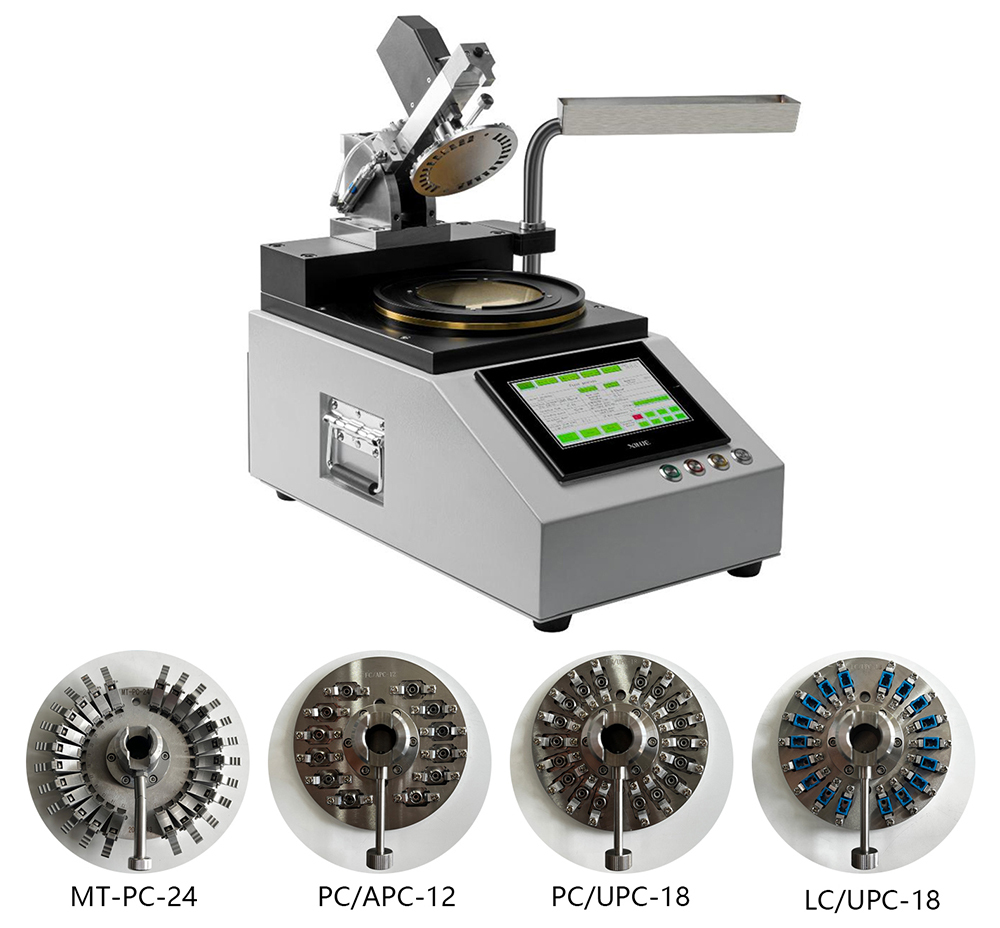

It can process all kinds of standard fiber optic connectors：
Features:
1.Pc-based 7-inch touch display, Using Japan Dongfang motor, the machine comes with electrical appliances, cylinders, etc. imported from the United States 2. Slow start, grinding compensation, program control. Can store 20 grinding processes, each program supports 8 grinding operations. * Programmable pressure and speed for slow start function * Programmable grinding chip counting function * Programmable machine maintenance unit * Pneumatic pressure control can be calibrated by pressure sensor feedback * Pressure compensation can be automatically performed according to the number of jumpers on the fixture * Speed range 10-200 RPM can be set 3. It can be copied to another machine via USB backup process,It can automatically alarm and stop when the air pressure is insufficient 4. Supporting greater loads, the machine can grind up to 24 MTP/MPO connectors at a time with up to 100% 3D interference through. 5. Intuitive and humanized operation interface, real-time display of the current grinding process, running speed, pressure, and can call any process at will.
Notice
a) After all functions are adjusted, you must press the parameter save key, otherwise the adjustment will be invalid. b) All control systems adopt touch control, and its control panel is LCD touch screen. In the process of use, it is strictly forbidden to use hard objects or knives to scratch on the panel to avoid damage to the machine. c) Without the permission of the manufacturer, it is strictly prohibited to disassemble the machine or repair it. If there is any problem, please contact the manufacturer, otherwise there will be no warranty.

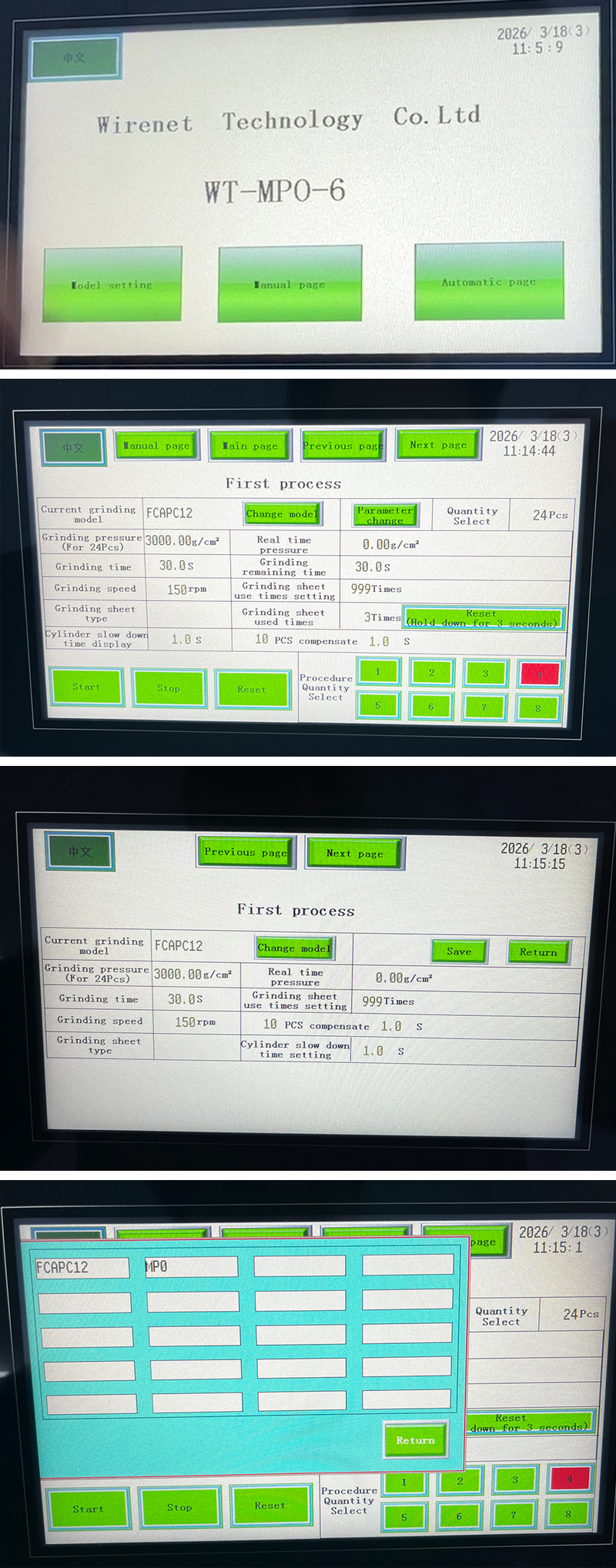

Operation and debugging interface
