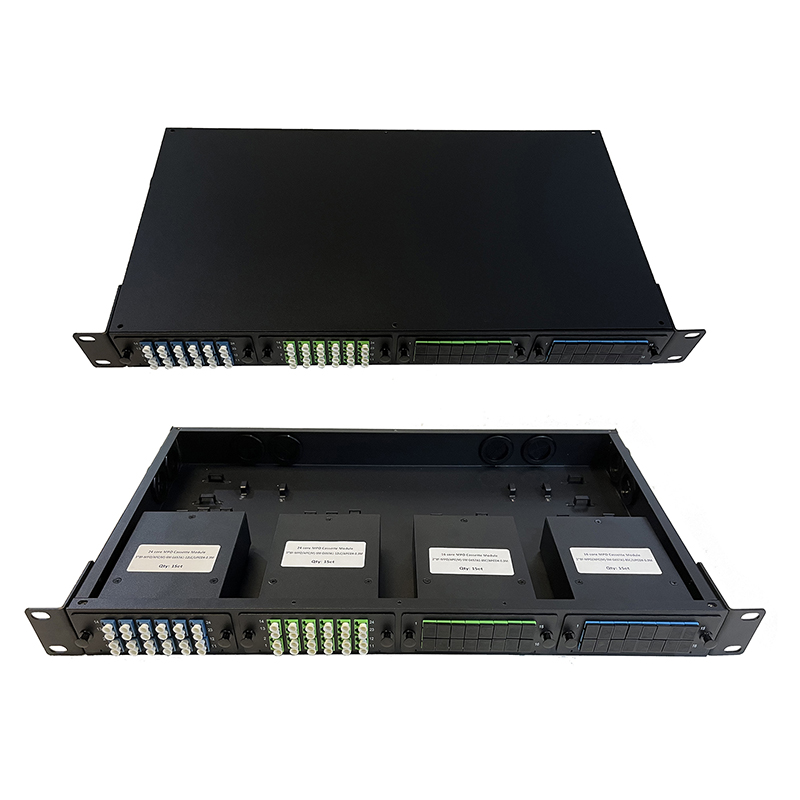

96 Core Rack Mount LC MPO Fiber Patch Panel with 4pcs MPO cassettes for High Density 3G/4G Data Center and Telecom Networks

Rack Mount MPO Patch Panel is a standard device specifically designed for 19-inch cabinets, intended for high-density fiber optic connection management; it serves as a core component in modern data centers and high-speed communication networks. Functioning much like a "fiber hub," its primary role is to facilitate the conversion between MPO/MTP trunk cables and common interfaces—such as LC or SC—thereby enabling high-density, plug-and-play fiber optic deployment.

Features:

Adopt high quality cold rolled steel plate forming, electrostatic powder spraying.

Simple and beautiful design, easy installation.

Independent can replace the front adapter panel design, can flexibly match various adapters.

Up to 96 cores can be accommodated according to the type of module box.

It is equipped with a front-end jumper groove to facilitate the storage and management of front-end jumpers and improve the density.

Application:

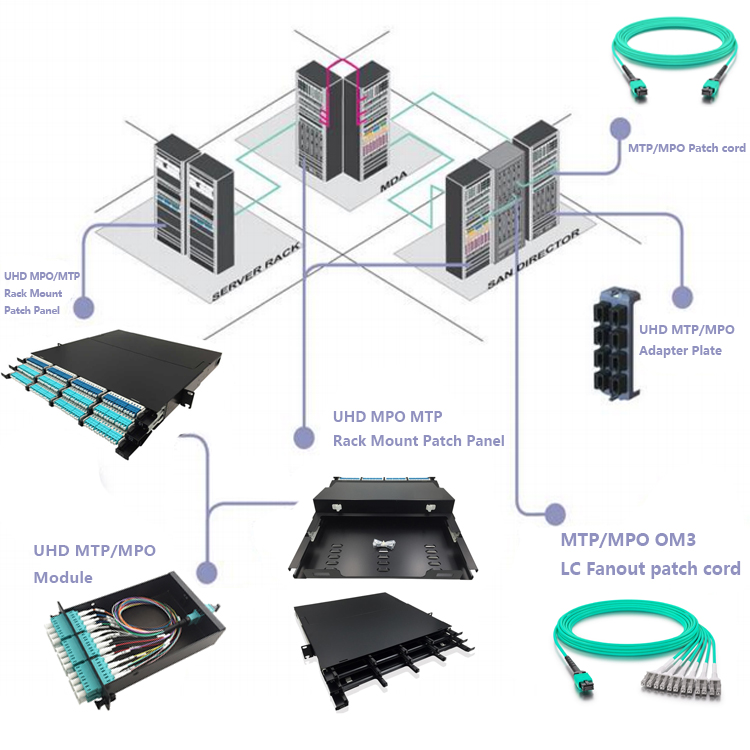

For the management and accommodation of the mmp-lc transfer module boxes in the MDA, IDA or HDA wiring area of the data center, installed in the 19-inch rack and cabinet, or lifted on the bridge.

* Large-scale / Hyperscale Data Centers

* Cloud Computing / Big Data / Supercomputing Centers

* Telecom Equipment Rooms / 5G Base Stations
