MPO APC to LC UPC Patch Cord OS2 Multi-Fiber MPO MTP fiber optic patch cable
MPO APC to LC UPC fiber optic Patch Cord
MPO APC to LC UPC fiber optic Patch Cord
MPO APC to LC UPC fiber optic Patch Cord
MPO APC to LC UPC fiber optic Patch Cord

MPO APC to LC UPC Patch Cord OS2 Multi-Fiber MPO MTP fiber optic patch cable

Model Number: OS2 MPO APC to LC UPC Patch cord

Connector: (1)MPO APC (2)LC UPC

Insertion Loss Single mode: <0.2dB

Return Loss Single mode: ≥45dB/50dB/60dB

Operating Temperature Single mode: -40 to +75°C


share:

Description Contact Us

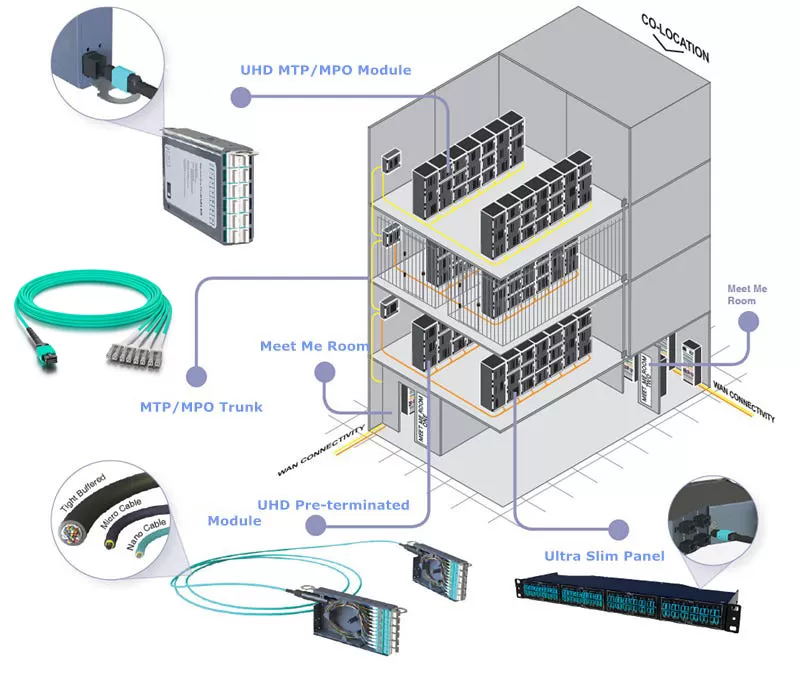

      MPO multi-fiber cabling system is ideally suited for a high density  environment that demands space saving and innovative cable management solutions; MPO supports various connections from multi-fiber to single fiber out.


Application

1. CATV; Active device termination;
2. Telecommunication networks;
3. Metro;
4. Local Area Networks;
5. Data processing networks;
6. Test equipment;
7. Premise installation;
8. Wide Area Networks.


Features

1. Low insertion and back reflection loss;
2. Good exchangeability;
3. Good durability;
4. High temperature stability;
5. Standard: TelcordiaGR-326-CORE.


Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
≥45dB
≥50dB
≥60dB
 ≥35dB
Durability
<0.1dB typical change,
500 matings
Operating Temperature
-40 to +75
-40 to +75
Ferrule Hole Sizes
125.0+1/-0um, Conentricity:≤1um
125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um
127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um
128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um


OS2 Male Female MPO APC to LC UPC Multi-Fiber MPO MTP fiber optic patch cord
