Fiber core: 8 core ,12core , 24core,48core
Connector: MTP,MPO , MTP (Elite),MPO (Elite)
Insert Loss: ≤0.35dB (SM), ≤0.30 dB (MM)
Return Loss: ≥60dB (SM), ≥30 dB(MM)
Jacket: Riser (OFNR), Plenum (OFNP), LSZH

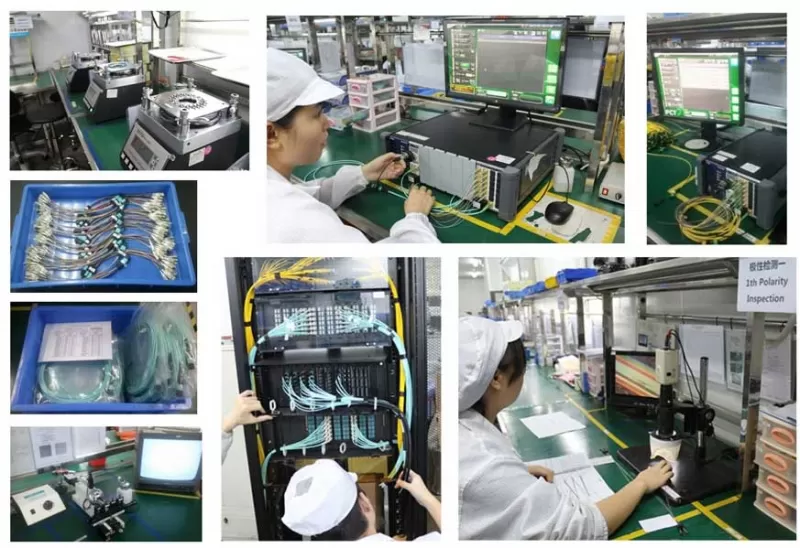

3D testing: 100%

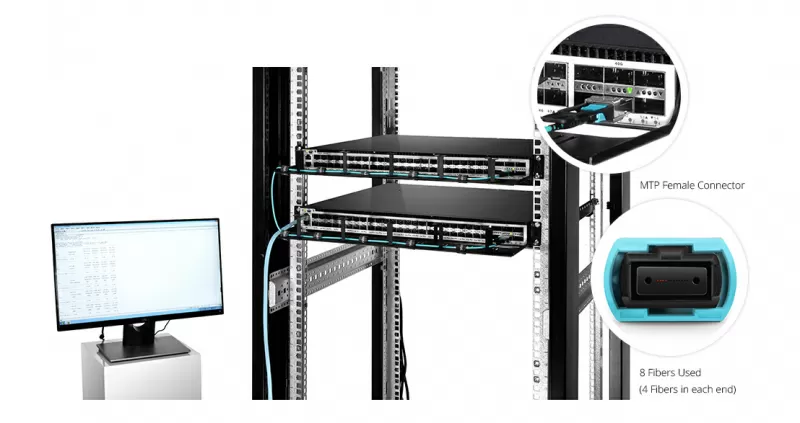

MTP multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions;
MTP supports various connections from multi-fiber to single fiber out.

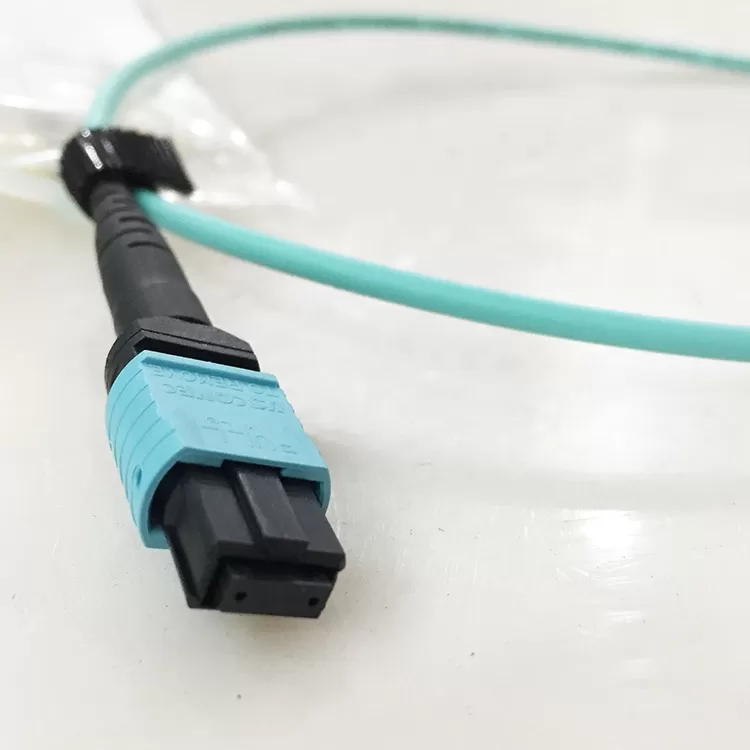

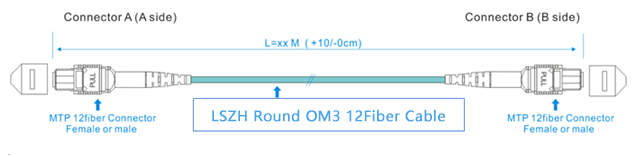

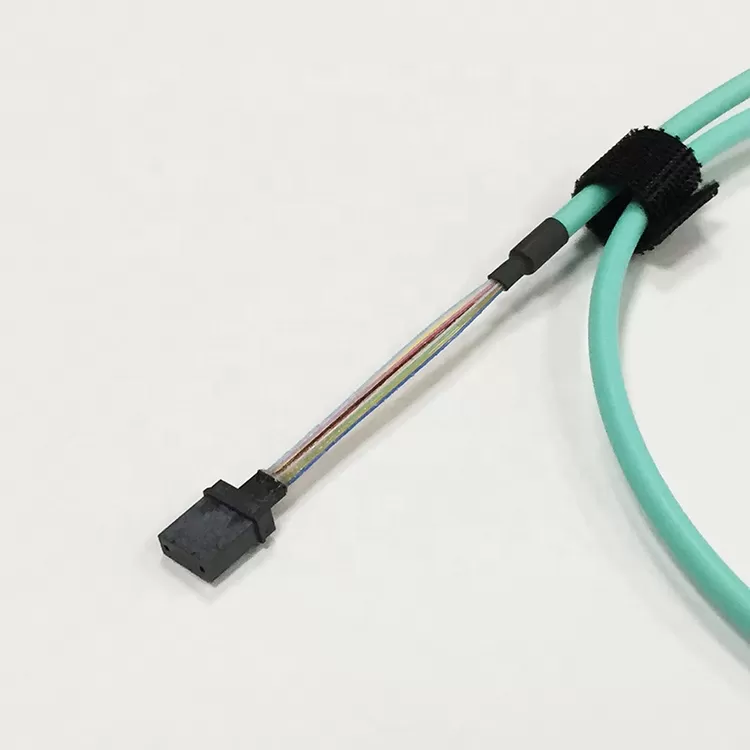

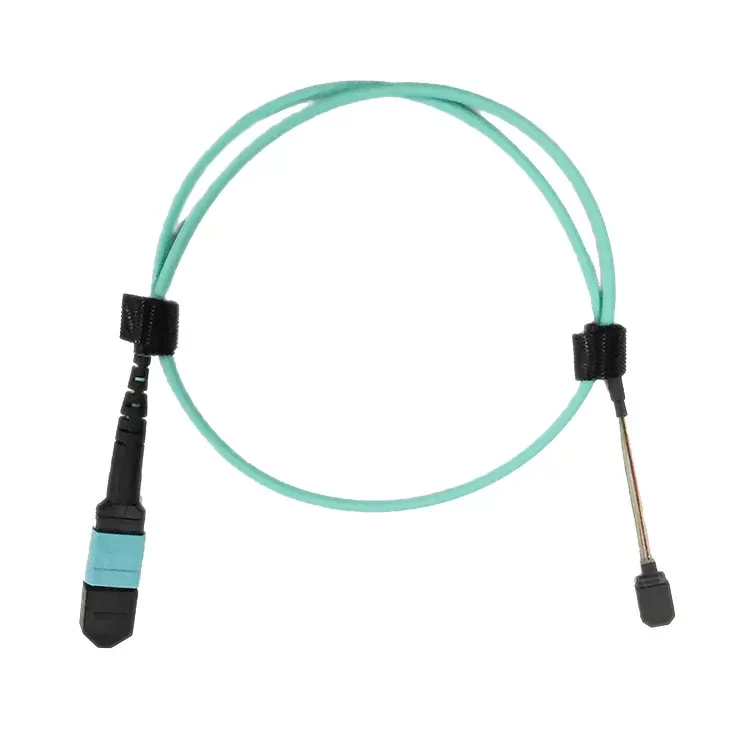

MTP (male or female) - MTP (male or female) OM3 12 strands Multimode ,LSZH jacket,Polarity B
Features
1. Improves and simplifies fiber routing
2. Decreases fiber management space
3. Low insertion loss and reflectance
4. High Density
Fiber | OM3 50/125 |
Test wavelength | 850&1300nm |
Insertion Loss (Max) | -0.5dB |
Return Loss(RL) | >20dB |
Operating Temperature | -20℃ to 70℃ |
Storage temperature | -40℃ to 85℃ |
Items | Specifications | |
Fiber Count | 12 | |
Colored Coating Fiber | Dimension | 250±15μm |
Color | Blue,Orange,Green,Brown,Yellow,Violet,Pink,Turquoise ,Gray,White,Red,Black | |
Jacket | Dimension | 3.0±0.1mm |
Material | LSZH | |
Color | Aqua | |
Application
1. Optical System Access Network
2. Telecommunications networks
3. Broadband/CATV networks
4. Data communications networks, including high-bandwidth equipment
