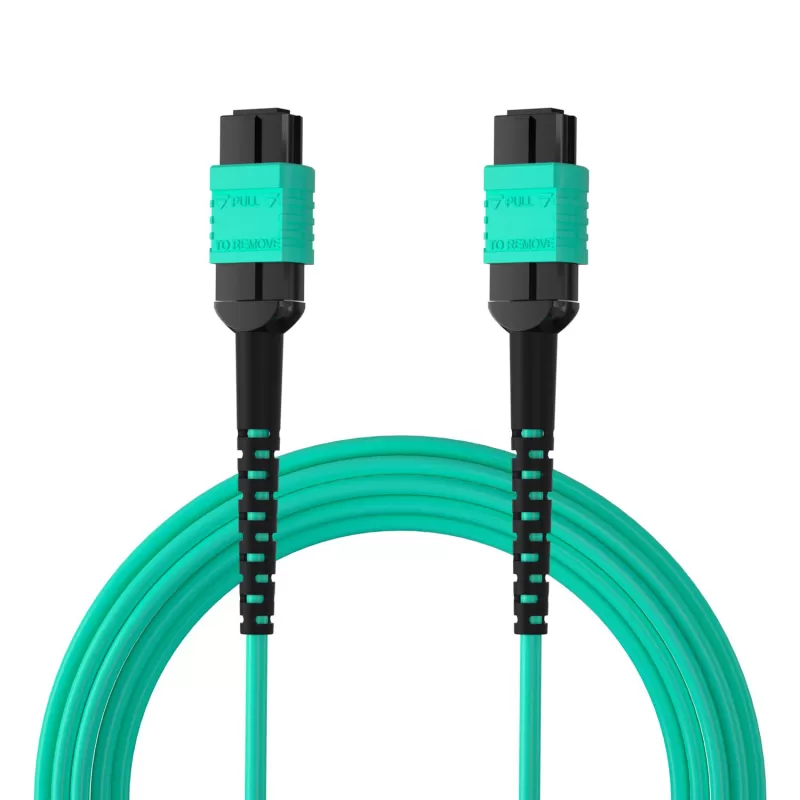

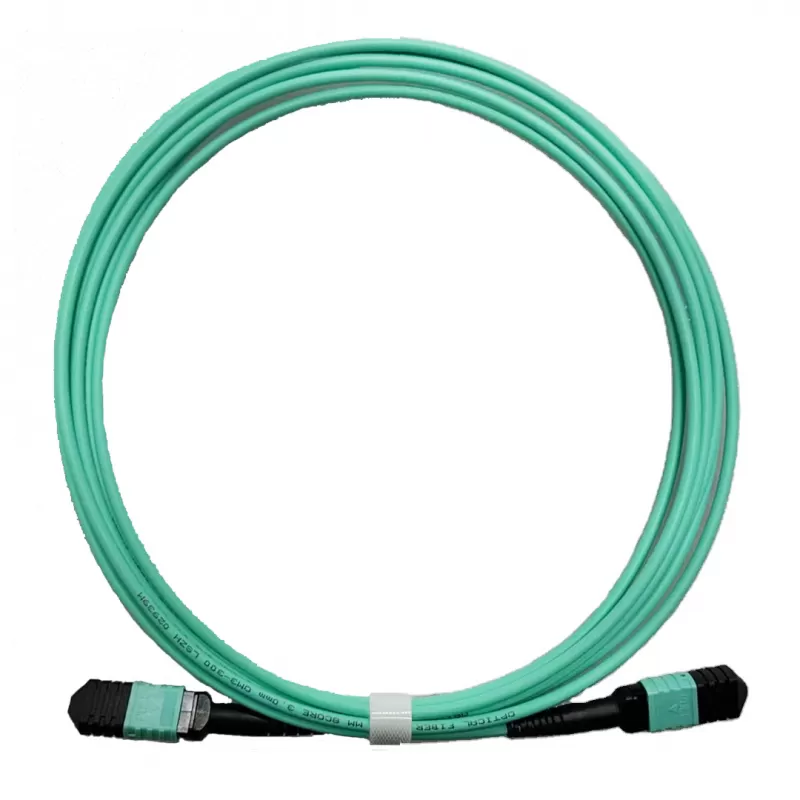

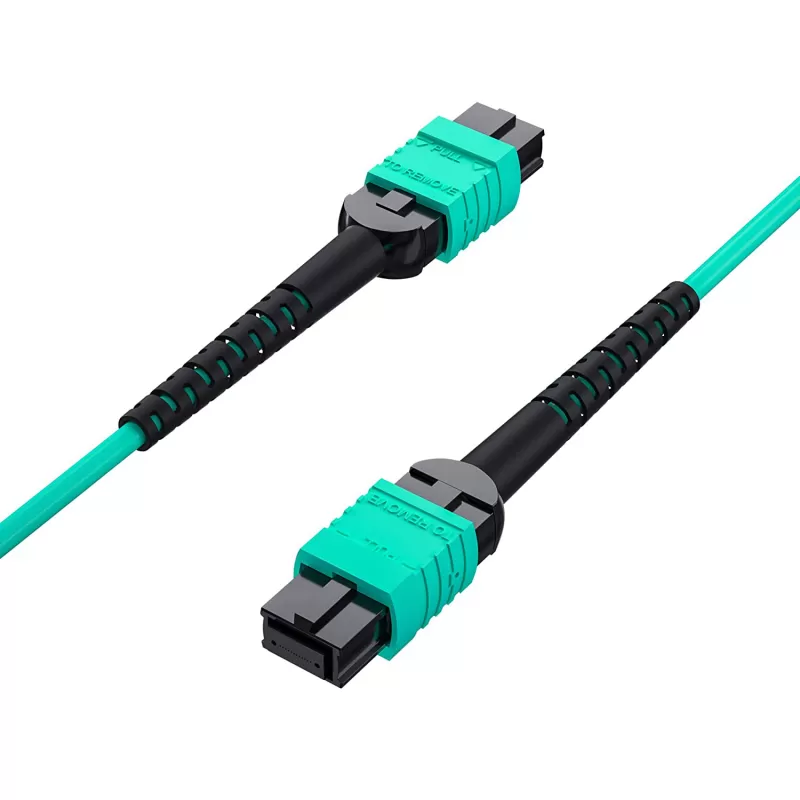

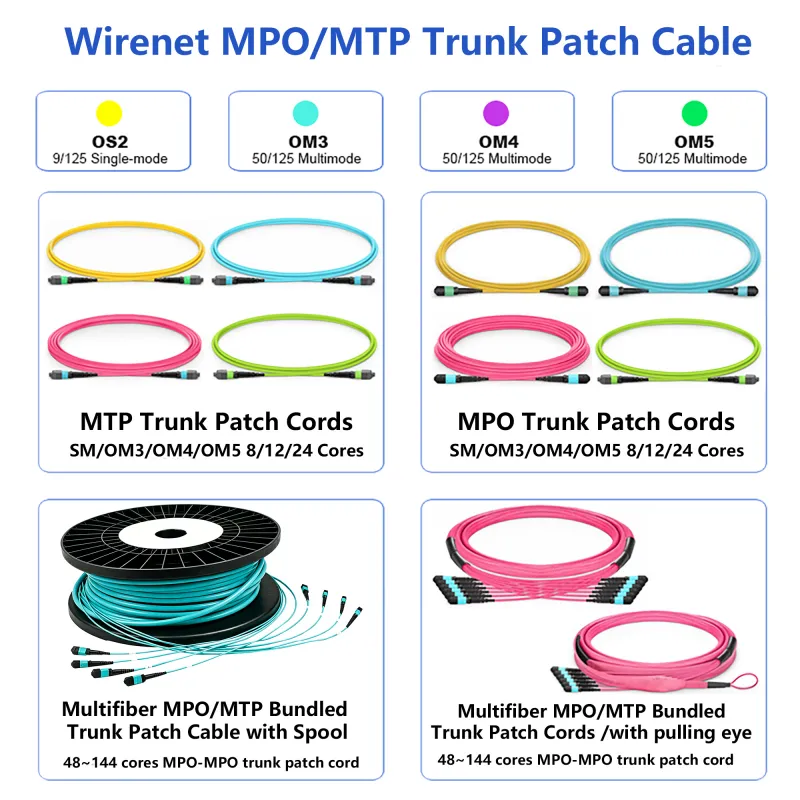

Specification for fiber optic patchcord
Features
* Improves and simplifies fiber routing
* Rapid configuration andnet working, reducein stallationtime.
* Decreases fiber management space

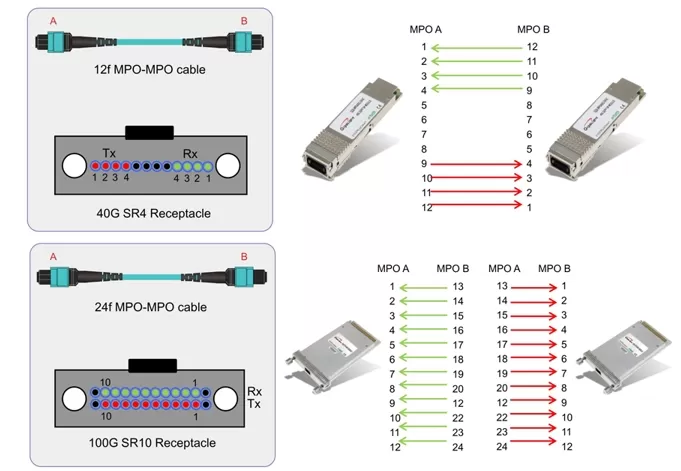

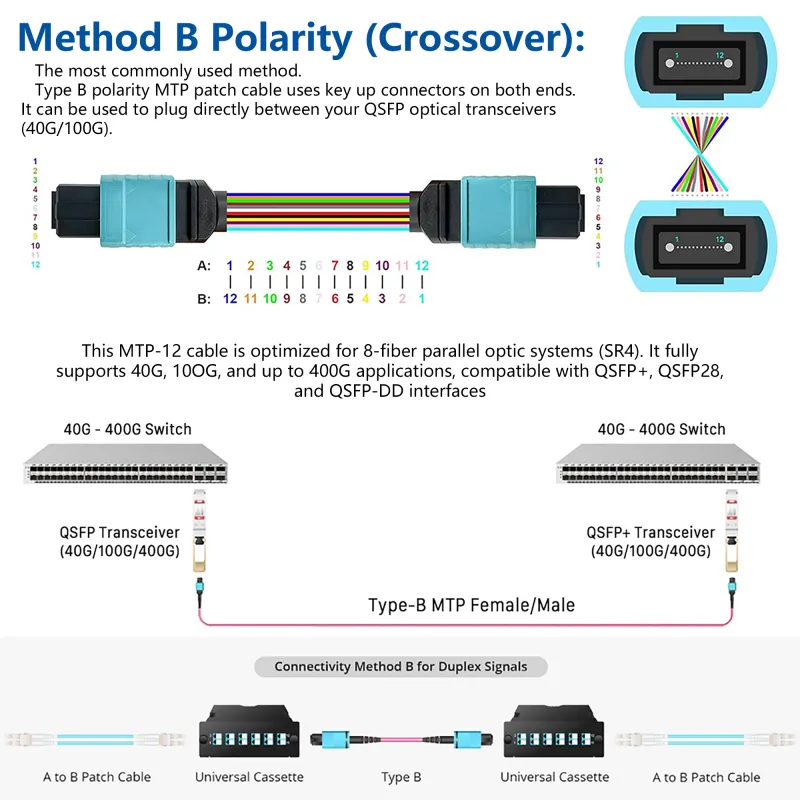

* Supports 40Gand 100Gnet work applications
* Cable Jacket material: LSZH,OFNR,OFNP available.
* Support supto12F,24F,48F,72F,96F,144F, customized product sare available.
* Low insertion loss and reflectance
* High Density
* Rapid configuration andnet working, reducein stallationtime.
* Decreases fiber management space
* Supports 40Gand 100Gnet work applications
* Cable Jacket material: LSZH,OFNR,OFNP available.
* Support supto12F,24F,48F,72F,96F,144F, customized product sare available.
* Low insertion loss and reflectance
* High Density
Item | Parameter | Reference | |||
Single Mode(SM) | Multi Mode(MM) | ||||
Standard | Elite | Standard | Elite | ||
Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.35dB | Typical≤0.10dB Max≤0.35dB | IEC 61300-3-34 |
Returnloss | ≥ 50dB(PC) ≥ 60dB(APC) | ≥ 55dB(PC) ≥ 65dB(APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |

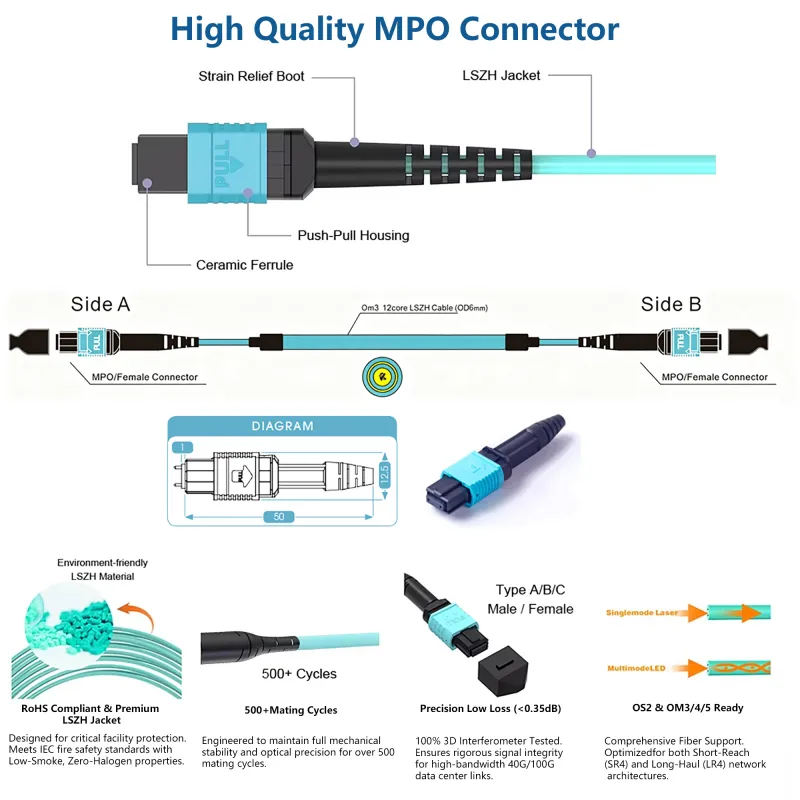

Cable Parameters
Items | Specifications | |||
Fiber Count | 8,12,24 | |||
Colored Coating Fiber | Dimension | 250±15μm | ||
Color | Blue、Orange、Green、Brown、Gray,White,Red,Black,Yellow、Violet、Pink、Turquoise | |||
Inner Jacket | Dimension | 2.9±0.1mm | ||
Material | LSZH | |||
Color | Aqua | |||
Outer Jacket | Dimension | 6.0±0.1mm | ||
Material | LSZH | |||
Color | Aqua | |||
Strength member | Aramid Yarn | |||
Application
*Optical System Access Network
*Telecommunications networks
*Broadband/CATV networks
*Data communications networks, including high-bandwidth equipment
