MPO to LC UPC Patch Cord OM4 Multi Fiber MPO MTP fiber optic patch cable Supplier

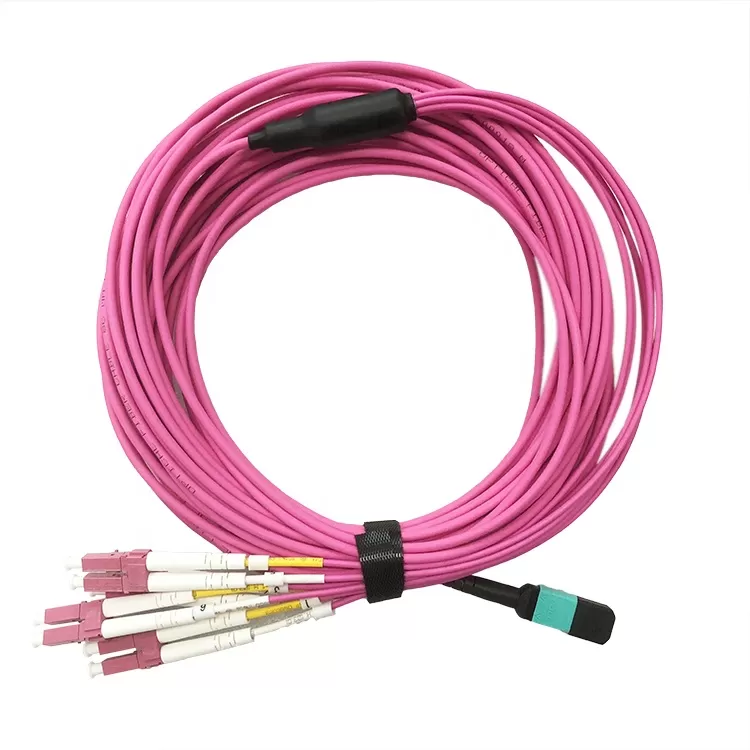

MPO to LC UPC Patch Cord OM4 Multi Fiber MPO MTP fiber optic patch cable

Model Number: OM4 MPO Female to LC Patch cord

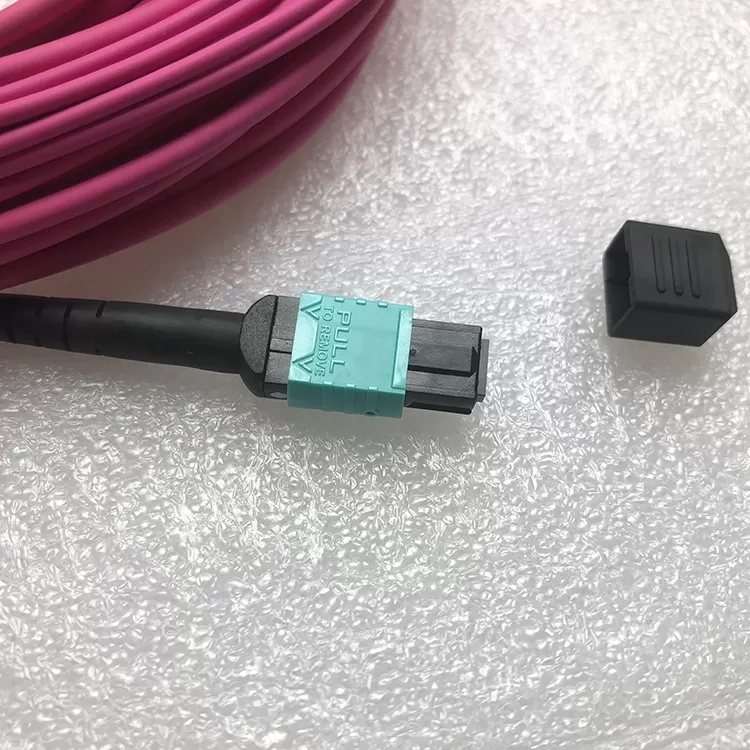

Connector Type: MPO(Female), LC UPC

Insertion loss: <0.2dB

Operating temperature: -40~+80℃

Nominal outer diameter: 0.9mm/2.0mm/3.0mm

Fiber cable jack: PVC, LSZH

The MPO connector (known as multi-fiber push-on and also as multi-path push-on) is a multi-fiber connector defined according to IEC 61754-7 and TIA/EIA 604-5 that can accommodate up to 72 fibers in the tiniest of spaces, comparable to an RJ45 connector. MPO connectors are most commonly used for 12 or 24 fibers.

Application
1. CATV, and Multimedia
2. Active dvice termination
3. Telecommunication networks
4. Gigabit Ethernet
5. Interconnection for O/E modules
6. Data processing networks
7. Industrial and medical
8. Premise installations.
9. Optical Switch interframe connect
10. Asynchronous Transimission Mode(ATM)

Features
1. Low insertion loss and back reflection loss
2. Good echangeability
3. Good Durability
4. High temperature stability.
5. Standard: Telcordia GR-1435-CORE

Product Type	MTP-LC breakout cable for 10G-40G transition	Part number	MPO/F-LC-8F-OM4
Product Description	8 core Female MPO to LC OM4 Multimode fiber cable leads for QSFP	Fiber cores	8
Fiber type	OM4	Cable type	3.0mm minicore
Connector	1. Connector1 Female (As Default) 2. Connector 1: Male 3. Connector 2: LC/UPC,LC/APC, SC/UPC,SC/APC, FC/UPC,FC/APC	IL for MTP connetor(dB)	loss<0.7
Cable Jacket	OM4,3.0mm minicore LSZH, AQUA

MPO to LC UPC Patch Cord OM4 Multi Fiber MPO MTP fiber optic patch cable
