MPO APC fiber optic patch cord

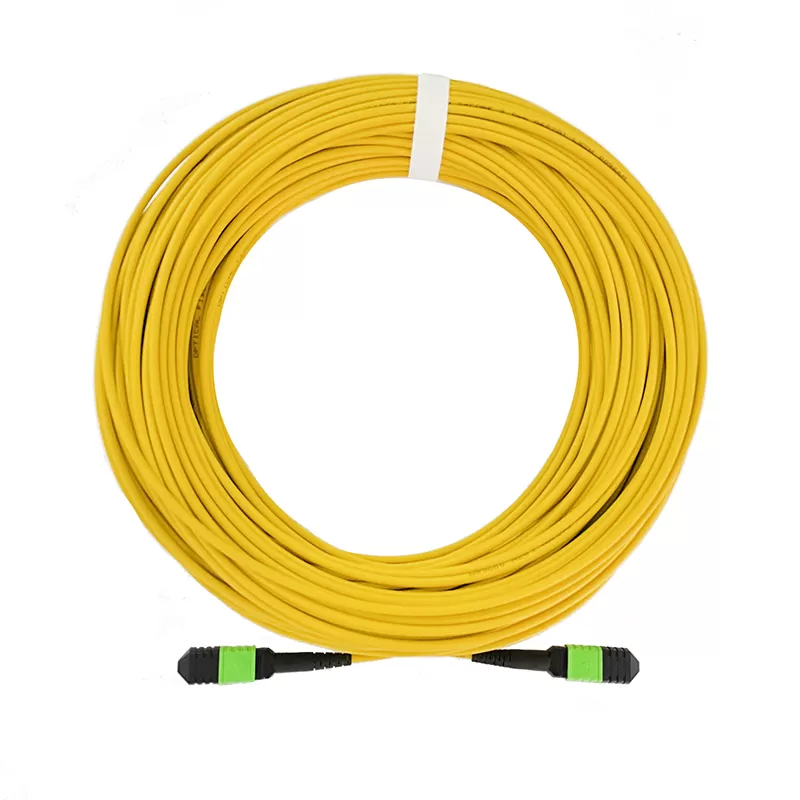

MPO APC fiber optic patch cord OS2 Female to Male Singlemode

Model Number: OS2 Female to male MPO APC Patch cord

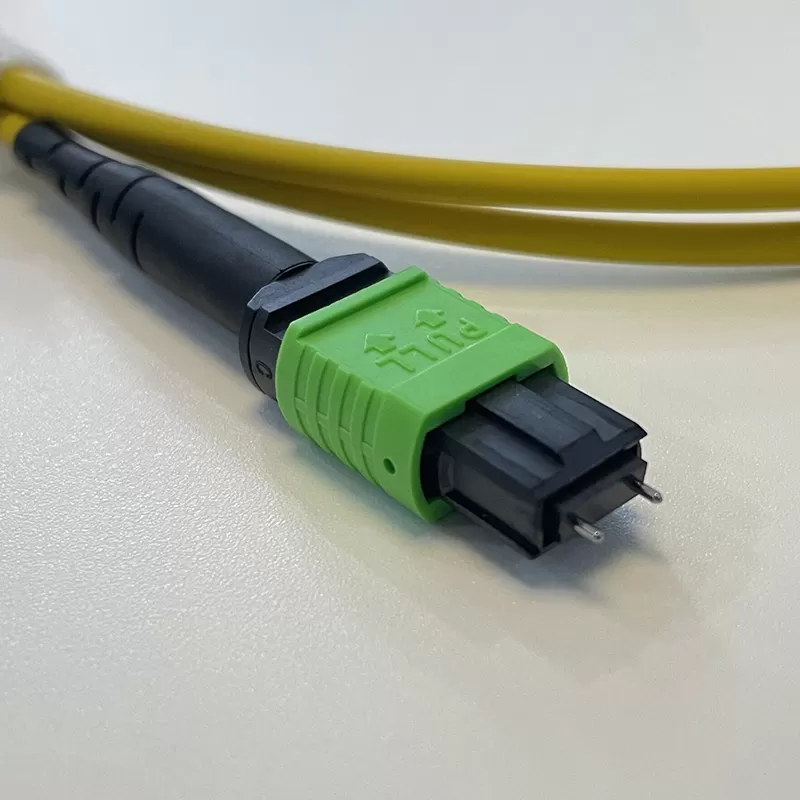

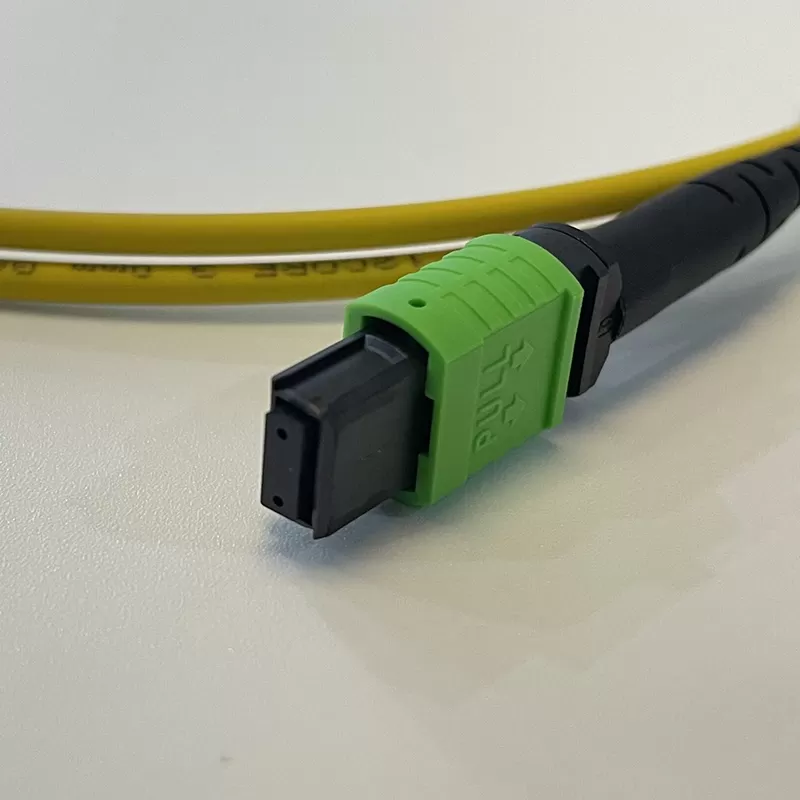

Connector: (1)MPO APC <female> (2)MPO APC<male>

Insertion Loss Single mode: <0.2dB

Return Loss Single mode: ≥45dB/50dB/60dB

Operating Temperature Single mode: -40 to +75°C

MPO multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions; MPO supports various connections from multi-fiber to single fiber out.

Application

1. CATV; Active device termination;
2. Telecommunication networks;
3. Metro;
4. Local Area Networks;
5. Data processing networks;
6. Test equipment;
7. Premise installation;
8. Wide Area Networks.

Features

1. Low insertion and back reflection loss;
2. Good exchangeability;
3. Good durability;
4. High temperature stability;
5. Standard: TelcordiaGR-326-CORE.

Items	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insertion Loss	<0.2dB			<0.3dB
Return Loss	≥45dB	≥50dB	≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
Operating Temperature	-40 to +75			-40 to +75
Ferrule Hole Sizes	125.0+1/-0um, Conentricity:≤1um			125um,Conectricity:1≤3um
	125.3+1/-0um, Conentricity:≤1um			127um,Conectricity:1≤3um
	125.5+1/-0um, Conentricity:≤1um			128um,Conectricity:1≤3um
	126.0+1/-0um, Conentricity:≤1um
