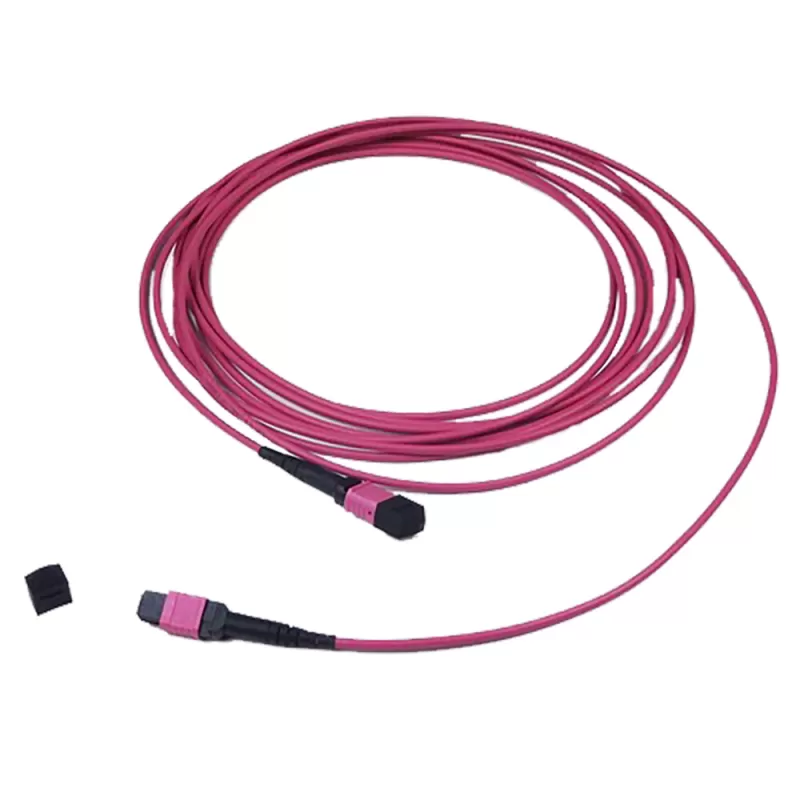

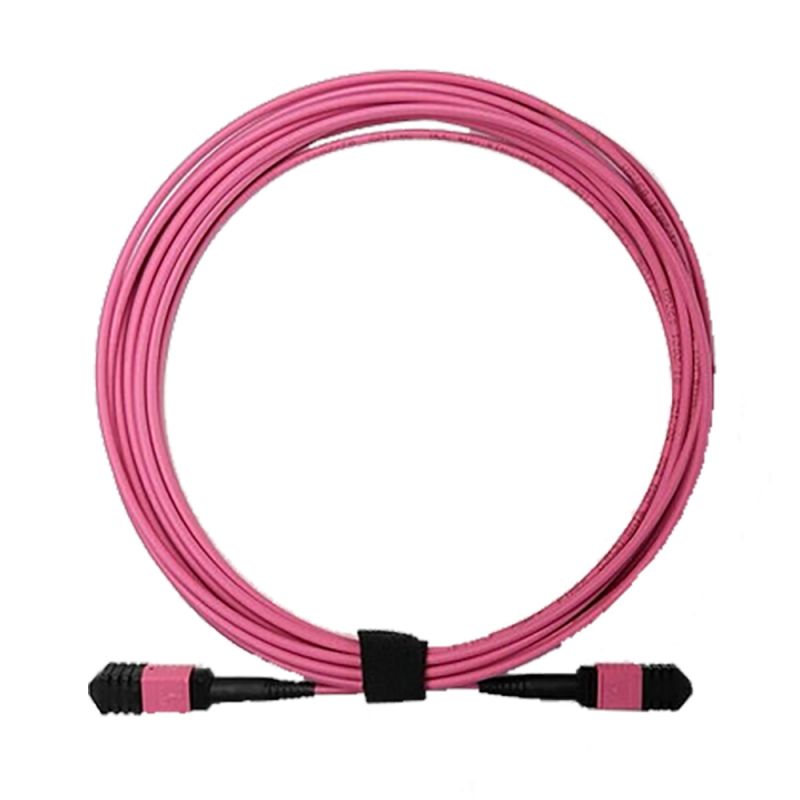

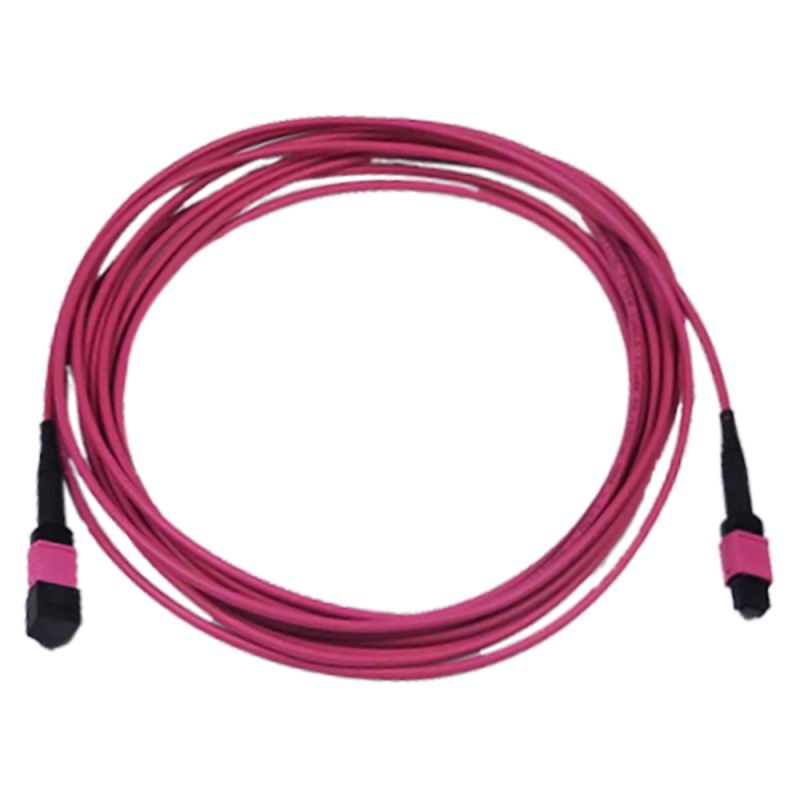

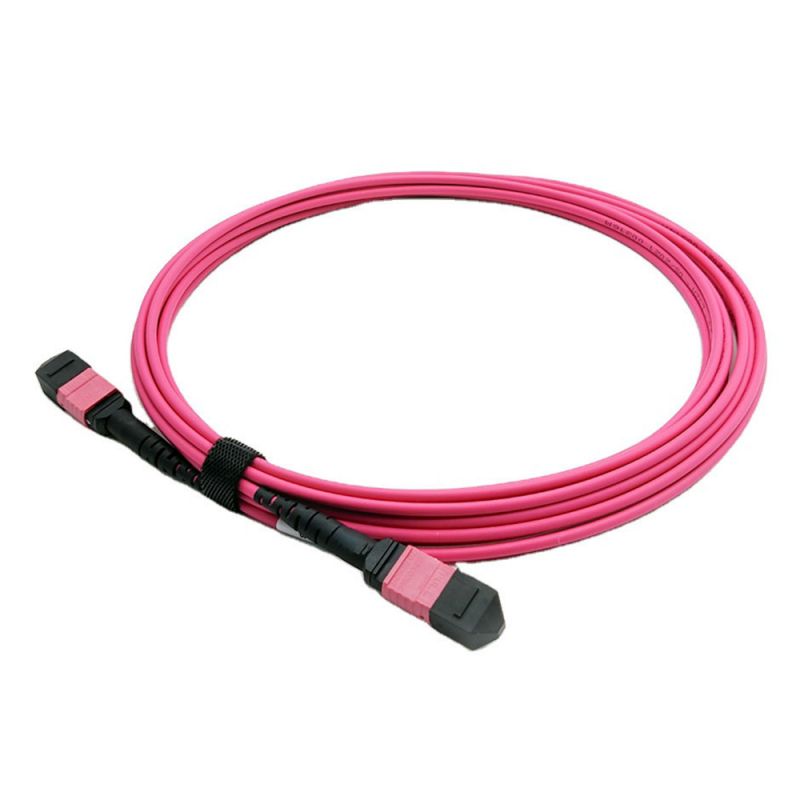

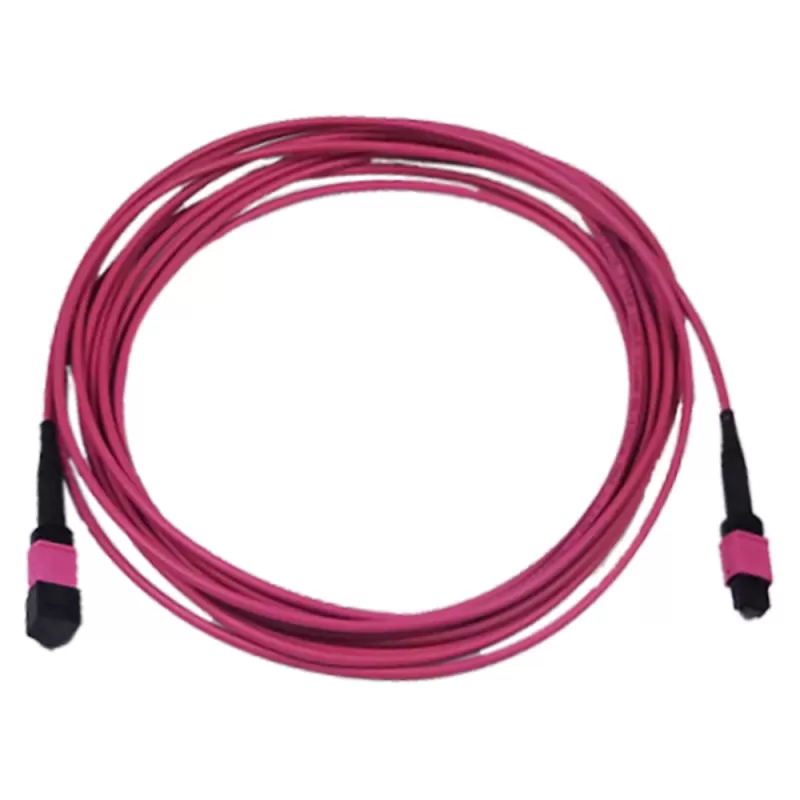

8 12 24 Fiber MPO to MPO Trunk Cable OM4 Fiber Patch Cord

     MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration. MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up).

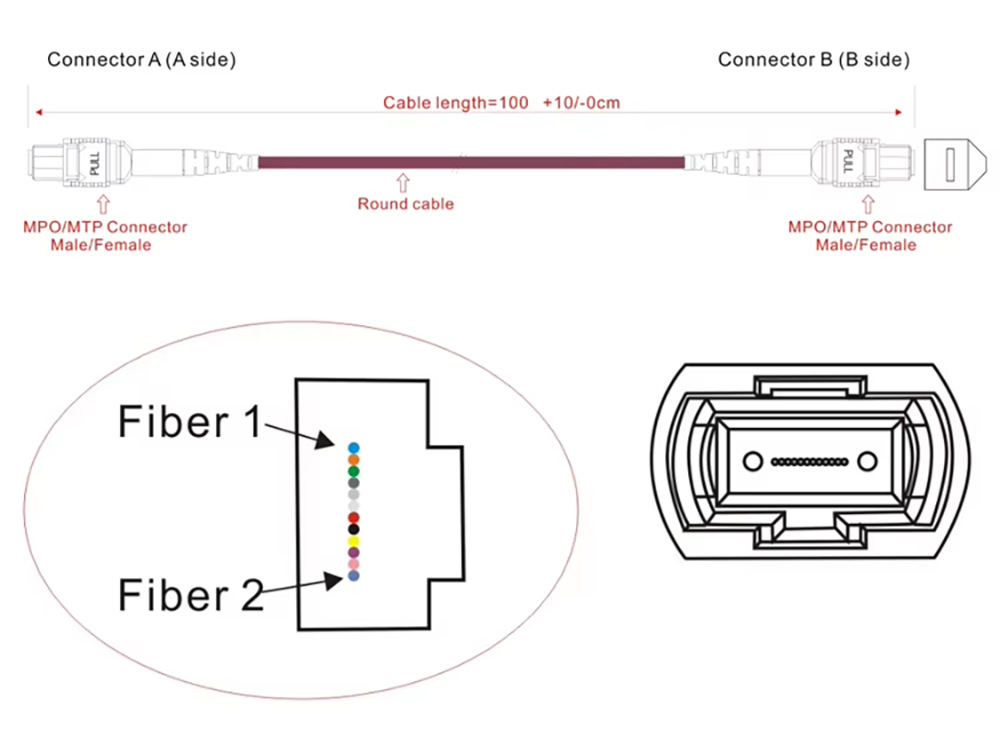

The cable length belongs to a custom product, please kindly email your requirements to us!

Features

* High-Density Integration: An MPO connector can accommodate up to 24 or more fiber optic cables per port, significantly saving space. A 24-fiber MPO trunk cable is physically equivalent to two LC duplex patch cables, but it offers 12 times the capacity.

* High-Speed Transmission Support: OM4 fiber is the standard medium for 40G Ethernet (e.g., 40GBASE-SR4) and 100G Ethernet (e.g., 100GBASE-SR4). MPO connectors are essential for implementing these parallel transmission technologies (which use multiple fibers to transmit and receive data simultaneously).

* Plug-and-Play and Simplified Management: As prefabricated products, they undergo rigorous factory testing to ensure optical performance reliability and eliminate the tedious and uncertainties of on-site termination. This significantly reduces installation time and labor costs, while ensuring cleaner and more organized cabling management.

Application:

* Data Center Backbone Cabling: Connects the Main Distribution Area (MDA) to the Intermediate Distribution Area (IDA) or Horizontal Distribution Area (HDA). Connects Optical Distribution Frames (ODFs) located on top of different cabinets.

* High-Speed Network Device Interconnection: Connects switches, routers, and servers that support optical transceivers such as QSFP+ and QSFP28. 40G SR4 modules use one MPO port, and 100G SR4 modules use one MPO port.

* Part of a Pre-Terminated System: As a core component of a pre-terminated fiber optic cabling system solution, it works with MPO adapter panels, MPO-LC breakout cables, and other components to build a complete, efficient, and easy-to-manage fiber optic network.
