Application:
1. Used in indoor cabling, especially used as distribution cable;
2. Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
3. Used in pigtails and patch cords.
Characteristics:
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

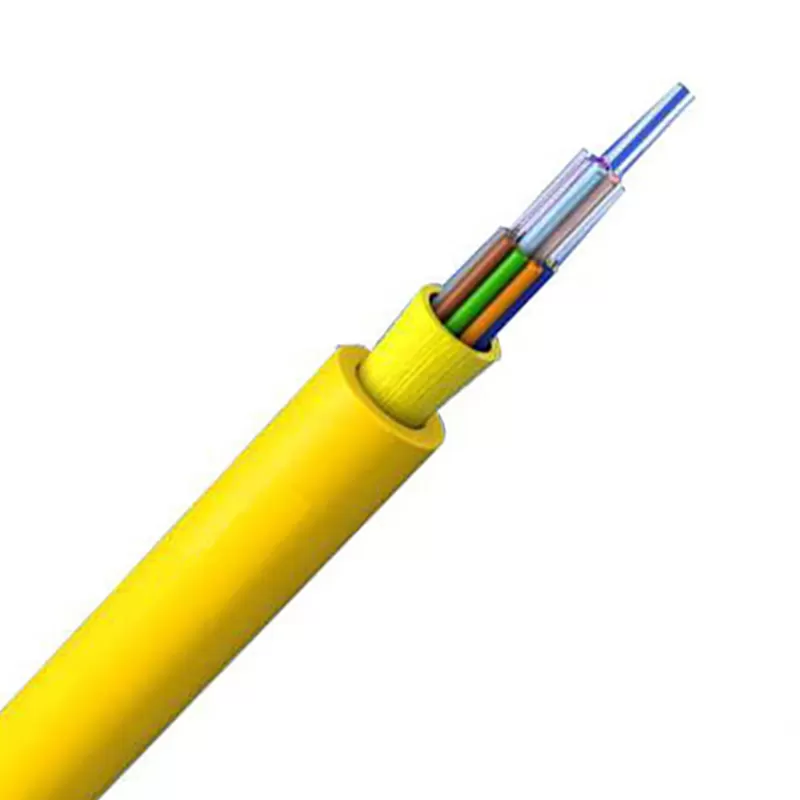

For the Distribution Riser Cable with 0.9mm buffer, there are 2 structure
1~24C, use structure of type-I,
24C~144C,use structure of type-II
Parameter
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | Storage temperature | |||
| (MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | ℃ | |
| 4 | 5.0 | 19.0 | 130 | 440 | 200 | 1000 | 20D | 10D | -20 to +60 |
| 6 | 5.2 | 23.0 | 130 | 440 | 200 | 1000 | 20D | 10D | |
| 8 | 5.5 | 26.0 | 130 | 440 | 200 | 1000 | 20D | 10D | |
| 12 | 6.5 | 36.5 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 16 | 7.5 | 44.5 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 24 | 8.2 | 54.5 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 36 | 9.0 | 72.0 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 48 | 10.5 | 90.0 | 200 | 660 | 200 | 1000 | 20D | 10D | |
Order Information
● Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3, OM4
● Sheath Material: PVC,LSZH
● Sheath Color: Yellow, Orange, Aqua or Customized
