Model Number: GJFDKBV
Fiber core: 4,6,8,12
dimension: 5.0*2.5mm
Min. bending Install: 35H
Radius (mm) Static: 25H
Max.Crush Resistanse(N/100 mm2): 500
Max.Tension Short-term: 600N

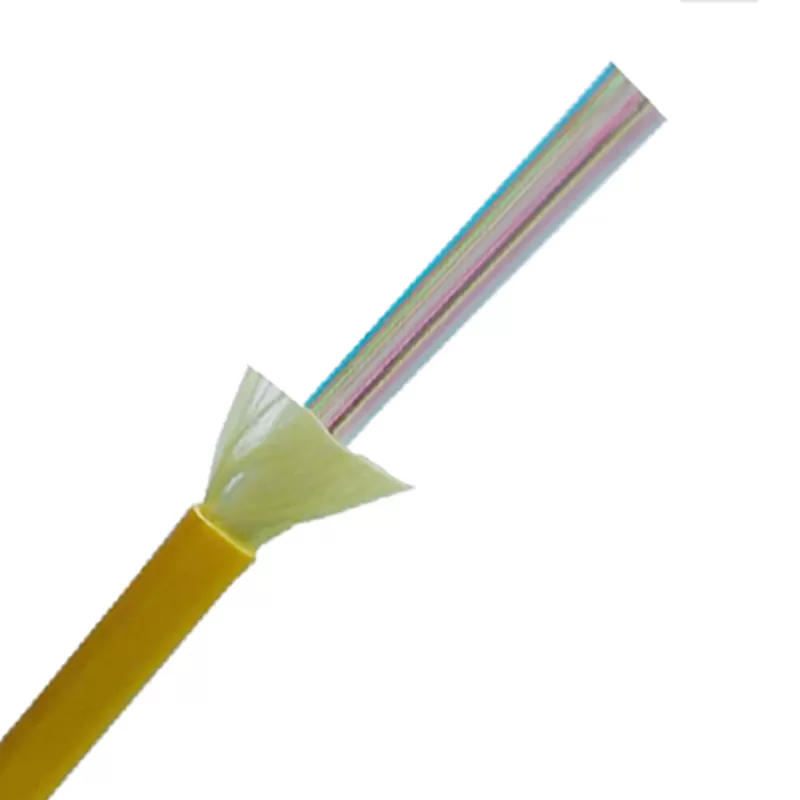

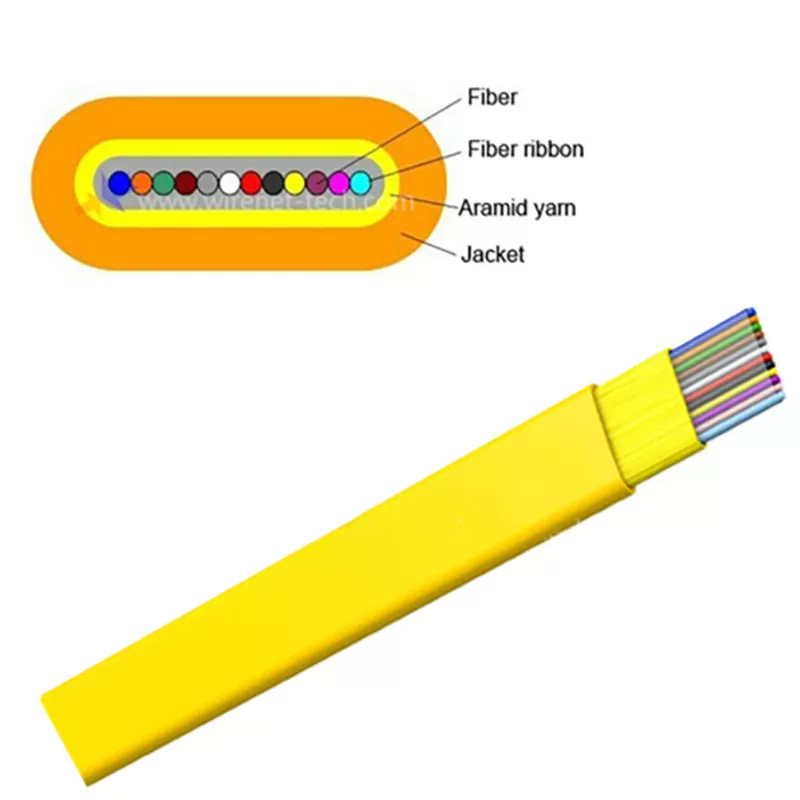

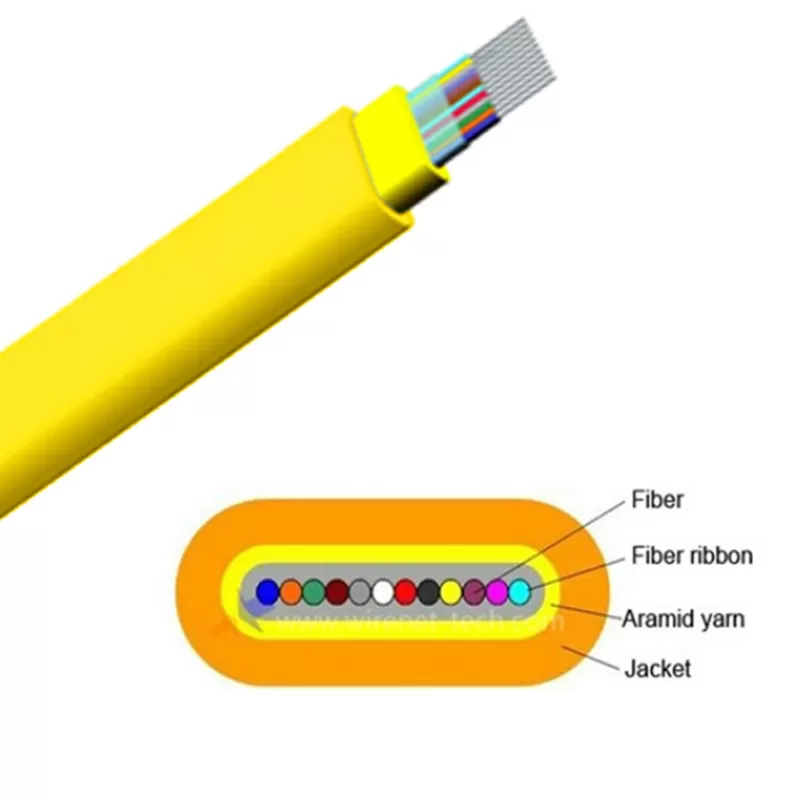

The fiber ribbon is evenly bound with high modulus soft aramid yarn as strength member. Its rectangular outer sheath is shaped by a special material extrusion technique. Flame-retardant jacket, easy to strip, small bending radius, good performance under stress.
Application:
Ideal for multi-fiber interconnect applications for equipment with patch panel or for equipment
with equipment.
| Fiber Count | 4 6 8 12 |
| Outer Diameter D*H(mm) | 3.5*2.5 3.8*2.5 4.5*2.5 5.0*2.5 |
| Nominal Weight(kg/km) | 12 13 15 17 |
| Max.Tension Short-term | 600 |
| (N) Long-term | 200 |
| Min. bending Install | 35H |
| Radius (mm) Static | 25H |
| Max.Crush Resistanse(N/100 mm2) | 500 |
| Temperature Ranges: | -20℃~+70℃ |
