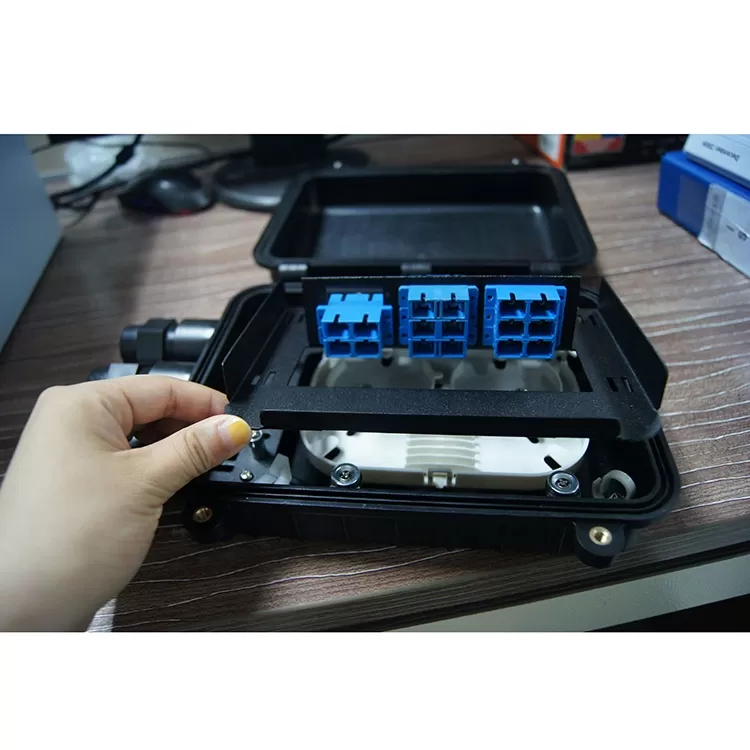

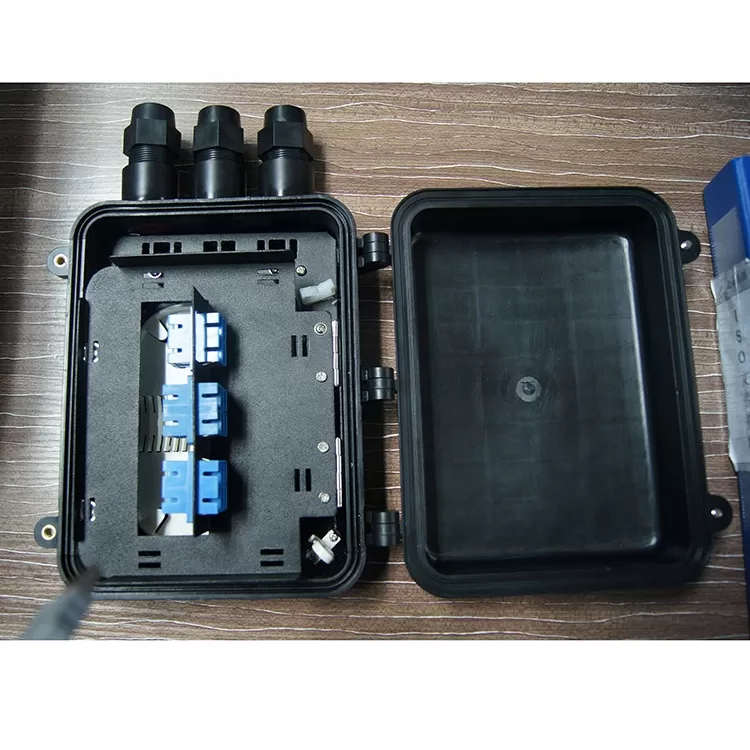

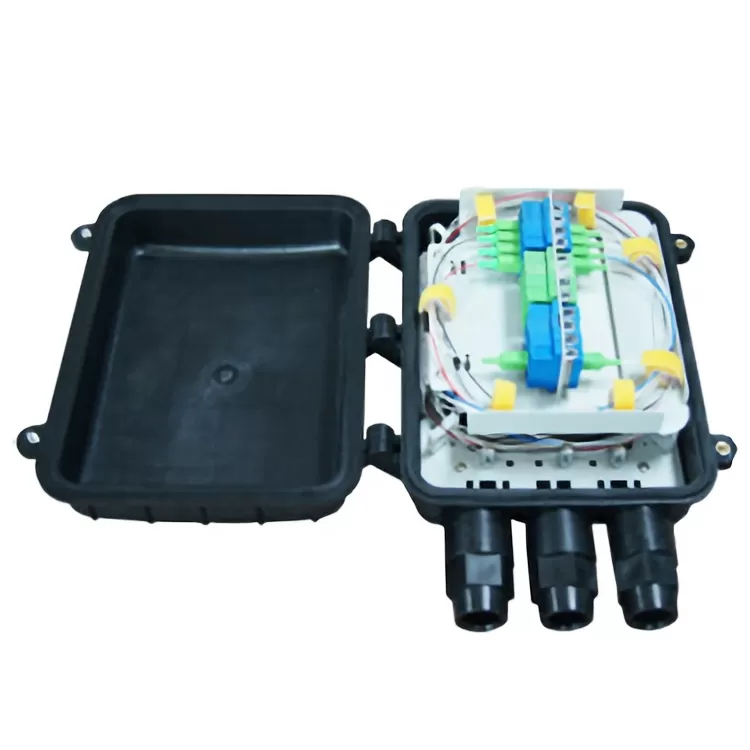

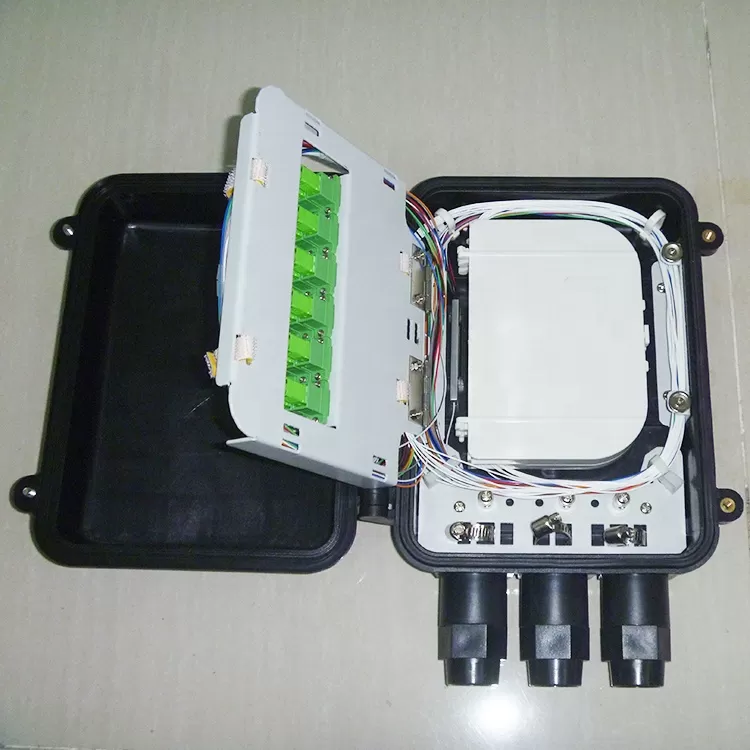

WT06 is a small size fiber optic splice closure that made of high quality ABS material. It is used for fiber optic cable splicing and protection. The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing.
| Dimension | 281.6x200.3x88.5mm |
| Number of entry/exit ports | 2 or 3pcs |
| Diameter of fiber cable | Φ8mm~φ12mm |
| Capacity per splice tray | 6 fibers; 12 fibers if 2 fiber per slot |
| Qty of splice tray | 2~4pcs |
| Max. capacity | 24 fibers or 48 fibers |
| Adapter plate | FC, SC, LC, ST … adapter |
| PLC splitter | 1pc PLC splitter 1x2, 1x4, 1x8, 1x16 |
| Temperature | -40℃ to +65℃. |
| IP standard | IP65 |
| Model | Cable port | Adapter plate | Splice tray | Capcity | PLC Splitter can be loaded |
| WT06 | 2pcs | No | Max. 4pcs | Max. 24 fibersIf 2fibers per slot, max.48 fibers | 1pc, input & output without connector |
| WT06A | 3pcs | No | Max. 4pcs | 1pc, input & output without connector | |
| WT06B | 2pcs | 1pc rotary plate | Max. 2pcs | Max. 12 fibersIf 2fibers per slot, max.24 fibers | 1pc |
| WT06C | 3pcs | 1pc rotary plate | Max. 2pcs | 1pc | |
| WT06D | 2pcs | 1pc | Max. 2pcs | 1pc | |
| WT06E | 3pcs | 1pc | Max. 2pcs | 1pc |
