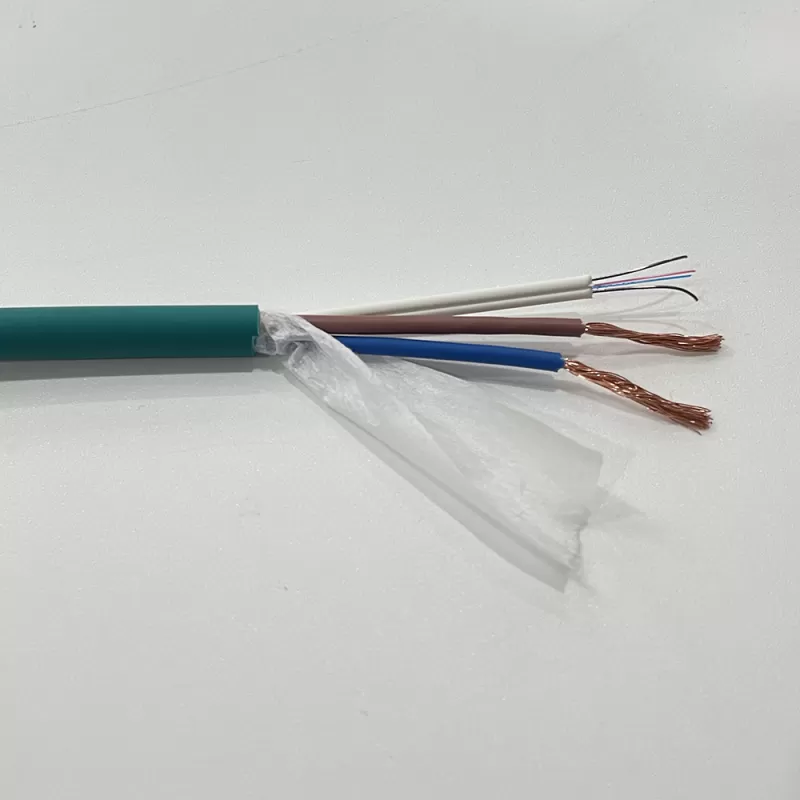

Model Number: Optical Power Composite Cable
Number of Conductors: 2
Conductor Type: Stranded
Conductor Material: Copper
Fiber Type: G657A2
Cladding Diameter(μm): 125.0±0.7
Core-cladding concentricity(μm): ≤0.5
Conductors Dimension: 1.4mm
Conductors Coating: PVC
Out jacket Dimension: 6.5mm
Out jacket Material: LSZH
Tension(Long Term): 300N
Tension (Short Term): 600N
Work temperature: -20~+60 ℃
Packing: 1km/reel ; 41*41*35cm/reel, 32kgs (small volume pallets packing )

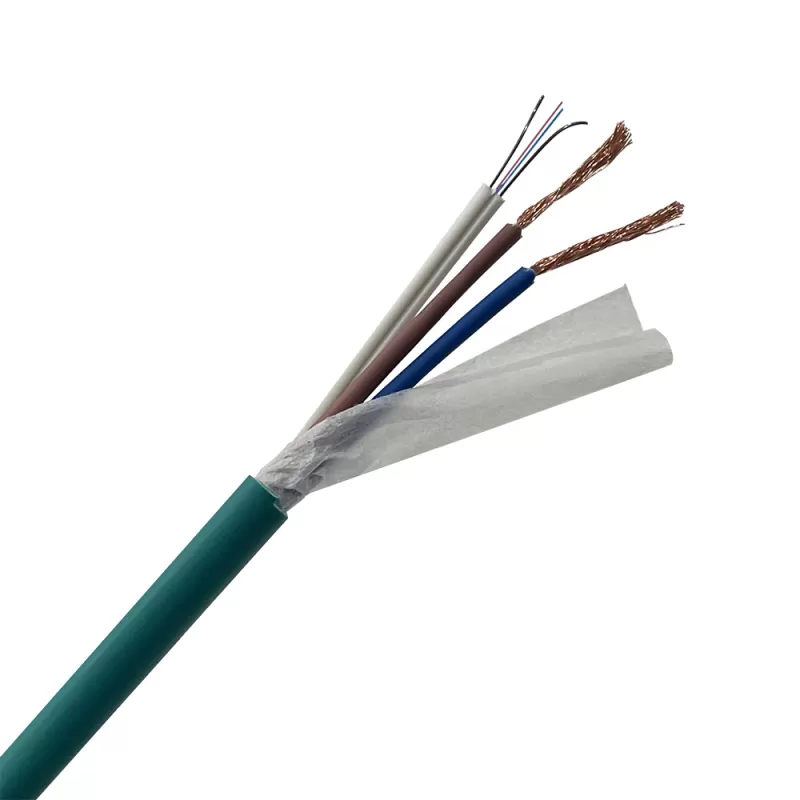

This is a "two-in-one" engineering cabling solution that integrates fiber optic transmission and low-voltage power supply. It combines two optical fibers for communication and two copper wires for power supply into a single cable, aiming to simplify cabling and save costs. This "optical signal + power" integrated transmission solution is tailored for devices such as network cameras and wireless access points, and is particularly suitable for various IoT and communication engineering scenarios requiring centralized power supply and high-speed data backhaul.

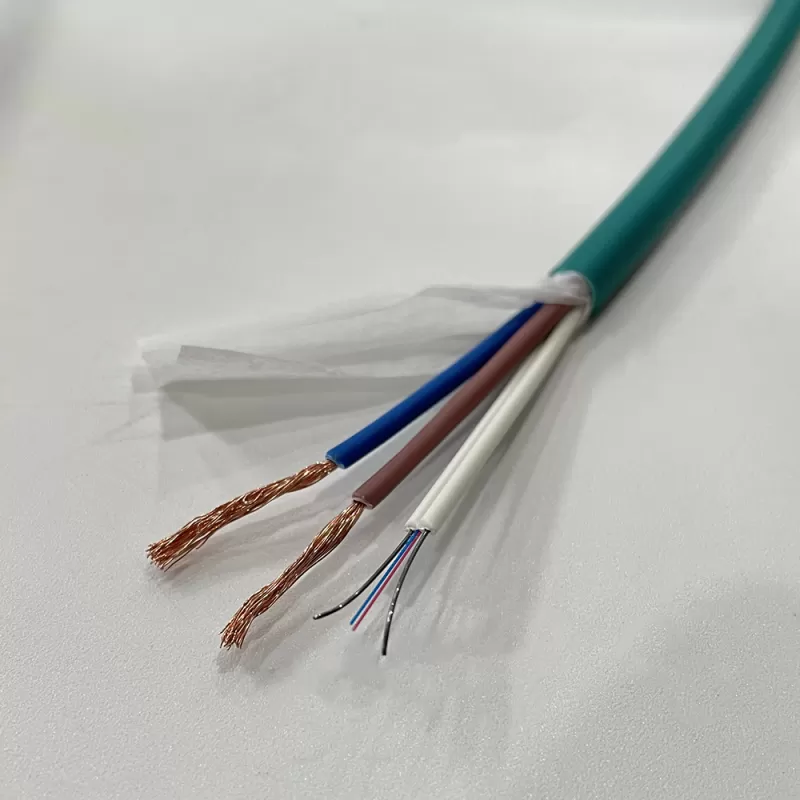

Core components of cables
Fiber Optic Components:
2-core, G.657.A2 Features: G.657.A2 is an advanced "bend-insensitive single-mode fiber." Its greatest advantage is its excellent bend resistance (minimum bending radius down to 7.5mm), resulting in extremely low signal loss in confined spaces such as corners and cabinet cabling.
Conductive Components:
2 strands (2pcs), 1.0 sq mm cross-sectional area copper wire. Features: 1.0 sq mm copper wire provides stable low-voltage DC or AC power transmission. Common voltage levels include 12V, 24V, and 48V, depending on the sheath insulation class.
Primarily used for powering remote devices such as wireless access points (APs), network cameras (IPCs), micro base stations, and distributed antenna systems (DAS) equipment.
Fiber Parameters

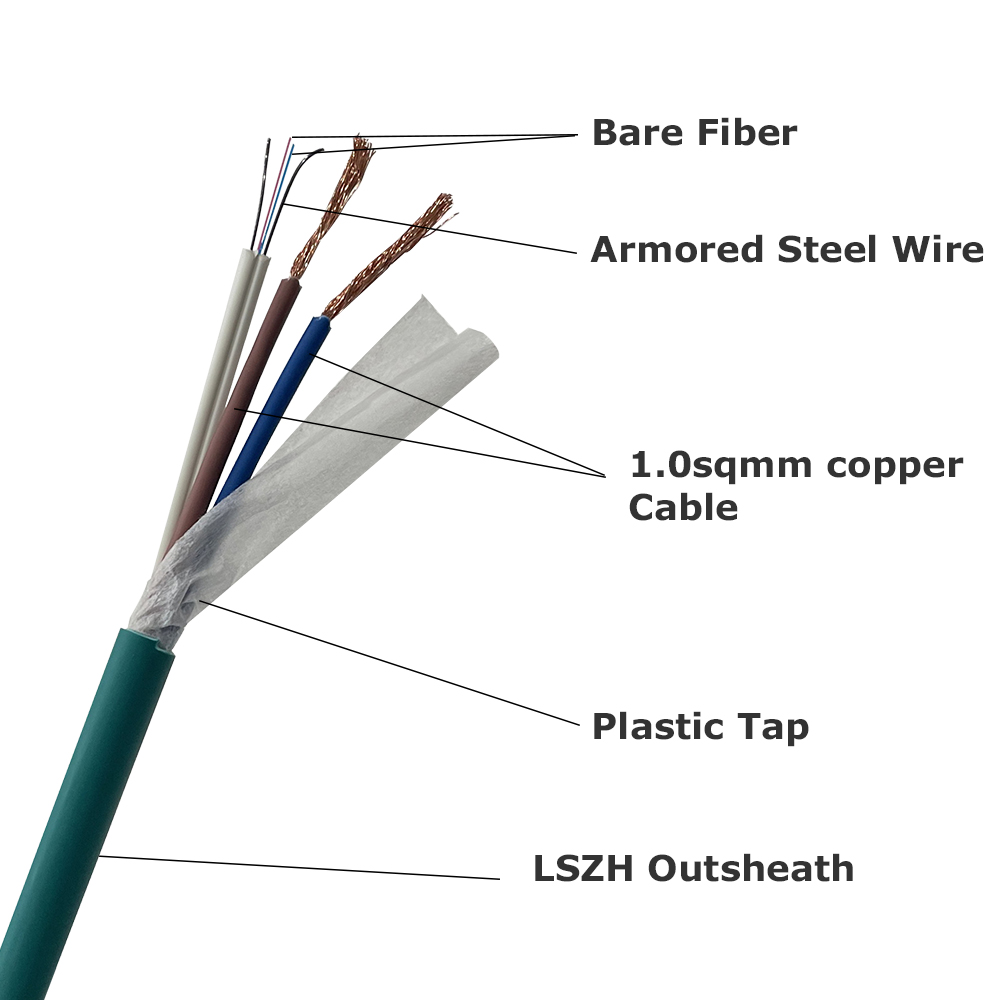

Note : Structure drawing just for reference, please check the following details.
No. | Items | unit | Performance Specification | |
G.657A2 | ||||
1 | Cladding Diameter | μm | 125.0±0.7 | |
2 | Core-cladding concentricity | μm | ≤0.5 | |
3 | Cladding non-circularity | % | ≤0.7 | |
4 | Coating Diameter | μm | 242±5 | |
5 | Cladding -coating concentricity | μm | <12.0 | |
6 | Mode field Diameter | 1310nm | μm | 8.4~9.2 |
1550nm | μm | 9.3~ 10.3 | ||
7 | Fiber Cutoff Wavelength | nm | λcc≤1260 | |
Copper conductors Parameters
Insulator | Electric current | Cross-sectional area | Conductor structure | Outer diameter |
PVC | 230v, 4~5 Amps | 1.0mm2 | 1sqmm | 1.4mm |
Cable Parameters
Items | Specifications | |
Conductors | Dimension | 1.4mm |
Coating | PVC | |
Number of conductors | 2pcs | |
Color | Blue & Red | |
Out jacket | Dimension | 6.5mm |
Material | LSZH | |
Color | Black | |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension(Long Term) | N | 300 |
Tension (Short Term) | N | 600 |
Crush（Long Term） | N/10cm | 1000 |
Crush（Short Term） | N/10cm | 2200 |
Min. Bend Radius（Dynamic） | mm | 15D |
Min. Bend Radius（Static） | mm | 30D |
Work temperature | ℃ | -20～+60 |
Storage temperature | ℃ | -20～+70 |
Features:
* Simplified cabling
* Aesthetically pleasing installation
* High reliability
* Cost-effective

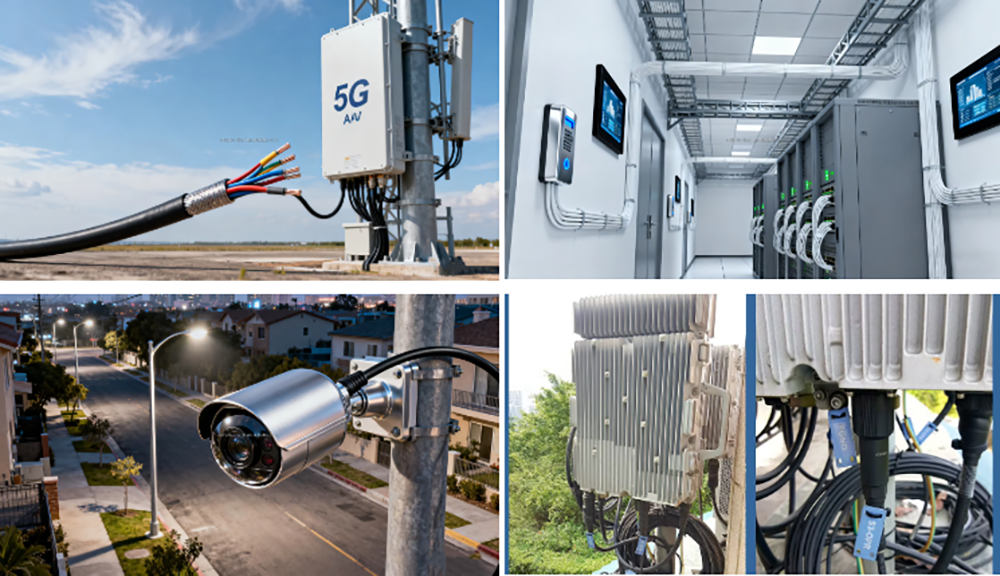

Application
* Smart City/Security Monitoring: Provides both network backhaul and power for high-definition network cameras.
* Wireless Coverage Engineering: Powers indoor/outdoor access points (APs) and micro base stations, and connects them to the backhaul network.
* Fiber to the Antenna (FTTA): Provides optical signals and power to remote radio units (RRUs).
* Smart Building/IoT: Provides cabling for various sensors and access devices requiring network connectivity and power.
* Home/Enterprise Network Upgrades: Pre-installed during renovations, providing both high-speed fiber optic network and power for low-voltage devices (such as IPTV and smart devices) in the future.
