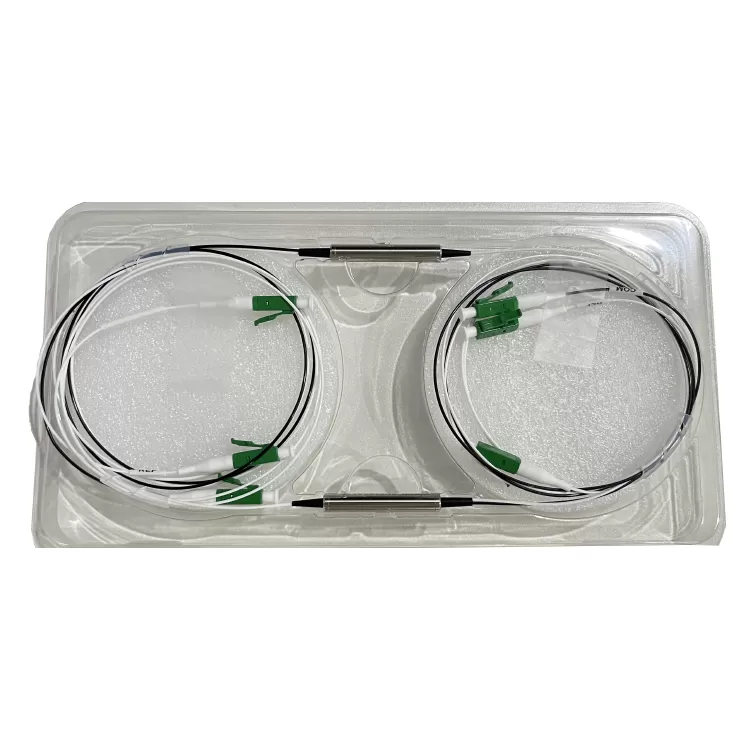

1550nm Optical Fiber FWDM Module LC APC connector

Model Number: 1550nm FWDM Module

Pigtail Type: 0.9mm loose tube

Connector Type: SC/APC

Fiber Type: SMF-28e

Fiber Length: ≥60 (cm)

Operating Temperature: -10 ~ 70 °C

Operating Wavelength: 1260~1620 nm

Transmission: 1535~1620 nm

Reflection: 1260~1360&1480~1500 (nm)

Inquire Now Next Product

Description Contact Us

1. Product information：

PN: FWDM-230505A-NFT Product Description: Transmission1535〜1620nm, Reflection1260〜1360&1480〜1500FWDM, 0.9mm loose tube, Fiber length>0.6m , Package DimensionO5.5*L38 ,with LC/APC or SC/APC 0.9mm connector

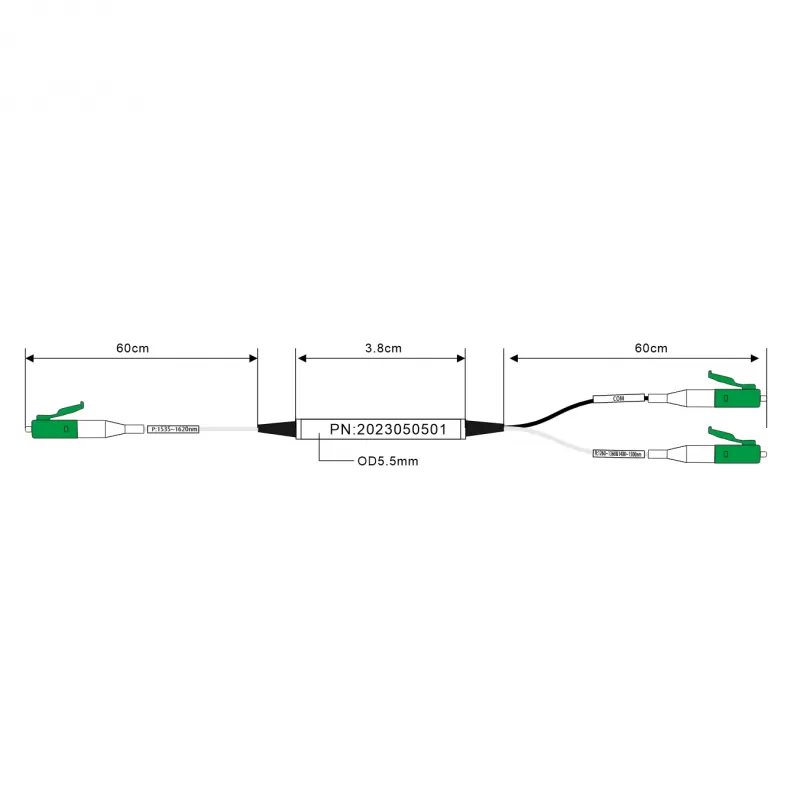

Module Dimension

1550nm Optical Fiber FWDM Module LC APC connector

Performance Specifications

Parametes			Unit	Specifications
OperatingWavelengh			nm	1260~1620
Transmisson			nm	1535〜1620
Reflection			nm	1260〜1360&1480〜1500
Insertion Loss	Transmission	Max	dB	0.8
	Reflection	Max	dB	0.6
Isolation	Transmission	Min	dB	30
	Reflection	Min	dB	15
Polarization Dependent Loss		Max	dB	0.10
Directivity		Min	dB	55
Return Loss		Min	dB	50
Temperature Dependent		Max	dB/°C	0.005
Polarization Mode Dispersion		Max	ps	0.1
Power Handling		Max	mW	500
Fiber Type				SMF-28e
Pigtail Type				0.9mm loose tube
Connector				LC/APC or SC/APC
Fiber length			cm	>60
Operating Temperature			°C	-10〜70
Storage Temperature			°C	-40〜85
Package size			mm	O5.5*L38

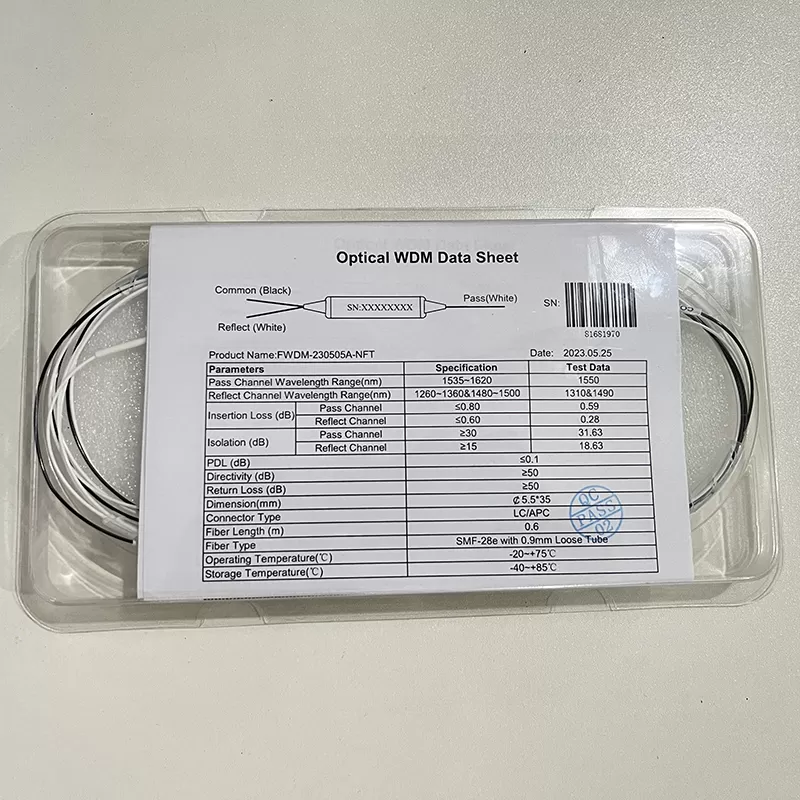

Test Report

The test report should be provided when the products are delivered. Following characteristic test data should be included：

-  Insertion Loss@Room Temperature

-  PDL@ Room Temperature

-  Adjacent Channel Isolation@ Room Temperature
