Jacket type: PVC,LSZH
Operating Temperature: -40 to 75°C
Boot size: 0.9mm,2.0mm,3.0mm
Ferrule size: 125um,126um,127um
Features

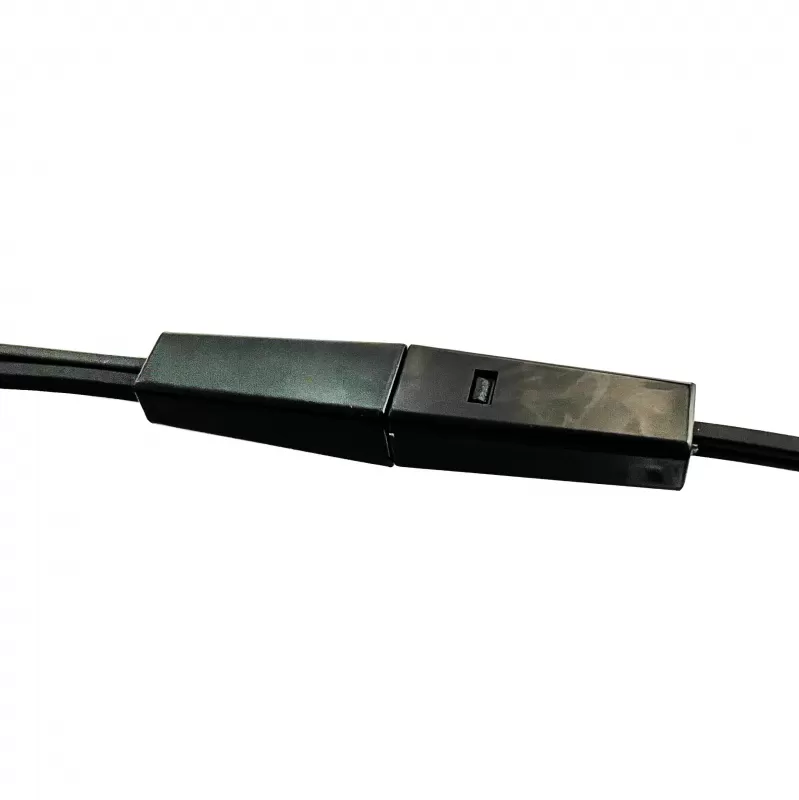

1.Black fan-out tubing
2.Compact design
3.Quick and easy to install
4.Optimized for field termination of cables
5.Excellent fiber routing capabilities
6.Bend radius protection designed into each unit
Application
* Local Area Networks;
* Data processing networks;
* Test equipment;
* Premise installation;
* Wide Area Networks;
Main Material Specification
| Project | Specifications | Remarks |
| Fiber Type | G652D | Accord with ROHS and IEC Standard |

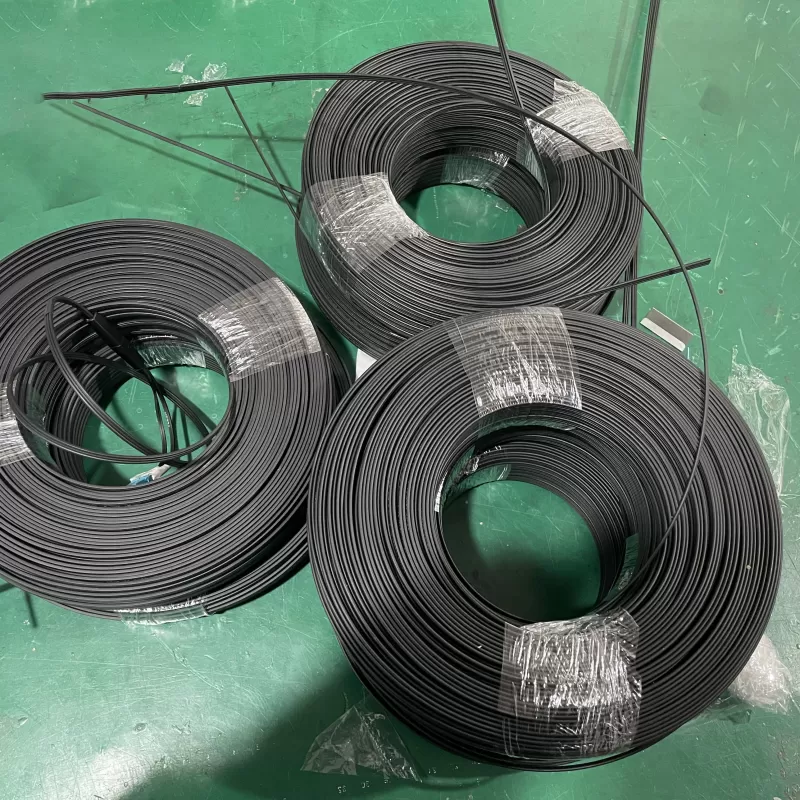

| Cable Diameter | 5*2mm | |
| Cable Material | LSZH | |
| Cable Color | Black | |

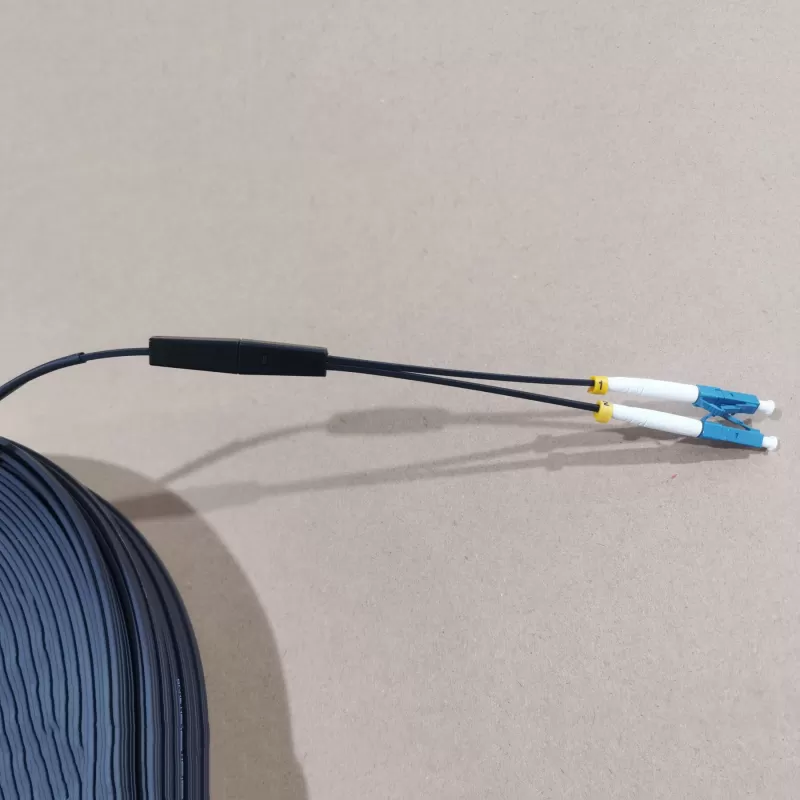

| Connector Type | DLC |
Fiber Parameters
| No | Items | Unit | Specification | |
| G652D | ||||
| 1 | Mode FieldDiameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding ConcentricityError | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-CoatingConcentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | μm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
