Drop Cable Selection Guide - Choose the Right Cable for Your Application

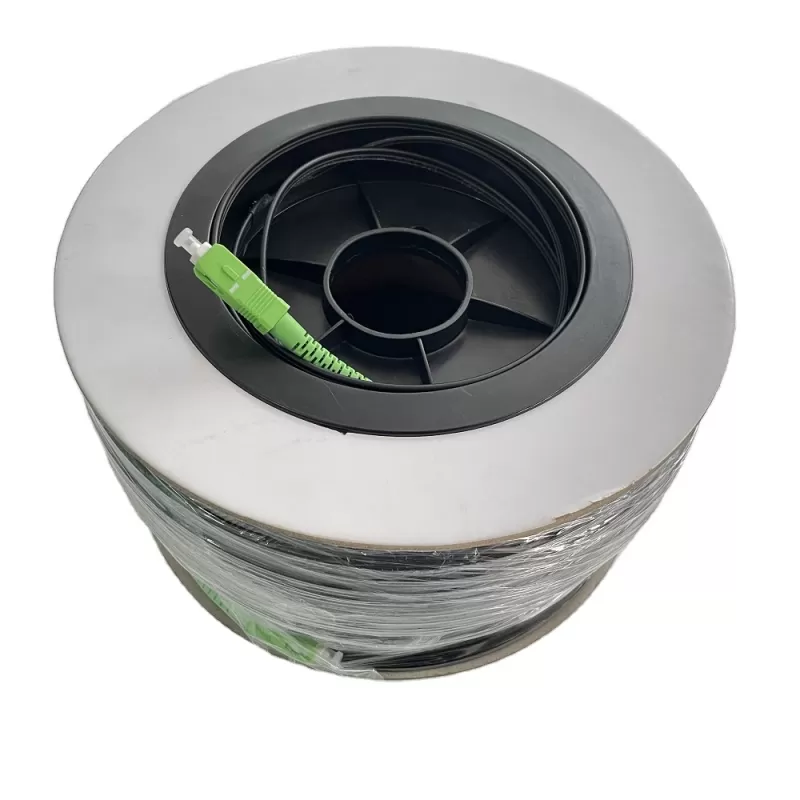

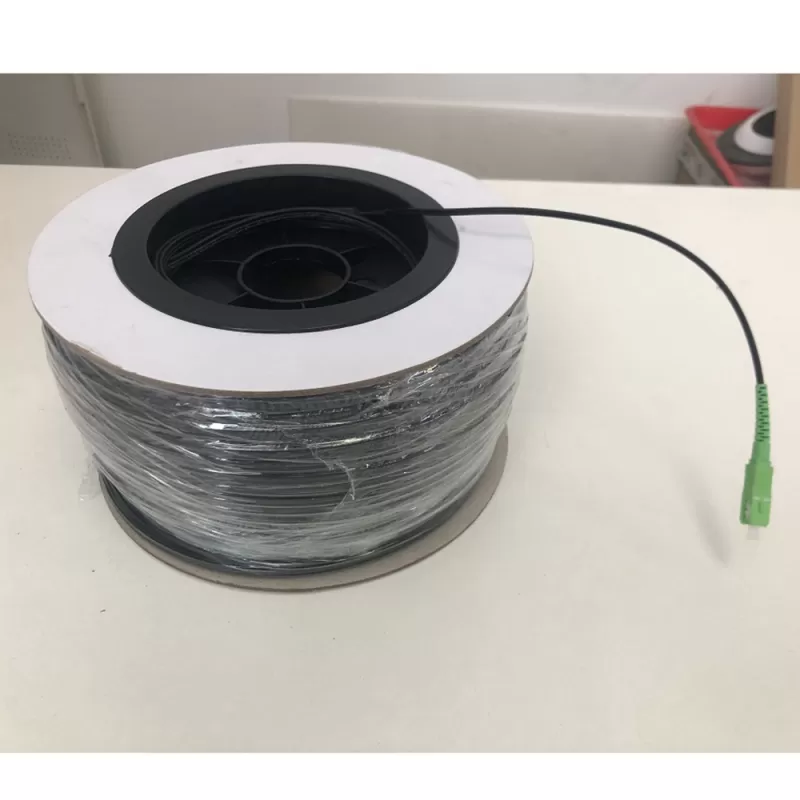

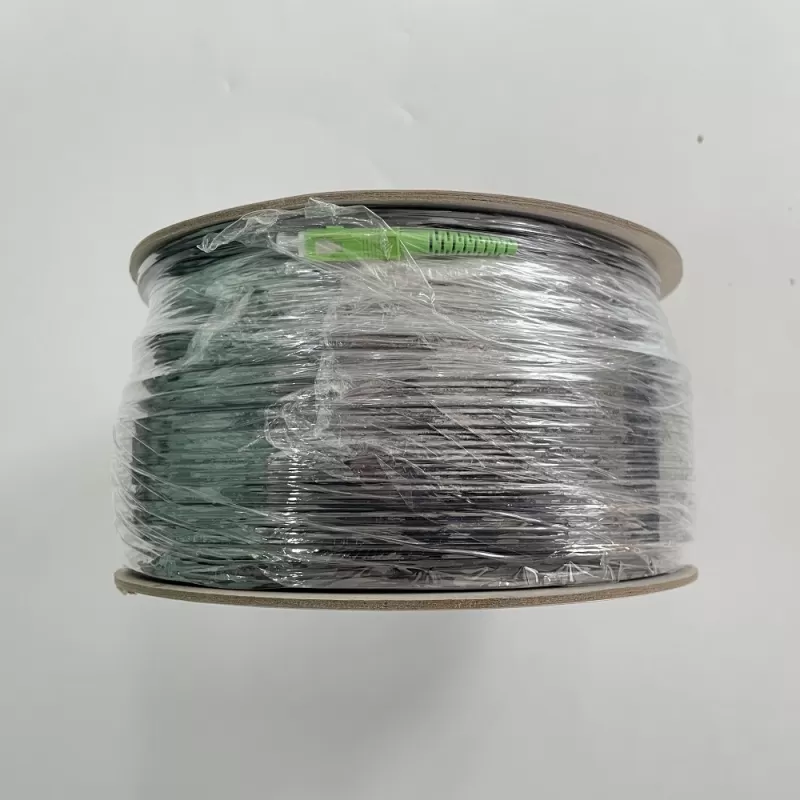

Round Drop Cable with Reel Patch Cord
Key Features:

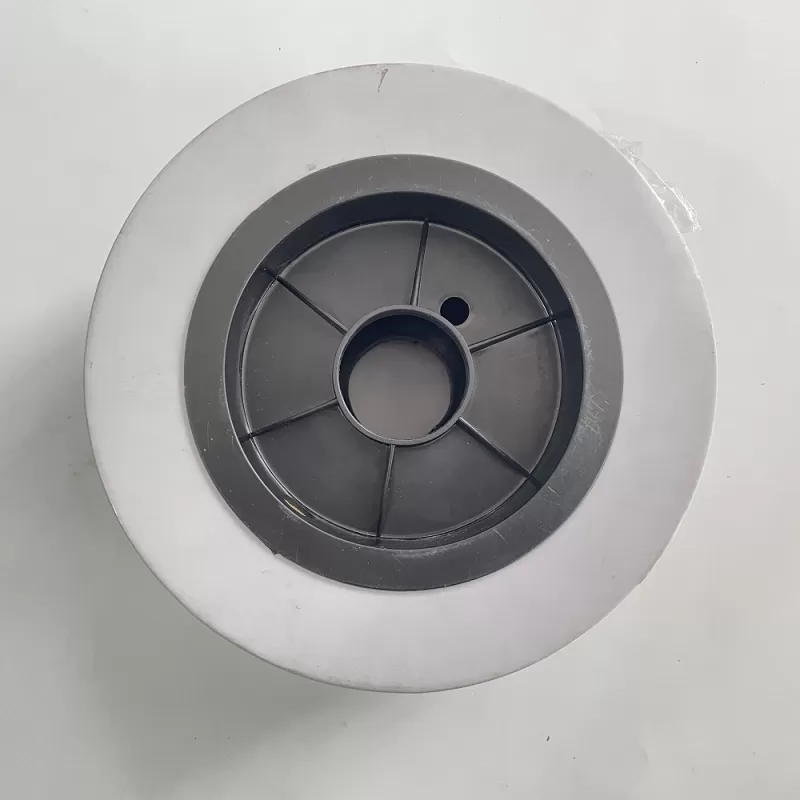

Cardboard Reel Packing
Round Structure
Applications:
Indoor quick wiring
Temporary installation
Product Comparison Table
| Product Type | Structure Features | Installation Environment | Main Applications | |
|---|---|---|---|---|
| Round Through-Wall | Round, Bullet connector | Conduit/Wall | Building entry penetration | |
| Indoor Butterfly (Current) | Flat butterfly, No self-supporting | Indoor | Home/Office wiring | |
| Outdoor Self-Supporting | With steel wire, Weather resistant | Outdoor Aerial | Pole-to-pole aerial connection | |
| Round with Reel | Round, Cardboard reel packing | Indoor | Quick deployment/Bulk installation | |
| Waterproof Type | IP68 waterproof, Duplex | Outdoor Waterproof | Hub to Sub connection | |
| Wall Box with Reel | Wall box, Reel design | Indoor Entry | Home installation convenience |
Datasheet
| 1.Connection data | |||||
| Test Item | Specification | Test Item | Specification | Test Item | Specification |
| Fiber Type | SM 9/125 G657A | Test Wavelength | 1310/1550nm | Insertion Loss | ≤0.3dB |
| Return Loss | UPC>50dB, APC>60dB | Durability | <0.1dB typical change, 1000 repeatability | ||
| 2 .Cable Construction Details | |||||
| Basic Cable Information | |||||
| No. of Fiber | 1F | Gross Weight | 18.2kg/km | Cable Diameter | 2.0(±0.1) mm × 5.2(±0.2)mm |
| Single Mode Fiber Specifications | |||||
| Fiber Type | G657A2 / G657B3 | MFD | 8.6～9.8μm | Fiber Color | Standard Spectrum |
| Cladding Diameter | 125±0.7μm | Cladding Non-circularity | ≤0.7% | Coating Diameter | 245±5μm |
| Strength Member | |||||
| Material | Galvanized steel wire/FRP/KFRP | diameter | 2*(0.5~0.8)mm | Self support Messenger wire | Galvanized steel wire 1.0mm |
| Outer Sheath | |||||
| Material | LSZH | Color | Black | Thickness | Max. 0.8mm/Min. 0.4mm |
| 3 Cable Mechanical & Environment CharacteristicsCable Mechanical & Environment Characteristics | |||||
| Test Item | Condition | Specification | Test Item | Condition | Specification |
| Tensile Strength | Long Term | 300N | Crush Load | Long Term | 1000N/100mm |
| Short Term | 600N | Short Term | 2200/100mm | ||
| Bending Radius | Dynamic | 30D | Operating Temp. | -20℃～+70℃ | |
| Static | 15D | ||||
