3.0mm Round FTTH aerial drop cable SM G657A1 UV-LSZH Optical fiber drop cable

This Aerial Drop Cable is specifically designed for Fiber-to-the-Subscriber applications. It is a round, all dielectric cable ideally suited for self-supporting drop-type installations as well as in lashed or conduit builds.

All FTTH drop cables manufactured by Wirenet meet CPR European standards.CPR standardizes flammability ratings for permanently installed construction products in the EU.

It includes: power, telecommunications, data, and control cables.

Cable Parameters:

Cable Parameters:

Note：Tensile strength options (100N / 150N / 500N / 800 / 1000N)

Fiber drop cable tensile test video:

Application:

* FTTH Network: An overhead line from a roadside optical splitter (OSP) or utility pole to a terminal box on the wall of a resident's home.

* Apartment Building Deployment: An overhead line along the building's exterior wall, entering the interior through vertical ducts or channels.

* Rural and Suburban Network Coverage: Rapid deployment using existing utility pole lines in areas where underground laying is difficult.

Temporary Network Deployment: Due to its flexibility and lightweight design, it is often used for events such as trade shows and competitions requiring temporary communication.

Feature:

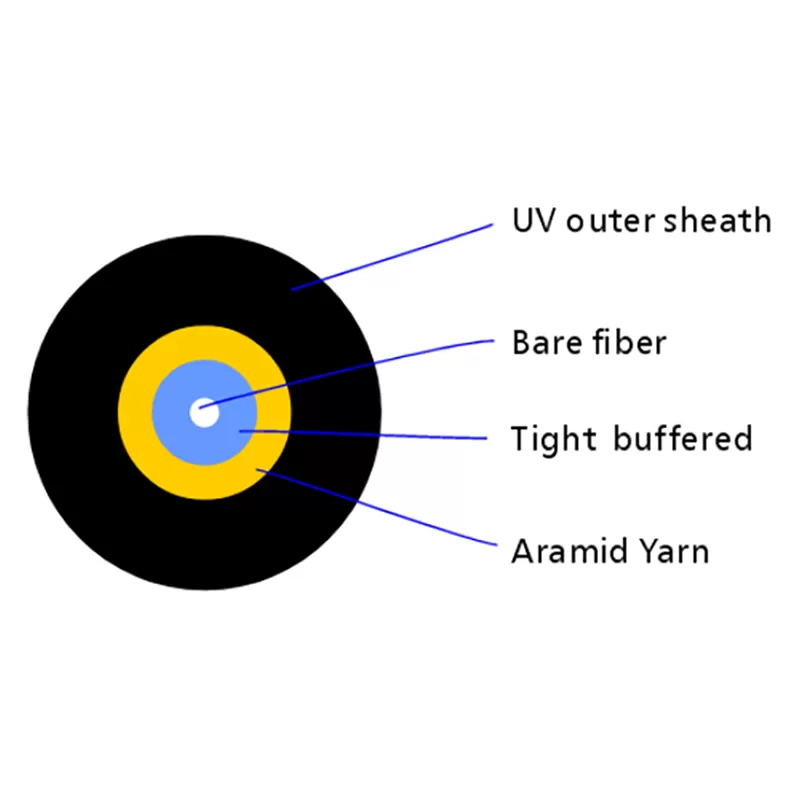

* Tight fibre 900µm compatible with field installable connectors

* Glass and aramid yarns reinforcements for aerial applications

* LSZH UV resistant outersheath

* Crush resistance and flexibility

* Excellent mechanical and environmental performance

* Kevlar member potentiate.
