Features
1. Good mechanical and enviromental characteristic
2. Anti-UVcharateristics meet the requirements of relevant standards
3. The mechanical charateristics meet the requirements of relevant standards
4. Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
5. Meet various requirements of market and clients
Application
1.Adopted to outdoor level and vertical distribution.
2.Suitable for connect with communication equipment.
3.Long distance and local area network communication.

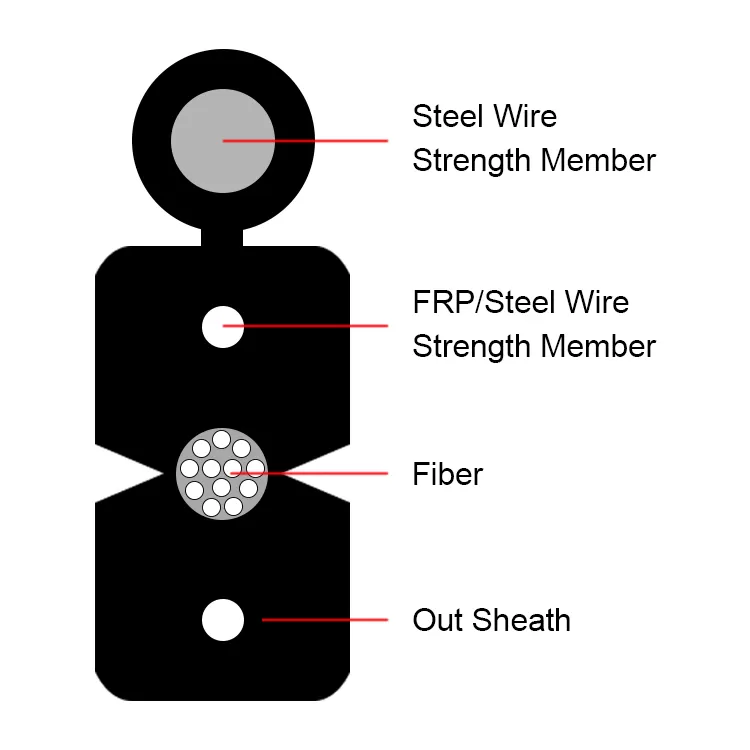

Items | Description | |||
Number of fiber | 6/8 /12 cores | |||
Fiber type | g652d/g657a1/g657a2 | |||
Strength member | material | Steel wire/FRP/KFRP | ||
diameter | 2*(0.5)mm | |||
Self support Messenger wire | material | Steel wire | ||
diameter | 1.2mm | |||
Outer sheath | material | LSZH | ||
diameter | 1.8±0.2mm | |||
Cable size (Height * width) | 2.8(±0.1) mm × 6.3(±0.2)mm | |||
Cable sheath thickness | Max. 0.8mm/Min. 0.4mm | |||
Messenger sheath thickness | 0.5~0.7mm | |||
Cable weight | 35KG±1KG | |||
