Model Number: Loose Tube Type FTTH Drop Cable
Fiber count: 2,4,6,8,12 Core
Fiber Type: G652D,G655,G657A1,G657A2
Strength member: Steel Wire FRP KFRP
Jacket Material: PE PVC LSZH HDPE
Packing: Wooden Reel

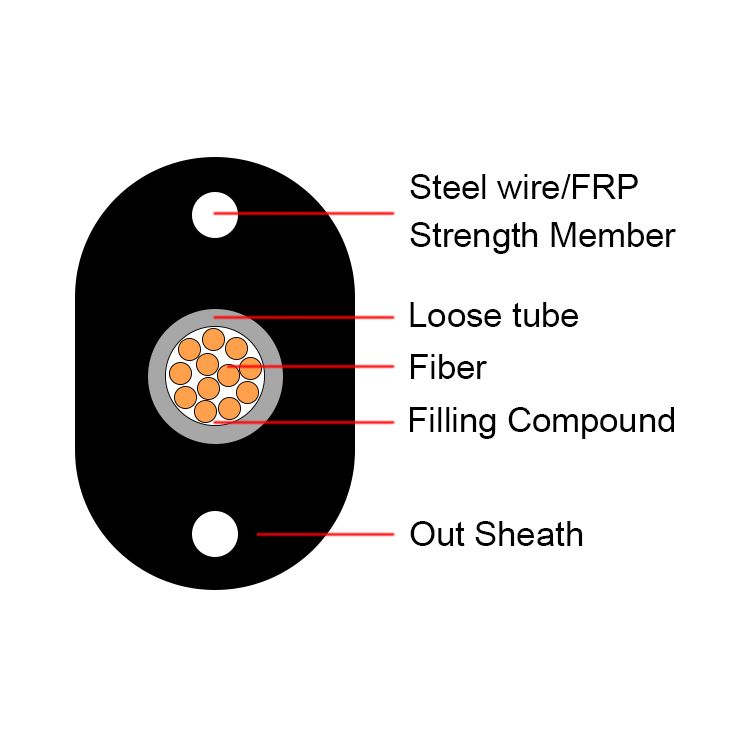

The cable put in side with 2 FRP, the optical fiber unit positioned in the Loose tube. Two parallel strength member are placed at the two sides and have loose tube to protect the inside FTTH, outside sheath is HDPE.
Features:
* Good mechanical and enviromental characteristic
* Anti-UV charateristics meet the requirements of relevant standards
* The mechanical charateristics meet the requirements of relevant standards
* Big capacity data transmission
* Meet various requirements of market and clients
Application:
* Adopted to cabling.
* Suitable for aerial and duct drop installation
* Long distance and local area network communication.
| Cable Count | Outder Sheath Diameter | Loose tubeDiameter | Tensile Strength(N) | Crush Load(N/100mm) | BendingRadius(mm) | |||
| Short term | Long term | Short term | Long term | Dynamic | Static | |||
| 2 | 3.5*7.5(±0.3mm) | 1.8±0.1mm | 1000 | 300 | 1000 | 300 | 20D | 10D |
| 4 | 3.5*7.5(±0.3mm) | 1.8±0.1mm | 1000 | 300 | 1000 | 300 | 20D | 10D |
| 6 | 3.5*7.5(±0.3mm) | 1.8±0.1mm | 1000 | 300 | 1000 | 300 | 20D | 10D |
| 8 | 3.5*7.5(±0.3mm) | 1.8±0.1mm | 1000 | 300 | 1000 | 300 | 20D | 10D |
| 12 | 3.5*7.5(±0.3mm) | 1.8±0.1mm | 1000 | 300 | 1000 | 300 | 20D | 10D |
| Storage/Working temperature | -40℃~+60℃ | |||||||
