Wirenet WT-STB-10 Field Fiber Optic Cable is designed for complex field environments requiring rapid cabling and repeated deployment and retraction.
This industrial-grade backpack cable reel is designed for field engineers, telecom technicians, and power line crews who need to transport and lay heavy cables in remote, vehicle-inaccessible areas. The unit is shown in empty spool condition, highlighting its lightweight yet durable structure.
The product features a compact, all-dielectric structure with built-in 0.9mm tight-buffered fiber, making it lightweight, high in tensile strength, and excellent in compressive strength. The cable is flexible and bendable, and features oil resistance, abrasion resistance, flame retardancy, and a wide temperature range. The product comes standard with 500 meters of cable and a stainless steel cable reel for easy deployment, transport, and transport. It is suitable for harsh environments such as field emergency repairs, oil and gas fields, mines, ports, television broadcasting, and industrial sites.
Product Specification
Item | Specification |
Model | WT-STB-10 |
Cable Specification | |
Cable OD | 5.0 ± 0.2mm |
Tight Buffer Diameter | 0.9 ± 0.05mm |
Fiber Count | 4 Core |
Outer Sheath Material | TPU |
Strength Member | Kevlar |
Cable Length | 500m |
Cable Weight | 27.5kg/km |
Fibre Performance Parameters | |
Cladding Concentricity | ≤ 0.5 μm |
Cladding Non‑circularity | ≤ 0.7 % |
Coating Diameter | 242 ± 5 μm |
Cladding‑Coating Concentricity | < 12.0 μm |
Mode Field Diameter @ 1310 nm | 8.6 ± 0.4 μm |
Mode Field Diameter @ 1550 nm | 9.8 ± 0.5 μm |
Cable Reel Specification | |
Reel Material | Stainless Steel |
Reel Color | Black or Green |
Product dimensions | 50*51*53(cm) |
Packaging dimensions & weight (Wooden crate packaging) | 55*53*53(cm) Empty Reel (15KG) With 500M Optical Cable(26KG) |
Packaging weight & weight （Cardboard packaging） | 51*52*54(cm) Empty Reel (8.3KG) |
Connector Specification

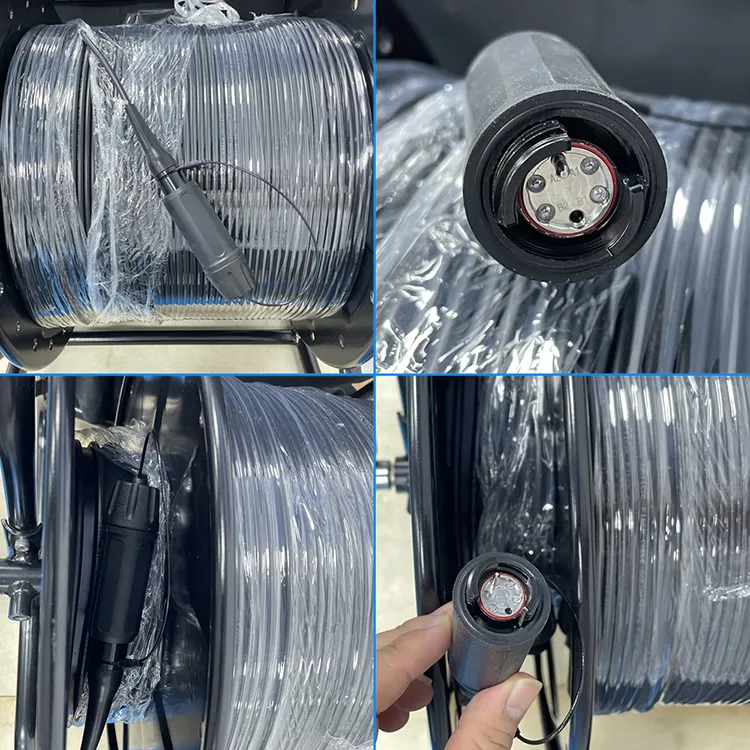

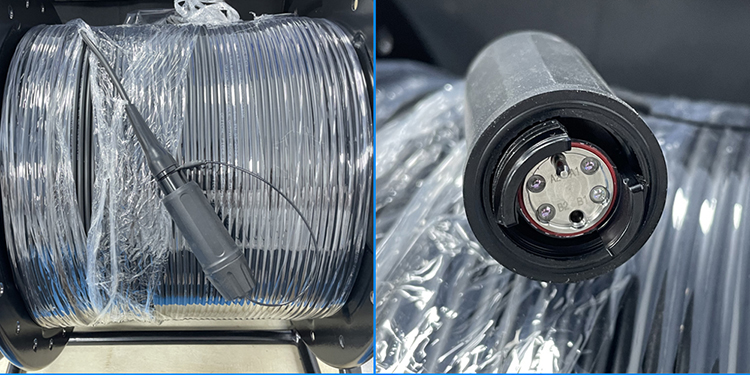

This product comes standard with an HXB 13 connector (standard plug).
The HXB13 connector utilizes Expanded Beam Technology, achieving fiber coupling through beam expansion and collimation without physical contact. This effectively prevents end-face contamination or damage from affecting transmission performance. The connector features a hermaphroditic design, supporting rapid daisy-chaining of multiple fiber optic segments for quick deployment. Furthermore, the HXB13 connector can be configured to transmit electrical signals or power via mixed ferrules.
Item | Specification |
Insertion Loss | Single-mode: Typical values 0.8~1.8 dB @ 1310/1550nm |
Multi-mode: Typical values 0.5~1.0 dB @ 850/1300nm | |
Return Loss | >32 dB (single-mode only) |
Durability | 3000 time |
Operating Temperature | -40°C ~ +85°C |
Storage Temperature | -55°C ~ +85°C |
Water Immersion | Maximum depth 15 meters |
Free Fall | 500 cycles @ 1.2m |
Vibration | 10~500Hz, 3-axis, 0.75mm, 10g |
Shock | 11ms, 3-axis, 50g |
Why Choose This Reel?

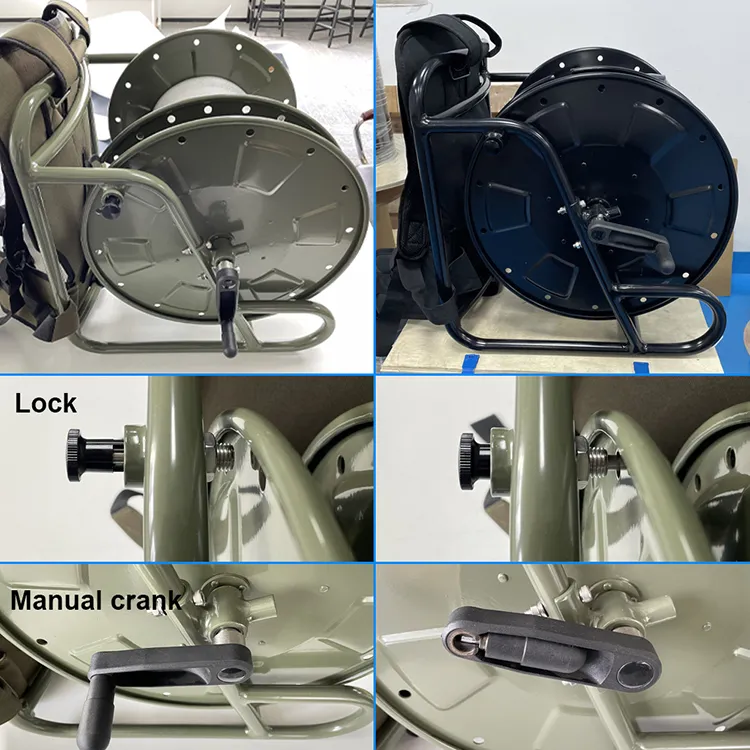

Traditional cable reels require a truck or cart. Our portable wire spool integrates a rugged, black or green metal frame with an ergonomic backpack harness, allowing a single worker to carry the empty reel to the job site, then load and deploy cable on foot – over hills, through narrow trenches, or into mines.
Applications
* Fiber optic cable installation (telecom)
* Power line maintenance & underground cable laying
* Mining & oil field operations
* Outdoor construction & emergency power restoration
* Broadcast TV
* Avionics
* Marine/Trent Cabling
* Field Emergency Repair
* Outside Broadcast
Features
* Lightweight Design:
Utilizing a compact all-dielectric structure with an inner 0.9mm tight-buffered fiber, the cable boasts an extremely high weight-to-weight ratio, facilitating rapid cabling and repeated deployment and retraction.
* High Tensile and Compressive Strength:
The composite high-strength fiber structure provides excellent temperature performance and minimal additional attenuation, ensuring reliability and longevity under harsh conditions.
* Superior Bending Performance:
A special high-strength flexible central reinforcement ensures the cable's strength and bending performance.
* High Mechanical Strength:
Large-area aramid yarn provides high mechanical strength to the cable.
* Weather Resistance and Flame Retardancy:
Thermoplastic polyurethane elastomer (TPU) flame-retardant sheath provides excellent structural stability, compressive strength, abrasion resistance, oil resistance, low-temperature flexibility, and flame retardancy.
* Rodent Resistance:
Special materials added to the outer sheath give the cable rodent-resistant properties.* Environmental Compliance:
Complies with EU RoHS directive requirements.
Available Options
* Empty reel (as shown)
* Customized Optical Cable & Connector
* Package Customized

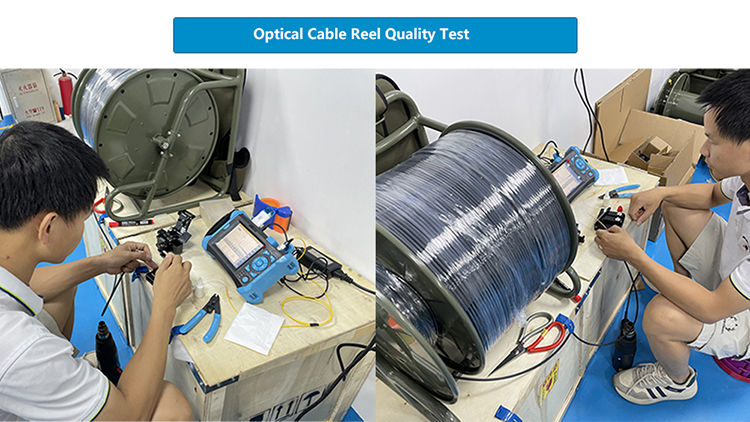

Cable Quality Control
