Aimple Operation Grinding Square Vibration Wheel Fiber Optic Polishing Machine

Aimple Operation Grinding Square Vibration Wheel Fiber Optic Polishing Machine

Model Number: WT-CX-20A

Application: fiber patch cord making

Fuse: 250V-0.5A.

Time Settings: 66 min 66 sec (Max)

Speed for Rotation Plate: 90 rpm

Height of Plate Jumpiness: <10 um

Pressure Configuration: 21 ~ 36 N/cm2

Work Temperature: 10 ~ 40 Celsius degrees

Relative Humidity: 15%~85%

Power Input: 220~230 VAC 50Hz/60Hz

Electric Power: 40 W

Single package size: 43X44X36 cm

Single gross weight: 30 kg

Inquire Now

Description Contact Us

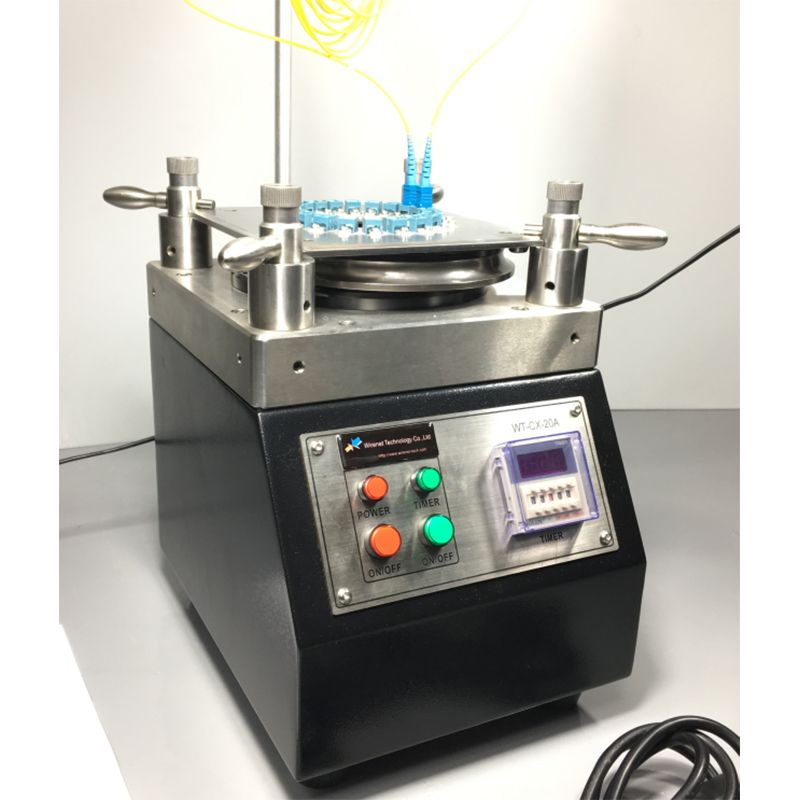

    The WT-CX-20A four cornered fiber optic polishing machine is designed for the massive fiber optic patchcord production, manily for the new user. The machine can process with LC/FC/ST/SC/E2000/SMA/MU/MTRJ/MPO/MTP etc. normal ferrules and connectors.With four cornered pressure, the user dont need to adjust the rotation speed, and the force on the jig is stable and even, just

start the machine, then put the four hands on the jig, after 30um, 9um, 1um, ADS polishing, you can have good polishing result under observation of the microscope.

Features

* May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, MU/UPC/APC, MTRJ,E2000/UPC/APC etc
* Convenience for adjusting pressure, unloading and replacing jigs
* Excellent connector and face polishing quality, the percentage of products sent back for repair is very low.
* Save material and low cost for grinding
* Easy to use and stable
* Display grinding speed which can be adjusted any time
* Control the direction with pro and con, convenience for Adjustment
* Toothed gearing, more stable and deep-set

Application

Fiber optic polishing machine central pressure type is a machine specially for polishing all types of the fiber optic connnectors, like the fiber optic patchcord, pigtail, ribbon patchcord/pigtail, adding connectors fo the PLC splitter, energy fiber, glass fiber, and fiber is the pre-terminal fast connectors.

Now the usage for the polishing machine has been very mature, it is used with other fiber optic equipment, like the fiber optic cable cutting machine, fiber optic microscope,heat oven, crimping machine, insertion loss and return loss tester, ultrasonic cleaner etc. to build up a production line for patchcord, pigtail, pre-terminal fibers for the fast connector.

How to set up a patch cord production line, see below pls

Aimple Operation Grinding Square Vibration Wheel Fiber Optic Polishing Machine

Polishing Procedures and Related Parameters

Process	Film	Liquid	Pressure	Time	Film lifetime
Remove gule	30um(green)	nothing	1~2kg	30s	3 or 5 times
The 1st polishing	9um(blue)	Polishing oil	2kg	35s	Increase 5 seconds every 10 cycles, 30~40 cycles
The 2nd polishing	3um(pink)	Polishing oil	2kg	35s	Increase 5 seconds every 10 cycles, 30~40 cycles
The 3rd polishing	1um(lavender)	Polishing liquid ( with water 1:10)	2kg	35s	Increase 5 seconds every 10 cycles, 30~40 cycles
The 4th polishing	ADS	Polishing liquid ( with water 1:10)	2kg	35s	Increase 5 seconds every 10 cycles, 30~40 cycles

Remark
The parameters are tested by MIPOX polishing films. It may not apply to other material polishing film

Polishing result

Polishing Process	4 processes (not including “Remove Glue ”)
Return Loss	≥50 dB
Top Curvature	10~25 mm
Top Excursion	≤50 um
Core Hollow	≤0.1 um
Surface Roughness	≤50 nm

Polishing jig choice

No.	Model	Description	Remark
1	SC/PC-20/25/32	SC/PC connector jig, 20/25/32 positions	2.5mm, 20/25/32 positions
2	SC/APC-18/26	SC/APC connector jig, 18/26 positions	2.5mm, 18/26 positions
3	FC/PC-20/25	FC/PC connector jig, 20/25 positions	2.5mm, 20/25 positions
4	FC/APC-18/26	FC/APC connector jig, 18/26 positions	2.5mm, 18/26 positions
5	LC/PC-24/36/40	LC/PC connector jig, 24/36/40 positions	1.25mm, 24/36/40 positions
6	LC/APC-20/32	LC/APC connector jig, 20/32 positions	1.25mm, 20/32 positions
7	ST/PC-20/25/32	ST/PC connector jig, 20/25/32 positions	2.5mm, 20/25/32 positions
8	SMA/PC-20	SMA/PC connector jig, 20 positions	3.17mm, 20 positions
9	MPO/PC-18	MPO/PC connector jig, 18 positions	1.25mm, 18 positions
10	2.5PC-20/40	2.5mm ferrule, PC interface, 20/40 positions	2.5mm, 20/40 positions
11	2.5APC-20/40	2.5mm ferrule, APC interface, 20/40/40 positions	2.5mm, 20 positions
12	E2000-40	2.5mm ferrule, PC interface, 40 positions	2.5mm, 40 positions
