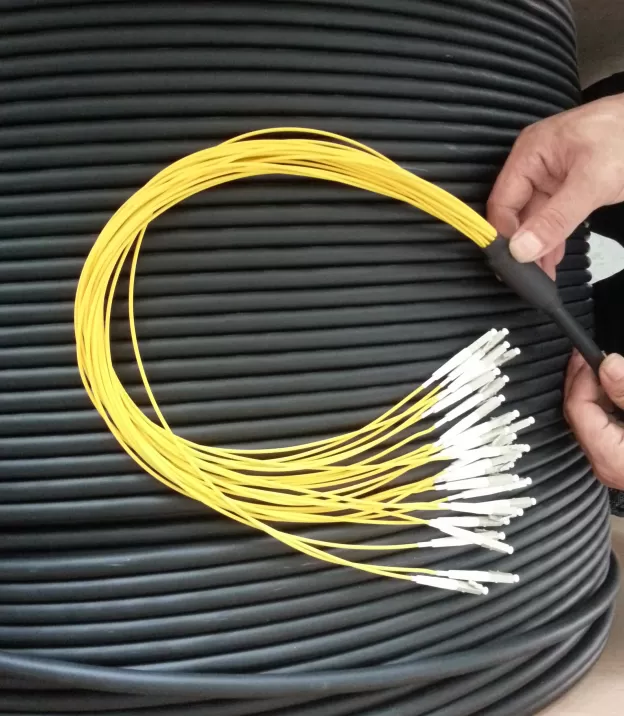

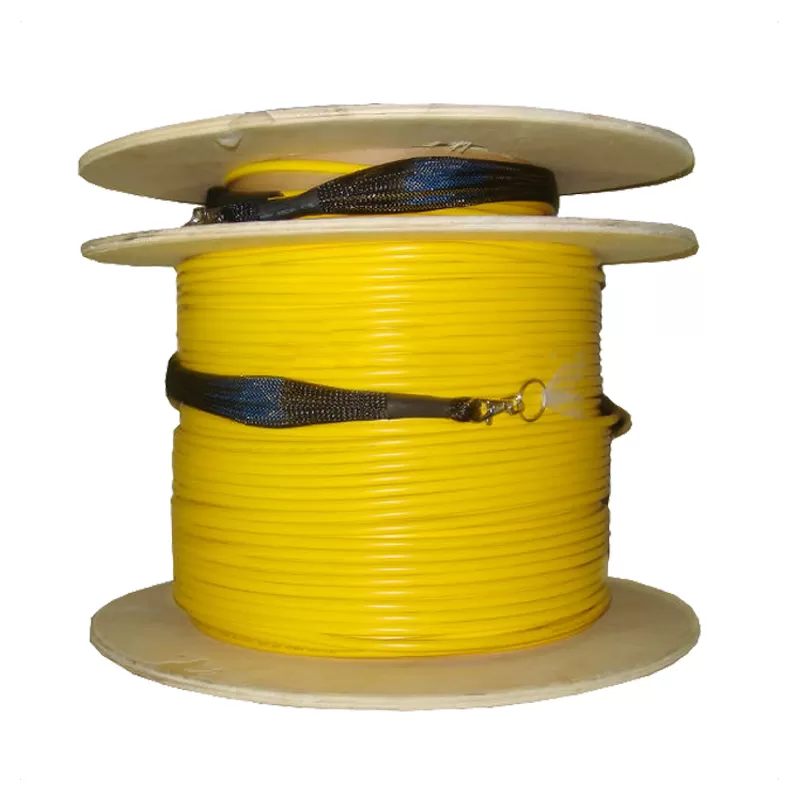

Customized 24 Fibers OS2 singlemode LC/SC/FC/ST/ terminated Indoor Tight Buffered Multi Fiber Breakout Supply

Pulling eye Fiber Optic patch cord drawing

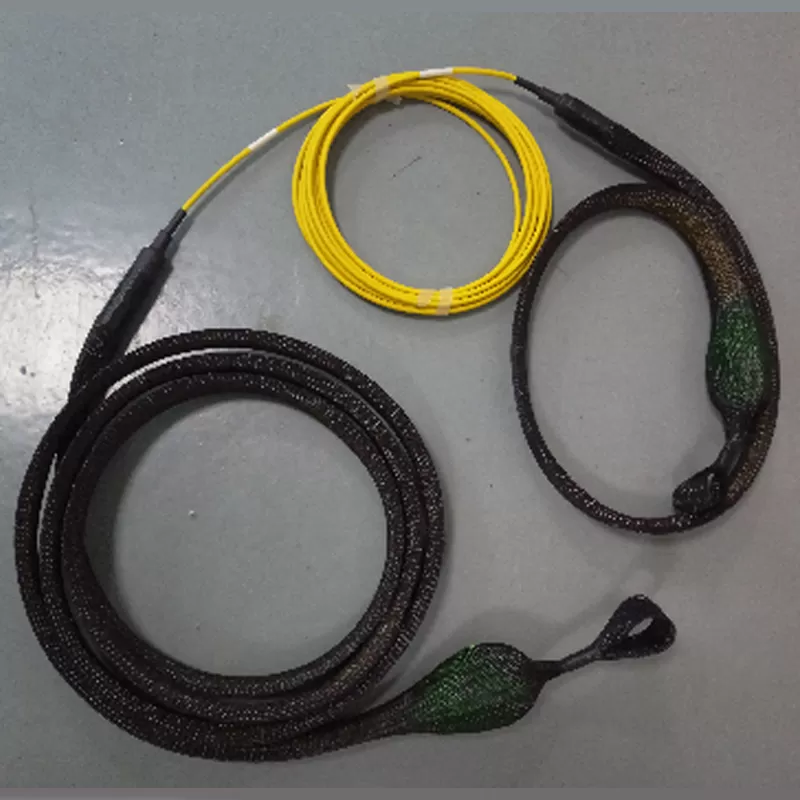

Outdoor Pulling eye Fiber Optic patch cord FTTH Drop cable

Note: When the total cable length is less than 3m, the breakout length is 0.3m. When the total cable length is 3m or more, the breakout length is 0.5m.

Features:
1. Low insertion and back reflection loss
2. Good exchangeability
3. Good durability
4. High temperature stability
5. Standard: Telcordia GR-326-CORE

Applications:

* CATV;
* Active device termination;
* Telecommunication networks;
* Metro;
* Local Area Networks;
* Data processing networks;
* Test equipment;
* Premise installation;
* Wide Area Networks;

Specification:

Items	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insertion Loss	<0.2dB			<0.3dB
Return Loss	≥45dB	≥50dB	≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
Operating Temperature	-40 to +75			-40 to +75
Ferrule Hole Sizes	125.0+1/-0um, Conentricity:≤1um			125um,Conectricity:1≤3um
	125.3+1/-0um, Conentricity:≤1um			127um,Conectricity:1≤3um
	125.5+1/-0um, Conentricity:≤1um			128um,Conectricity:1≤3um
	126.0+1/-0um, Conentricity:≤1um

Order Choice:

1. Simplex/duplex
2. loopback patch cord
3. mode condition patch cord
4. Fanout patch cord/pigtail
5. Pigtails
6. PC/UPC/APC polishing
7. Various boot (cable) color/ size
