Application:
1）Fiber fan out kit is used to terminate large fiber cou nts fiber cables.?
2）However, for other large fiber counts cables, such as loose tube buffered fiber cables, the fibers are usually only 250um bare fibers.
3）The fan out kit or breakout kit is designed to adapt groups of coated fibers for connectors by separating them and adding a tight buffer to each one.
2）However, for other large fiber counts cables, such as loose tube buffered fiber cables, the fibers are usually only 250um bare fibers.
3）The fan out kit or breakout kit is designed to adapt groups of coated fibers for connectors by separating them and adding a tight buffer to each one.
Characteristics:
1）Waterproof structure provide for protection of the furcation
2）The 2.0/3.0mm tube with aramid yarn and 900um buffer provide more pulling strength
3）Compact design make the furcation simple and organized Components.
2）The 2.0/3.0mm tube with aramid yarn and 900um buffer provide more pulling strength
3）Compact design make the furcation simple and organized Components.

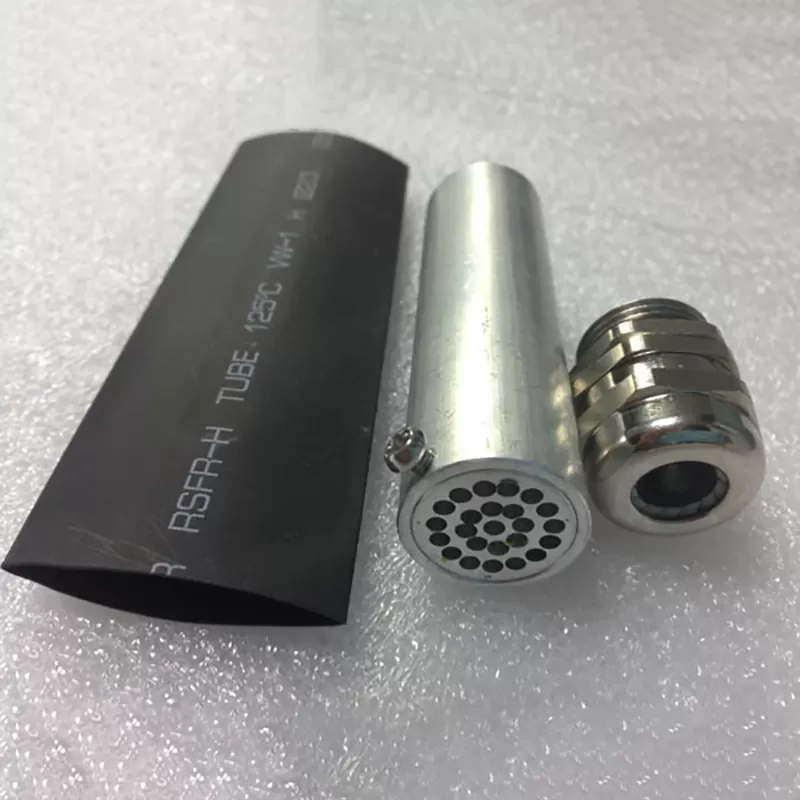

Accessories:
For 24 fiber: | For 12 fiber | |||||
Item | Specification | Qty | Item | Specification | Qty | |
1 | water proof head 5mm~10mm | 1 | 1 | water proof head ?5mm~8mm | 1 | |
2 | aluminum tube | 1 | 2 | aluminum tube | 1 | |
3 | furcation fan-out kit | 1 | 3 | furcation fan-out kit | 1 | |
4 | small hex wrench | 1 | 4 | small hex wrench | 1 | |
5 | 0.9/2.0/3.0mm tube | 24 | 5 | 0.9/2.0/3.0mm tube | 12 | |
6 | heatshrink tube 20mm | 1 | 6 | heatshrink tube ?20mm | 1 | |
