Feature:

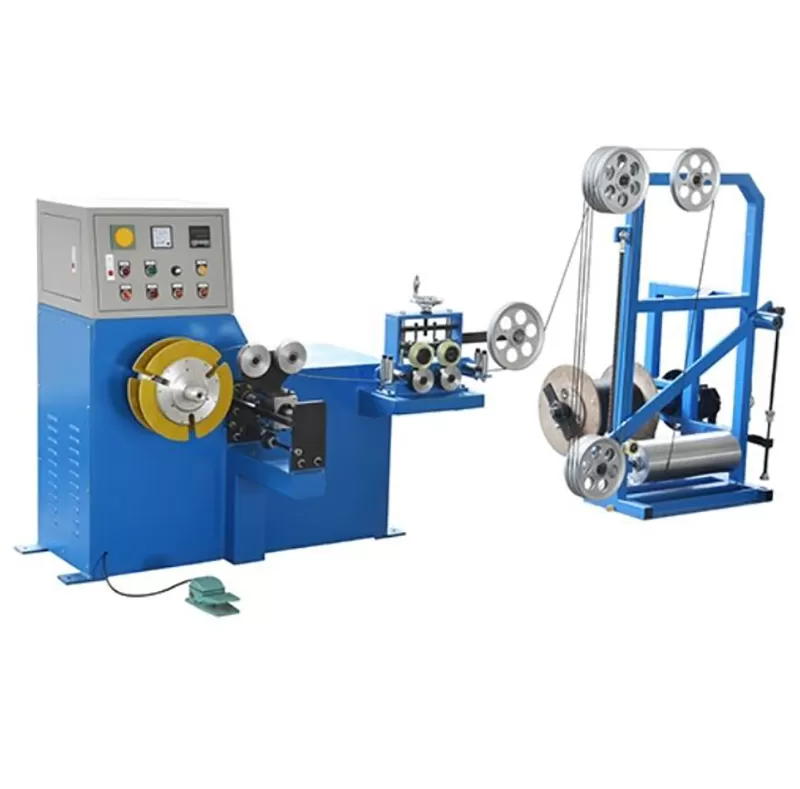

The “touch screen” series cable automatic cutting machine is used for optical fiber jumper (or cable) long meter fiber optic production, cutting, counting,winding and (symbol spray optional). It will cut the cables of different specification and different length and wound into a circular ring. It has a meter counting function and accurate cutting, wrapping integrated. The operation is simple; you can set different length, speed, quantity, etc. Greatly improves production efficiency.
Operation interface | touch screen | |||
The cutting speed(m/s) | ≤1.5 m/s | |||
The cutting length(m) | ≤200m | |||
The maximum weight the cutting machine can load | ≤50kgs | |||
The cable diameter available for cutting | 0.9mm~4.0mm | |||
Could add cable printing function | yes | |||
Power supply (kw/v) | 0.6/220 | |||
Air supply (MPa) | ≥0.5Mpa | |||
