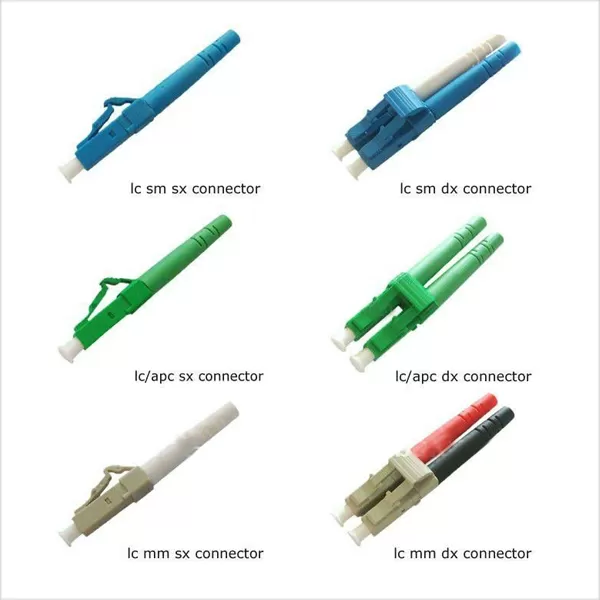

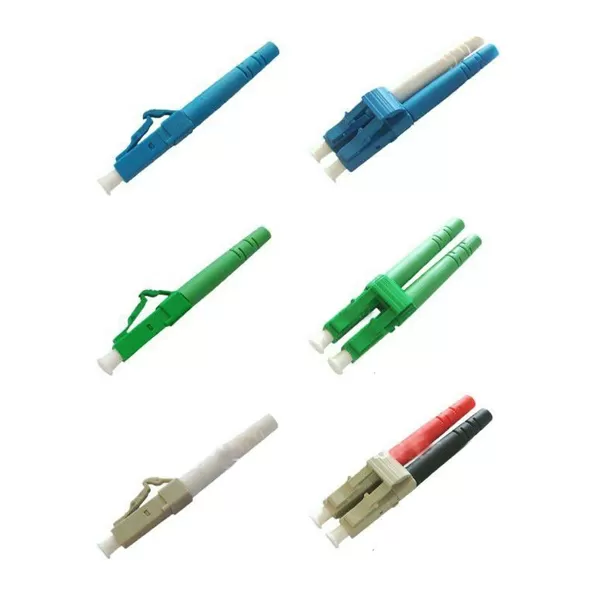

Model Number: LC Connector
Fiber type: SM, MM
Operation temperature: -40~75℃
Insertion Loss: 0.2dB(SM), 0.3dB(MM)
Return loss: PC≥45dB, UPC≥50dB,APC≥60dB
Durability: <0.1dB typical change,500 matings
Application:
1. CATV
2. Telecom Network
3. Metro
4. Multimedia
5. Data processing
6. Premise installation
7. Gigabit Ethernet
Characteristics:
1. Low insertion Loss and Back reflection loss
2. RJ-45 style interface-
3. Polarized and color coded (TIA568-A&ISO 11801)
4. UL-rated plastic housing and boot
5. Compact, pull-proof design
6. Behind-the-Wall style short connector
| SPECIFICATIONS | ||
| Single mode | Multimode | |
| Insertion Loss | <0.10dB | <0.20dB |
| Return Loss | ≥55dB(PC) ≥65dB(APC) | ≥35dB |
| Ferrule material | ceramic | ceramic |
| Durability | <0.2dB typical change,500 matings | |
| Operating Temperature | -40 to +150℃ | -40 to +150℃ |
| Ferrule Hole Sizes | 125.0+1/-0um,Conentricity:≤1um | 127um,Conectricity:≤3um |
| 125.5+1/-0um,Conentricity:≤1um | ||
| 126.0+1/-0um, Conentricity:≤1um | ||
Ordering Information
Fiber Count: 1F, 2F
Boot size: 0.9mm, 2.0mm, 3.0mm
Boot color: Blue,Whitel, Black
