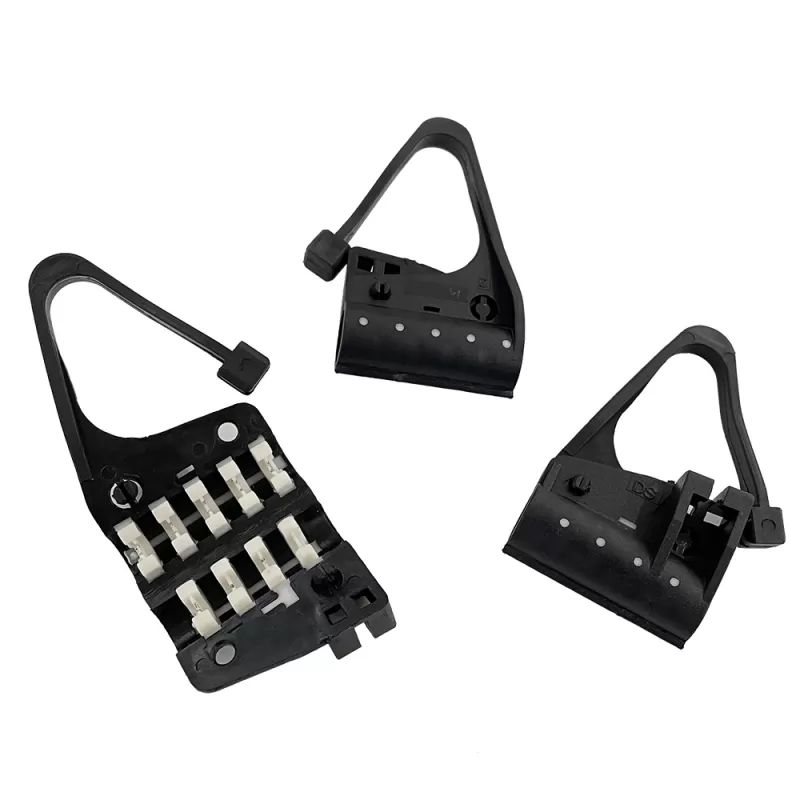

Self Supporting Fiber Optic Drop Cable Suspension Tension Clamp

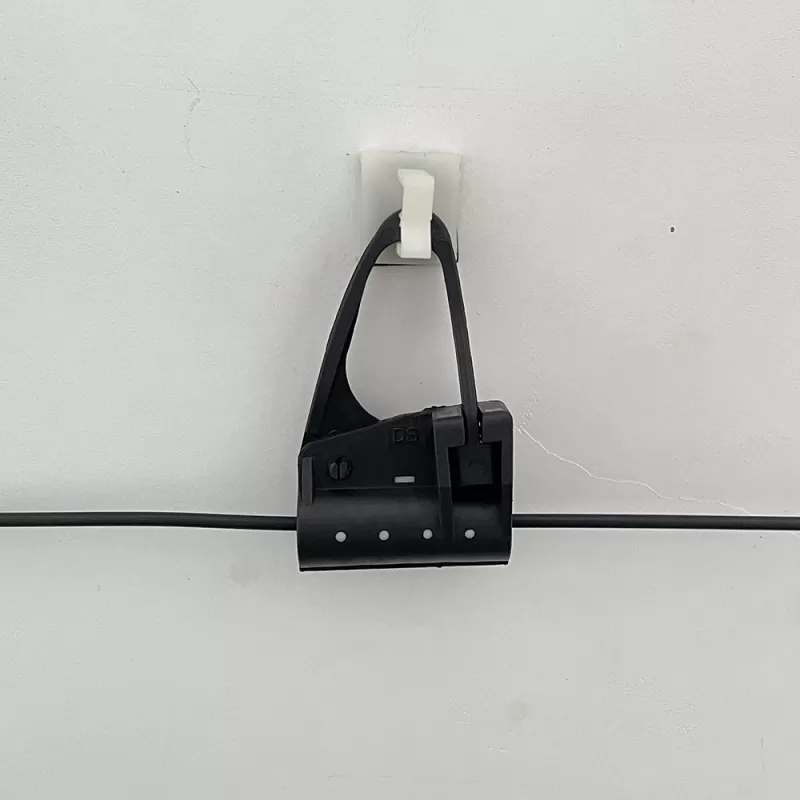

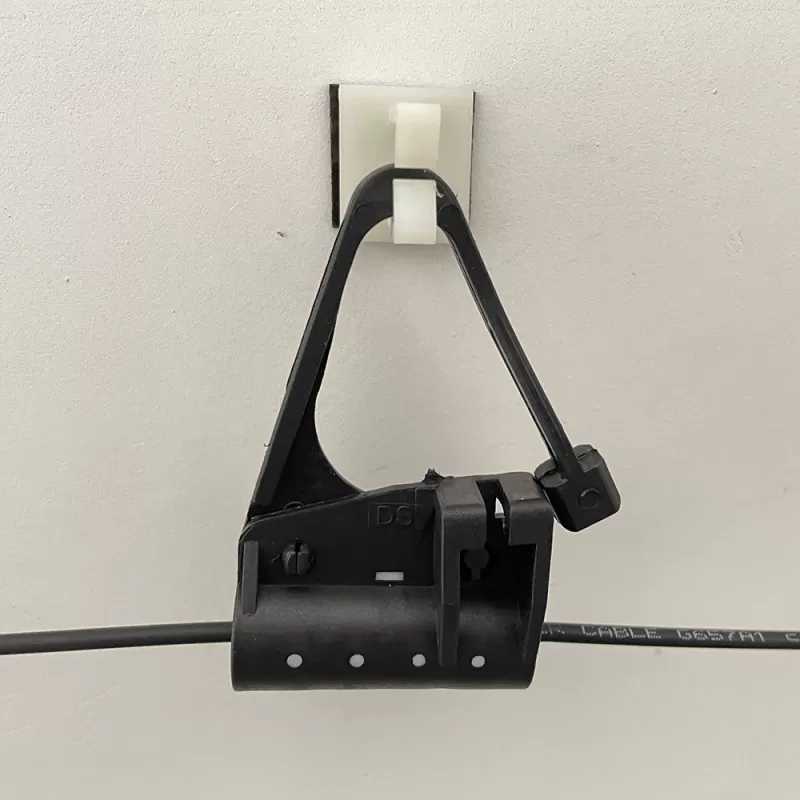

Fiber Cable Tension clamp is designed for hanging round or flat ADSS or drop cable FTTH cables in FTTX structures.FTTH fiber optic plastic compact suspension clamp is designed for fixing optical self-supporting cables with circular cross section and "8" type cables to intermediate overhead lines, with a route rotation angle of up to 20°, for fixing to brackets or hooks on stands or walls.

The design of the anchor clamp allows you to securely fix the fiber optic cable and protect the cable sheath from mechanical damage.

The clamp consists of a UV-resistant polymer body with a releasable ring and a non-removable antifreeze rubber insert.

Features:
 1) The cable hanging clamp can be easily adjusted.

 2) Can be used for optical cables with diameters of 2-4, 4-6, 6-8mm.

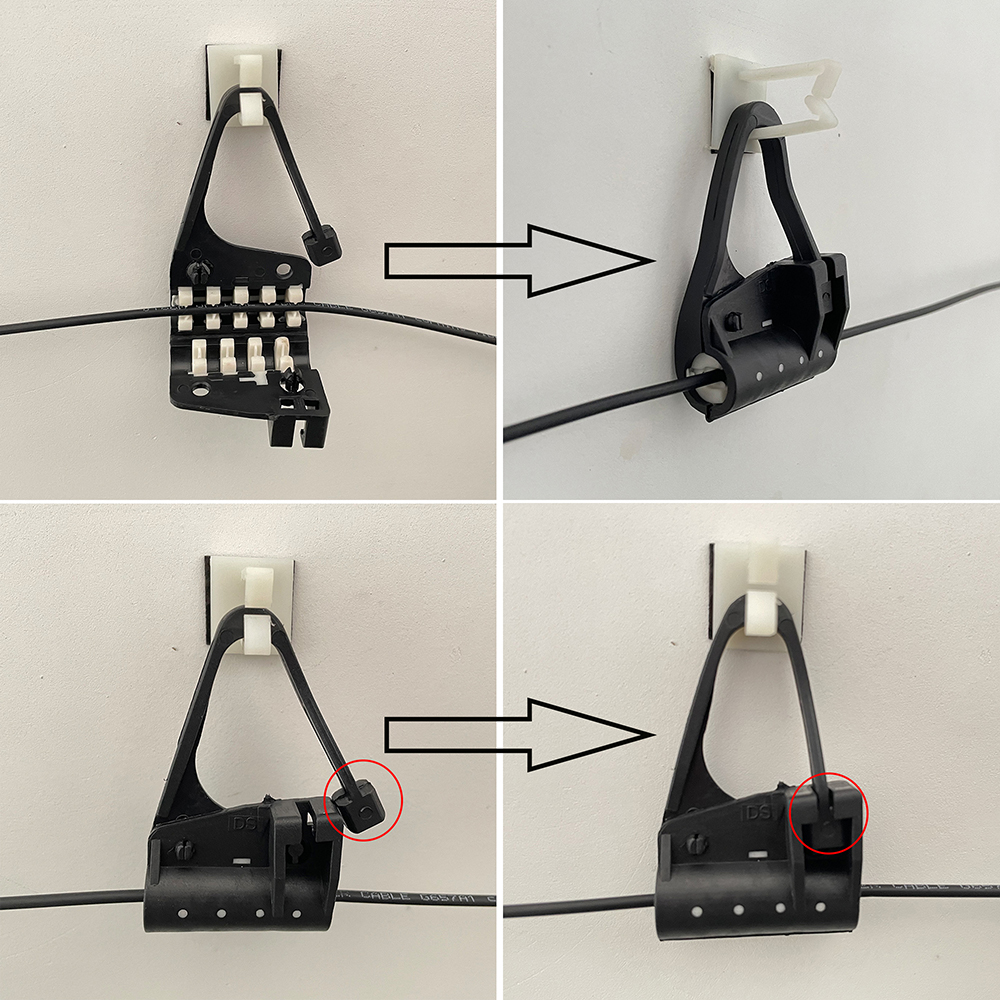

 3) No additional tools are required for installation.

 4) The rubber inner teeth have excellent adhesion to the cable, ensuring a reliable fixation.

 5) The plastic ring can be easily mounted on pole brackets and FTTH hooks.
